Counterbalance Forklift

1.5 Ton
3-Wheel
Electric Forklift

Name: 1.5 Ton 3-Wheel Electric Forklift
Brand: Impetus
SKU: FB15A
Availability: InStock

1500 kg

Capacity

Electric

Power

3000 mm

Lift Height

FB15A

Model

1.5 Ton 3-Wheel Electric Forklift — Impetus FB15A detail view 2

1.5 Ton 3-Wheel Electric Forklift — Impetus FB15A detail view 3

1.5 Ton 3-Wheel Electric Forklift — Impetus FB15A detail view 4

1.5 Ton 3-Wheel Electric Forklift — Impetus FB15A detail view 5

1.5 Ton 3-Wheel Electric Forklift — Impetus FB15A detail view 6

1.5 Ton 3-Wheel Electric Forklift — Impetus FB15A thumbnail 1

1.5 Ton 3-Wheel Electric Forklift — Impetus FB15A thumbnail 2

1.5 Ton 3-Wheel Electric Forklift — Impetus FB15A thumbnail 3

1.5 Ton 3-Wheel Electric Forklift — Impetus FB15A thumbnail 4

1.5 Ton 3-Wheel Electric Forklift

FB15A — CE & ISO certified 3-wheel electric forklift. Compact counterbalance design with exceptional maneuverability, zero-emission AC electric drive, and 3000 mm standard lift height. Ideal for narrow-aisle warehousing and indoor logistics.

person Compact 3-wheel design with 1425 mm turning radius
tune Zero-emission electric drive with AC control
build_circle Hydraulic + electromagnetic service brakes

Ready to upgrade your fleet?

Connect with our engineering sales team to configure the FB15A for your facility's exact requirements.

Model	FB10A	Power	Electric
Operation method	Ride-on	Rated load capacity	1500 kg
Load center distance	500 mm	Front overhang	196 mm
Wheelbase	1130 mm	Service weight (with battery)	2010 kg
Wheel type	Front rubber / Rear polyurethane	Wheel size, rear wheel (drive wheel)	∅230×110
Wheel size, front wheel	∅305×127	Wheel tread, front	752 mm
Mast tilt range, front/rear	2/4°	Mast closed height	2035 mm
Free lift height	0 mm	Lift height	3000 mm
Maximum mast height when lifted	3927 mm	Overhead guard height	1930 mm
Height with mast retracted	35 mm	Overall length (with forks)	2685 mm
Length to fork face (excluding forks)	1575 mm	Overall width	880 mm
Fork size	35/100/1070 mm	Fork spread adjustment	210-580 mm
Min. ground clearance (wheelbase center)	60 mm	Aisle width (pallet 1000x1200)	2931 mm
Min. turning radius	1425 mm	Travel speed (unloaded/loaded)	5.2/5 km/h
Lifting speed (unloaded/loaded)	0.135/0.090 m/s	Lowering speed (unloaded/loaded)	0.085/0.120 m/s
Max. gradability (unloaded/loaded)	6/4%	Service brake	Hydraulic + Electromagnetic
Drive motor power	2.5 kW	Lift motor power	3.0 kW
Battery voltage/capacity	24V/300Ah	Charger	24V/40A
Drive control method	AC	Noise level (EN12053)	75 dB(A)

Model	FB10A
Power	Electric
Operation method	Ride-on
Rated load capacity	1500 kg
Load center distance	500 mm
Front overhang	196 mm
Wheelbase	1130 mm
Service weight (with battery)	2010 kg
Wheel type	Front rubber / Rear polyurethane
Wheel size, rear wheel (drive wheel)	∅230×110
Wheel size, front wheel	∅305×127
Wheel tread, front	752 mm
Mast tilt range, front/rear	2/4°
Mast closed height	2035 mm
Free lift height	0 mm
Lift height	3000 mm
Maximum mast height when lifted	3927 mm
Overhead guard height	1930 mm
Height with mast retracted	35 mm
Overall length (with forks)	2685 mm
Length to fork face (excluding forks)	1575 mm
Overall width	880 mm
Fork size	35/100/1070 mm
Fork spread adjustment	210-580 mm
Min. ground clearance (wheelbase center)	60 mm
Aisle width (pallet 1000x1200)	2931 mm
Min. turning radius	1425 mm
Travel speed (unloaded/loaded)	5.2/5 km/h
Lifting speed (unloaded/loaded)	0.135/0.090 m/s
Lowering speed (unloaded/loaded)	0.085/0.120 m/s
Max. gradability (unloaded/loaded)	6/4%
Service brake	Hydraulic + Electromagnetic
Drive motor power	2.5 kW
Lift motor power	3.0 kW
Battery voltage/capacity	24V/300Ah
Charger	24V/40A
Drive control method	AC
Noise level (EN12053)	75 dB(A)

1. Compact 3-Wheel Design for Maximum Maneuverability

The 3-wheel configuration with articulated rear wheel delivers exceptional maneuverability, a tight turning radius of just 1425 mm, and precise positioning — ideal for narrow aisles, trailers, and confined warehouse spaces.

2. Zero-Emission Electric Operation

Powered by a maintenance-free 24V battery with AC drive control, this forklift produces zero exhaust emissions and minimal noise, making it perfect for indoor warehouses, food processing, and environmentally regulated facilities.

3. Comfortable & Productive Operation

Ride-on operator platform, ergonomic controls, and excellent visibility through the open mast design keep operators comfortable and productive throughout long shifts.

4. Low Maintenance & Reduced TCO

Electric drive eliminates oil changes, filters, and exhaust system maintenance. Hydraulic + electromagnetic service brakes and AC motors deliver reliable, low-cost operation over the equipment lifespan.

Our Facility

Impetus Factory & Global Installations

View Full Tour arrow_forward

Impetus 30,000m² forklift manufacturing campus — exterior view

Global Manufacturing Campus

30,000 m² state-of-the-art facility

Intelligent Assembly

Industry 4.0 production lines

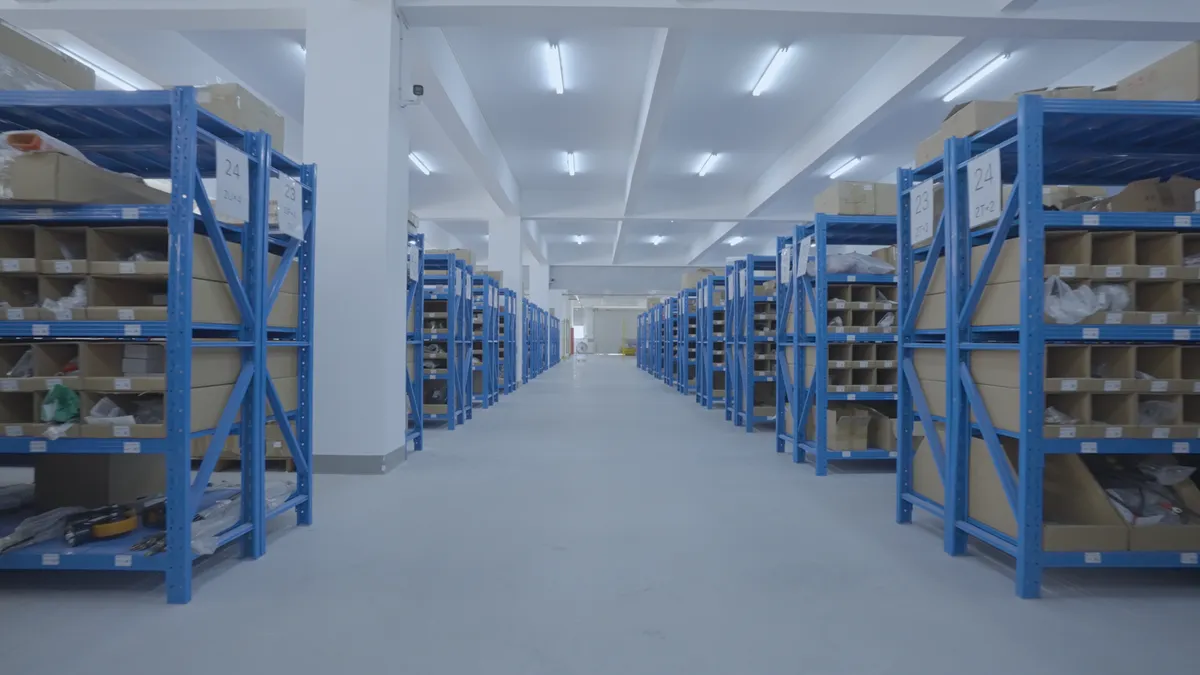

Impetus ready-to-ship forklift inventory warehouse — fast global delivery
