Counterbalance Forklift

35 Ton
Heavy Forklift

Name: 35 Ton Heavy Forklift
Brand: Impetus
SKU: FD350
Availability: InStock

35000 kg

Capacity

Diesel

Power

4000 mm

Lift Height

FD350

Model

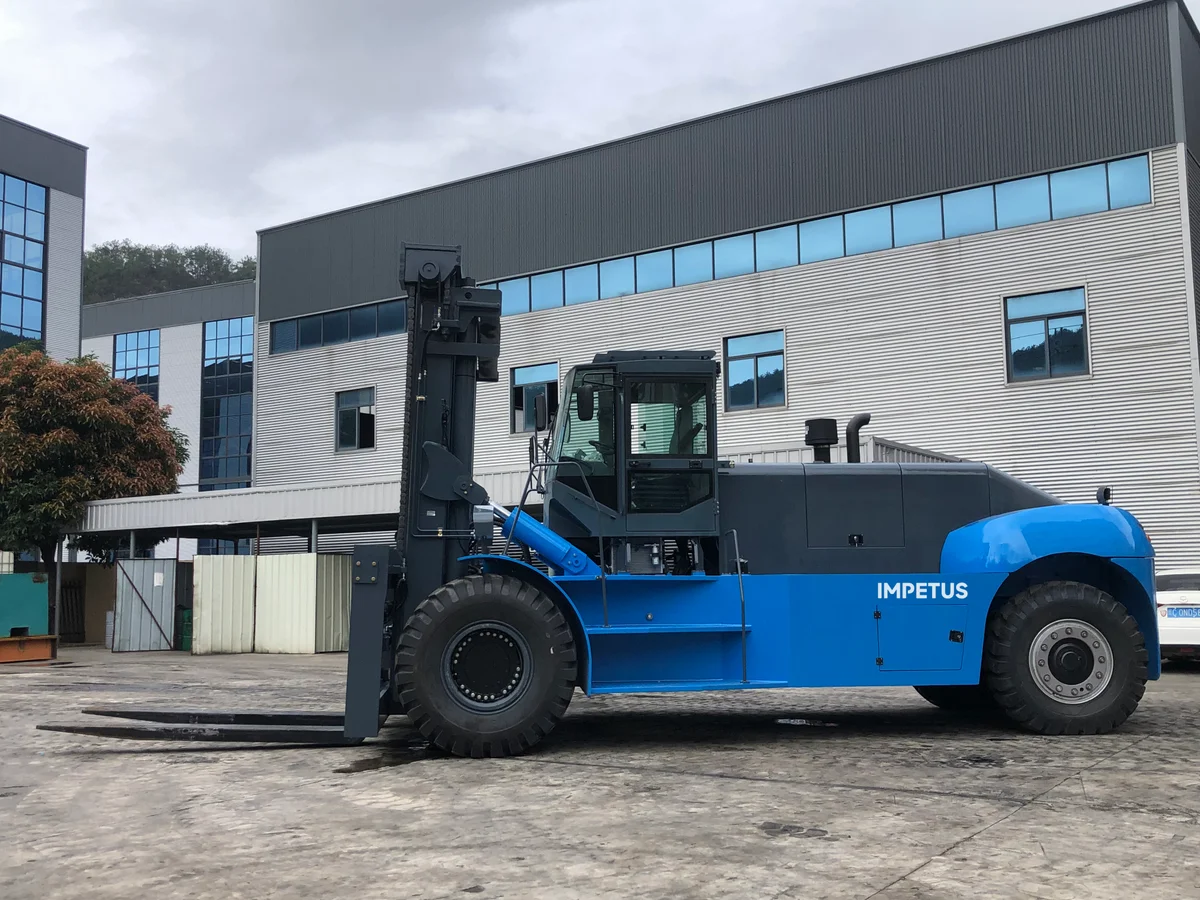

35 Ton Heavy Forklift — Impetus FD350 detail view 2

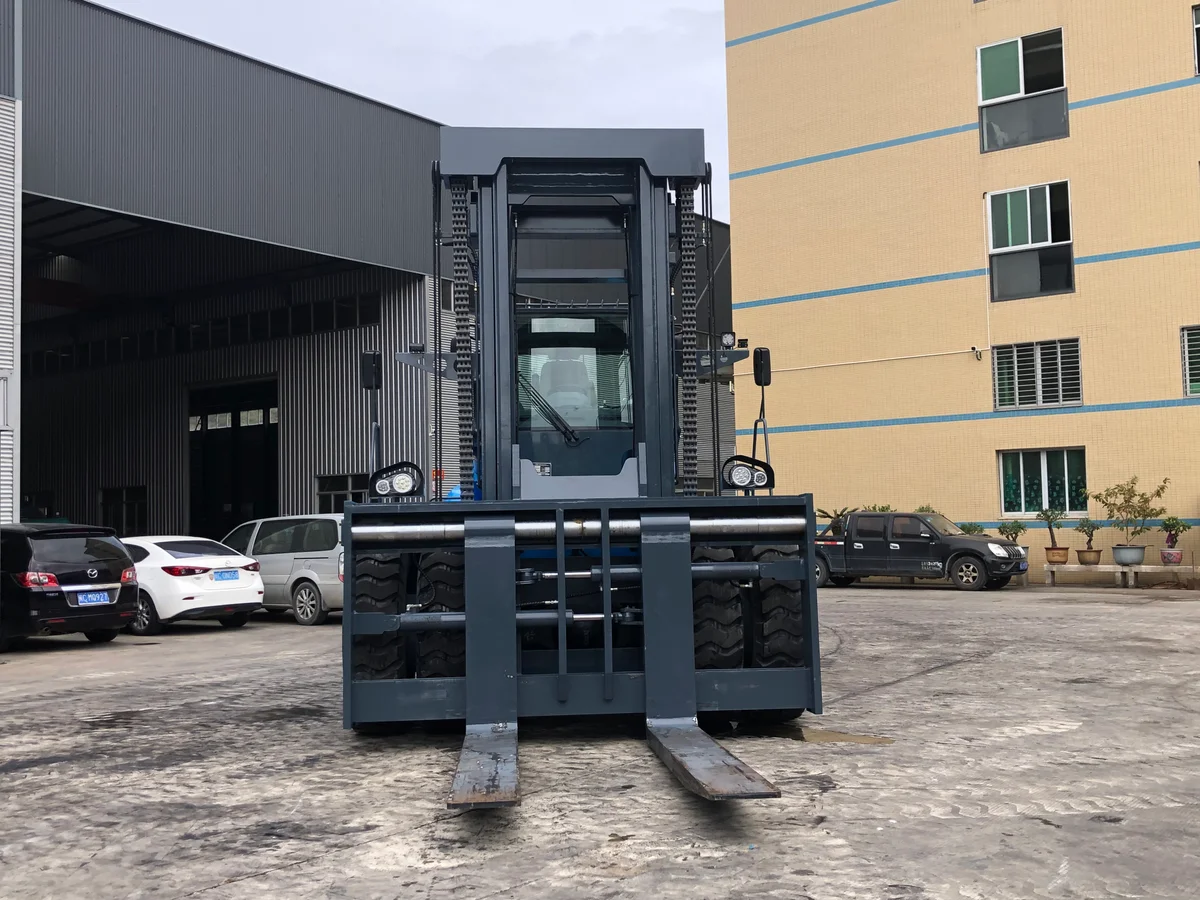

35 Ton Heavy Forklift — Impetus FD350 detail view 3

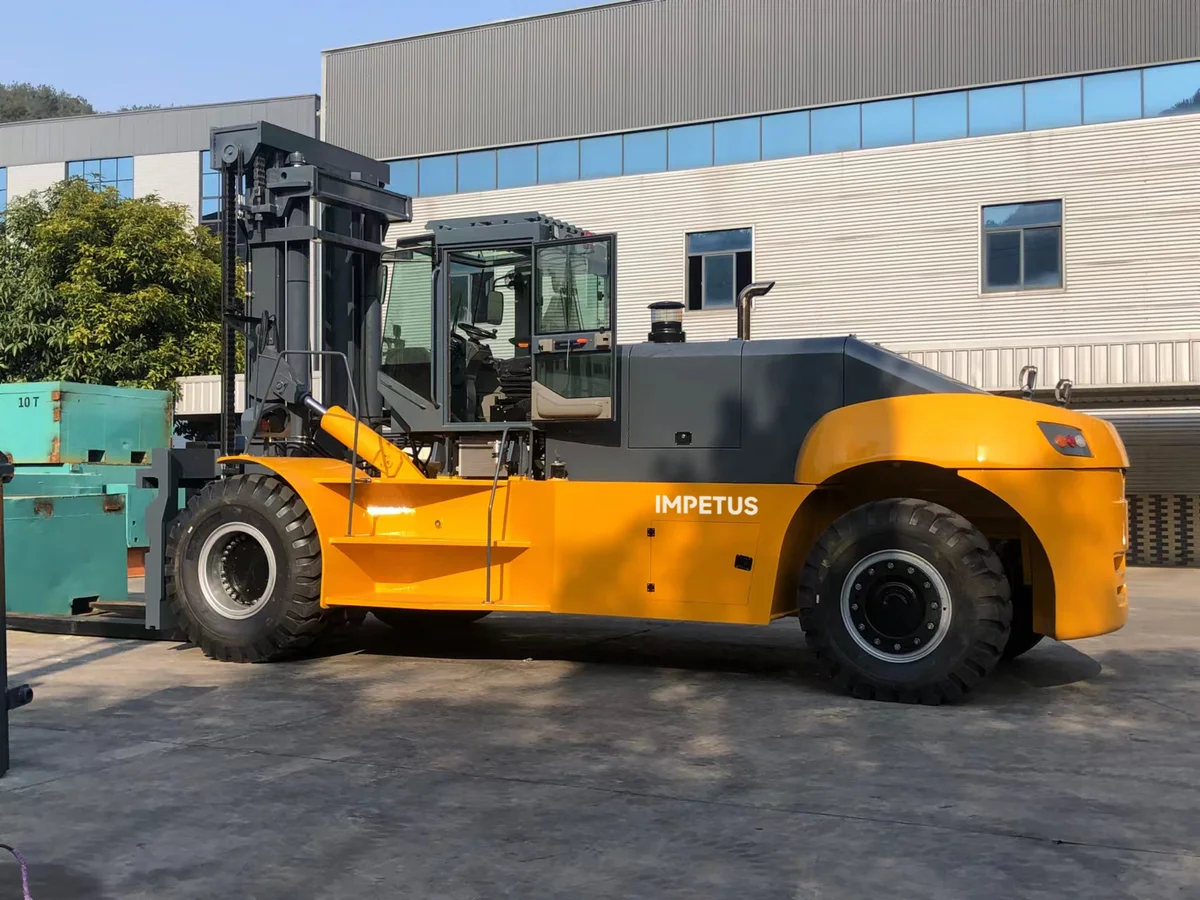

35 Ton Heavy Forklift — Impetus FD350 detail view 4

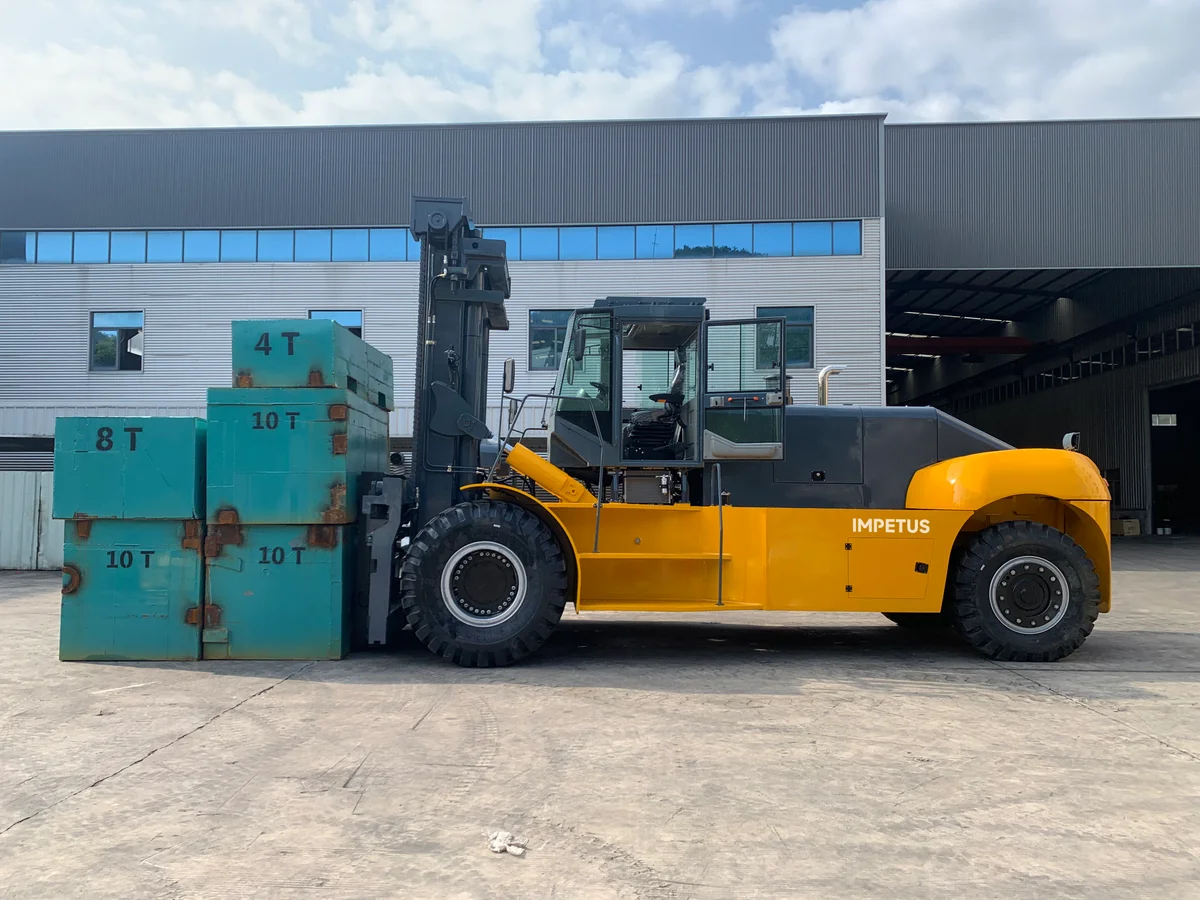

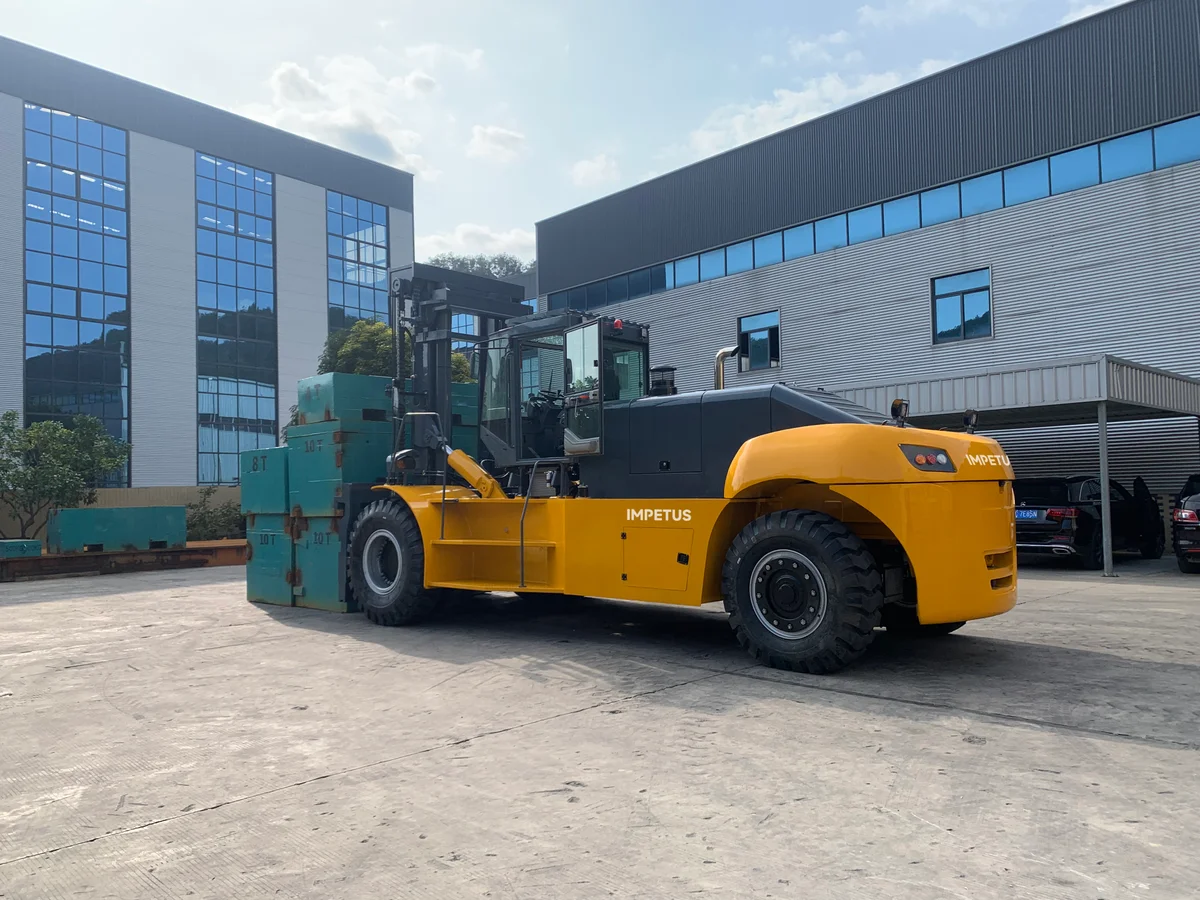

35 Ton Heavy Forklift — Impetus FD350 detail view 5

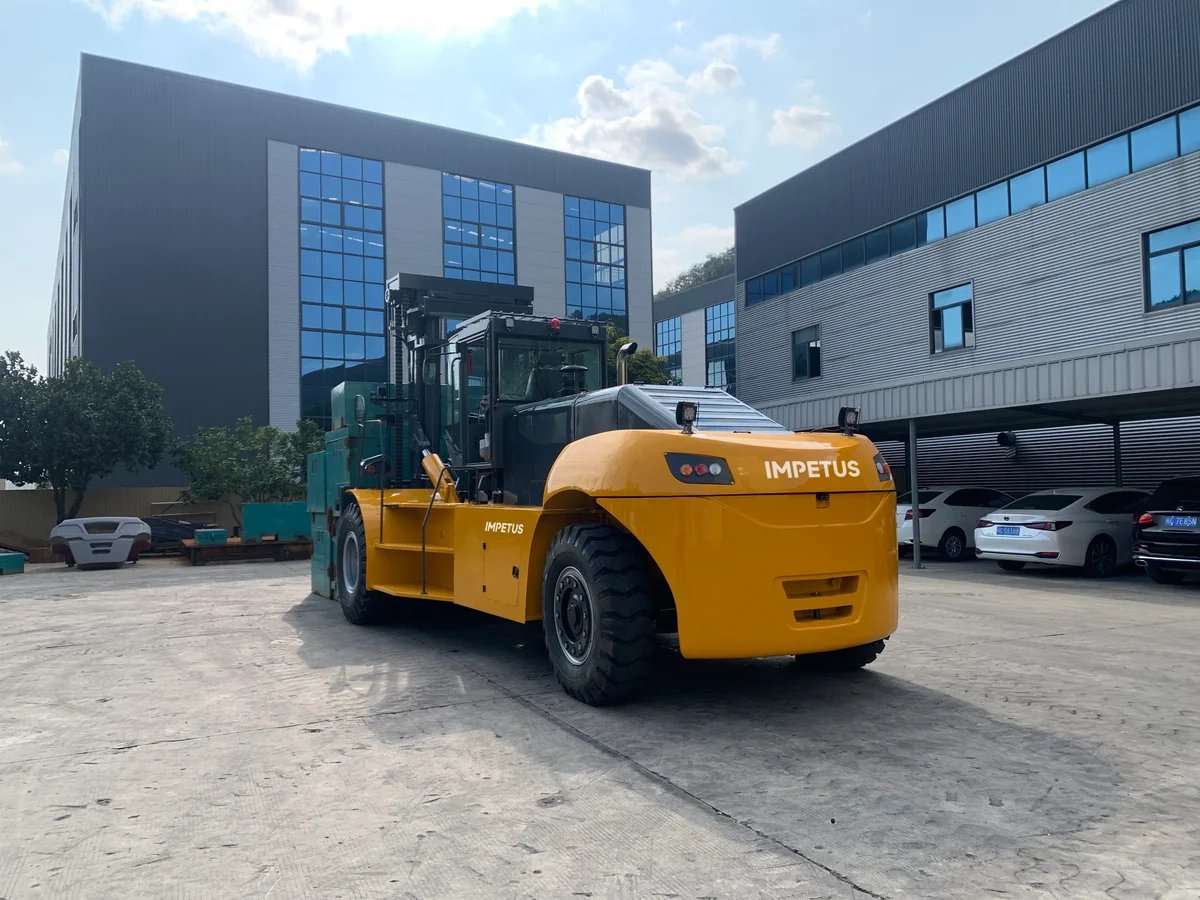

35 Ton Heavy Forklift — Impetus FD350 detail view 6

35 Ton Heavy Forklift — Impetus FD350 thumbnail 1

35 Ton Heavy Forklift — Impetus FD350 thumbnail 2

35 Ton Heavy Forklift — Impetus FD350 thumbnail 3

35 Ton Heavy Forklift — Impetus FD350 thumbnail 4

35 Ton Heavy Forklift

FD350 — CE & ISO certified Heavy-Duty forklift. Engineered for extreme loads in ports, steel mills, and heavy manufacturing where uptime is non-negotiable.

fitness_center Massive load capacity for containers and steel
construction Reinforced frame with heavy-duty drive axle
airline_seat_recline_extra High-visibility cabin for precision handling

Ready to upgrade your fleet?

Connect with our engineering sales team to configure the FD350 for your facility's exact requirements.

Rated Load	35000 kg	Load center distance	1220 mm
Wheelbase	5000 mm	Weight	42000 kg
Tire Specs: Front	16.00-25	Tire Specs: Rear	14.00-24
Tires Qty, Front/Rear (Drive wheels)	4/2	Wheel Tread: Front	2430 mm
Wheel Tread: Rear	2300 mm	Mast/Carriage Tilt Angle (Front/Rear)	6/12
Mast Height (Fork Lowering)	4320 mm	Mast lifting height	4000 mm
Max. Height	6290 mm	Height to Head Guard (Height to Cab)	3560 mm
Overall Length (with Fork)	9850 mm	Overall length (with forks)	7450 mm
Overall width	3400 mm	Fork Dimension	2400320120
Fork Carriage Width	3150 mm	Mast Min. Ground (with Load)	300 mm
Wheelbase Center Min. Ground (with Load)	400 mm	Min. turning radius	7650 mm
Travel speed (with Load/Without Load)	25/28	Front overhang	1080 mm
Rear overhang	1220 mm	Max. lifting speed (with Load/Without Load)	260/280
Traction	200	Gradeability (with Load/Without Load)	20/20%
Driving brake	Wet Brake	Engine Brand/Model	WeiChai Engine
Transmission Gears (Front/Rear)	2/1

Rated Load	35000 kg
Load center distance	1220 mm
Wheelbase	5000 mm
Weight	42000 kg
Tire Specs: Front	16.00-25
Tire Specs: Rear	14.00-24
Tires Qty, Front/Rear (Drive wheels)	4/2
Wheel Tread: Front	2430 mm
Wheel Tread: Rear	2300 mm
Mast/Carriage Tilt Angle (Front/Rear)	6/12
Mast Height (Fork Lowering)	4320 mm
Mast lifting height	4000 mm
Max. Height	6290 mm
Height to Head Guard (Height to Cab)	3560 mm
Overall Length (with Fork)	9850 mm
Overall length (with forks)	7450 mm
Overall width	3400 mm
Fork Dimension	2400320120
Fork Carriage Width	3150 mm
Mast Min. Ground (with Load)	300 mm
Wheelbase Center Min. Ground (with Load)	400 mm
Min. turning radius	7650 mm
Travel speed (with Load/Without Load)	25/28
Front overhang	1080 mm
Rear overhang	1220 mm
Max. lifting speed (with Load/Without Load)	260/280
Traction	200
Gradeability (with Load/Without Load)	20/20%
Driving brake	Wet Brake
Engine Brand/Model	WeiChai Engine
Transmission Gears (Front/Rear)	2/1

1. Extreme Load Capacity for Heavy Industry

Designed to handle loads from 10 to 42 tons, our heavy-duty forklifts are the backbone of ports, steel mills, precast concrete plants, and heavy manufacturing. Every structural component is engineered with generous safety margins for demanding duty cycles.

2. Reinforced Structural Integrity

Heavy-gauge steel frame, reinforced mast channels, oversized drive axles, and industrial-grade hydraulics ensure structural integrity under extreme loads. Designed to exceed ANSI/ITSDF B56.1 stability requirements with significant safety margins.

3. Operator-First Cabin Design

Spacious ROPS/FOPS-certified cabin with panoramic visibility, adjustable suspension seat, climate control, and intuitive control layout. Reduces operator fatigue during long shifts while maximizing precision for critical lift operations.

4. Global Service & Rapid Parts Supply

Backed by our worldwide dealer network with critical spare parts stocked in regional warehouses. 24/7 technical support and express shipping for emergency component replacement to minimize operational downtime.
