Counterbalance Forklift

25 Ton
Heavy Forklift

Name: 25 Ton Heavy Forklift
Brand: Impetus
SKU: FD250
Availability: InStock

25000 kg

Capacity

Diesel

Power

4000 mm

Lift Height

FD250

Model

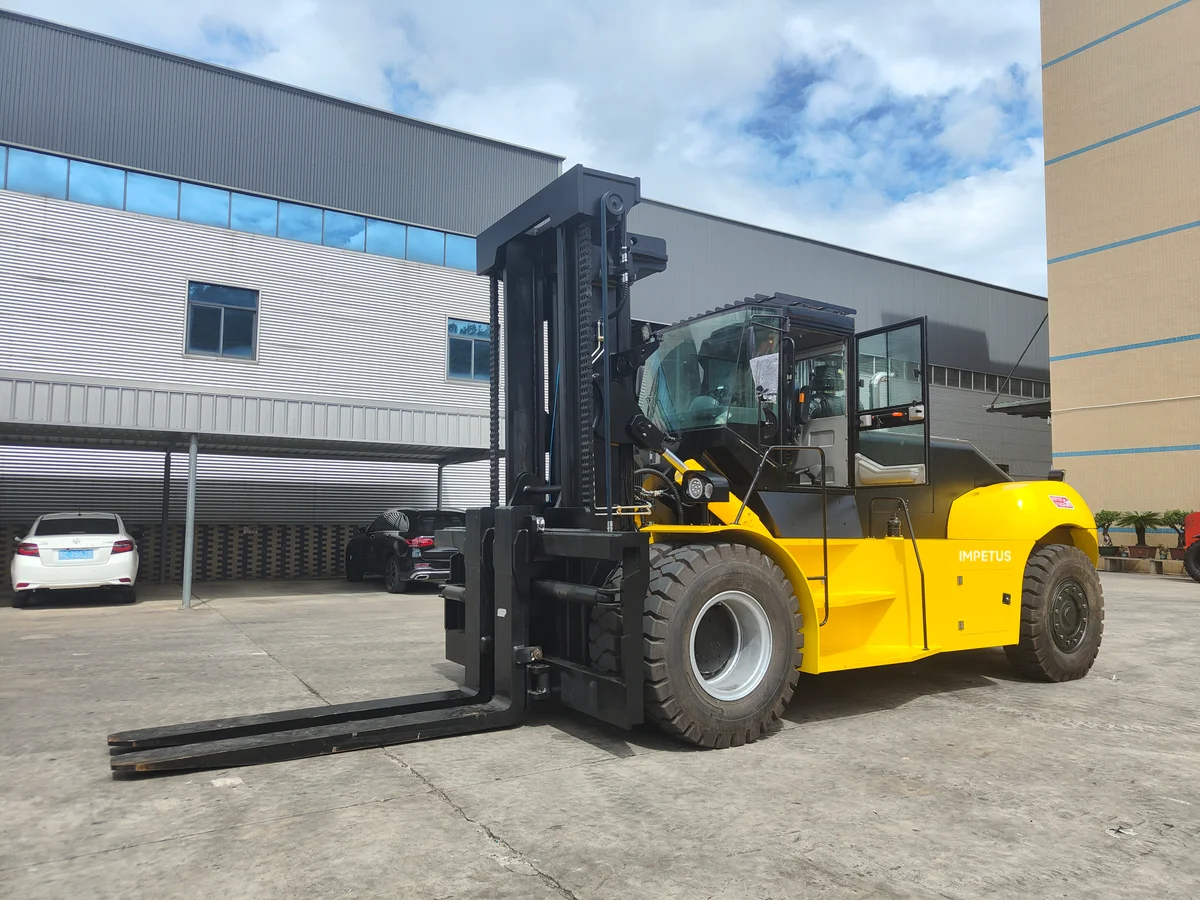

25 Ton Heavy Forklift — Impetus FD250 detail view 2

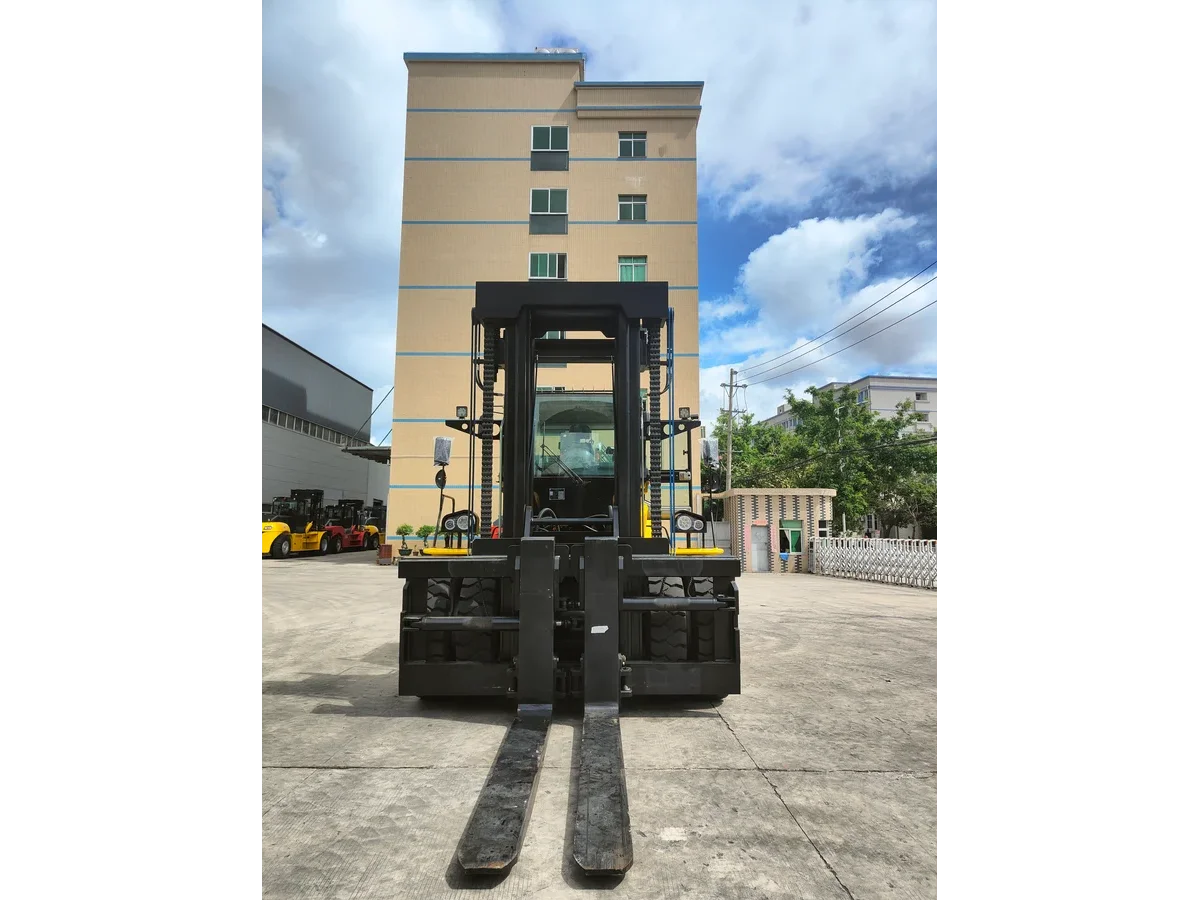

25 Ton Heavy Forklift — Impetus FD250 detail view 3

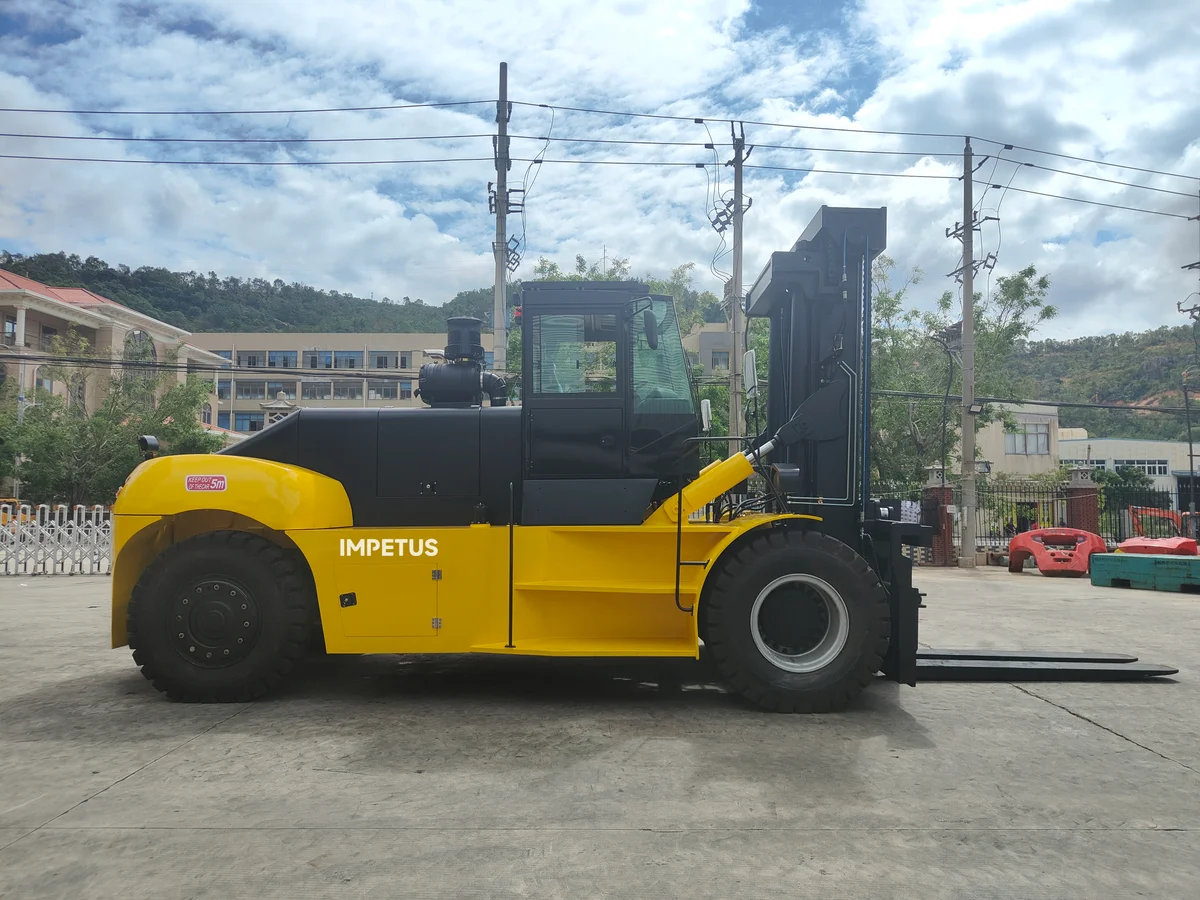

25 Ton Heavy Forklift — Impetus FD250 detail view 4

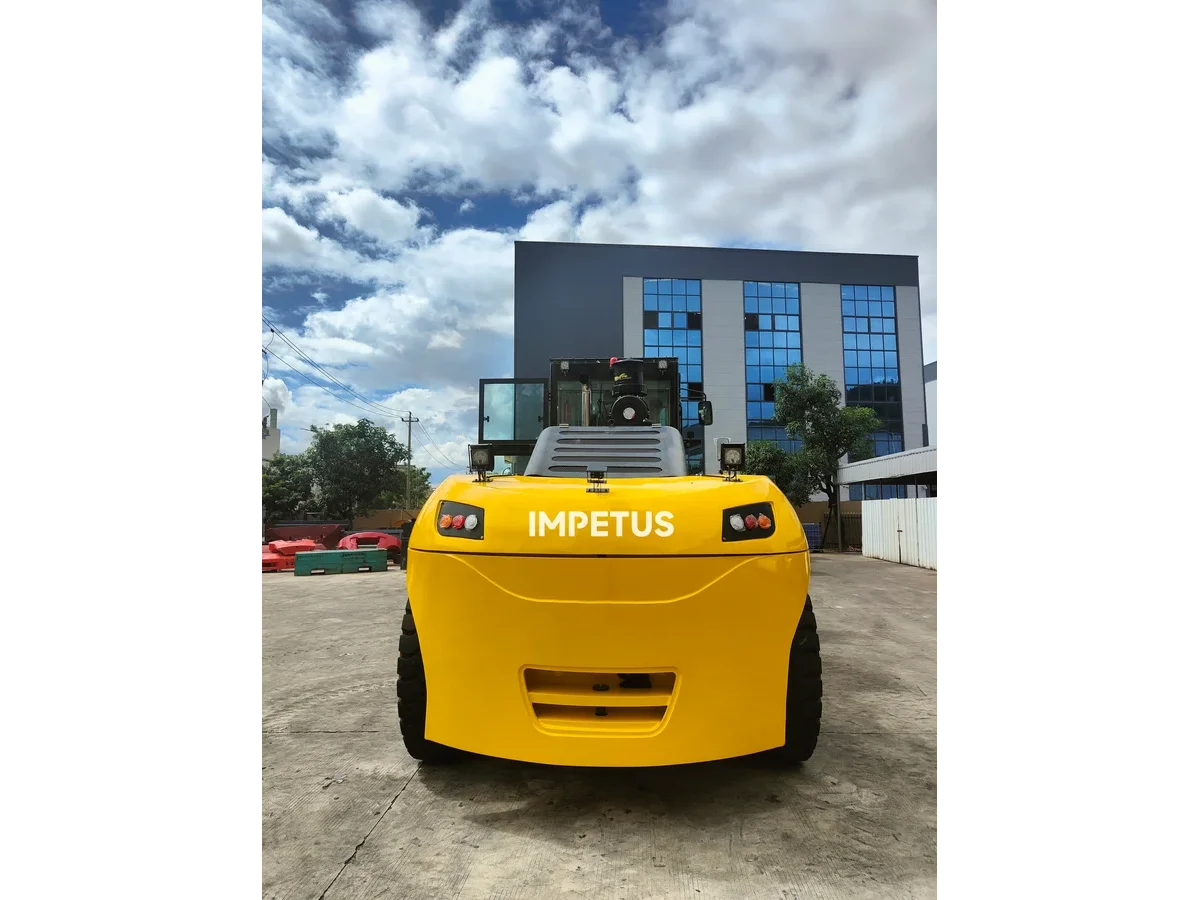

25 Ton Heavy Forklift — Impetus FD250 detail view 5

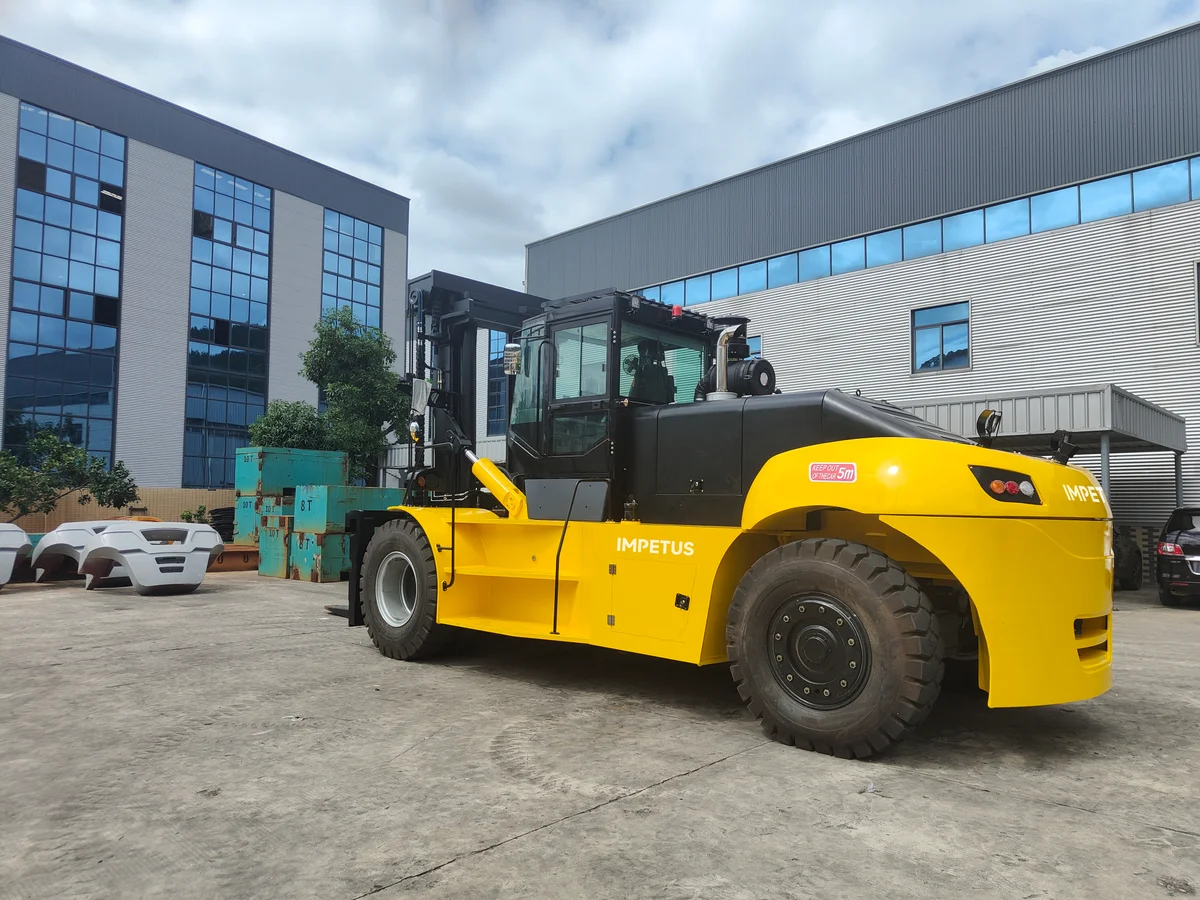

25 Ton Heavy Forklift — Impetus FD250 detail view 6

25 Ton Heavy Forklift — Impetus FD250 thumbnail 1

25 Ton Heavy Forklift — Impetus FD250 thumbnail 2

25 Ton Heavy Forklift — Impetus FD250 thumbnail 3

25 Ton Heavy Forklift — Impetus FD250 thumbnail 4

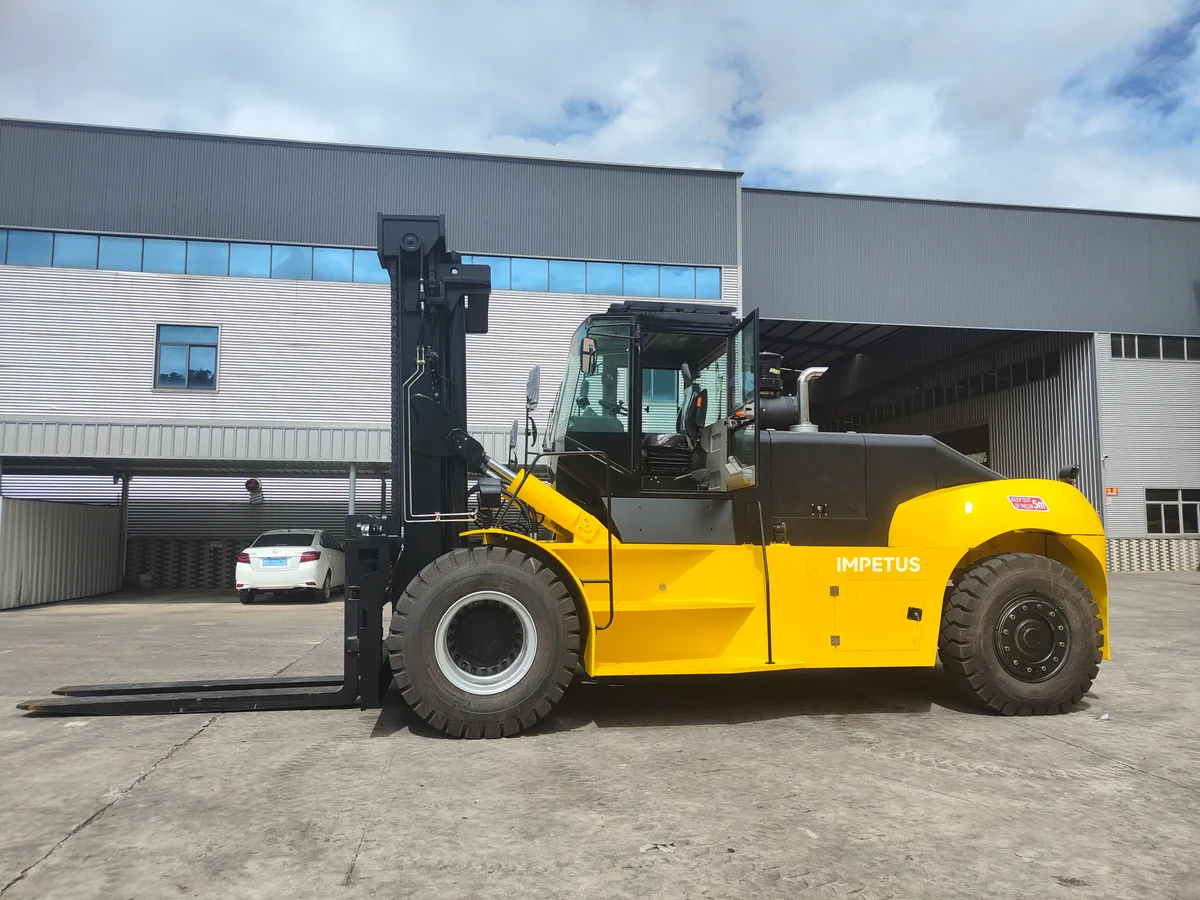

25 Ton Heavy Forklift

FD250 — CE & ISO certified Heavy-Duty forklift. Engineered for extreme loads in ports, steel mills, and heavy manufacturing where uptime is non-negotiable.

fitness_center Massive load capacity for containers and steel
construction Reinforced frame with heavy-duty drive axle
airline_seat_recline_extra High-visibility cabin for precision handling

Ready to upgrade your fleet?

Connect with our engineering sales team to configure the FD250 for your facility's exact requirements.

Rated Load	25000 kg	Load center distance	1220 mm
Wheelbase	4400 mm	Weight	35500 kg
Tire Specs: Front	14.00-24	Tire Specs: Rear	14.00-24
Tires Qty, Front/Rear (Drive wheels)	4/2	Wheel Tread: Front	2220 mm
Wheel Tread: Rear	2300 mm	Mast/Carriage Tilt Angle (Front/Rear)	6/12
Mast Height (Fork Lowering)	3970 mm	Mast lifting height	4000 mm
Max. Height	5940 mm	Height to Head Guard (Height to Cab)	3420 mm
Overall Length (with Fork)	9080 mm	Overall length (with forks)	6680 mm
Overall width	3070 mm	Fork Dimension	2400285110
Fork Carriage Width	3000 mm	Mast Min. Ground (with Load)	280 mm
Wheelbase Center Min. Ground (with Load)	320 mm	Min. turning radius	6480 mm
Travel speed (with Load/Without Load)	25/30	Front overhang	1010 mm
Rear overhang	1220 mm	Max. lifting speed (with Load/Without Load)	260/270
Traction	160	Gradeability (with Load/Without Load)	20/22%
Driving brake	Hydraulic clamp disc brake	Engine Brand/Model	WeiChai Engine
Transmission Gears (Front/Rear)	2/1

Rated Load	25000 kg
Load center distance	1220 mm
Wheelbase	4400 mm
Weight	35500 kg
Tire Specs: Front	14.00-24
Tire Specs: Rear	14.00-24
Tires Qty, Front/Rear (Drive wheels)	4/2
Wheel Tread: Front	2220 mm
Wheel Tread: Rear	2300 mm
Mast/Carriage Tilt Angle (Front/Rear)	6/12
Mast Height (Fork Lowering)	3970 mm
Mast lifting height	4000 mm
Max. Height	5940 mm
Height to Head Guard (Height to Cab)	3420 mm
Overall Length (with Fork)	9080 mm
Overall length (with forks)	6680 mm
Overall width	3070 mm
Fork Dimension	2400285110
Fork Carriage Width	3000 mm
Mast Min. Ground (with Load)	280 mm
Wheelbase Center Min. Ground (with Load)	320 mm
Min. turning radius	6480 mm
Travel speed (with Load/Without Load)	25/30
Front overhang	1010 mm
Rear overhang	1220 mm
Max. lifting speed (with Load/Without Load)	260/270
Traction	160
Gradeability (with Load/Without Load)	20/22%
Driving brake	Hydraulic clamp disc brake
Engine Brand/Model	WeiChai Engine
Transmission Gears (Front/Rear)	2/1

1. Extreme Load Capacity for Heavy Industry

Designed to handle loads from 10 to 42 tons, our heavy-duty forklifts are the backbone of ports, steel mills, precast concrete plants, and heavy manufacturing. Every structural component is engineered with generous safety margins for demanding duty cycles.

2. Reinforced Structural Integrity

Heavy-gauge steel frame, reinforced mast channels, oversized drive axles, and industrial-grade hydraulics ensure structural integrity under extreme loads. Designed to exceed ANSI/ITSDF B56.1 stability requirements with significant safety margins.

3. Operator-First Cabin Design

Spacious ROPS/FOPS-certified cabin with panoramic visibility, adjustable suspension seat, climate control, and intuitive control layout. Reduces operator fatigue during long shifts while maximizing precision for critical lift operations.

4. Global Service & Rapid Parts Supply

Backed by our worldwide dealer network with critical spare parts stocked in regional warehouses. 24/7 technical support and express shipping for emergency component replacement to minimize operational downtime.
