Counterbalance Forklift

10 Ton
Heavy Forklift

Name: 10 Ton Heavy Forklift
Brand: Impetus
SKU: FD100
Availability: InStock

10000 kg

Capacity

Diesel

Power

3000 mm

Lift Height

FD100

Model

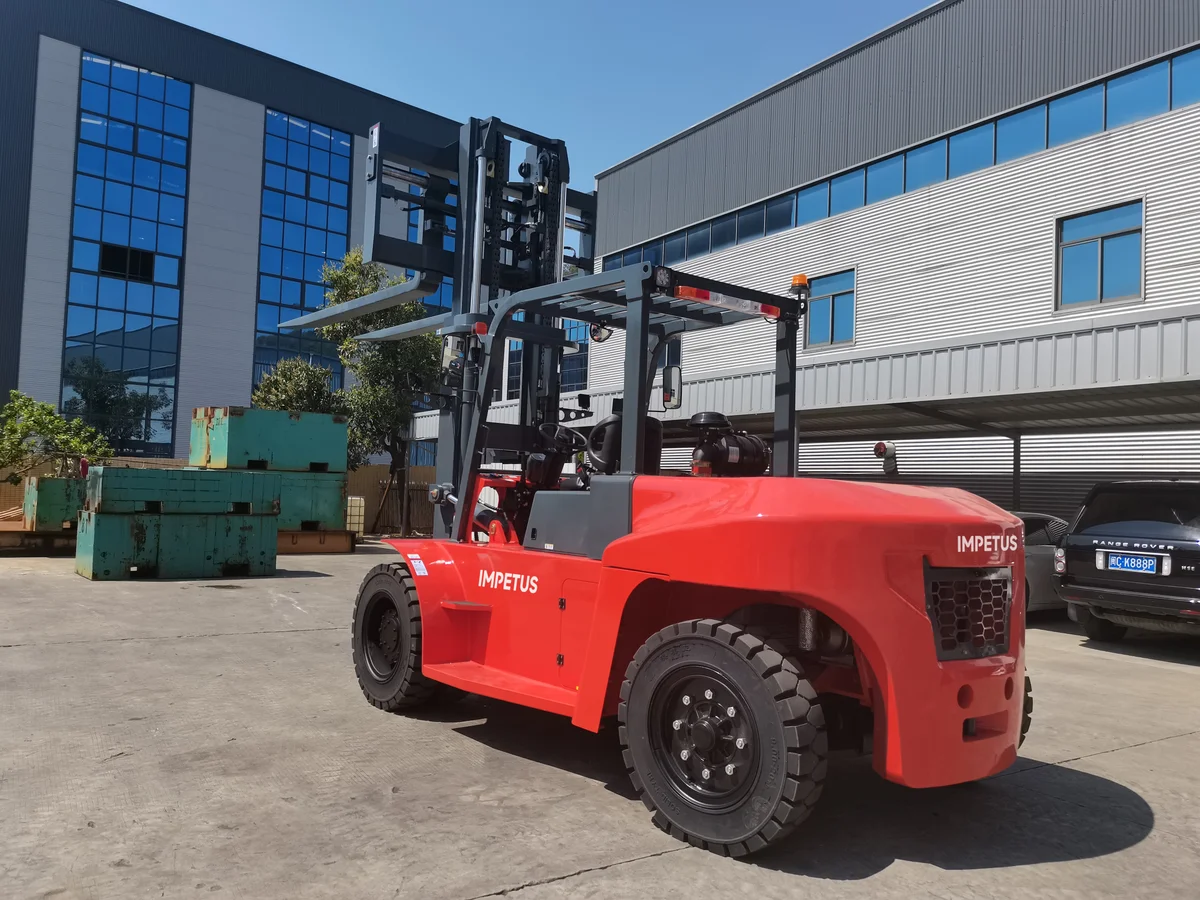

10 Ton Heavy Forklift — Impetus FD100 detail view 2

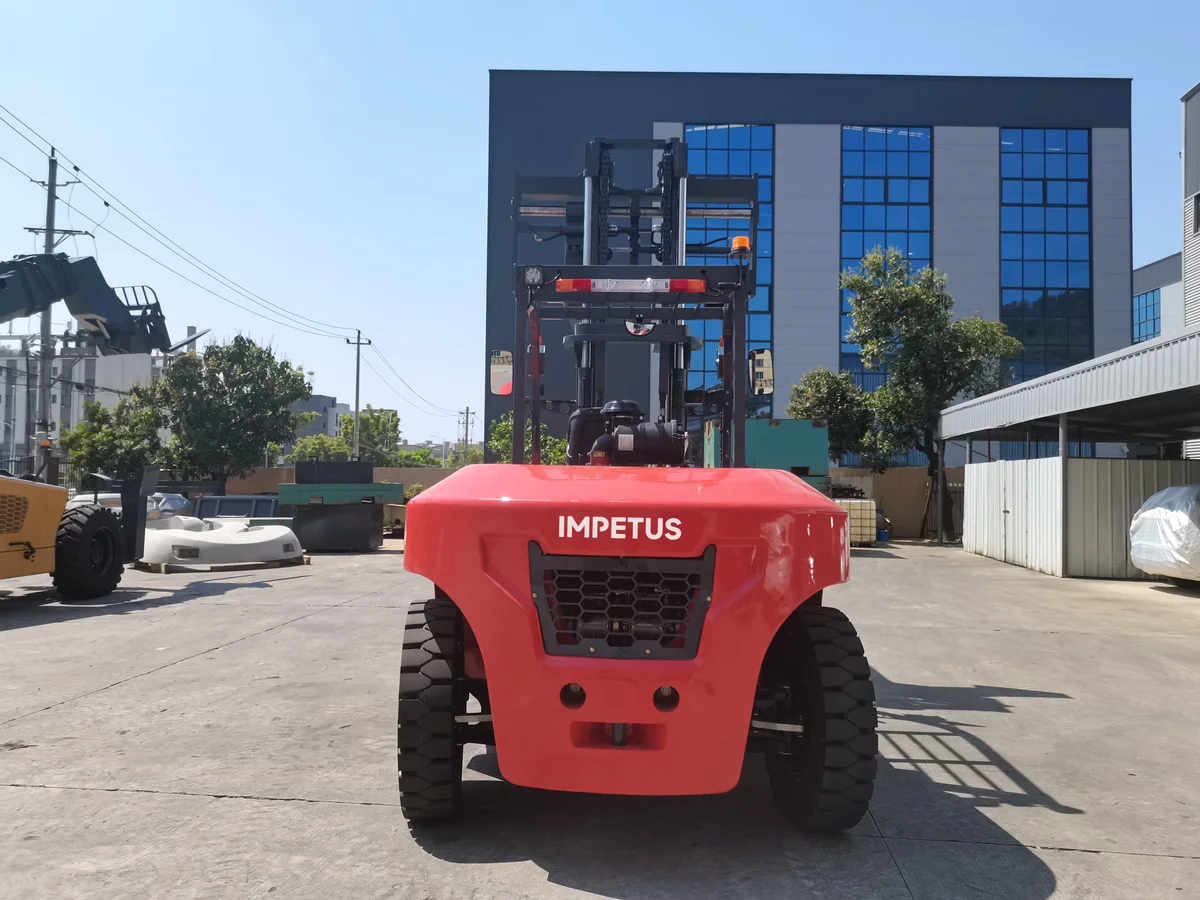

10 Ton Heavy Forklift — Impetus FD100 detail view 3

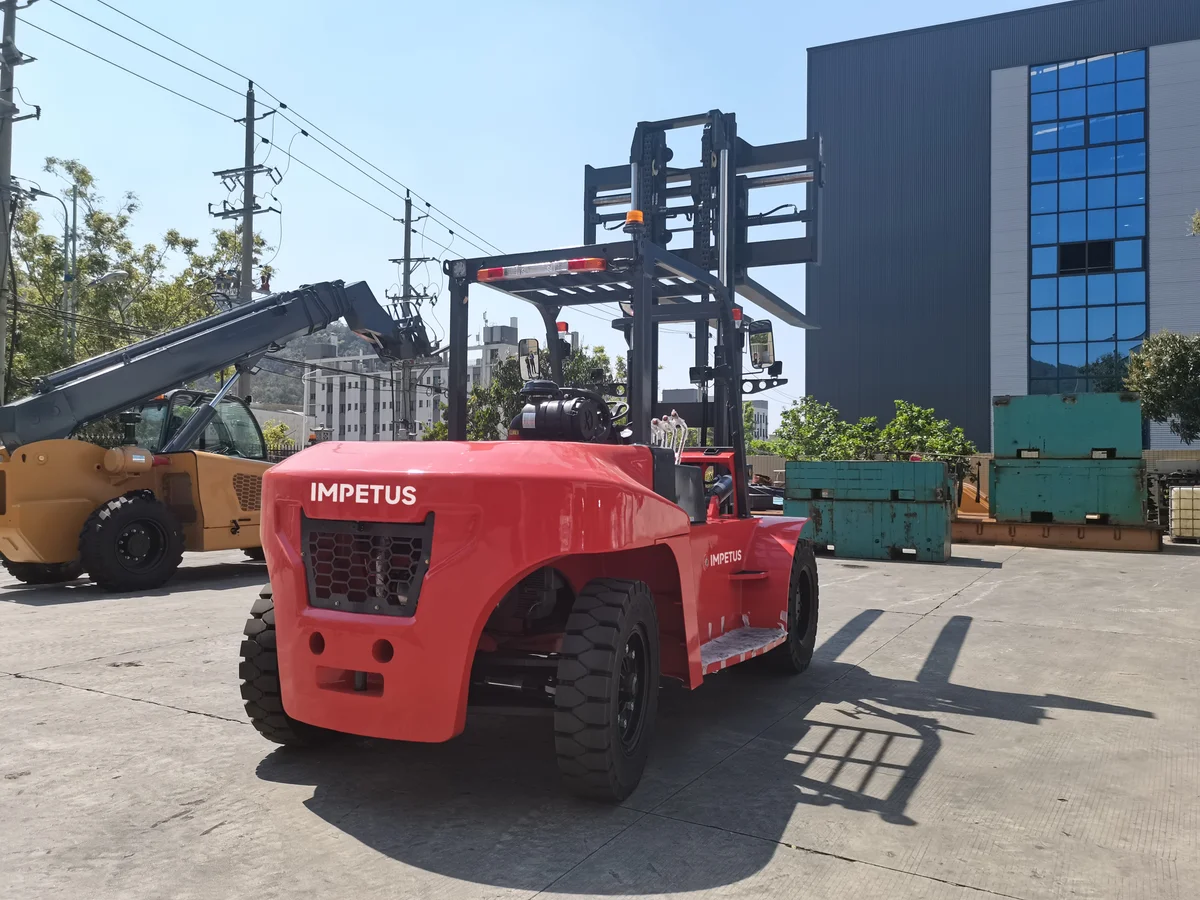

10 Ton Heavy Forklift — Impetus FD100 detail view 4

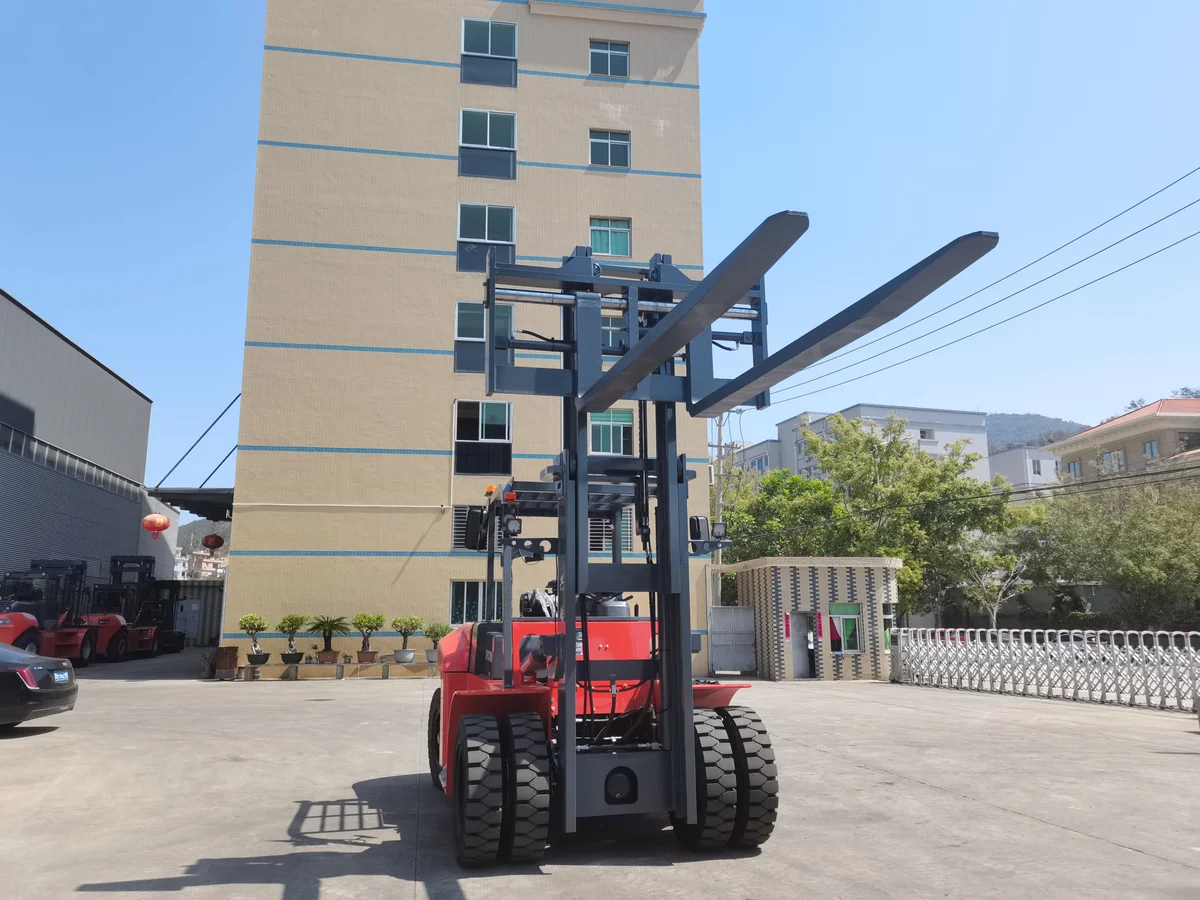

10 Ton Heavy Forklift — Impetus FD100 detail view 5

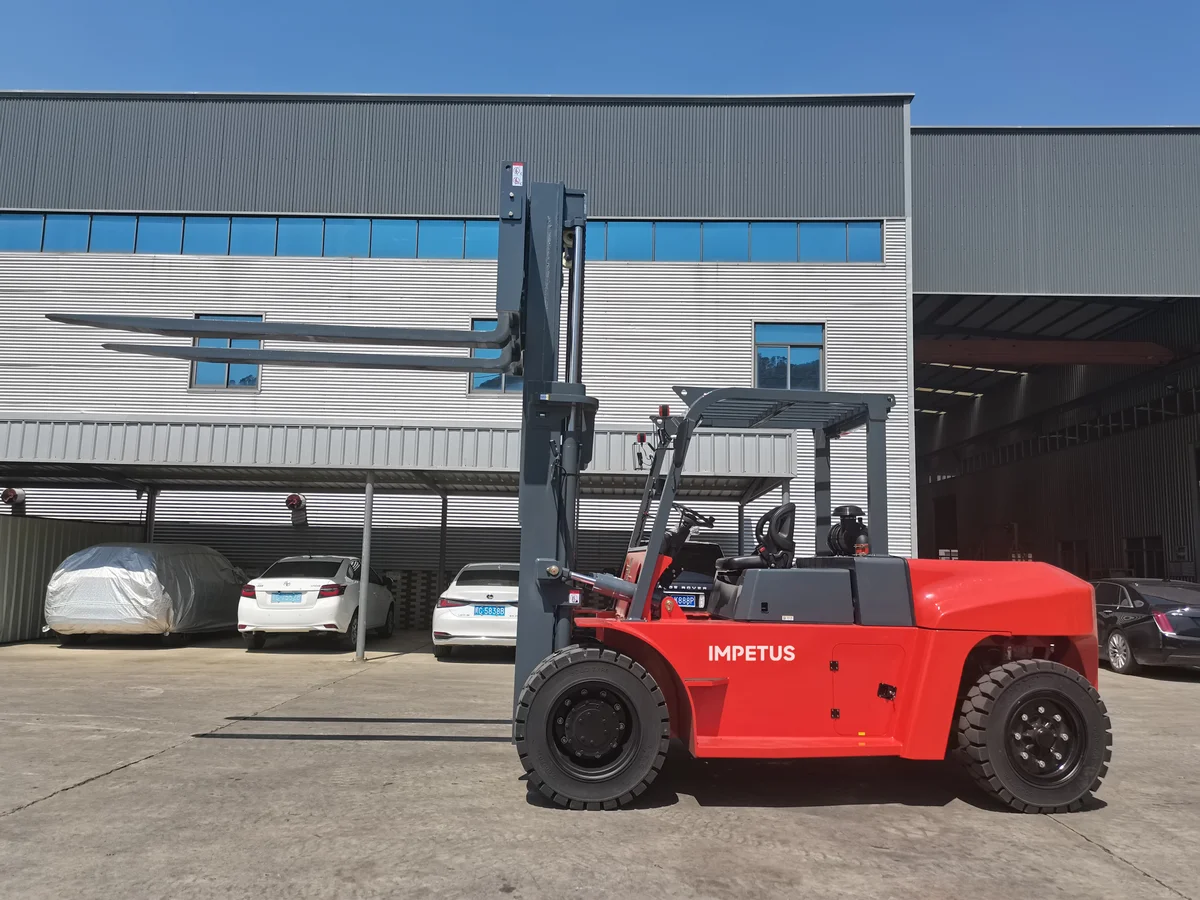

10 Ton Heavy Forklift — Impetus FD100 detail view 6

10 Ton Heavy Forklift — Impetus FD100 thumbnail 1

10 Ton Heavy Forklift — Impetus FD100 thumbnail 2

10 Ton Heavy Forklift — Impetus FD100 thumbnail 3

10 Ton Heavy Forklift — Impetus FD100 thumbnail 4

10 Ton Heavy Forklift

FD100 — CE & ISO certified Heavy-Duty forklift. Engineered for extreme loads in ports, steel mills, and heavy manufacturing where uptime is non-negotiable.

fitness_center Massive load capacity for containers and steel
construction Reinforced frame with heavy-duty drive axle
airline_seat_recline_extra High-visibility cabin for precision handling

Ready to upgrade your fleet?

Connect with our engineering sales team to configure the FD100 for your facility's exact requirements.

Rated Load	10000 kg	Load center distance	600 mm
Wheelbase	2800 mm	Weight	13500 kg
Tire Specs: Front	9.00-20-18PR	Tire Specs: Rear	9.00-20-18PR
Tires Qty, Front/Rear (Drive wheels)	4/2	Wheel Tread: Front	1600 mm
Wheel Tread: Rear	1770 mm	Mast/Carriage Tilt Angle (Front/Rear)	6/12
Mast Height (Fork Lowering)	2710 mm	Mast lifting height	3000 mm
Max. Height	4190 mm	Height to Head Guard (Height to Cab)	2700 mm
Overall Length (with Fork)	5640 mm	Overall length (with forks)	4420 mm
Overall width	2200 mm	Fork Dimension	150015080
Fork Carriage Width	2080 mm	Mast Min. Ground (with Load)	270 mm
Wheelbase Center Min. Ground (with Load)	320 mm	Min. turning radius	4200 mm
Travel speed (with Load/Without Load)	23/28	Front overhang	810 mm
Rear overhang	810 mm	Max. lifting speed (with Load/Without Load)	220/280
Traction	80	Gradeability (with Load/Without Load)	20/22%
Engine Brand/Model	Yuchai Engine	Transmission Gears (Front/Rear)	2/2

Rated Load	10000 kg
Load center distance	600 mm
Wheelbase	2800 mm
Weight	13500 kg
Tire Specs: Front	9.00-20-18PR
Tire Specs: Rear	9.00-20-18PR
Tires Qty, Front/Rear (Drive wheels)	4/2
Wheel Tread: Front	1600 mm
Wheel Tread: Rear	1770 mm
Mast/Carriage Tilt Angle (Front/Rear)	6/12
Mast Height (Fork Lowering)	2710 mm
Mast lifting height	3000 mm
Max. Height	4190 mm
Height to Head Guard (Height to Cab)	2700 mm
Overall Length (with Fork)	5640 mm
Overall length (with forks)	4420 mm
Overall width	2200 mm
Fork Dimension	150015080
Fork Carriage Width	2080 mm
Mast Min. Ground (with Load)	270 mm
Wheelbase Center Min. Ground (with Load)	320 mm
Min. turning radius	4200 mm
Travel speed (with Load/Without Load)	23/28
Front overhang	810 mm
Rear overhang	810 mm
Max. lifting speed (with Load/Without Load)	220/280
Traction	80
Gradeability (with Load/Without Load)	20/22%
Engine Brand/Model	Yuchai Engine
Transmission Gears (Front/Rear)	2/2

1. Extreme Load Capacity for Heavy Industry

Designed to handle loads from 10 to 42 tons, our heavy-duty forklifts are the backbone of ports, steel mills, precast concrete plants, and heavy manufacturing. Every structural component is engineered with generous safety margins for demanding duty cycles.

2. Reinforced Structural Integrity

Heavy-gauge steel frame, reinforced mast channels, oversized drive axles, and industrial-grade hydraulics ensure structural integrity under extreme loads. Designed to exceed ANSI/ITSDF B56.1 stability requirements with significant safety margins.

3. Operator-First Cabin Design

Spacious ROPS/FOPS-certified cabin with panoramic visibility, adjustable suspension seat, climate control, and intuitive control layout. Reduces operator fatigue during long shifts while maximizing precision for critical lift operations.

4. Global Service & Rapid Parts Supply

Backed by our worldwide dealer network with critical spare parts stocked in regional warehouses. 24/7 technical support and express shipping for emergency component replacement to minimize operational downtime.
