Counterbalance Forklift

4 Ton
LPG Forklift

Name: 4 Ton LPG Forklift
Brand: Impetus
SKU: FG40
Availability: InStock

4000 kg

Capacity

LPG / Gasol...

Power

3000 mm

Lift Height

FG40

Model

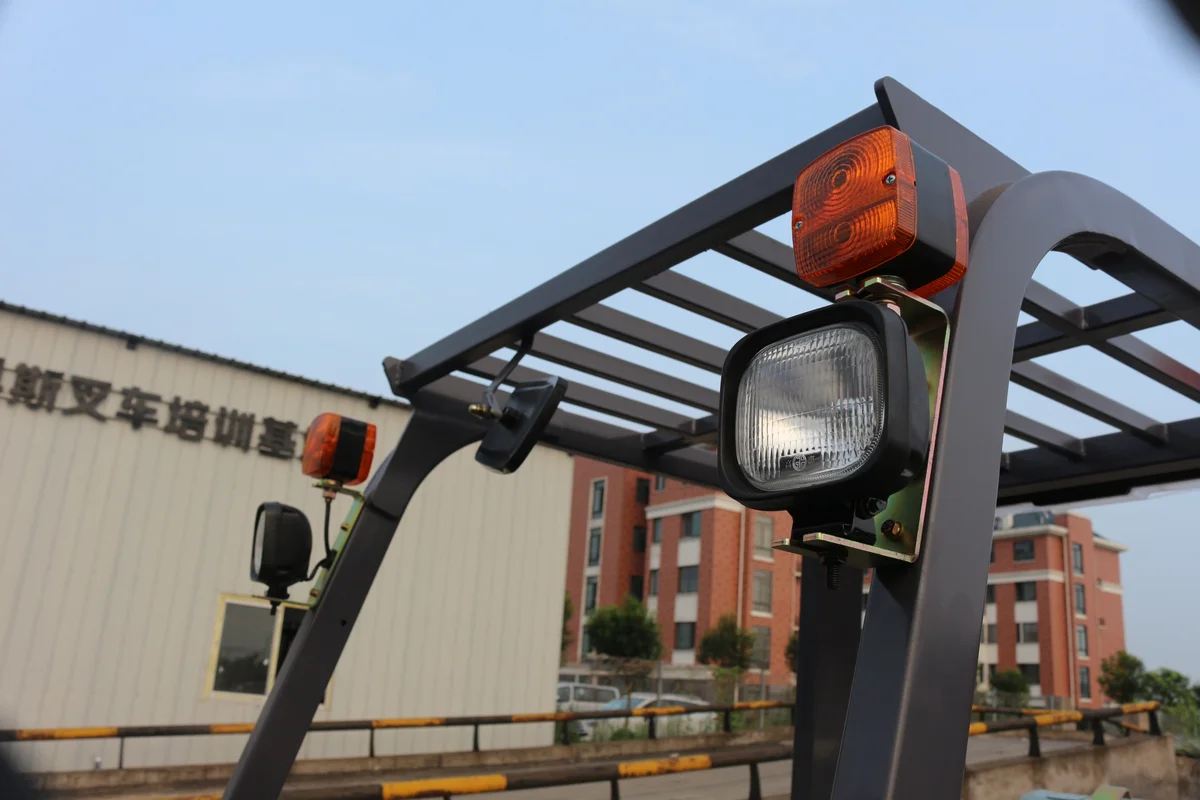

4 Ton LPG Forklift — Impetus FG40 detail view 2

4 Ton LPG Forklift — Impetus FG40 detail view 3

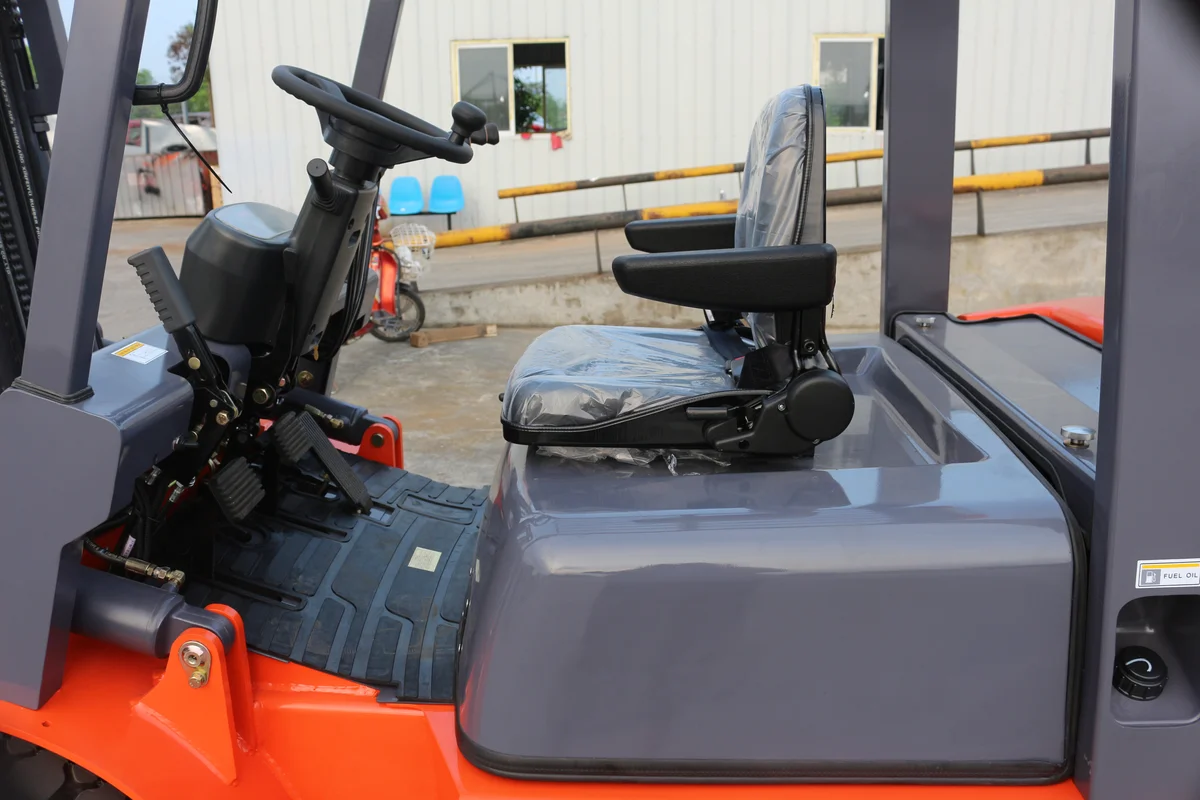

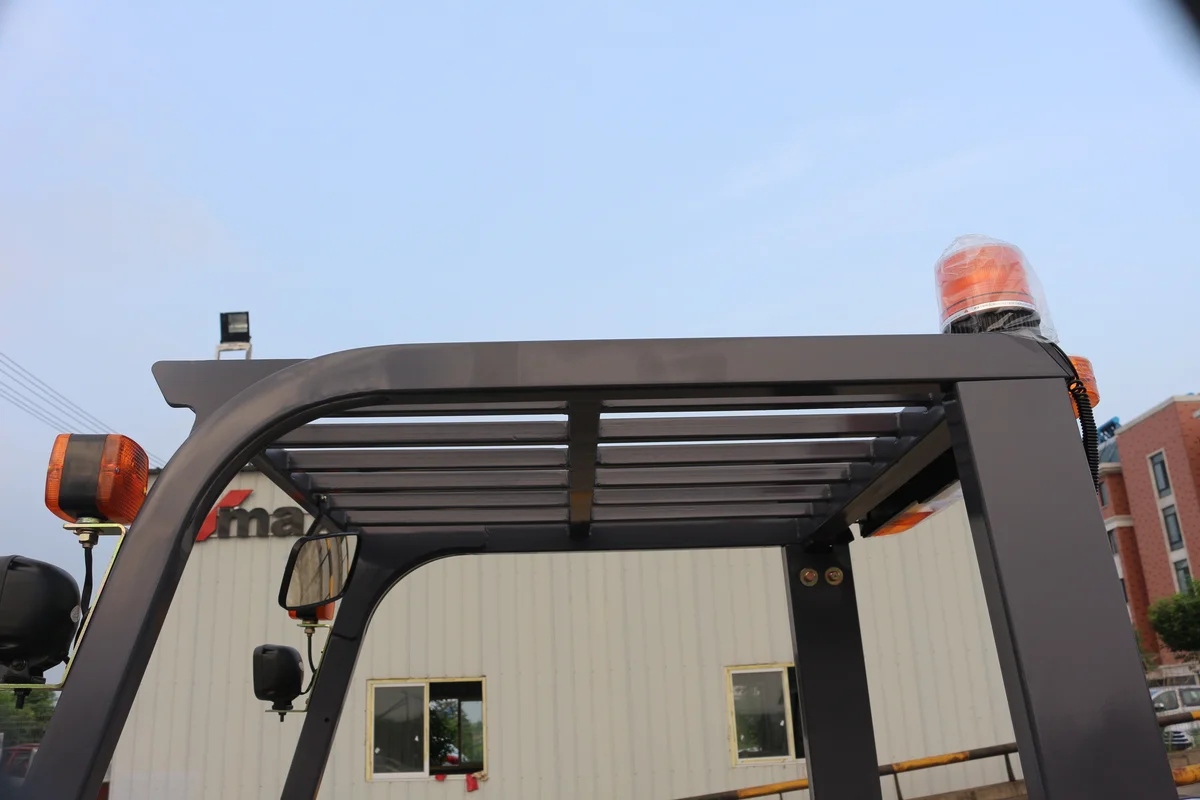

4 Ton LPG Forklift — Impetus FG40 detail view 4

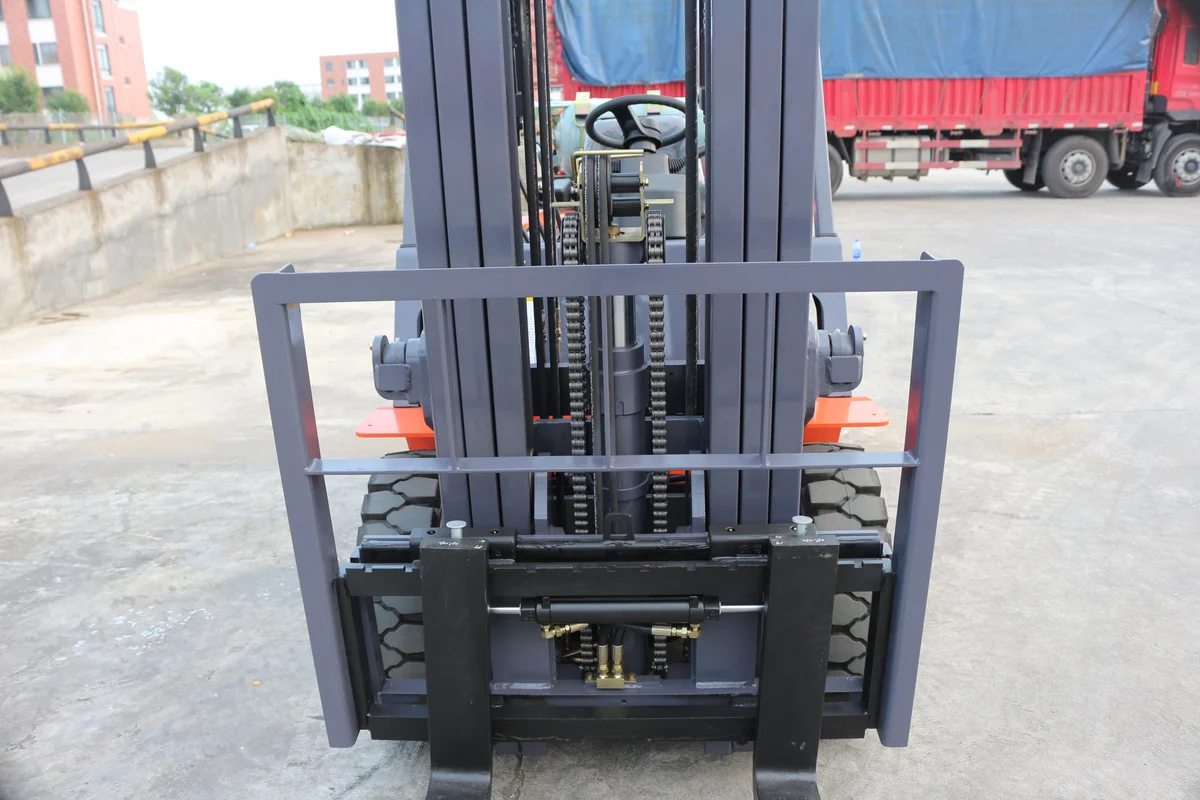

4 Ton LPG Forklift — Impetus FG40 detail view 5

4 Ton LPG Forklift — Impetus FG40 detail view 6

4 Ton LPG Forklift — Impetus FG40 detail view 7

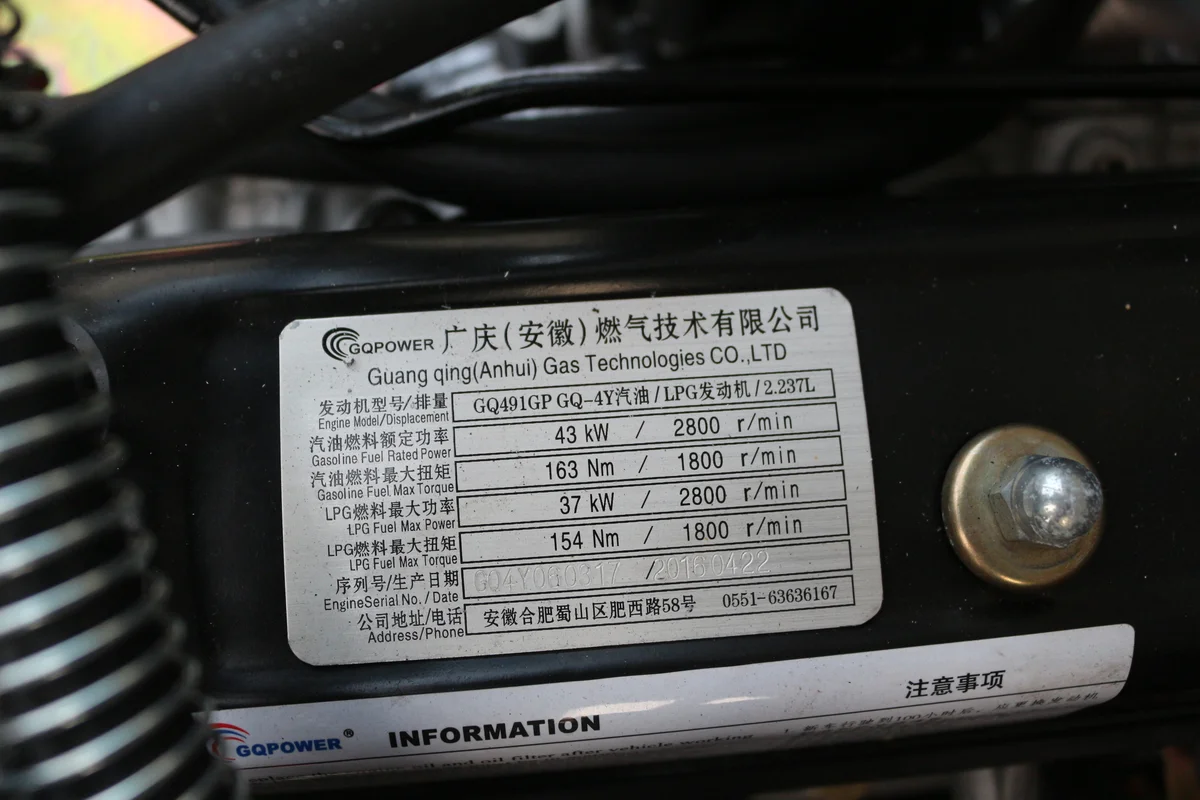

4 Ton LPG Forklift — Impetus FG40 detail view 8

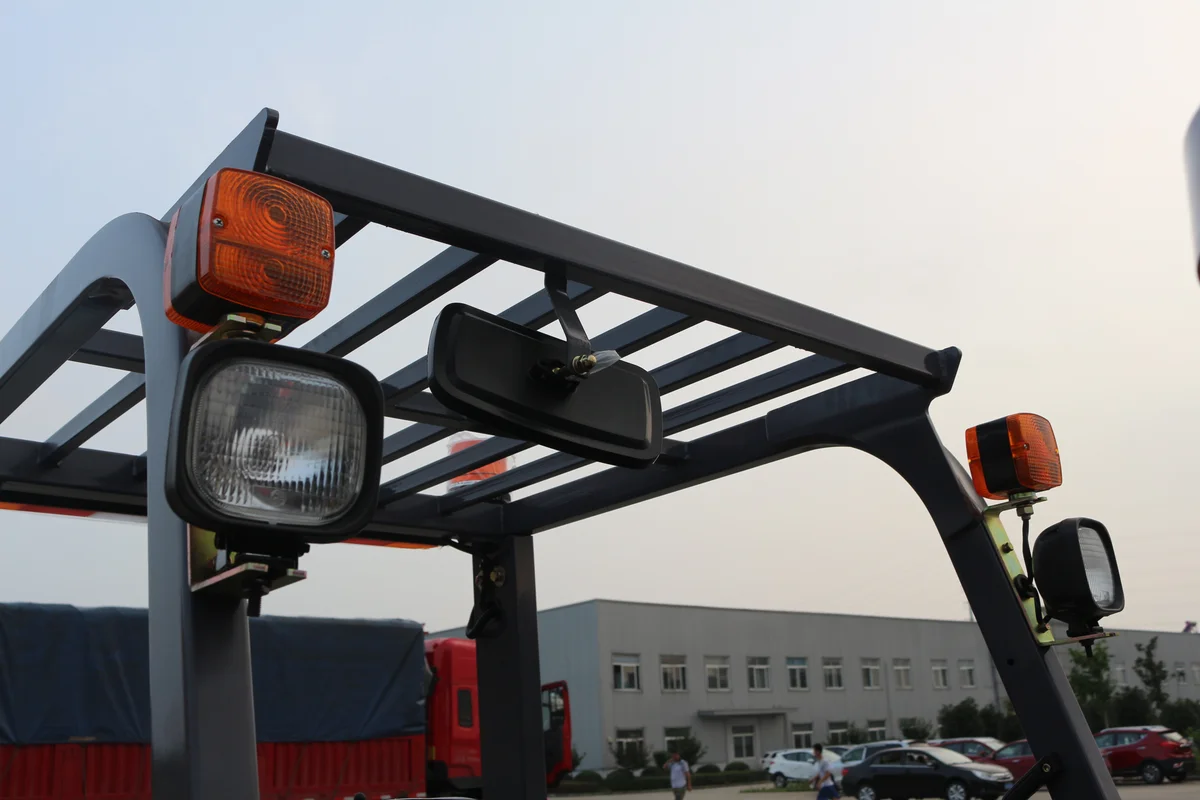

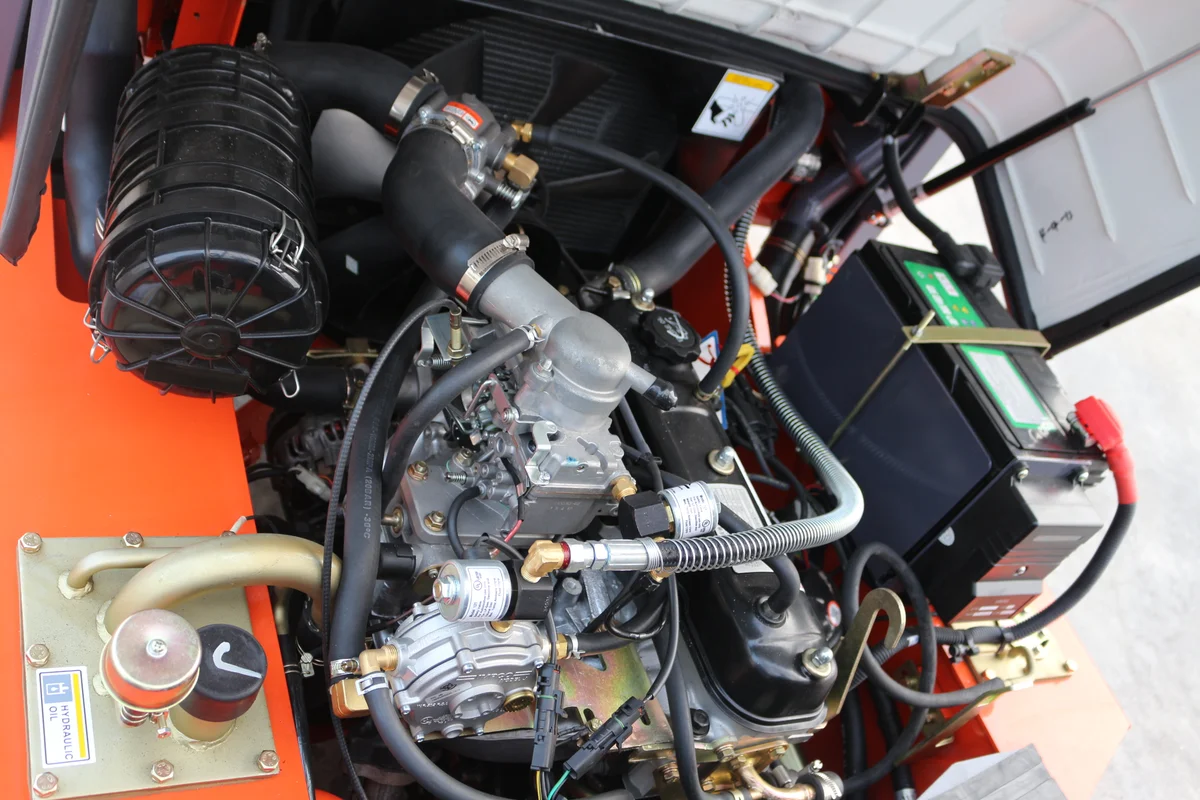

4 Ton LPG Forklift — Impetus FG40 detail view 9

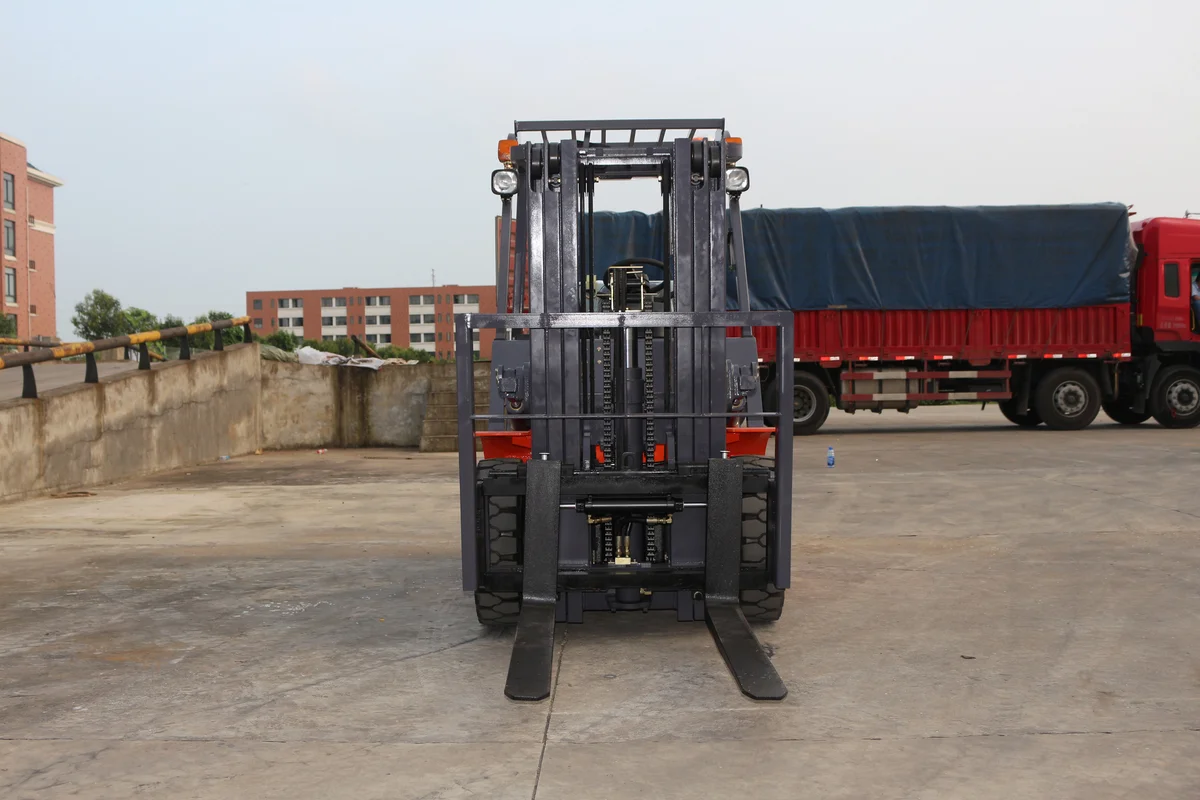

4 Ton LPG Forklift — Impetus FG40 detail view 10

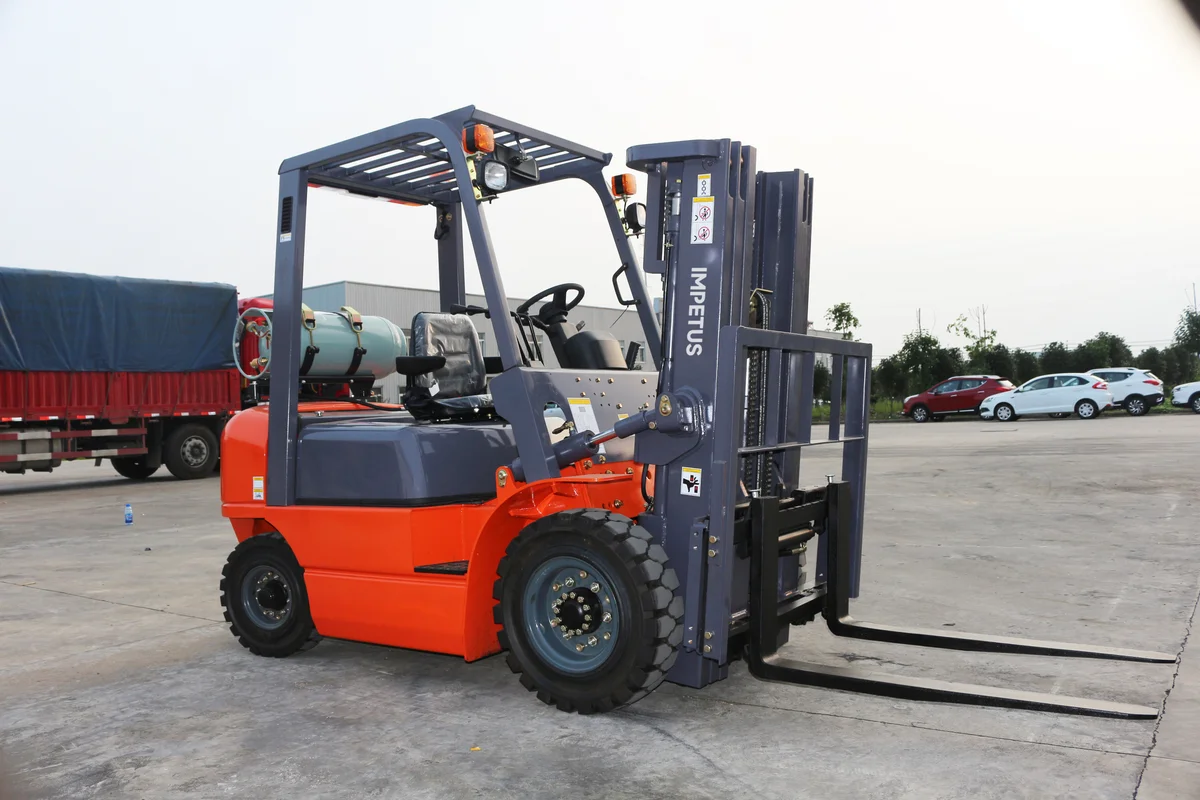

4 Ton LPG Forklift — Impetus FG40 detail view 11

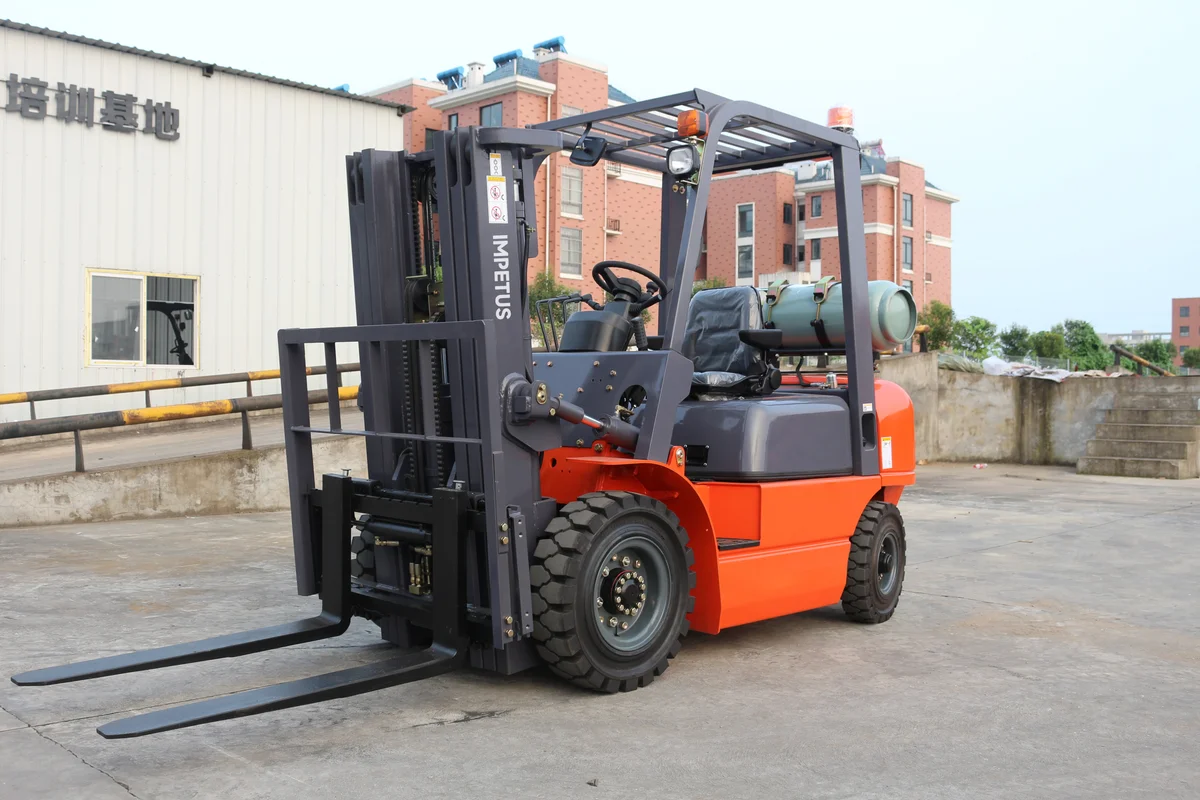

4 Ton LPG Forklift — Impetus FG40 detail view 12

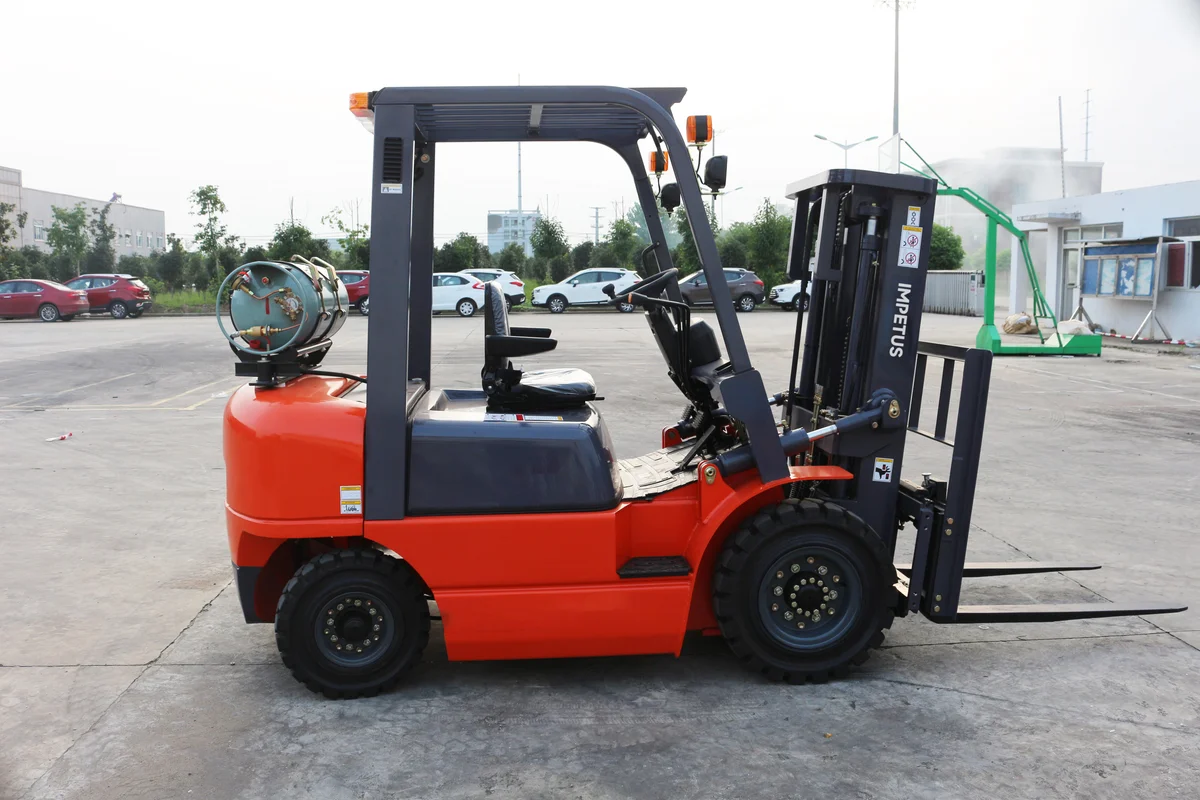

4 Ton LPG Forklift — Impetus FG40 detail view 13

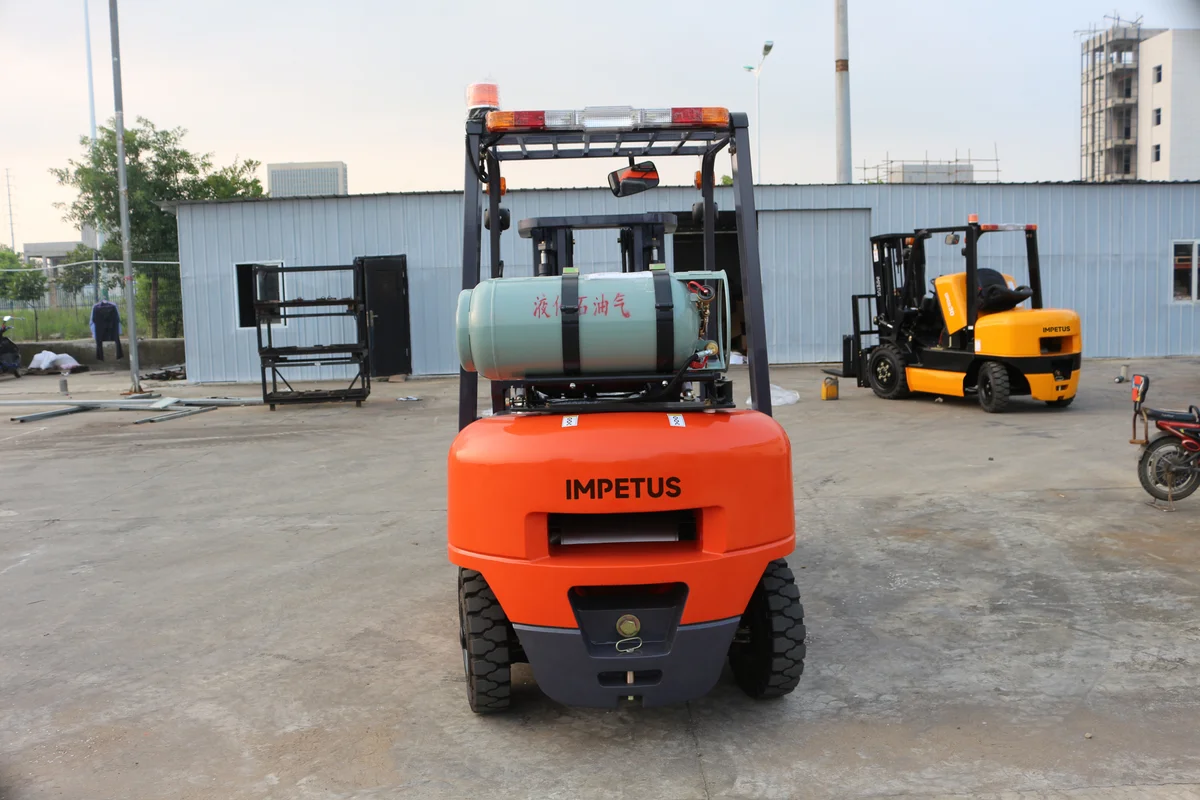

4 Ton LPG Forklift — Impetus FG40 detail view 14

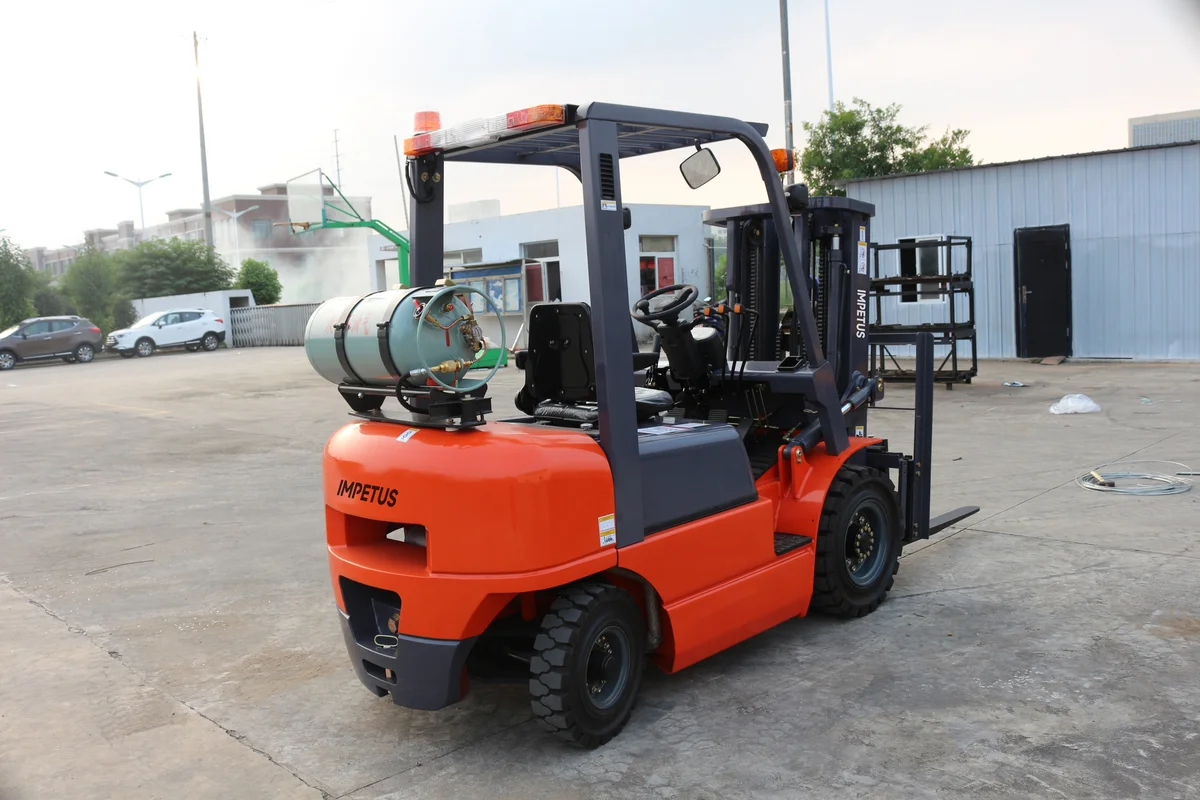

4 Ton LPG Forklift — Impetus FG40 detail view 15

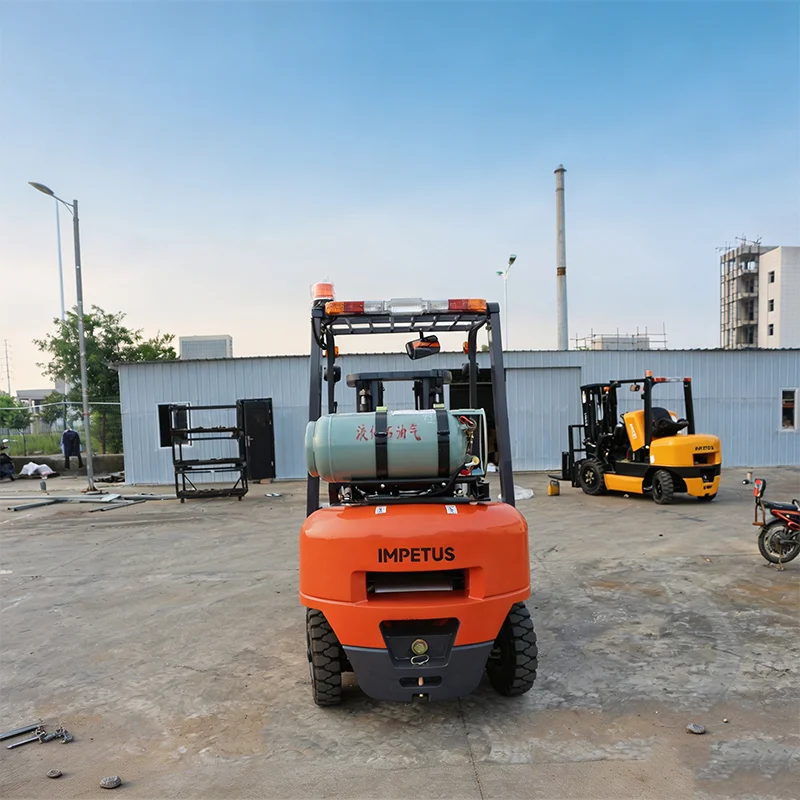

4 Ton LPG Forklift — Impetus FG40 detail view 16

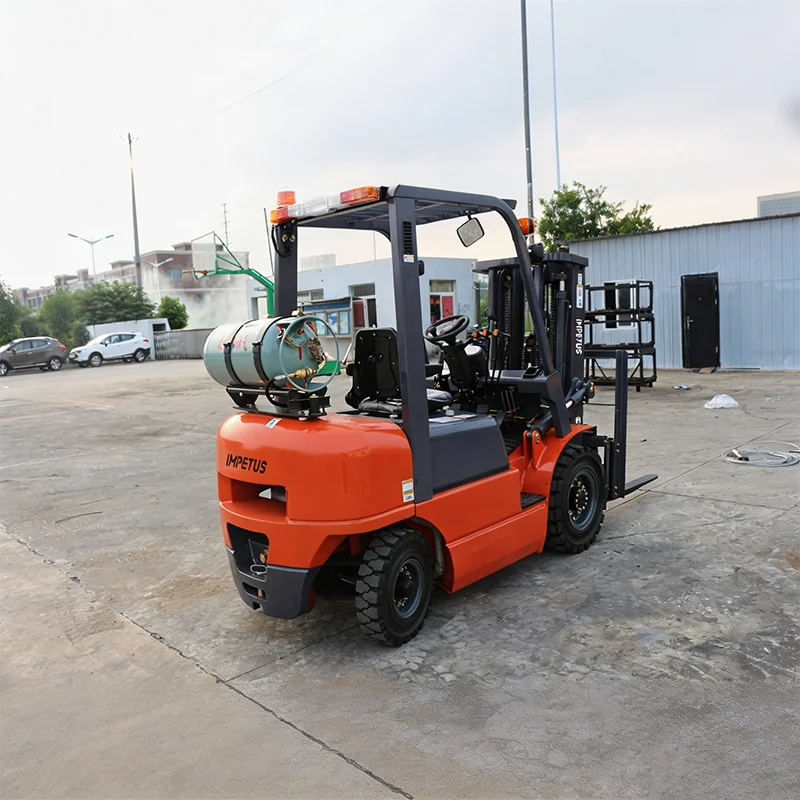

4 Ton LPG Forklift — Impetus FG40 detail view 17

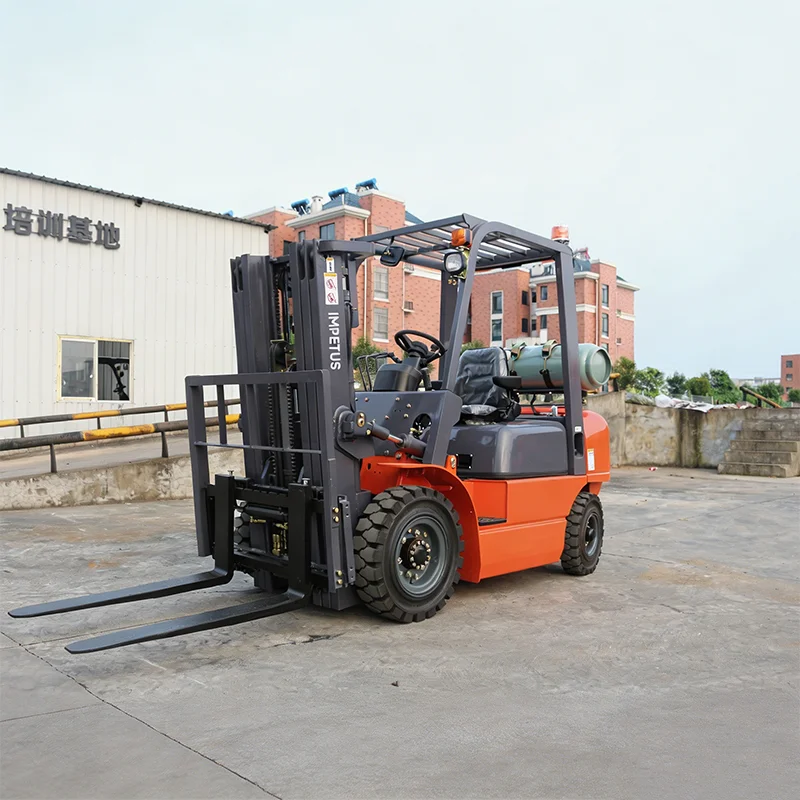

4 Ton LPG Forklift — Impetus FG40 detail view 18

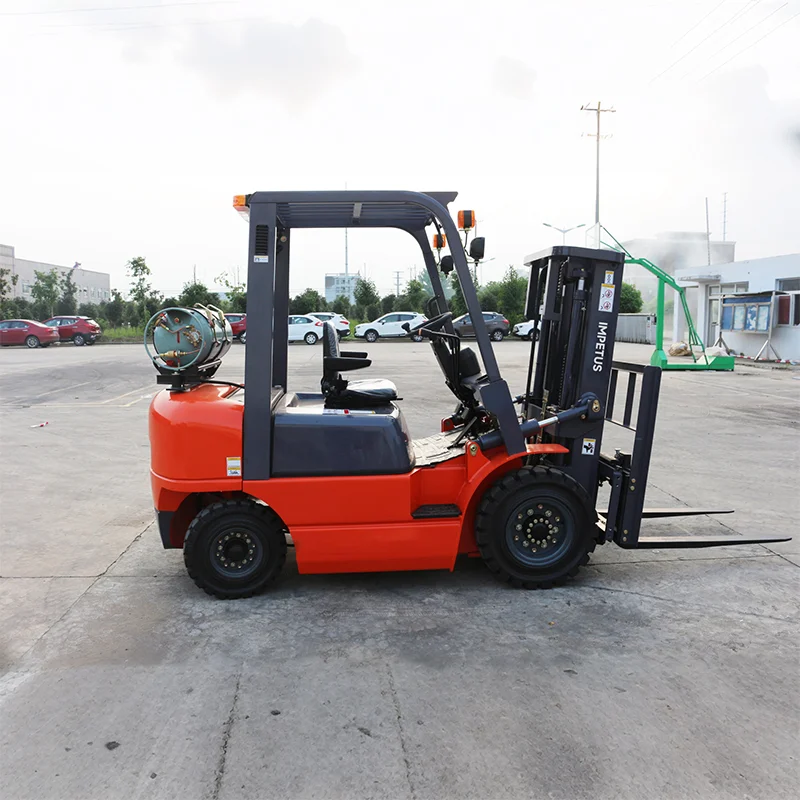

4 Ton LPG Forklift — Impetus FG40 detail view 19

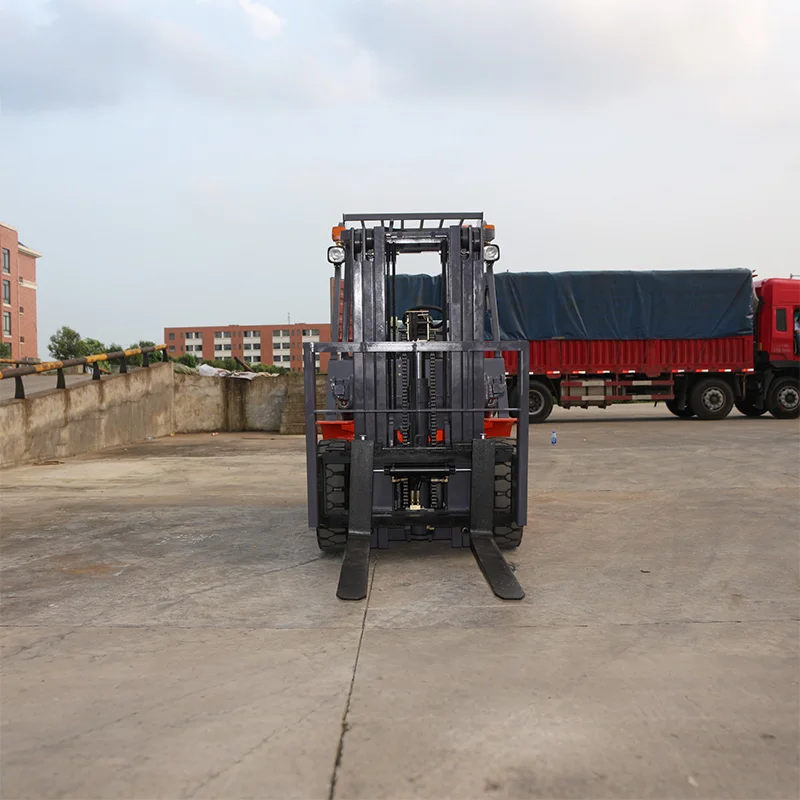

4 Ton LPG Forklift — Impetus FG40 detail view 20

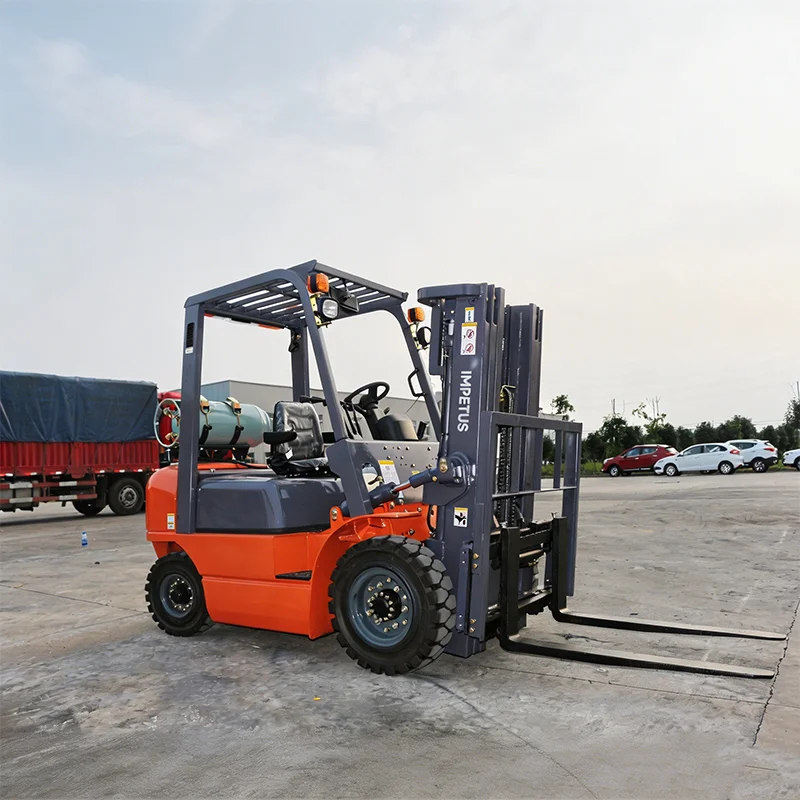

4 Ton LPG Forklift — Impetus FG40 detail view 21

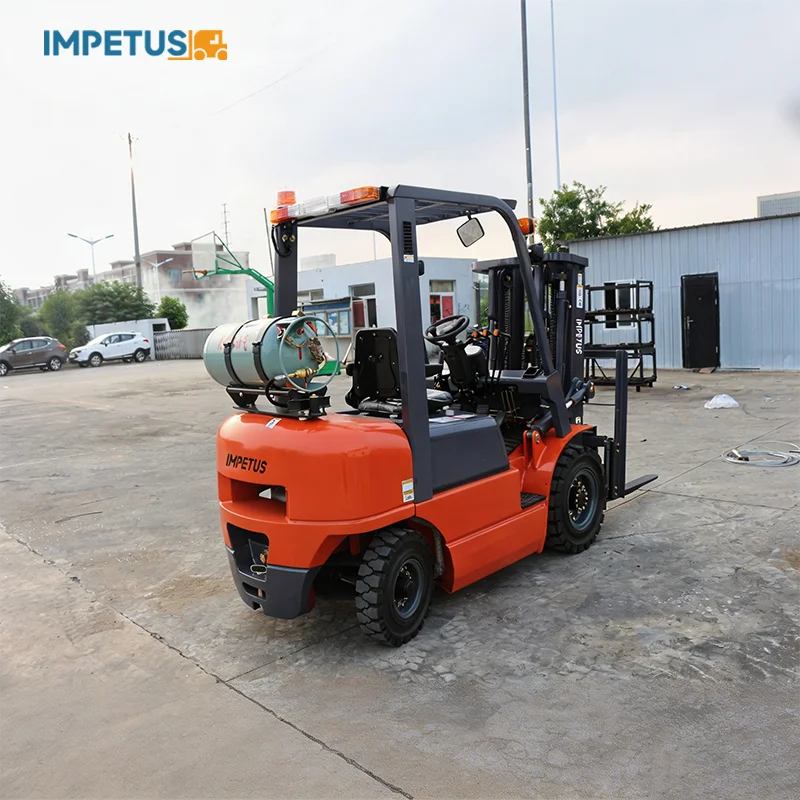

4 Ton LPG Forklift — Impetus FG40 detail view 22

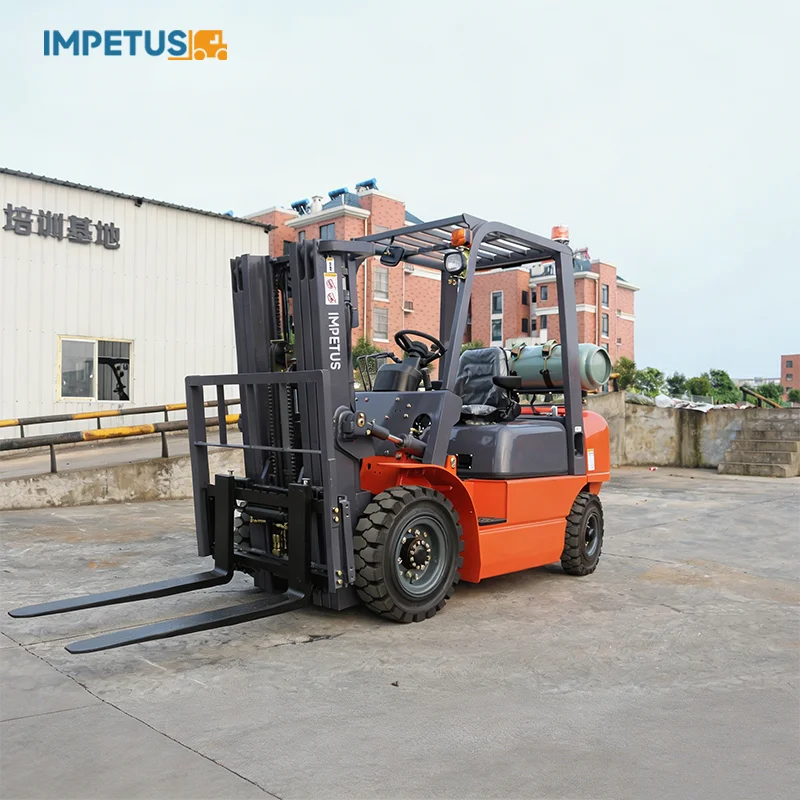

4 Ton LPG Forklift — Impetus FG40 detail view 23

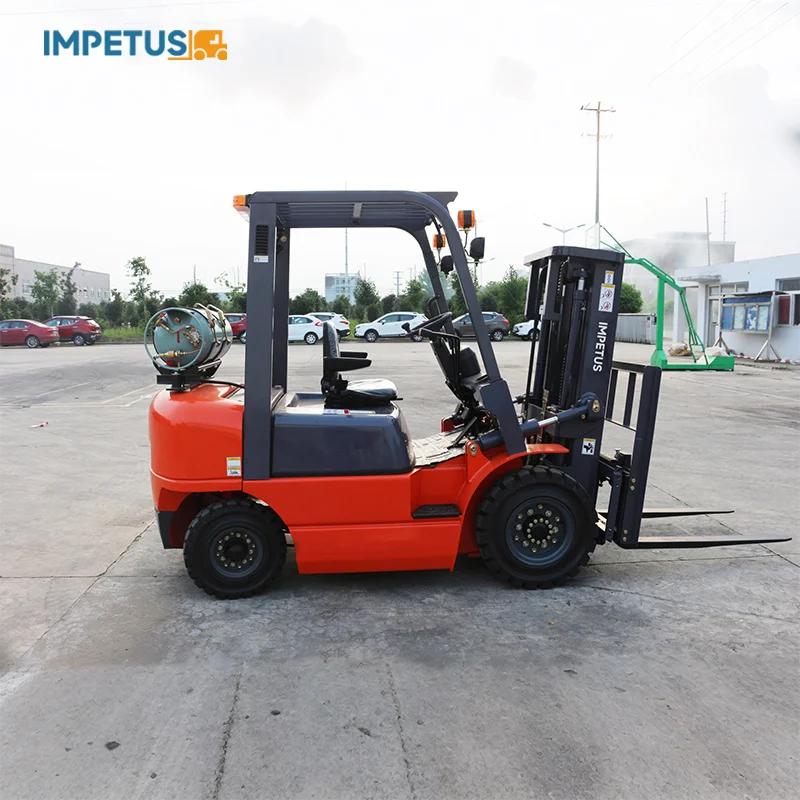

4 Ton LPG Forklift — Impetus FG40 detail view 24

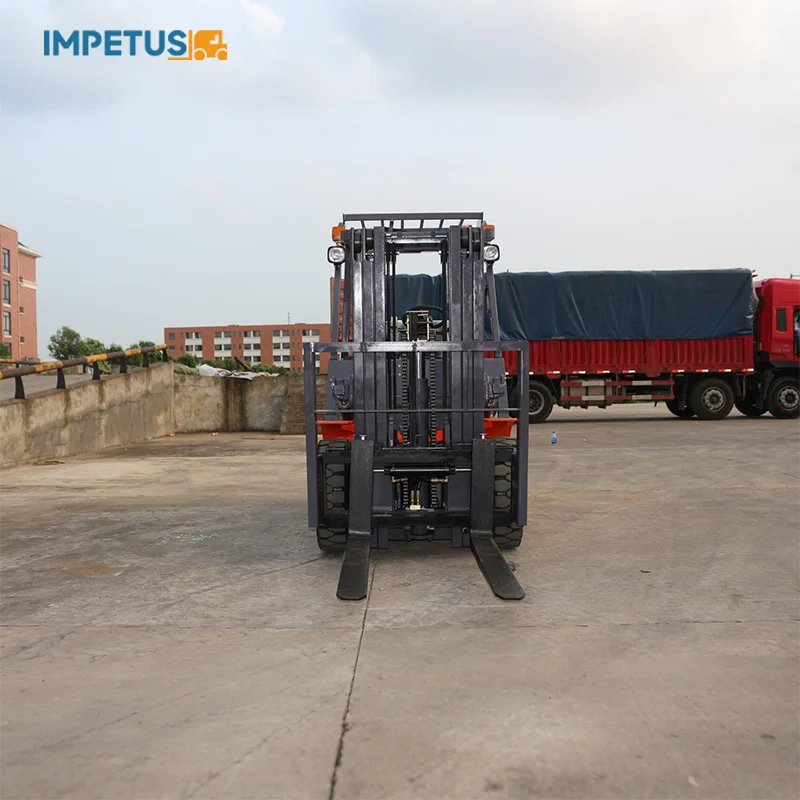

4 Ton LPG Forklift — Impetus FG40 detail view 25

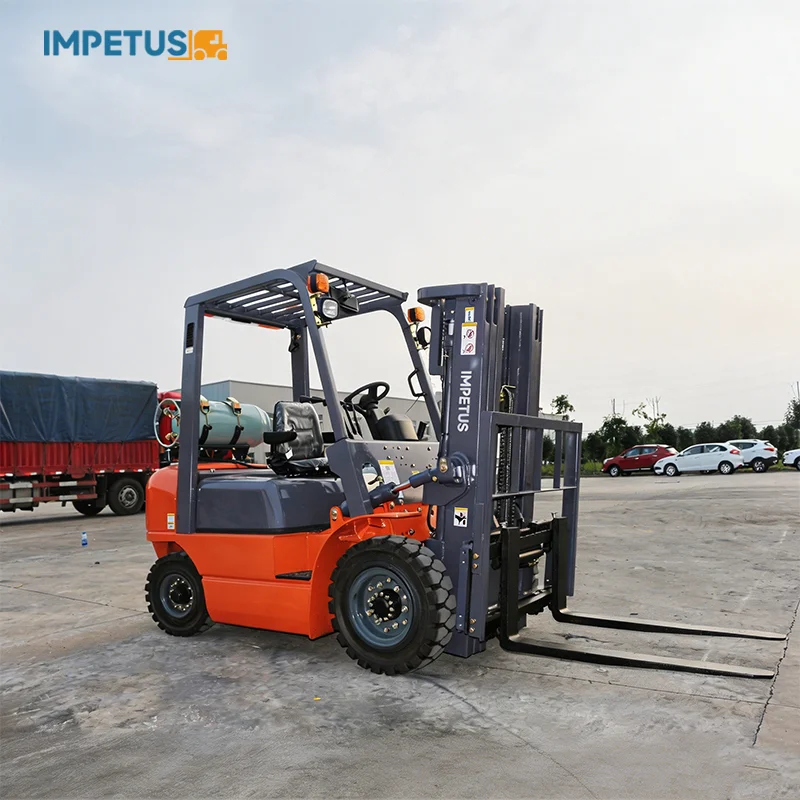

4 Ton LPG Forklift — Impetus FG40 detail view 26

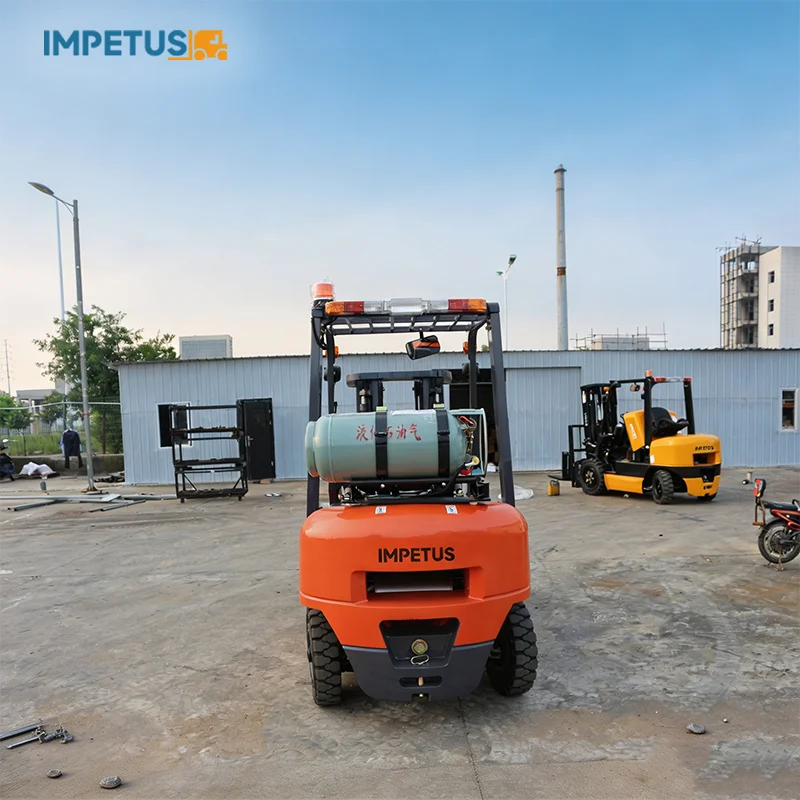

4 Ton LPG Forklift — Impetus FG40 detail view 27

4 Ton LPG Forklift — Impetus FG40 thumbnail 1

4 Ton LPG Forklift — Impetus FG40 thumbnail 2

4 Ton LPG Forklift — Impetus FG40 thumbnail 3

4 Ton LPG Forklift — Impetus FG40 thumbnail 4

4 Ton LPG Forklift — Impetus FG40 thumbnail 5

4 Ton LPG Forklift — Impetus FG40 thumbnail 6

4 Ton LPG Forklift — Impetus FG40 thumbnail 7

4 Ton LPG Forklift — Impetus FG40 thumbnail 8

4 Ton LPG Forklift — Impetus FG40 thumbnail 9

4 Ton LPG Forklift — Impetus FG40 thumbnail 10

4 Ton LPG Forklift — Impetus FG40 thumbnail 11

4 Ton LPG Forklift — Impetus FG40 thumbnail 12

4 Ton LPG Forklift — Impetus FG40 thumbnail 13

4 Ton LPG Forklift — Impetus FG40 thumbnail 14

4 Ton LPG Forklift — Impetus FG40 thumbnail 15

4 Ton LPG Forklift — Impetus FG40 thumbnail 16

4 Ton LPG Forklift — Impetus FG40 thumbnail 17

4 Ton LPG Forklift — Impetus FG40 thumbnail 18

4 Ton LPG Forklift — Impetus FG40 thumbnail 19

4 Ton LPG Forklift — Impetus FG40 thumbnail 20

4 Ton LPG Forklift — Impetus FG40 thumbnail 21

4 Ton LPG Forklift — Impetus FG40 thumbnail 22

4 Ton LPG Forklift — Impetus FG40 thumbnail 23

4 Ton LPG Forklift — Impetus FG40 thumbnail 24

4 Ton LPG Forklift — Impetus FG40 thumbnail 25

4 Ton LPG Forklift

FG40 — CE & ISO certified LPG forklift. Engineered for reliable indoor/outdoor performance with lower emissions than diesel.

local_gas_station Flexible LPG and gasoline dual-fuel operation
bolt Lower emissions for indoor/outdoor versatility
local_gas_station Quick fuel refill for minimal downtime

Ready to upgrade your fleet?

Connect with our engineering sales team to configure the FG40 for your facility's exact requirements.

Rated capacity	4000 kg	Load center distance	500 mm
Power type	LPG/Gasoline	Driving type	Seated
Wheel base	1900 mm	Tyre type	Pneumatic
Wheel number (front/rear)	2X/2	Front tread	1160 mm
Rear tread	1065 mm	Tyre (front)	250-15-16PR
Tyre (rear)	6.50-10-10PR	Front overhang	500 mm
Mast tilt angle (front/rear)	6/12	Height with mast retraction	2150 mm
Free lift height	150 mm	Max. lifting height	3000 mm
Max. height after lifting	4260 mm	Overhead guard height	2150 mm
Fork size: length x width x thickness	1220x150x50	Overall length (fork excluded)	2880 mm
Overall width	1410 mm	Turning radius	2700 mm
Ground clearance of mast	130 mm	Ground clearance of wheel base center (loaded)	155 mm
Lateral fork adjustment Max./Min.	1290/300	Travelling speed (loaded/unloaded)	18/19
Lifting speed (loaded/unloaded)	350/380	Lowering speed (loaded/unloaded)	350/400
Gradeability (loaded/unloaded)	15/18%	Max. traction force (loaded/unloaded)	20/18
Total weight	5270 kg	Axle load (unloaded), front/rear	2110/3160
Axle load (loaded), front/rear	8370/900	Engine manufacturer /Model	MITSUBISHI PSI 2.4
Rated power /Speed	48/2700（GAS） 46/2700(LPG)	Max. torque /Speed	170/2400（GAS） 168/1600（LPG）
Cylinder number-bore×stroke	4-86.5×100	Engine displacement	2.351
Emission	EPAT4	Transmission gears (front/rear)	1-1 Power Shift 2-2 Manual Shift
Fuel tank capacity	70 kg	Service brake / parking brake	Hydraulic/Mechanical
Hydraulic system working pressure	17.5

Rated capacity	4000 kg
Load center distance	500 mm
Power type	LPG/Gasoline
Driving type	Seated
Wheel base	1900 mm
Tyre type	Pneumatic
Wheel number (front/rear)	2X/2
Front tread	1160 mm
Rear tread	1065 mm
Tyre (front)	250-15-16PR
Tyre (rear)	6.50-10-10PR
Front overhang	500 mm
Mast tilt angle (front/rear)	6/12
Height with mast retraction	2150 mm
Free lift height	150 mm
Max. lifting height	3000 mm
Max. height after lifting	4260 mm
Overhead guard height	2150 mm
Fork size: length x width x thickness	1220x150x50
Overall length (fork excluded)	2880 mm
Overall width	1410 mm
Turning radius	2700 mm
Ground clearance of mast	130 mm
Ground clearance of wheel base center (loaded)	155 mm
Lateral fork adjustment Max./Min.	1290/300
Travelling speed (loaded/unloaded)	18/19
Lifting speed (loaded/unloaded)	350/380
Lowering speed (loaded/unloaded)	350/400
Gradeability (loaded/unloaded)	15/18%
Max. traction force (loaded/unloaded)	20/18
Total weight	5270 kg
Axle load (unloaded), front/rear	2110/3160
Axle load (loaded), front/rear	8370/900
Engine manufacturer /Model	MITSUBISHI PSI 2.4
Rated power /Speed	48/2700（GAS） 46/2700(LPG)
Max. torque /Speed	170/2400（GAS） 168/1600（LPG）
Cylinder number-bore×stroke	4-86.5×100
Engine displacement	2.351
Emission	EPAT4
Transmission gears (front/rear)	1-1 Power Shift 2-2 Manual Shift
Fuel tank capacity	70 kg
Service brake / parking brake	Hydraulic/Mechanical
Hydraulic system working pressure	17.5

1. Dual-Fuel Flexibility for Any Environment

Switch seamlessly between LPG and gasoline fuel sources to match your operational needs. LPG provides cleaner indoor operation while gasoline ensures availability in remote locations or where LPG infrastructure is limited.

2. Lower Emissions & Regulatory Compliance

LPG combustion produces significantly fewer particulates and lower CO2 emissions compared to diesel, helping you meet indoor air quality standards and environmental regulations while maintaining strong performance.

3. Quick Refueling & Continuous Operation

Unlike electric forklifts that require lengthy charging, LPG cylinders can be swapped in minutes for 24/7 continuous operation. No battery degradation concerns — consistent performance throughout the equipment lifespan.

4. Proven Reliability & Global Parts Support

Built with durable industrial engines and backed by global spare parts availability, our dual-fuel forklifts deliver proven reliability across diverse industries from manufacturing to logistics.
