Counterbalance Forklift

5 Ton
Diesel Forklift (Large)

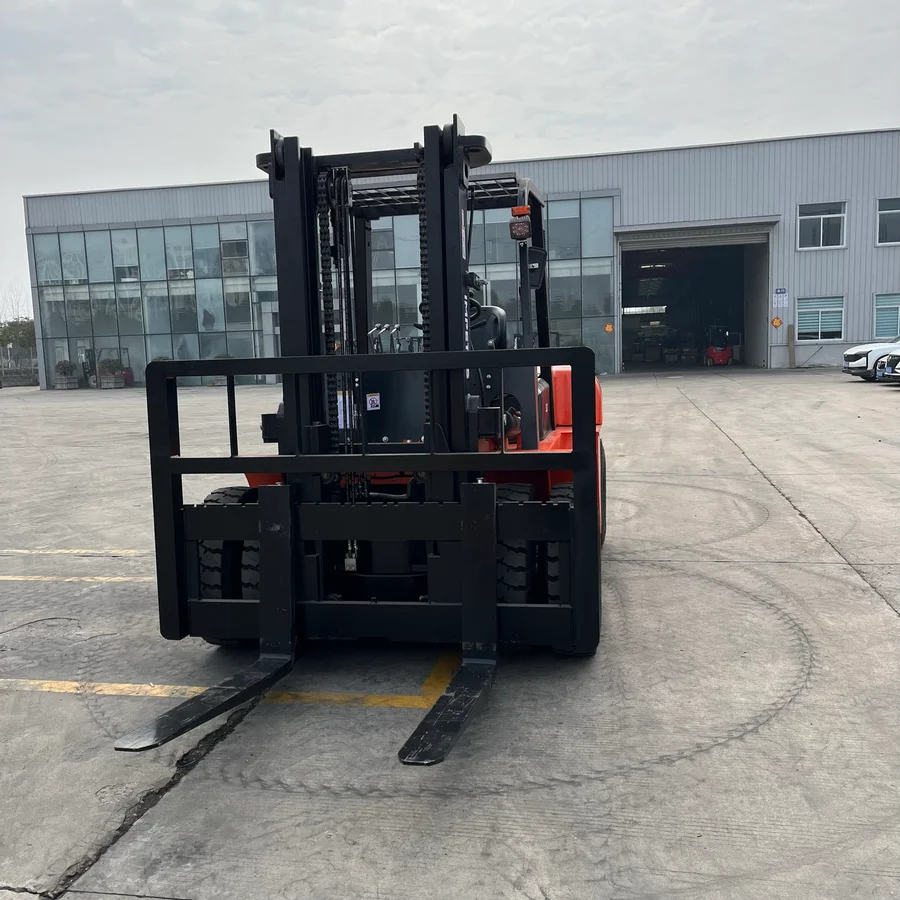

Name: 5 Ton Diesel Forklift (Large)
Brand: Impetus
SKU: FD50
Availability: InStock

5000 kg

Capacity

Diesel

Power

3000 mm

Lift Height

FD50

Model

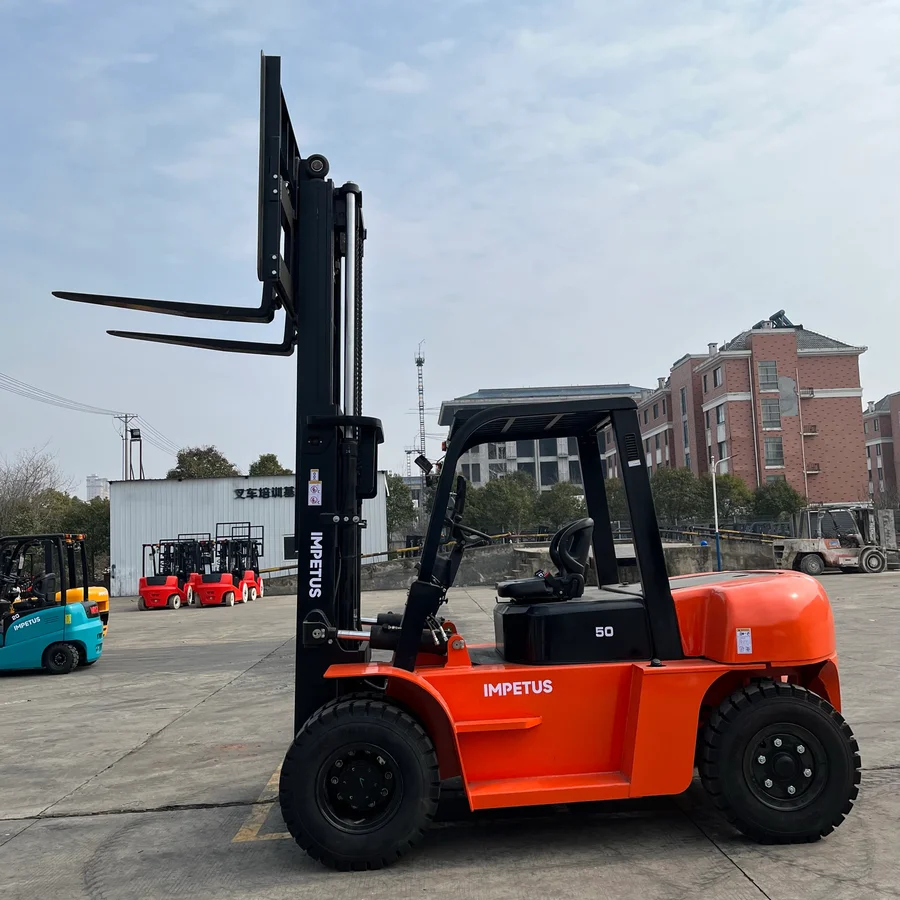

5 Ton Diesel Forklift (Large) — Impetus FD50 detail view 2

5 Ton Diesel Forklift (Large) — Impetus FD50 detail view 3

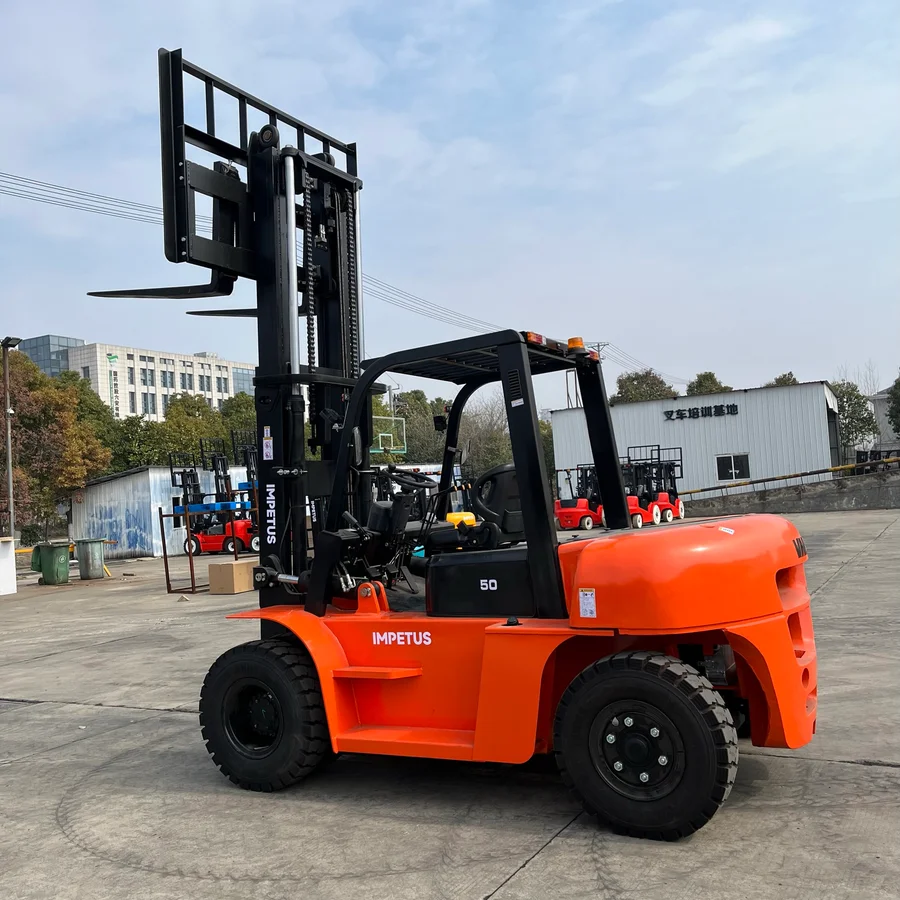

5 Ton Diesel Forklift (Large) — Impetus FD50 detail view 4

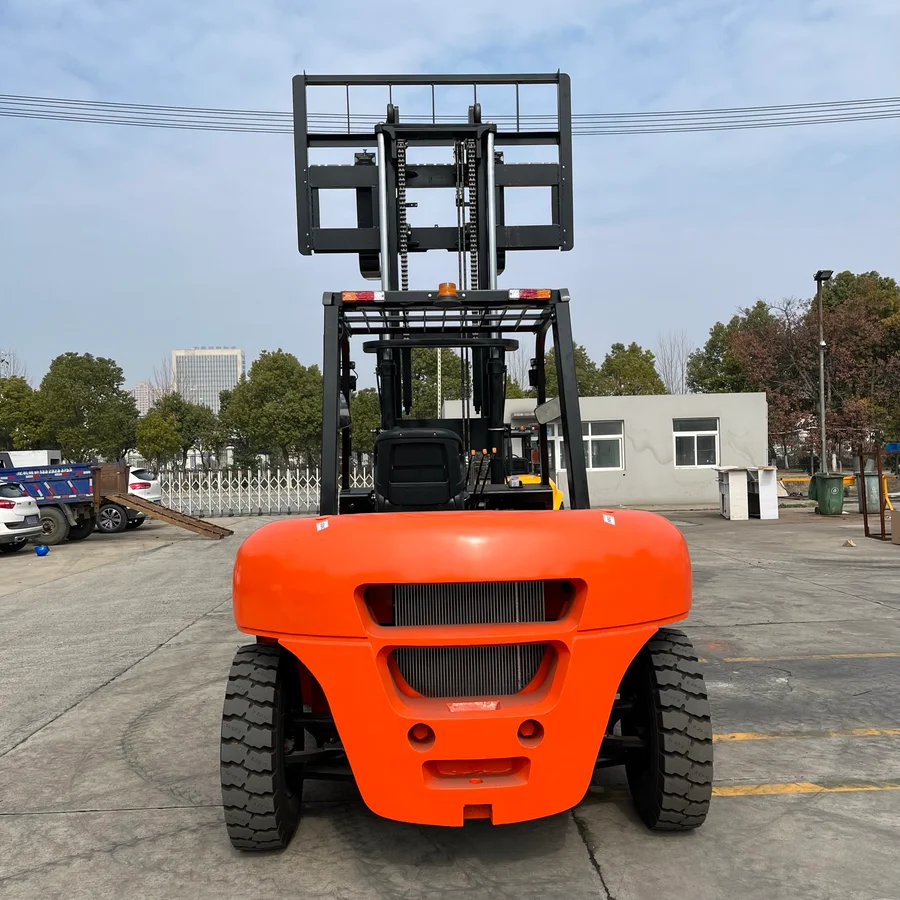

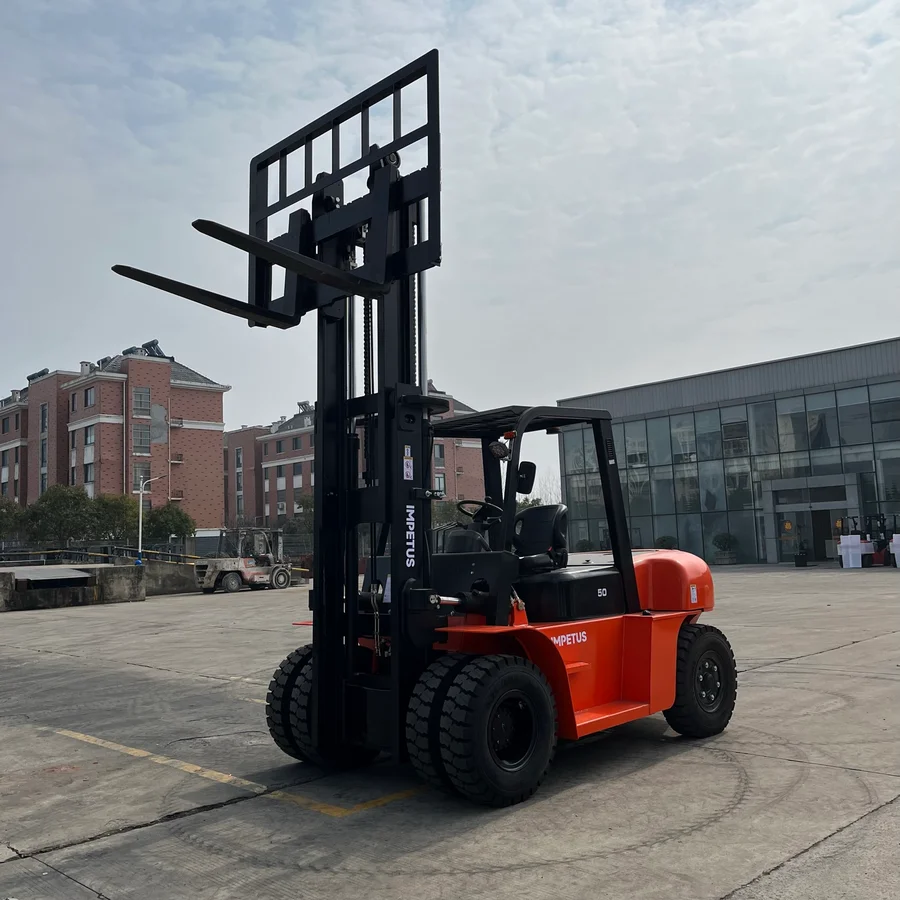

5 Ton Diesel Forklift (Large) — Impetus FD50 detail view 5

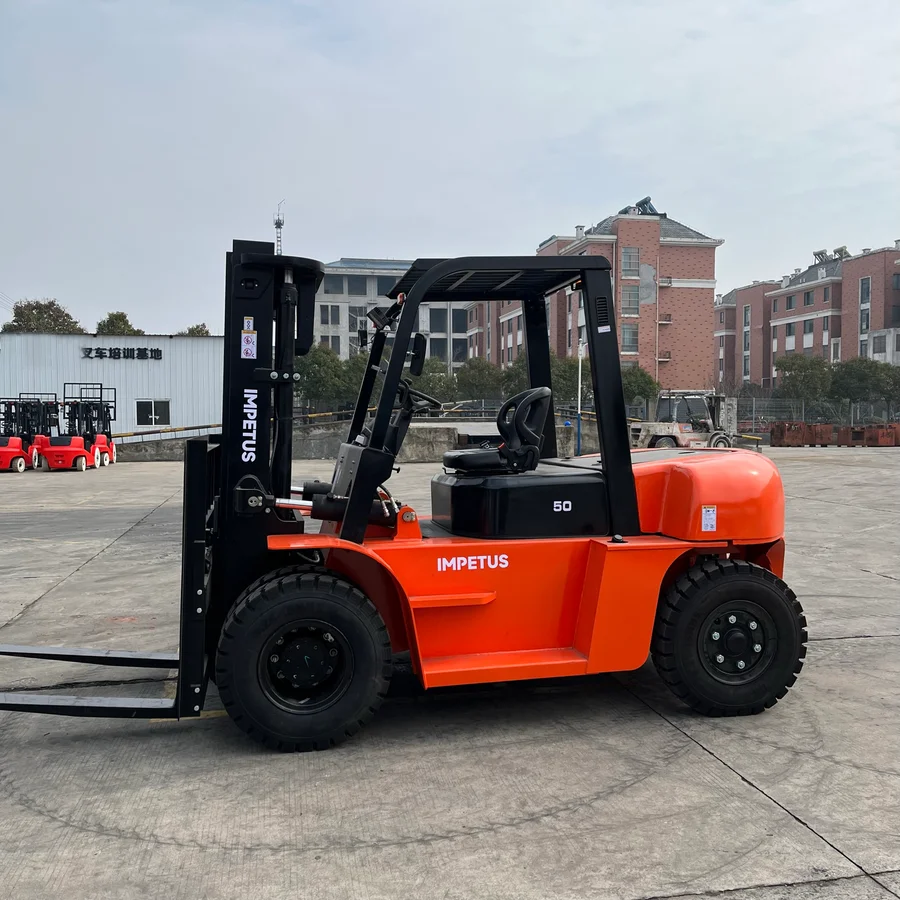

5 Ton Diesel Forklift (Large) — Impetus FD50 detail view 6

5 Ton Diesel Forklift (Large) — Impetus FD50 detail view 7

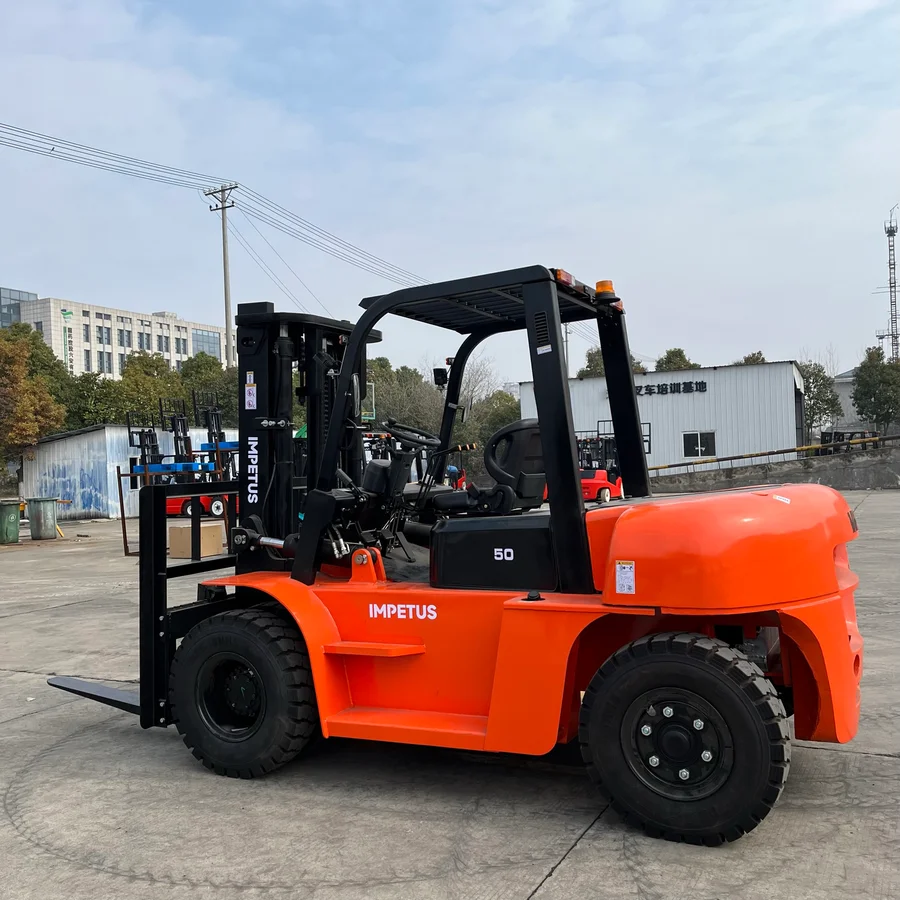

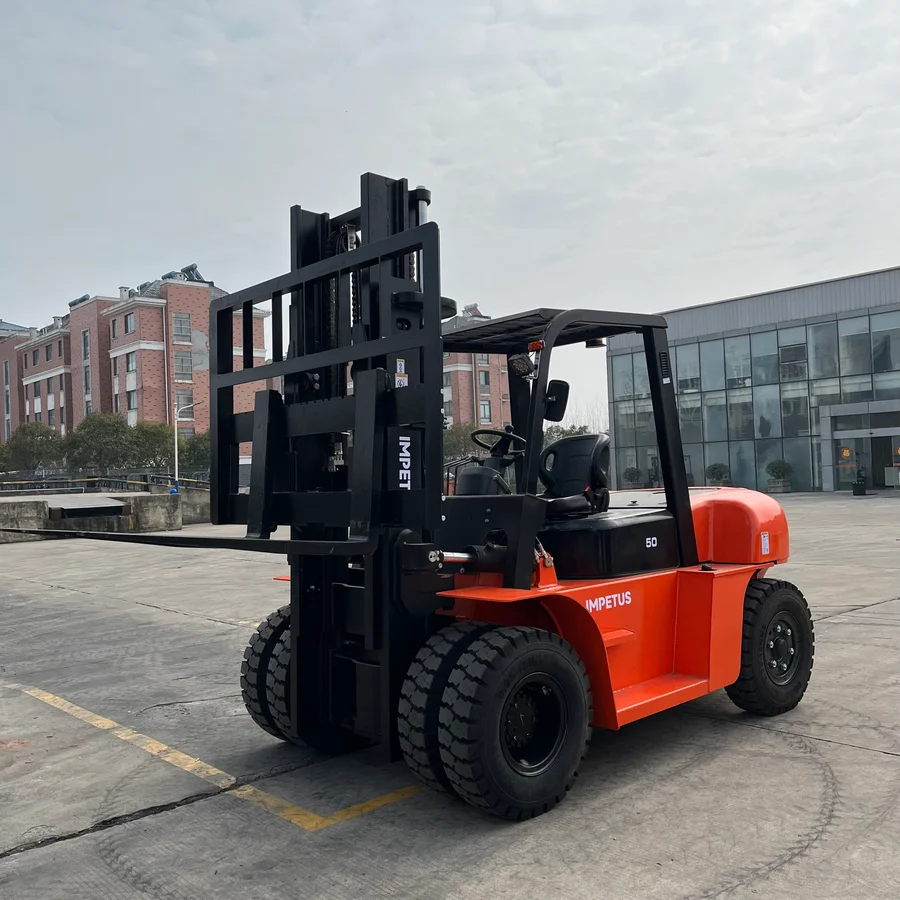

5 Ton Diesel Forklift (Large) — Impetus FD50 detail view 8

5 Ton Diesel Forklift (Large) — Impetus FD50 detail view 9

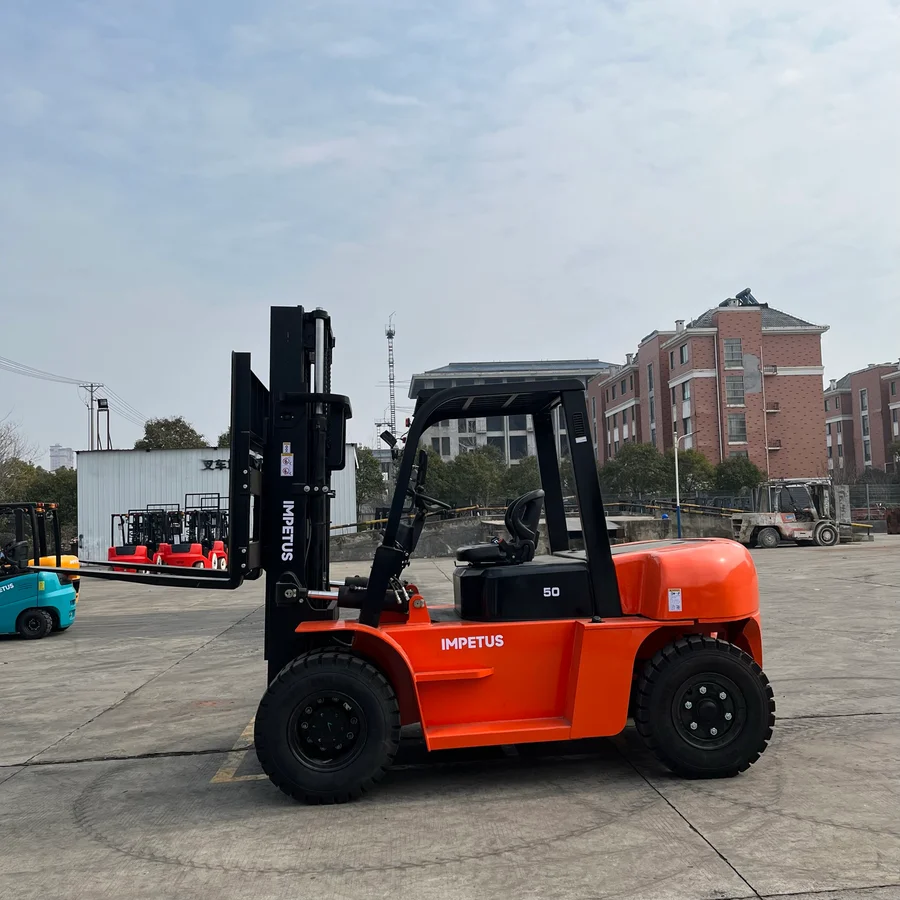

5 Ton Diesel Forklift (Large) — Impetus FD50 detail view 10

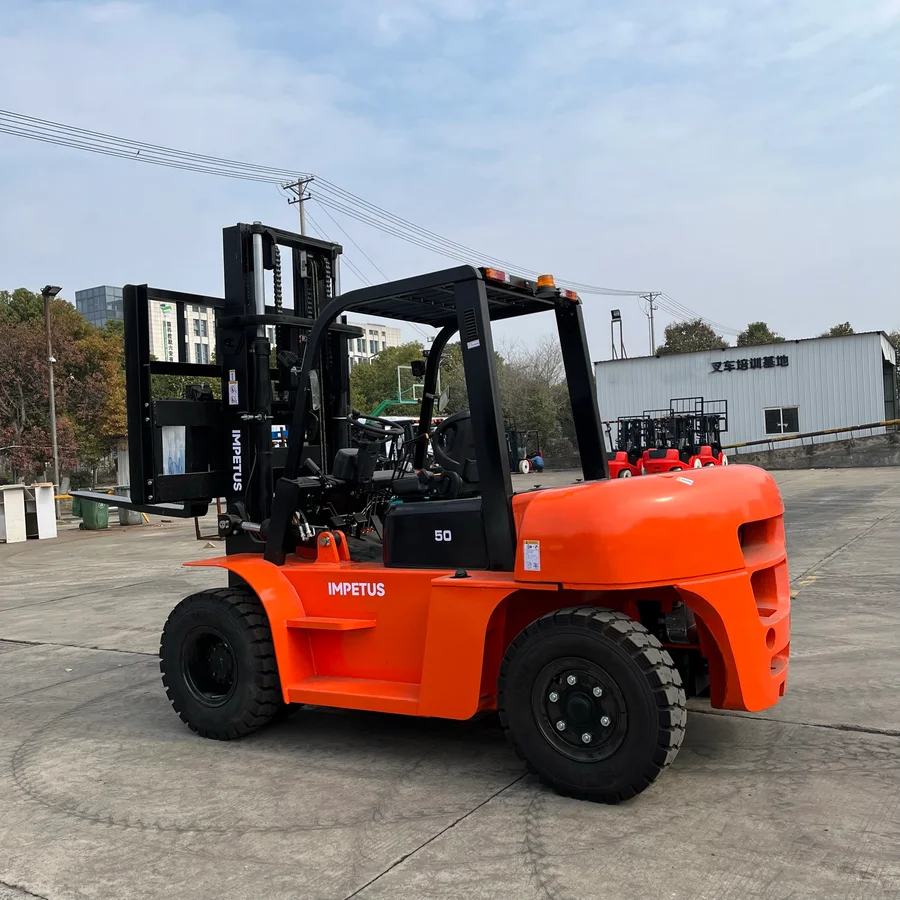

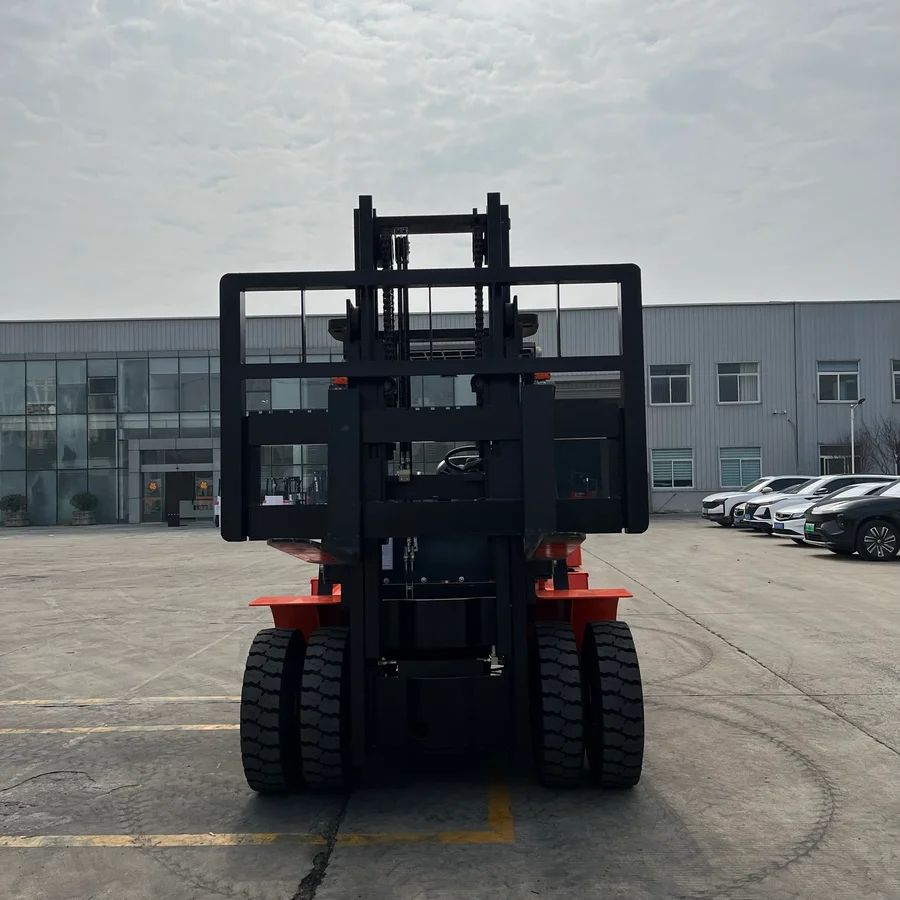

5 Ton Diesel Forklift (Large) — Impetus FD50 detail view 11

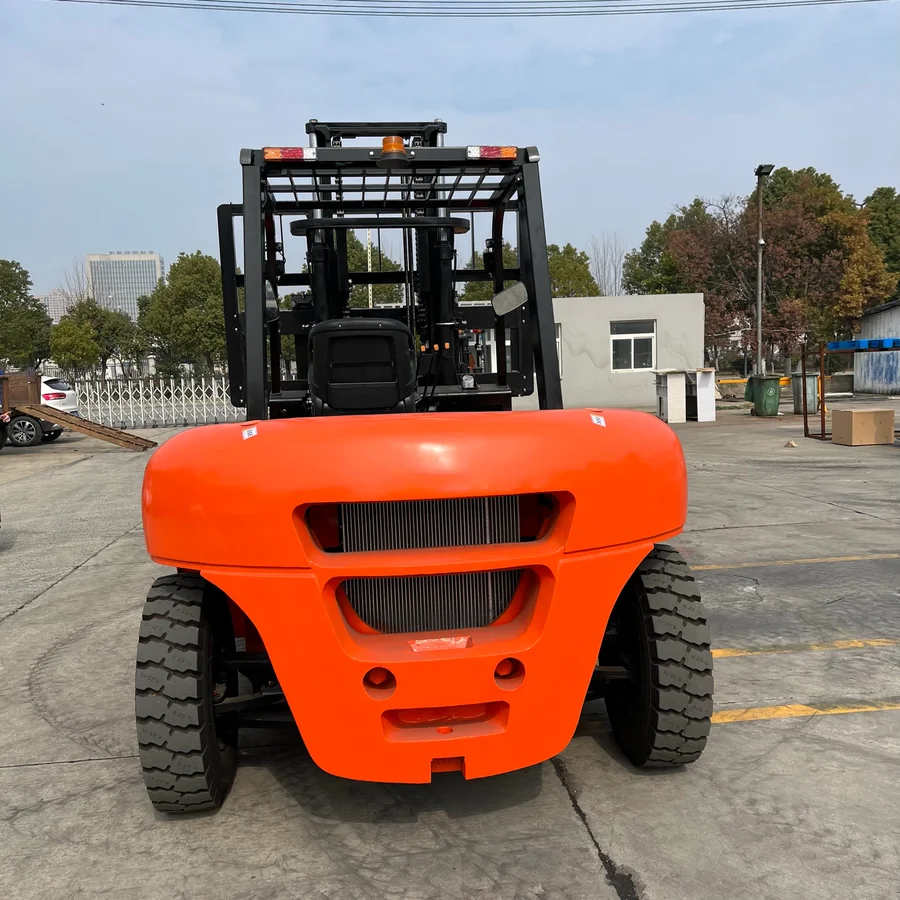

5 Ton Diesel Forklift (Large) — Impetus FD50 detail view 12

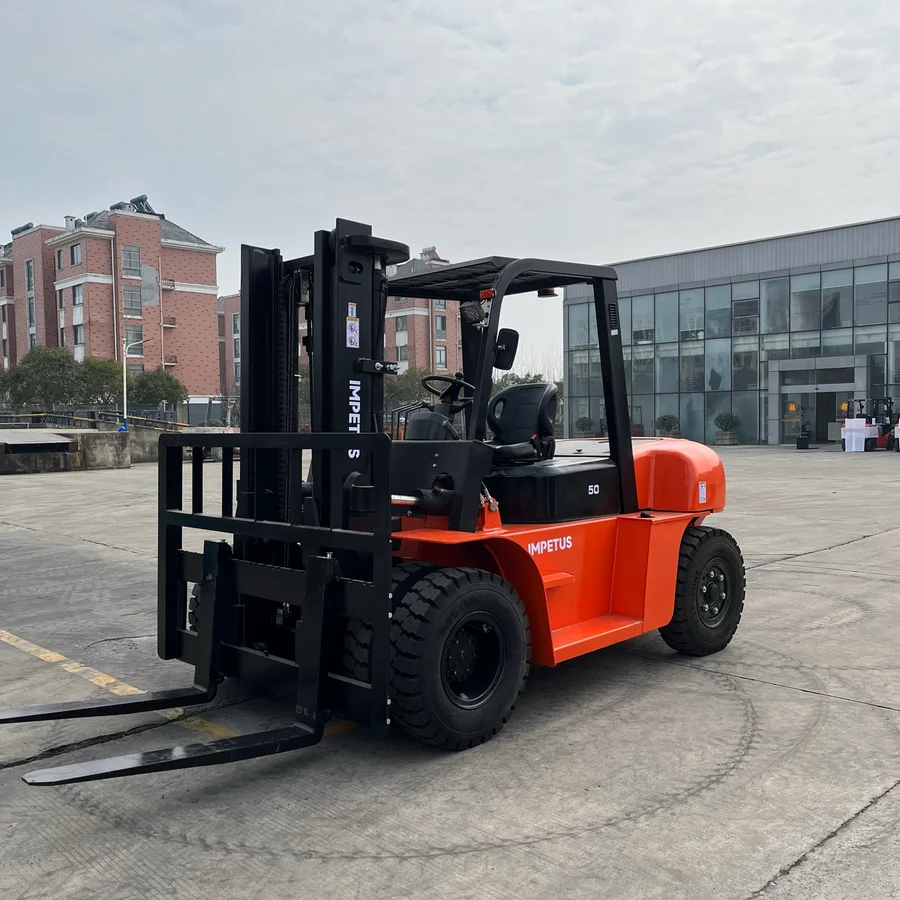

5 Ton Diesel Forklift (Large) — Impetus FD50 detail view 13

5 Ton Diesel Forklift (Large) — Impetus FD50 detail view 14

5 Ton Diesel Forklift (Large) — Impetus FD50 detail view 15

5 Ton Diesel Forklift (Large) — Impetus FD50 detail view 16

5 Ton Diesel Forklift (Large) — Impetus FD50 detail view 17

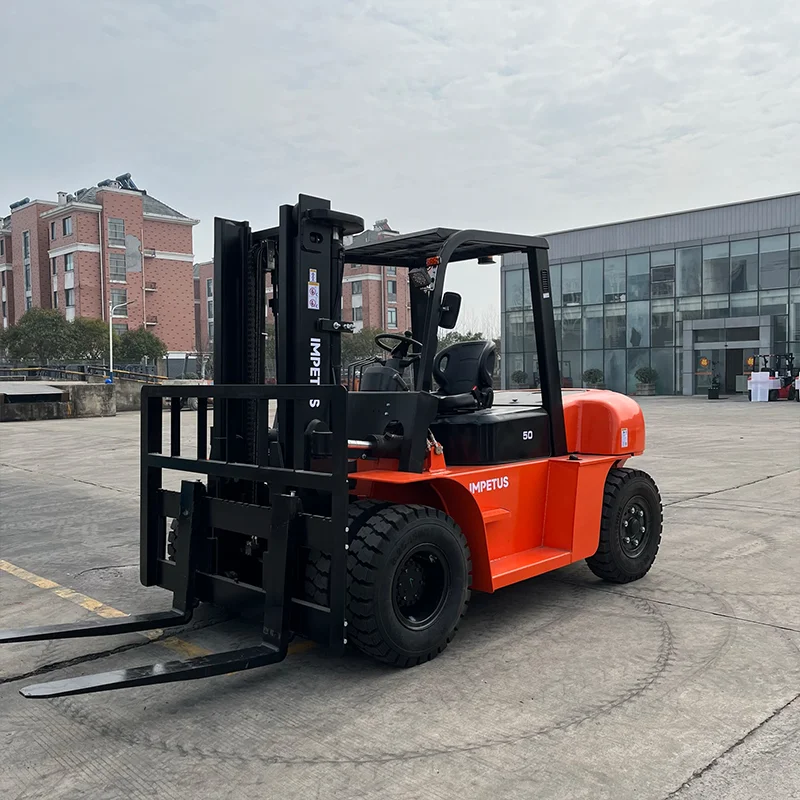

5 Ton Diesel Forklift (Large) — Impetus FD50 detail view 18

5 Ton Diesel Forklift (Large) — Impetus FD50 detail view 19

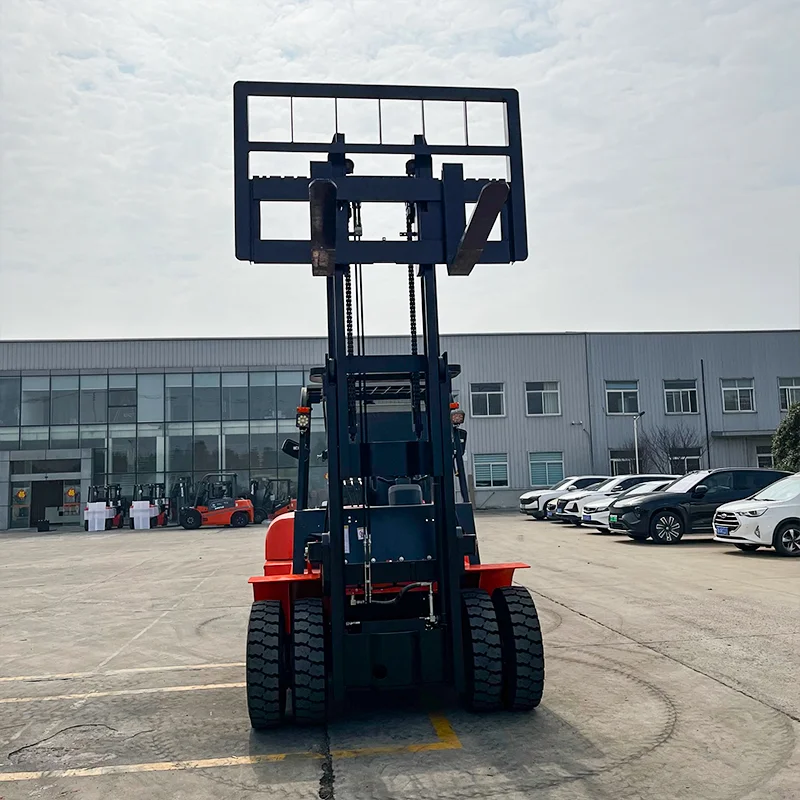

5 Ton Diesel Forklift (Large) — Impetus FD50 detail view 20

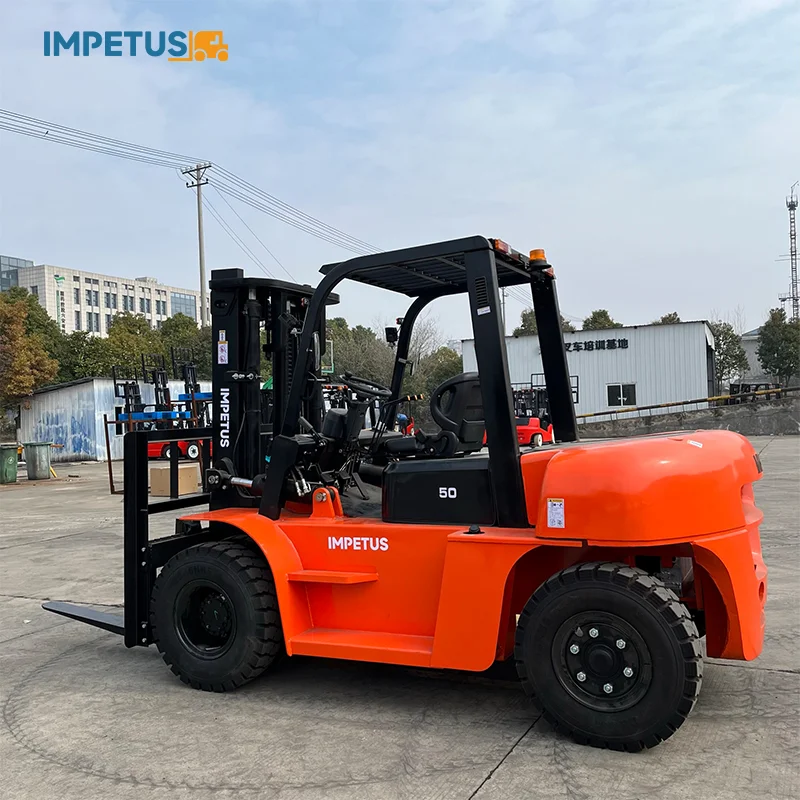

5 Ton Diesel Forklift (Large) — Impetus FD50 detail view 21

5 Ton Diesel Forklift (Large) — Impetus FD50 detail view 22

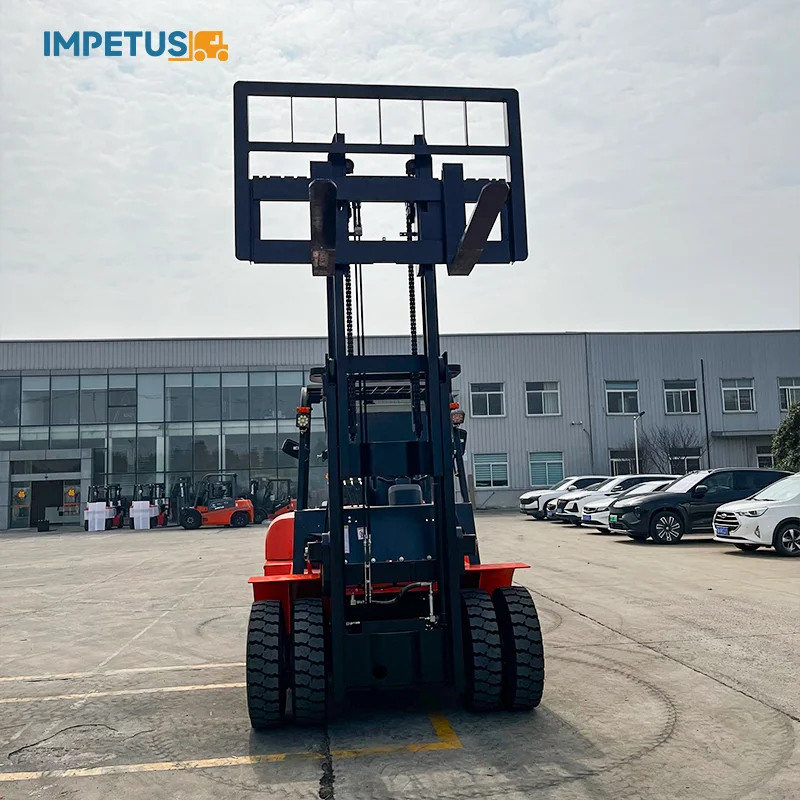

5 Ton Diesel Forklift (Large) — Impetus FD50 detail view 23

5 Ton Diesel Forklift (Large) — Impetus FD50 detail view 24

5 Ton Diesel Forklift (Large) — Impetus FD50 detail view 25

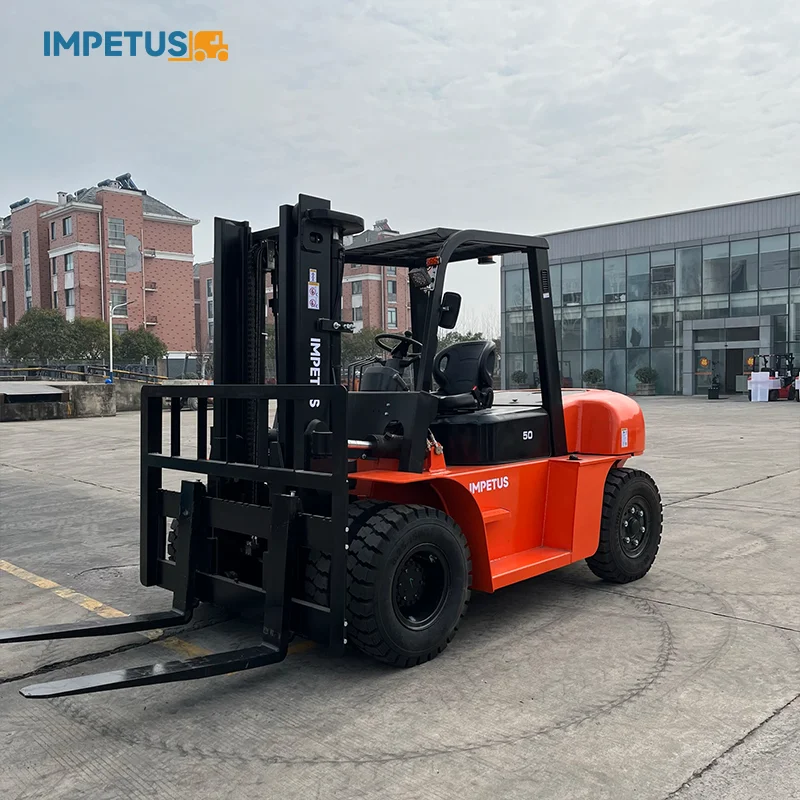

5 Ton Diesel Forklift (Large) — Impetus FD50 detail view 26

5 Ton Diesel Forklift (Large) — Impetus FD50 thumbnail 1

5 Ton Diesel Forklift (Large) — Impetus FD50 thumbnail 2

5 Ton Diesel Forklift (Large) — Impetus FD50 thumbnail 3

5 Ton Diesel Forklift (Large) — Impetus FD50 thumbnail 4

5 Ton Diesel Forklift (Large) — Impetus FD50 thumbnail 5

5 Ton Diesel Forklift (Large) — Impetus FD50 thumbnail 6

5 Ton Diesel Forklift (Large) — Impetus FD50 thumbnail 7

5 Ton Diesel Forklift (Large) — Impetus FD50 thumbnail 8

5 Ton Diesel Forklift (Large) — Impetus FD50 thumbnail 9

5 Ton Diesel Forklift (Large) — Impetus FD50 thumbnail 10

5 Ton Diesel Forklift (Large) — Impetus FD50 thumbnail 11

5 Ton Diesel Forklift (Large) — Impetus FD50 thumbnail 12

5 Ton Diesel Forklift (Large) — Impetus FD50 thumbnail 13

5 Ton Diesel Forklift (Large) — Impetus FD50 thumbnail 14

5 Ton Diesel Forklift (Large) — Impetus FD50 thumbnail 15

5 Ton Diesel Forklift (Large) — Impetus FD50 thumbnail 16

5 Ton Diesel Forklift (Large) — Impetus FD50 thumbnail 17

5 Ton Diesel Forklift (Large) — Impetus FD50 thumbnail 18

5 Ton Diesel Forklift (Large) — Impetus FD50 thumbnail 19

5 Ton Diesel Forklift (Large) — Impetus FD50 thumbnail 20

5 Ton Diesel Forklift (Large) — Impetus FD50 thumbnail 21

5 Ton Diesel Forklift (Large) — Impetus FD50 thumbnail 22

5 Ton Diesel Forklift (Large) — Impetus FD50 thumbnail 23

5 Ton Diesel Forklift (Large) — Impetus FD50 thumbnail 24

5 Ton Diesel Forklift (Large)

Engineered for easy maintenance, fuel efficiency, and operator comfort. FD50 delivers lower operating costs and higher uptime across demanding work environments.

oil_barrel Efficient diesel engine with low fuel consumption
airline_seat_recline_extra Operator-centric cabin for all-day comfort
visibility Heavy-duty mast with excellent forward visibility

Ready to upgrade your fleet?

Connect with our engineering sales team to configure the FD50 for your facility's exact requirements.

Power type	Diesel	Lift capacity	5000 kg
Load center distance	600 mm	Battery (Voltage/Capacity)	24/100
Max. lift height	3000 mm	Free lift height	190 mm
Mast tilt angle (front/rear)	6/12	Max. lift speed (full load/no load)	500/520
Max. lowering speed (full load/no load)	360/400	Max. travelling speed (full load/no load)	22.5/25
Min. turning radius	3320 mm	Gradeability (full load/no load)	20/25%
Max. traction force	70	Overweight	8330 kg
Length (without forks)	3480 mm	Width	2000 mm
Height	2500 mm	Min. ground clearance	200 mm
Wheel base	2250 mm	Wheel tread	1470 mm
Front overhang	590 mm	Rear overhang	640 mm
Tire	8.25-15-14PR	Fork size (LWH)	1220×150×60
Engine model	Xichai -4DF3	Rated power	85/2200
Rated torque	500/1600	Number of cylinder	4
Displacement	4.29

Power type	Diesel
Lift capacity	5000 kg
Load center distance	600 mm
Battery (Voltage/Capacity)	24/100
Max. lift height	3000 mm
Free lift height	190 mm
Mast tilt angle (front/rear)	6/12
Max. lift speed (full load/no load)	500/520
Max. lowering speed (full load/no load)	360/400
Max. travelling speed (full load/no load)	22.5/25
Min. turning radius	3320 mm
Gradeability (full load/no load)	20/25%
Max. traction force	70
Overweight	8330 kg
Length (without forks)	3480 mm
Width	2000 mm
Height	2500 mm
Min. ground clearance	200 mm
Wheel base	2250 mm
Wheel tread	1470 mm
Front overhang	590 mm
Rear overhang	640 mm
Tire	8.25-15-14PR
Fork size (LWH)	1220×150×60
Engine model	Xichai -4DF3
Rated power	85/2200
Rated torque	500/1600
Number of cylinder	4
Displacement	4.29

1. Easy Maintenance & Spacious Hood Design

Large opening hood and organized component layout provide quick access for daily inspection and maintenance, reducing downtime and service costs.

2. Powerful & Fuel-Efficient Engine

Equipped with a reliable high-performance engine and advanced hydraulic system, the forklift delivers strong power, fast response, and lower fuel consumption for demanding working conditions.

3. Comfortable & Ergonomic Operation

Optimized control layout, spacious operating area and ergonomic seat design improve driver comfort and reduce fatigue during long working hours.

4. Durable Structure & Long Service Life

Built with a reinforced chassis and reliable core components, the forklift ensures excellent stability, durability, and long-term performance across various working conditions.

Our Facility

Impetus Factory & Global Installations

View Full Tour arrow_forward

Impetus 30,000m² forklift manufacturing campus — exterior view

Global Manufacturing Campus

30,000 m² state-of-the-art facility

Intelligent Assembly

Industry 4.0 production lines

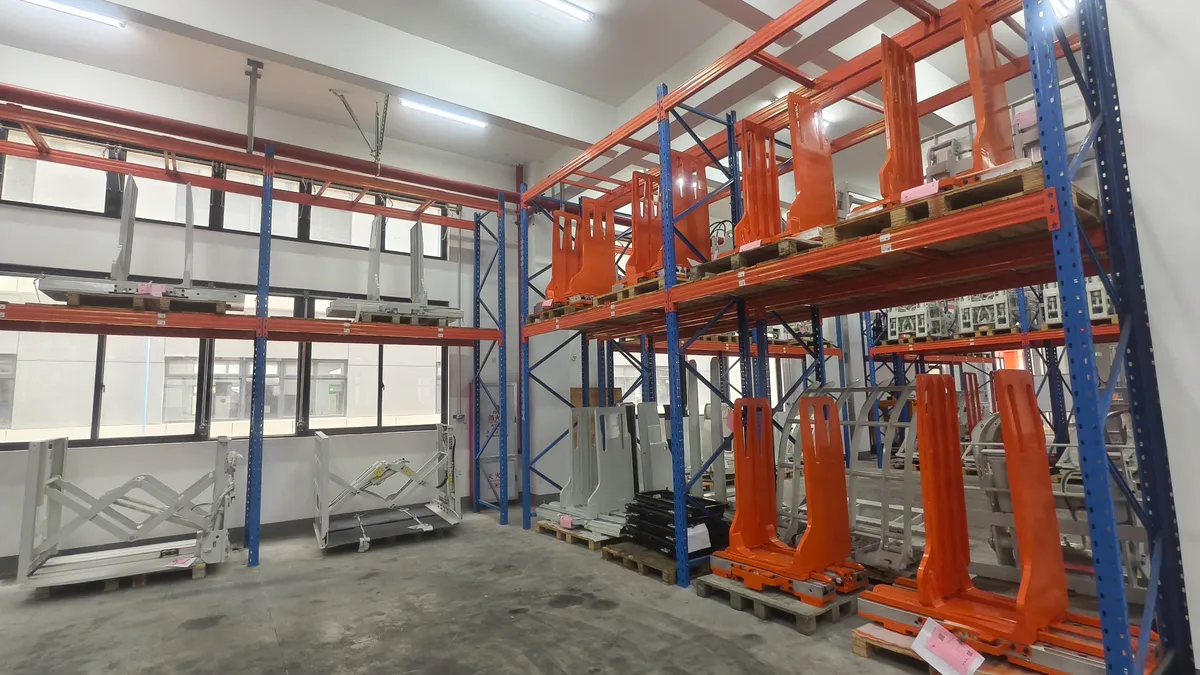

Impetus ready-to-ship forklift inventory warehouse — fast global delivery
