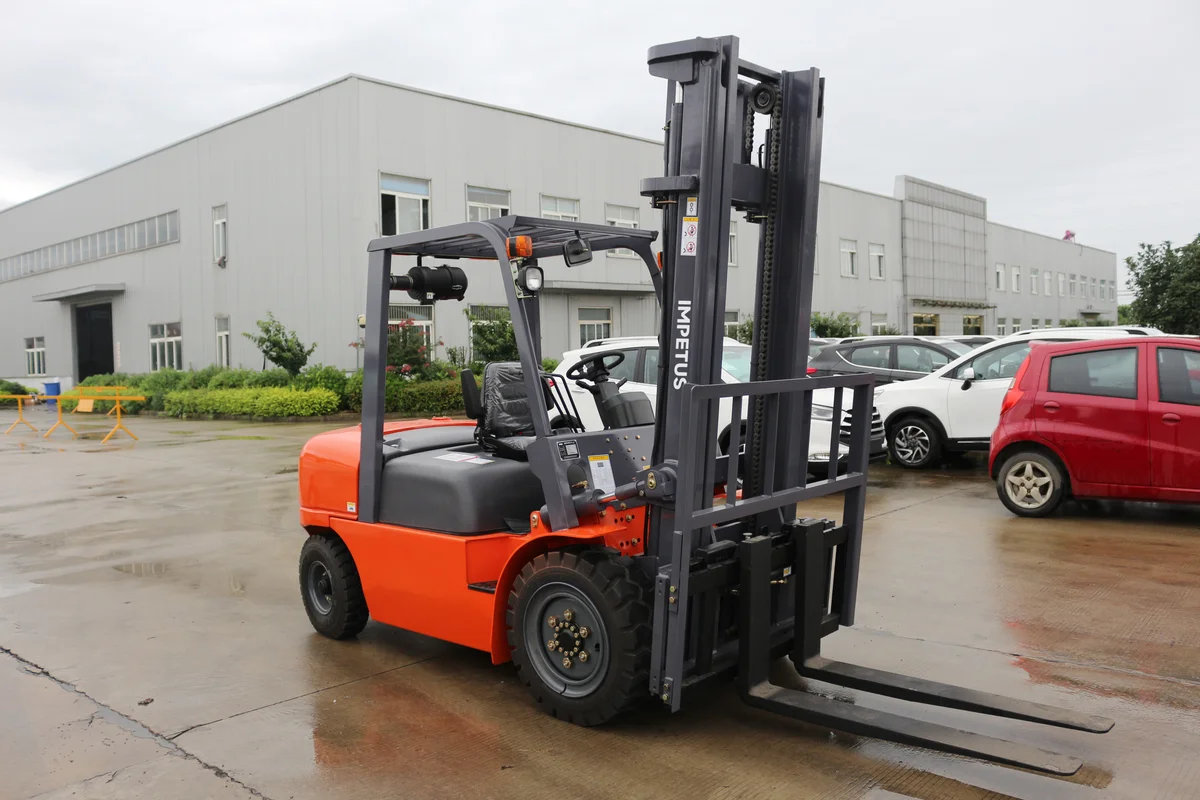

Counterbalance Forklift

4 Ton
Diesel Forklift

Name: 4 Ton Diesel Forklift
Brand: Impetus
SKU: FD40
Availability: InStock

4000 kg

Capacity

Diesel

Power

3000 mm

Lift Height

FD40

Model

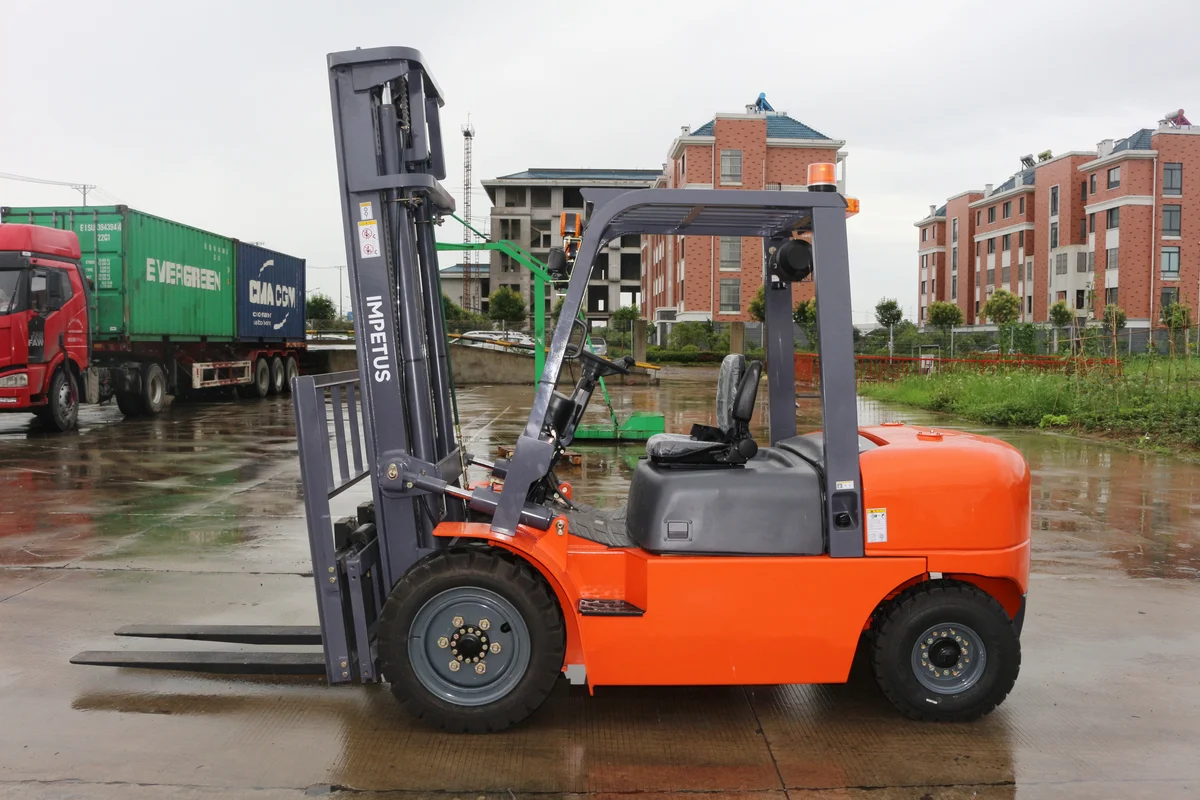

4 Ton Diesel Forklift — Impetus FD40 detail view 2

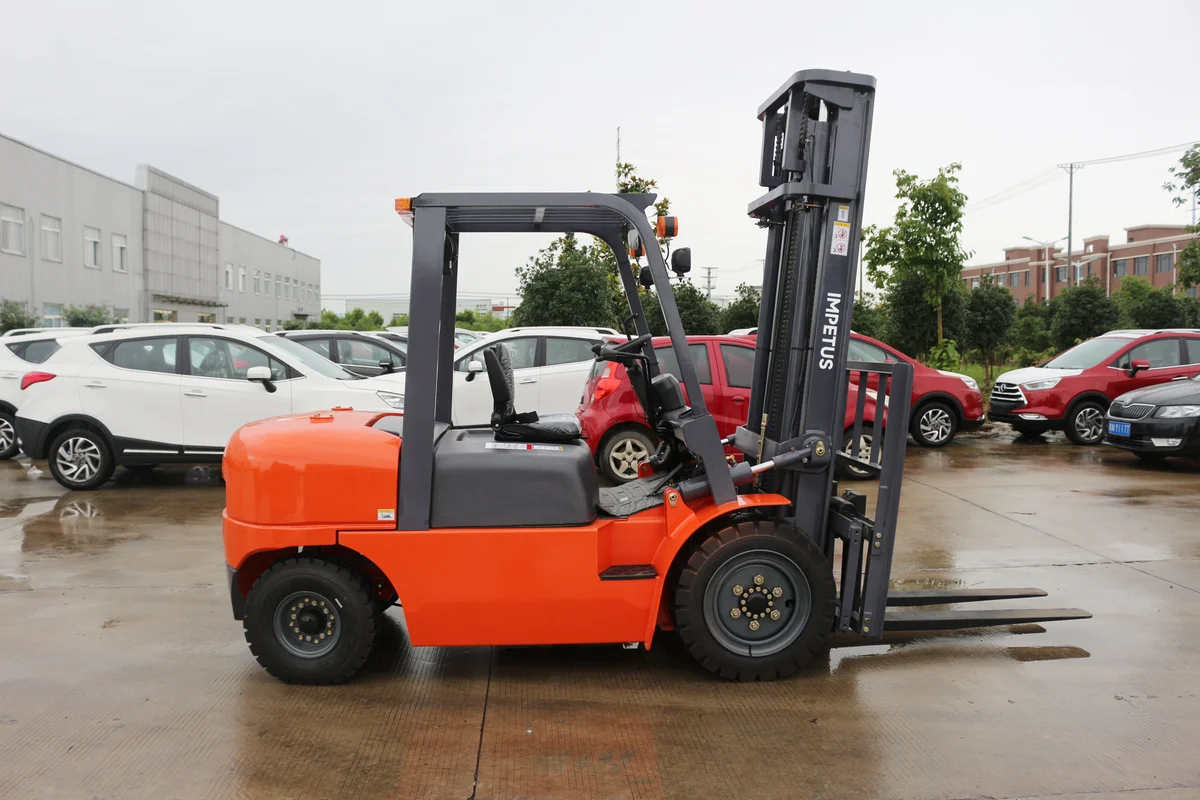

4 Ton Diesel Forklift — Impetus FD40 detail view 3

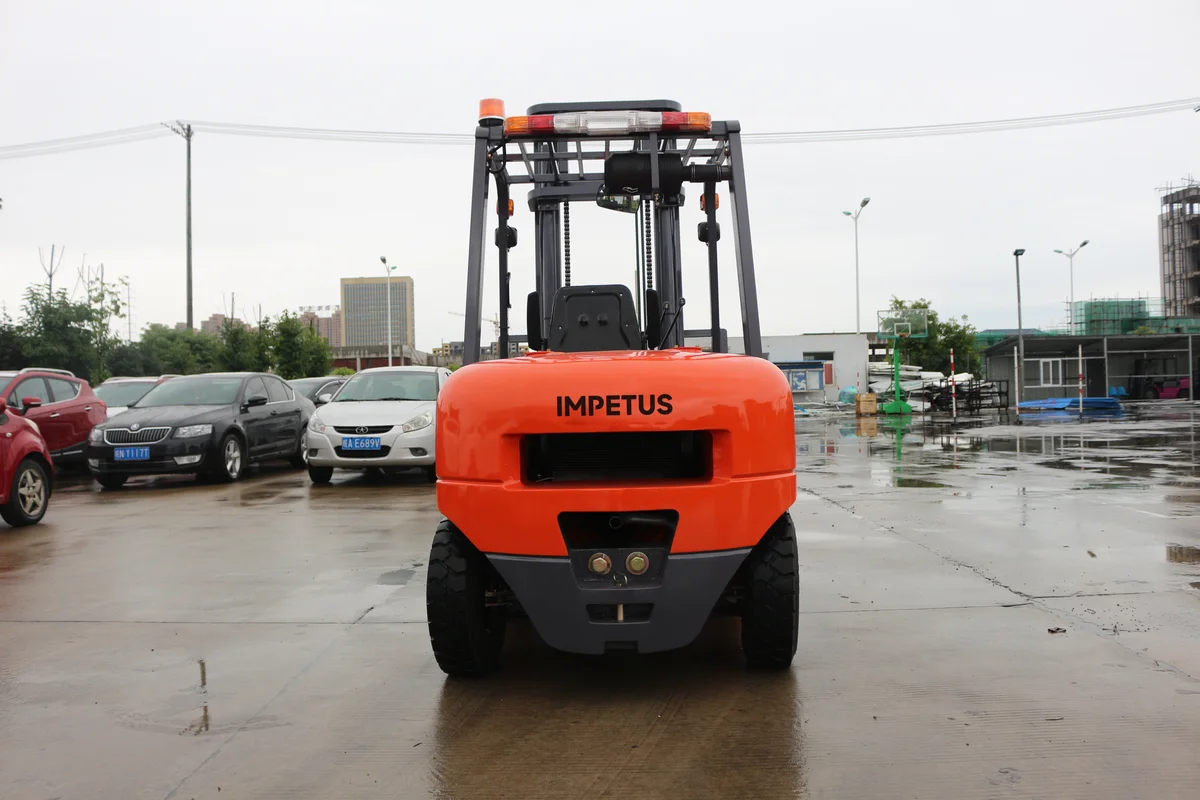

4 Ton Diesel Forklift — Impetus FD40 detail view 4

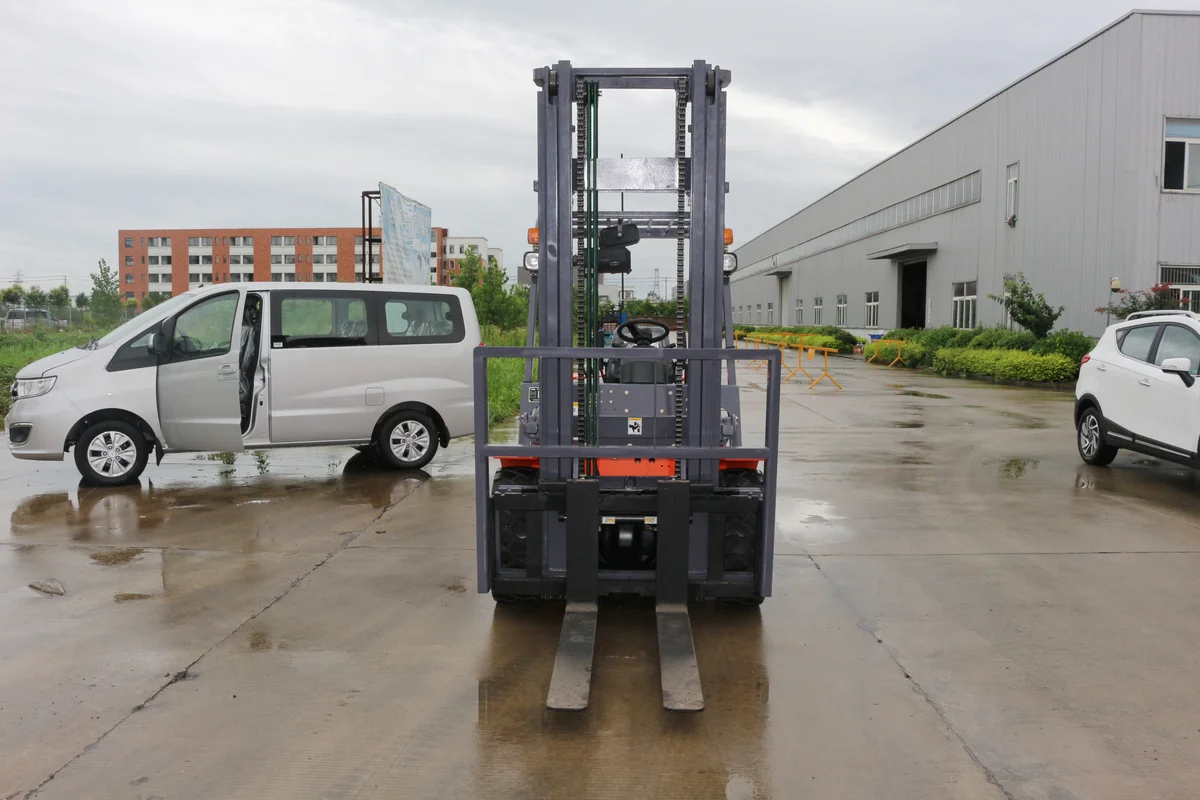

4 Ton Diesel Forklift — Impetus FD40 detail view 5

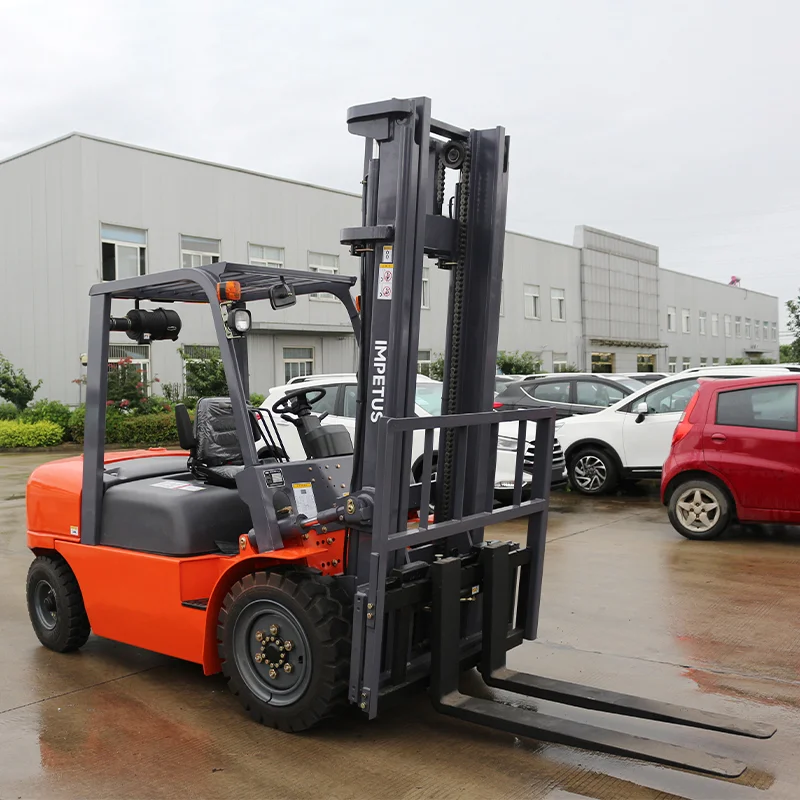

4 Ton Diesel Forklift — Impetus FD40 detail view 6

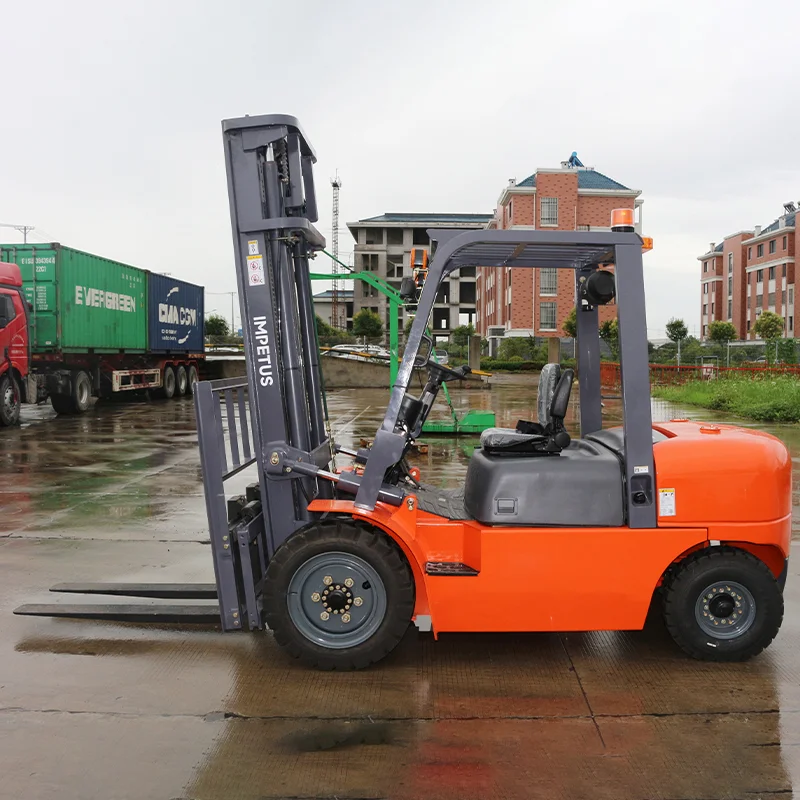

4 Ton Diesel Forklift — Impetus FD40 detail view 7

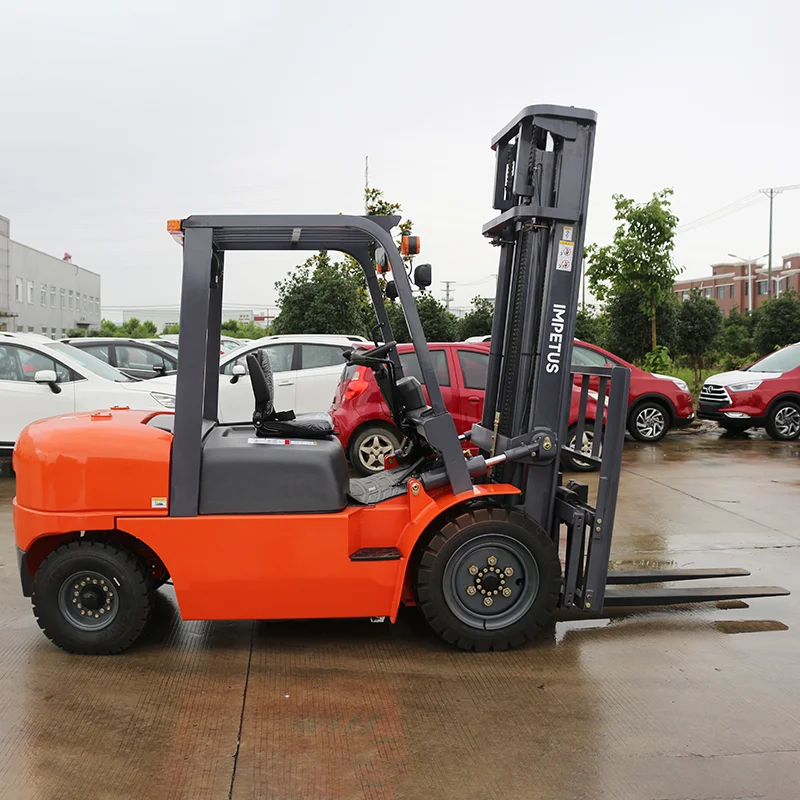

4 Ton Diesel Forklift — Impetus FD40 detail view 8

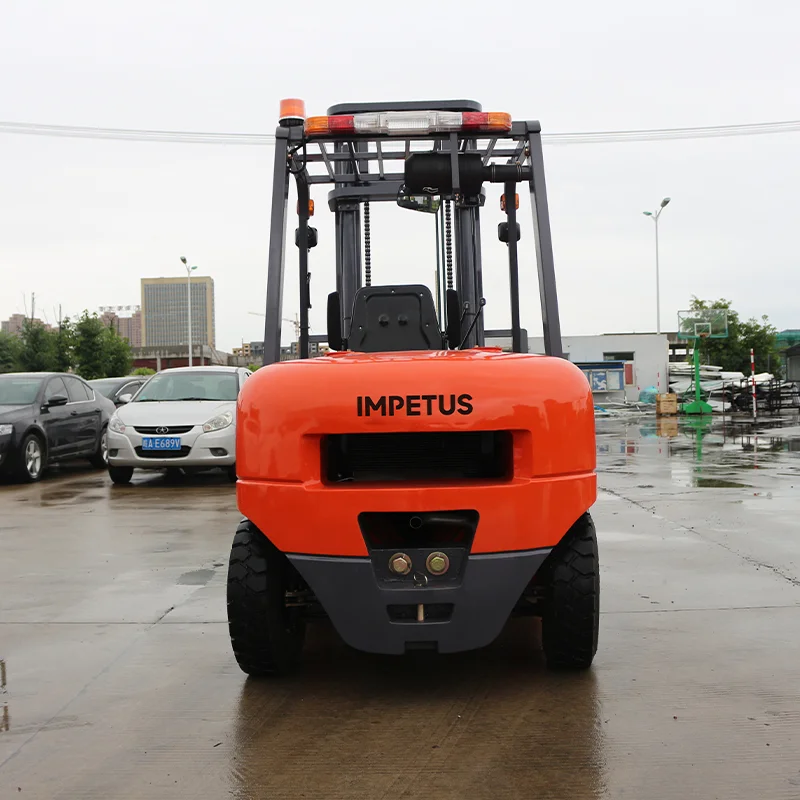

4 Ton Diesel Forklift — Impetus FD40 detail view 9

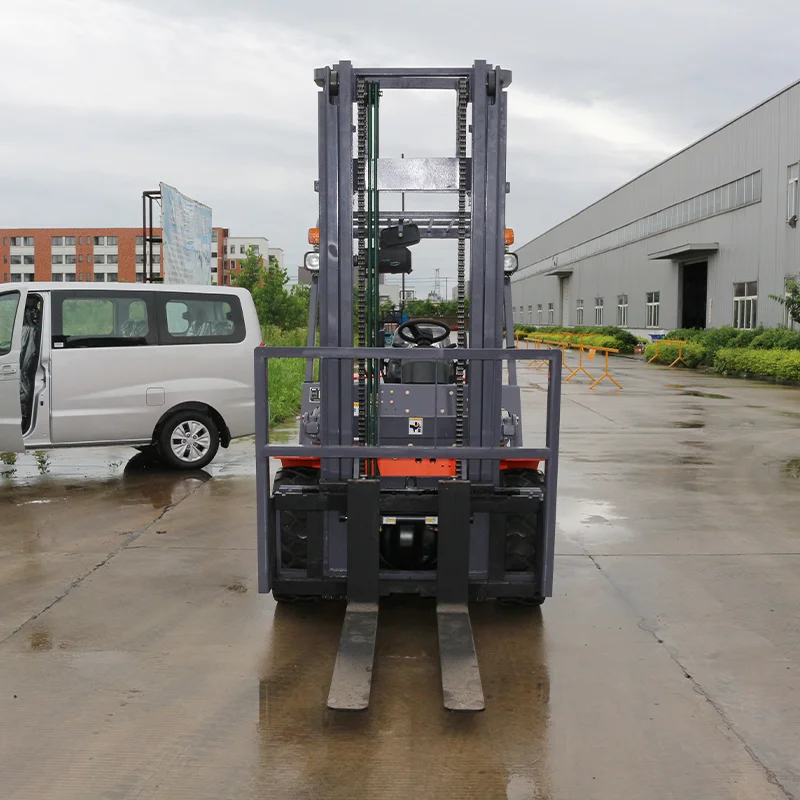

4 Ton Diesel Forklift — Impetus FD40 detail view 10

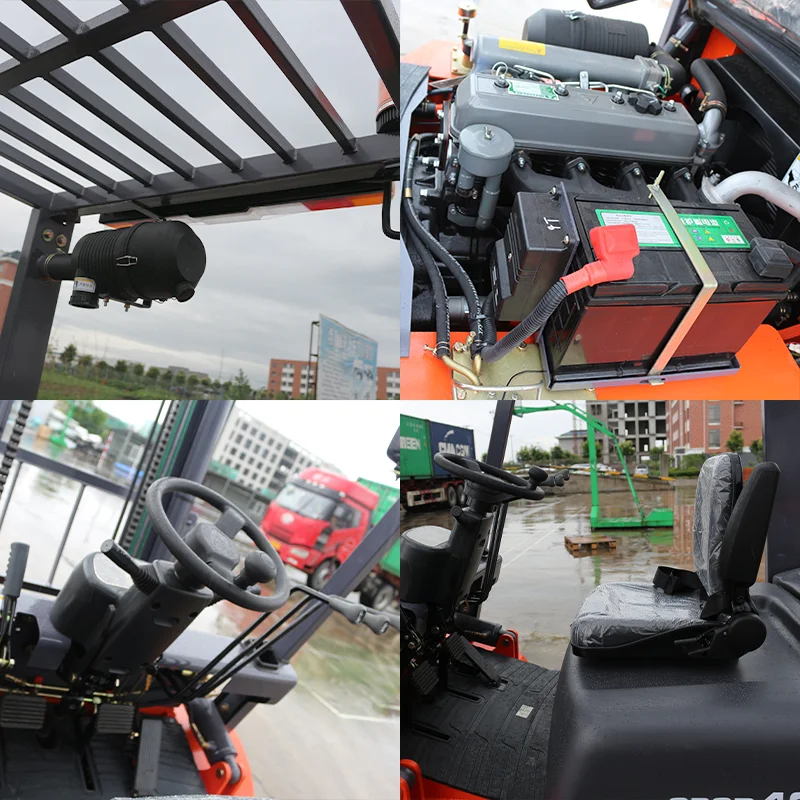

4 Ton Diesel Forklift — Impetus FD40 detail view 11

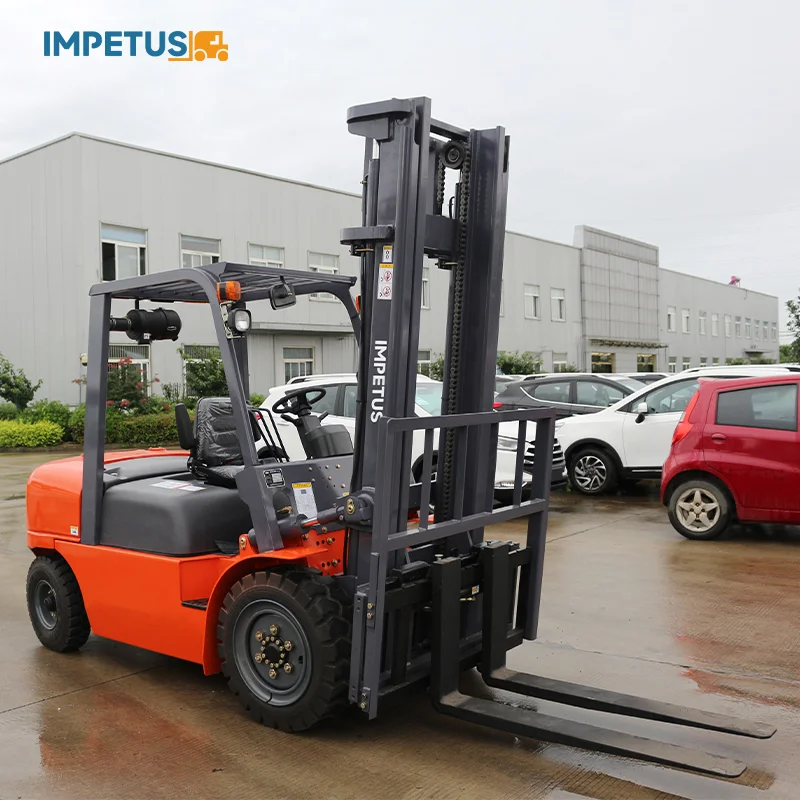

4 Ton Diesel Forklift — Impetus FD40 detail view 12

4 Ton Diesel Forklift — Impetus FD40 detail view 13

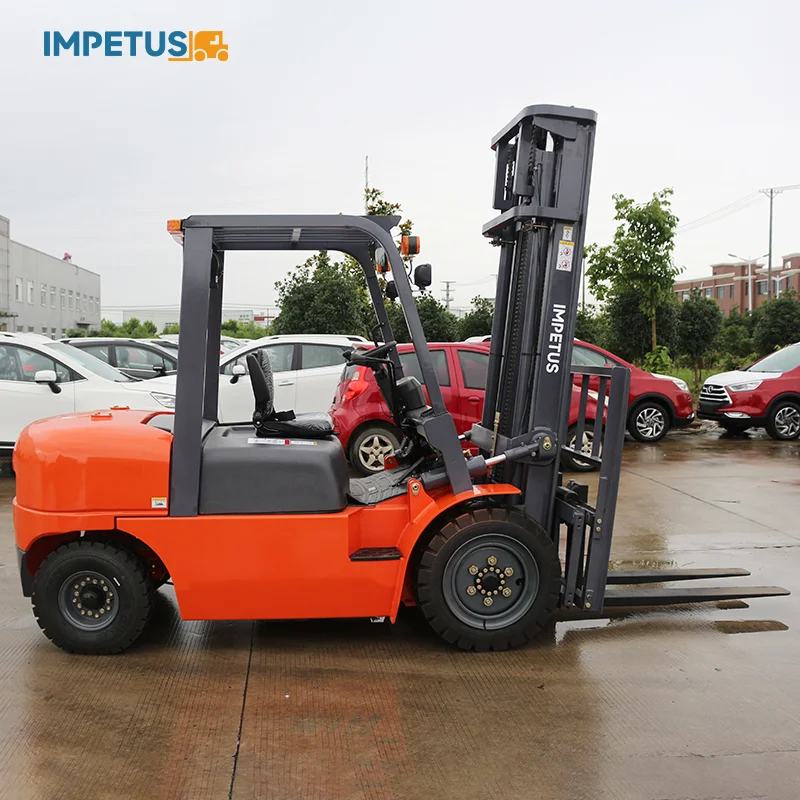

4 Ton Diesel Forklift — Impetus FD40 detail view 14

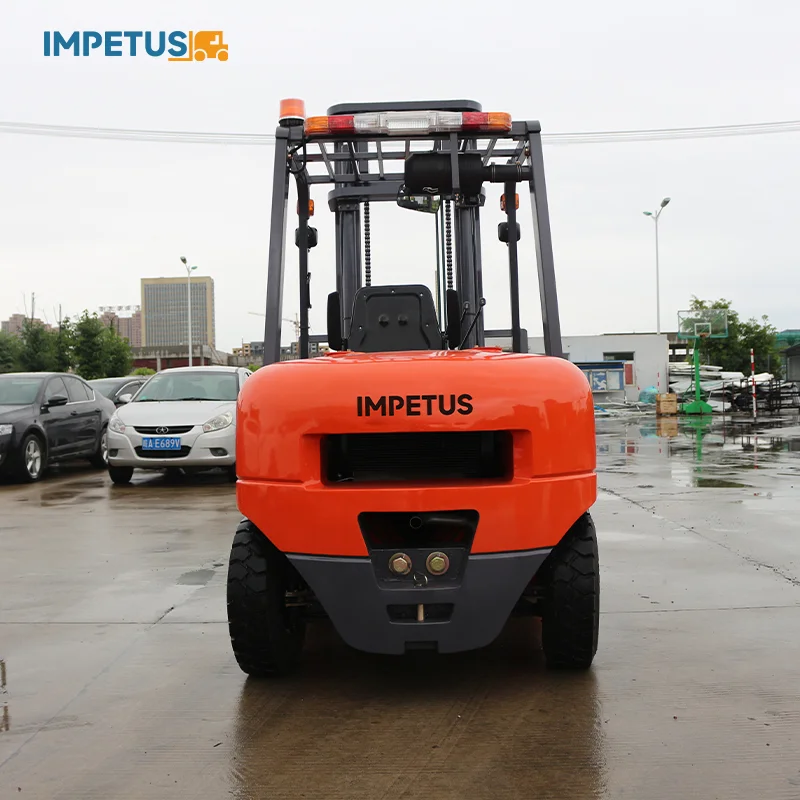

4 Ton Diesel Forklift — Impetus FD40 detail view 15

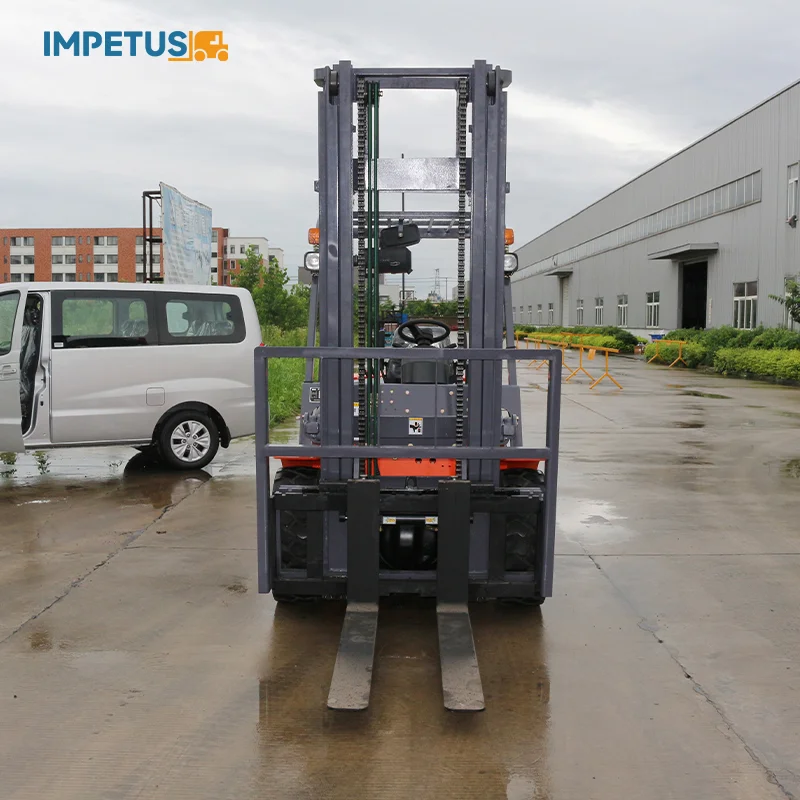

4 Ton Diesel Forklift — Impetus FD40 detail view 16

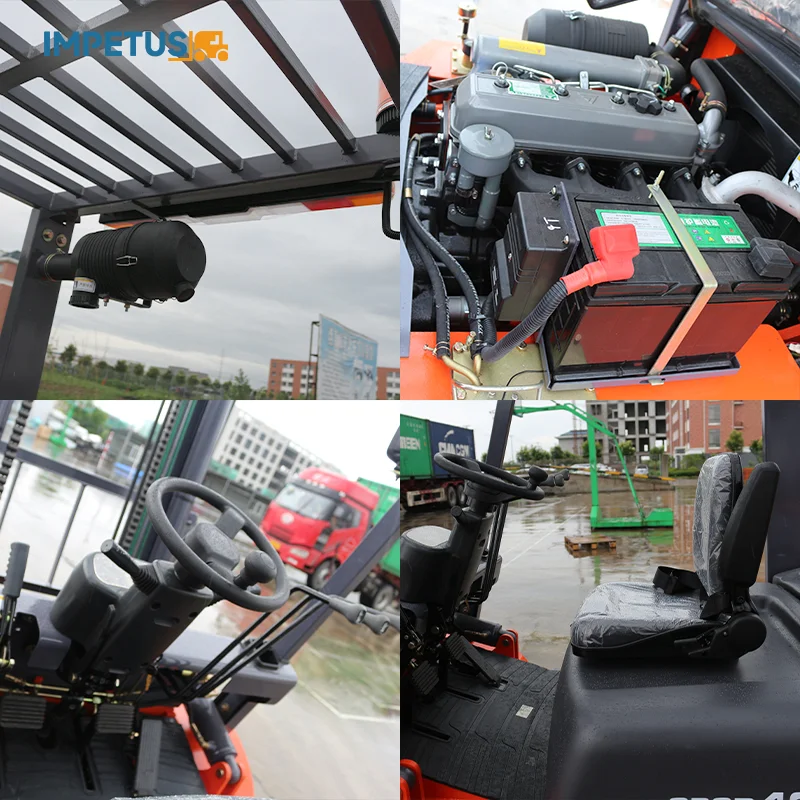

4 Ton Diesel Forklift — Impetus FD40 detail view 17

4 Ton Diesel Forklift — Impetus FD40 thumbnail 1

4 Ton Diesel Forklift — Impetus FD40 thumbnail 2

4 Ton Diesel Forklift — Impetus FD40 thumbnail 3

4 Ton Diesel Forklift — Impetus FD40 thumbnail 4

4 Ton Diesel Forklift — Impetus FD40 thumbnail 5

4 Ton Diesel Forklift — Impetus FD40 thumbnail 6

4 Ton Diesel Forklift — Impetus FD40 thumbnail 7

4 Ton Diesel Forklift — Impetus FD40 thumbnail 8

4 Ton Diesel Forklift — Impetus FD40 thumbnail 9

4 Ton Diesel Forklift — Impetus FD40 thumbnail 10

4 Ton Diesel Forklift — Impetus FD40 thumbnail 11

4 Ton Diesel Forklift — Impetus FD40 thumbnail 12

4 Ton Diesel Forklift — Impetus FD40 thumbnail 13

4 Ton Diesel Forklift — Impetus FD40 thumbnail 14

4 Ton Diesel Forklift — Impetus FD40 thumbnail 15

4 Ton Diesel Forklift

Engineered for easy maintenance, fuel efficiency, and operator comfort. FD40 delivers lower operating costs and higher uptime across demanding work environments.

oil_barrel Efficient diesel engine with low fuel consumption
airline_seat_recline_extra Operator-centric cabin for all-day comfort
visibility Heavy-duty mast with excellent forward visibility

Ready to upgrade your fleet?

Connect with our engineering sales team to configure the FD40 for your facility's exact requirements.

Rated capacity	4000 kg	Load center distance	500 kg
Power type	Diesel	Driving type	Seated
Wheel base	1900	Tyre type	Pneumatic
Wheel number (front/rear)	2X / 2	Front tread	1160 mm
Rear tread	1065 mm	Tyre (front)	250-15-16PR
Tyre (rear)	6.50-10-10PR	Front overhang	500 mm
Mast tilt angle (front/rear)	6/12	Height with mast retraction	2150 mm
Free lift height	150 mm	Max. lifting height	3000 mm
Max. height after lifting	4260 mm	Overhead guard height	2150 mm
Fork size: length x width x thickness	1220x150x50	Overall length (fork excluded)	2880 mm
Overall width	1410 mm	Turning radius	2700 mm
Ground clearance of mast	130 mm	Ground clearance of wheel base center (loaded)	155 mm
Lateral fork adjustment Max./Min.	1290/300	Travelling speed (loaded/unloaded)	18/19
Lifting speed (loaded/unloaded)	350/380	Lowering speed (loaded/unloaded)	350/400
Gradeability (loaded/unloaded)	15/18	Max. traction force (loaded/unloaded)	20/18
Total weight	5270 kg	Axle load (unloaded), front/rear	2110/3160
Axle load (loaded), front/rear	8370/900	Engine manufacturer /Model	XINCHAI A498BPG
Rated power /Speed	45/2500	Max. torque /Speed	193/1800～2000
Cylinder number-bore×stroke	4-98×105	Engine displacement	3.168
Emission	Stage II	Transmission gears (front/rear)	1-1 Power Shift 2-2 Manual Shift
Fuel tank capacity	70 kg	Service brake / parking brake	Hydraulic/Mechanical
Hydraulic system working pressure	17.5

Rated capacity	4000 kg
Load center distance	500 kg
Power type	Diesel
Driving type	Seated
Wheel base	1900
Tyre type	Pneumatic
Wheel number (front/rear)	2X / 2
Front tread	1160 mm
Rear tread	1065 mm
Tyre (front)	250-15-16PR
Tyre (rear)	6.50-10-10PR
Front overhang	500 mm
Mast tilt angle (front/rear)	6/12
Height with mast retraction	2150 mm
Free lift height	150 mm
Max. lifting height	3000 mm
Max. height after lifting	4260 mm
Overhead guard height	2150 mm
Fork size: length x width x thickness	1220x150x50
Overall length (fork excluded)	2880 mm
Overall width	1410 mm
Turning radius	2700 mm
Ground clearance of mast	130 mm
Ground clearance of wheel base center (loaded)	155 mm
Lateral fork adjustment Max./Min.	1290/300
Travelling speed (loaded/unloaded)	18/19
Lifting speed (loaded/unloaded)	350/380
Lowering speed (loaded/unloaded)	350/400
Gradeability (loaded/unloaded)	15/18
Max. traction force (loaded/unloaded)	20/18
Total weight	5270 kg
Axle load (unloaded), front/rear	2110/3160
Axle load (loaded), front/rear	8370/900
Engine manufacturer /Model	XINCHAI A498BPG
Rated power /Speed	45/2500
Max. torque /Speed	193/1800～2000
Cylinder number-bore×stroke	4-98×105
Engine displacement	3.168
Emission	Stage II
Transmission gears (front/rear)	1-1 Power Shift 2-2 Manual Shift
Fuel tank capacity	70 kg
Service brake / parking brake	Hydraulic/Mechanical
Hydraulic system working pressure	17.5

1. Easy Maintenance & Spacious Hood Design

Large opening hood and organized component layout provide quick access for daily inspection and maintenance, reducing downtime and service costs.

2. Powerful & Fuel-Efficient Engine

Equipped with a reliable high-performance engine and advanced hydraulic system, the forklift delivers strong power, fast response, and lower fuel consumption for demanding working conditions.

3. Comfortable & Ergonomic Operation

Optimized control layout, spacious operating area and ergonomic seat design improve driver comfort and reduce fatigue during long working hours.

4. Durable Structure & Long Service Life

Built with a reinforced chassis and reliable core components, the forklift ensures excellent stability, durability, and long-term performance across various working conditions.
