Counterbalance Forklift

3.5 Ton
Diesel Forklift

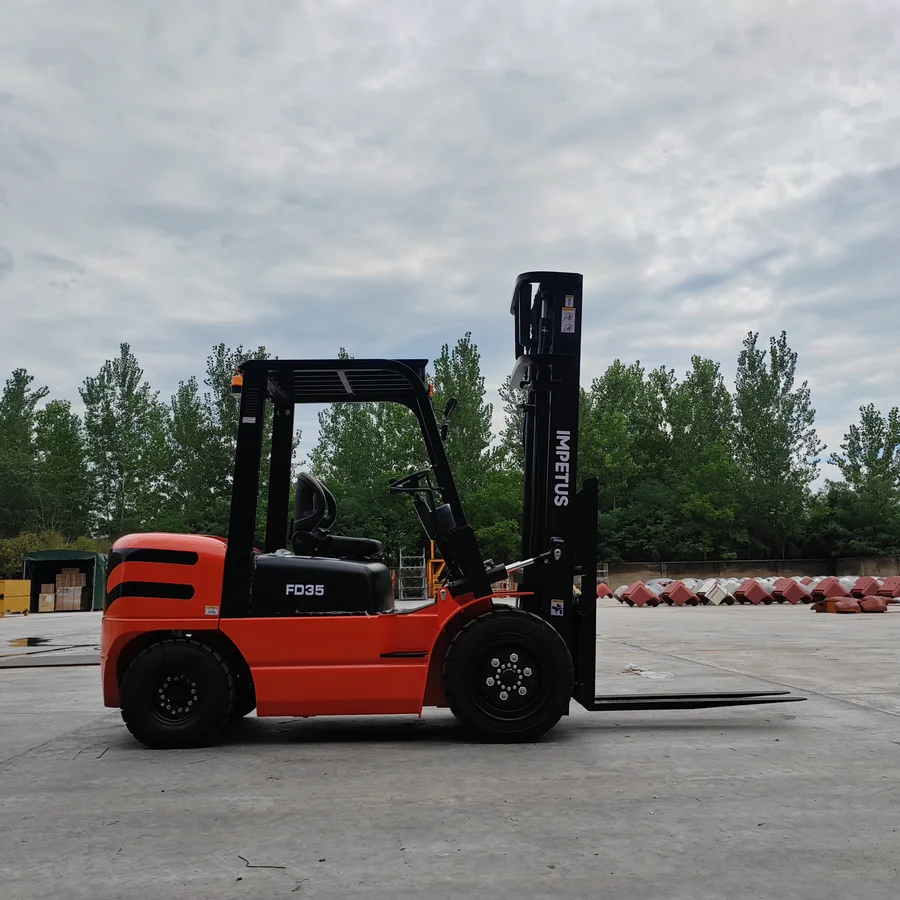

Name: 3.5 Ton Diesel Forklift
Brand: Impetus
SKU: FD35
Availability: InStock

3500 kg

Capacity

Diesel

Power

3000 mm

Lift Height

FD35

Model

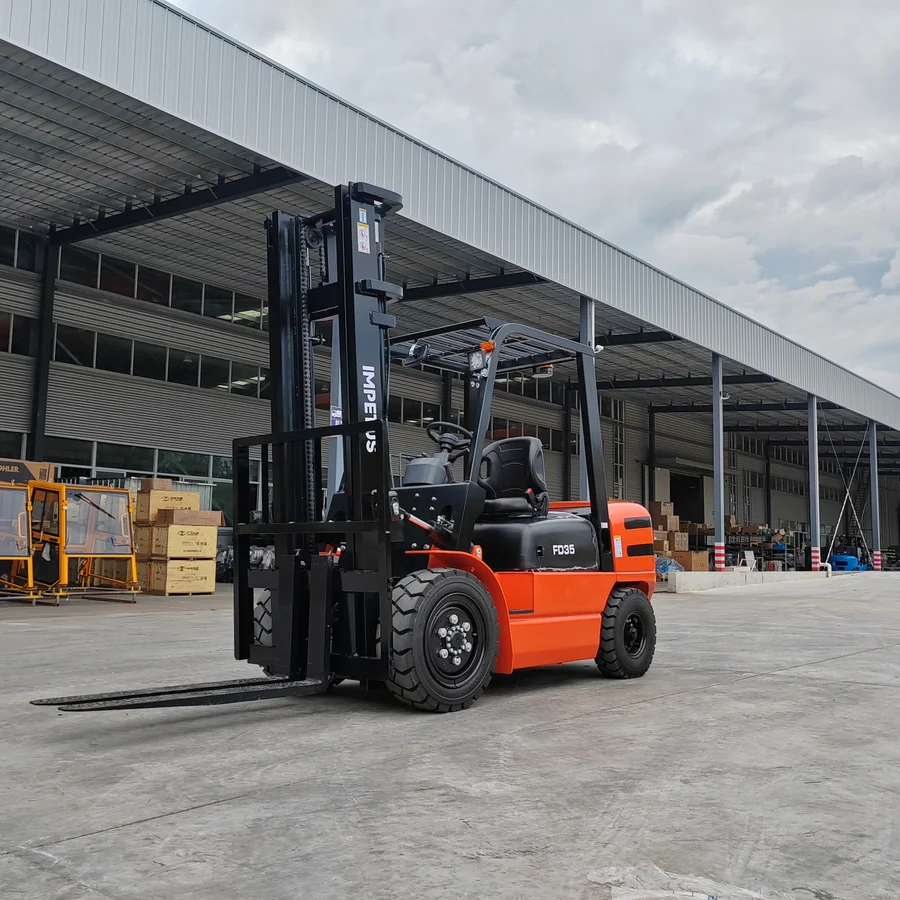

3.5 Ton Diesel Forklift — Impetus FD35 detail view 2

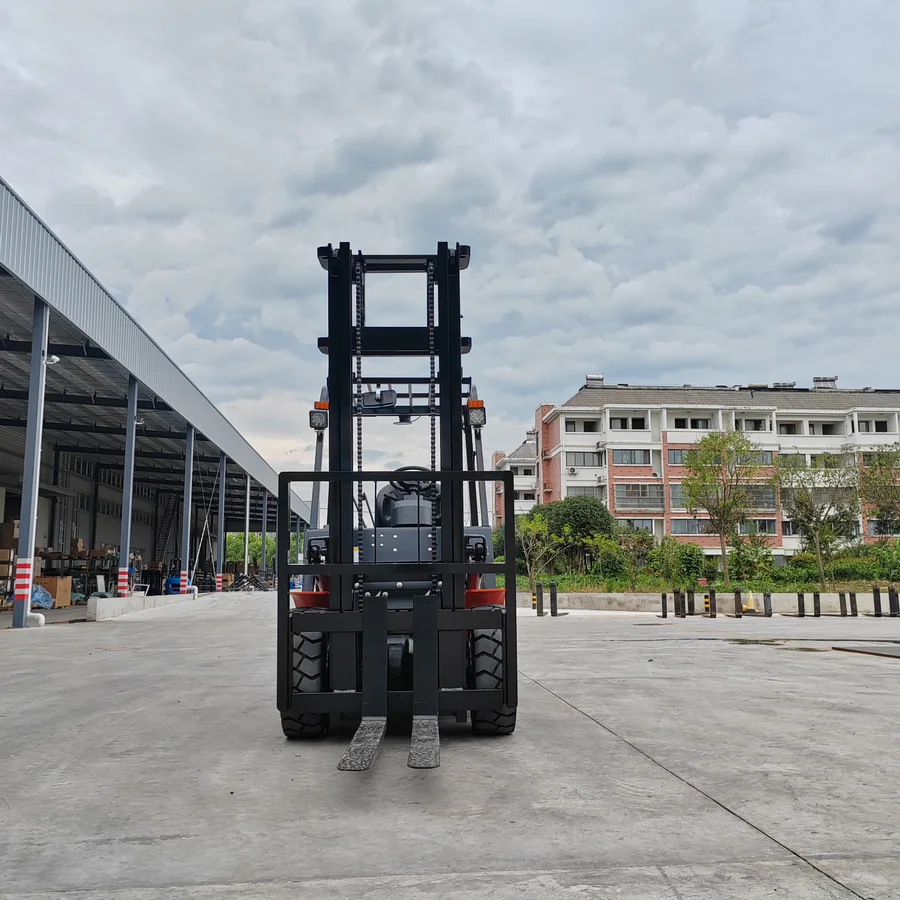

3.5 Ton Diesel Forklift — Impetus FD35 detail view 3

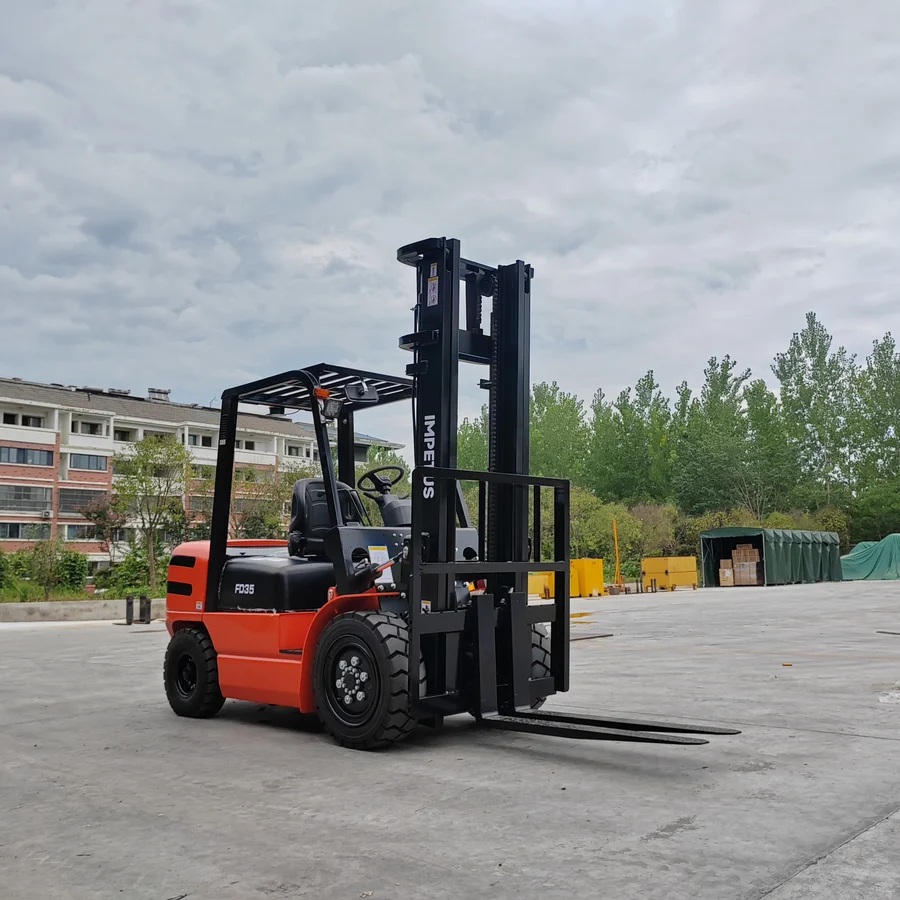

3.5 Ton Diesel Forklift — Impetus FD35 detail view 4

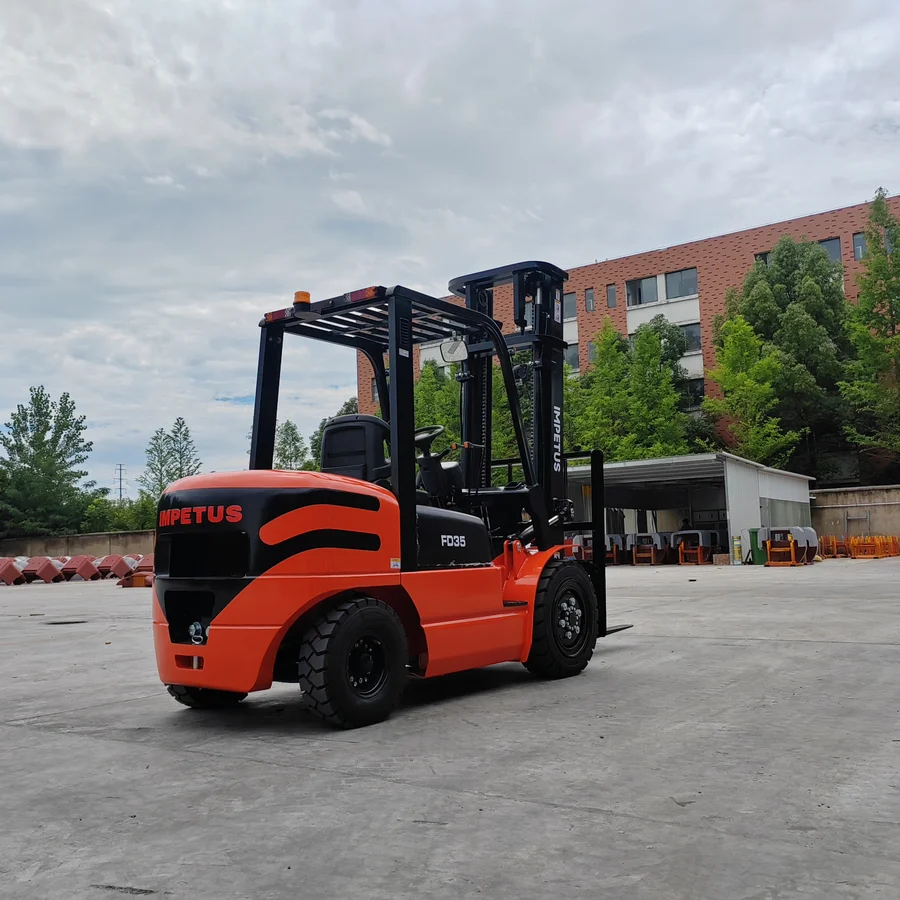

3.5 Ton Diesel Forklift — Impetus FD35 detail view 5

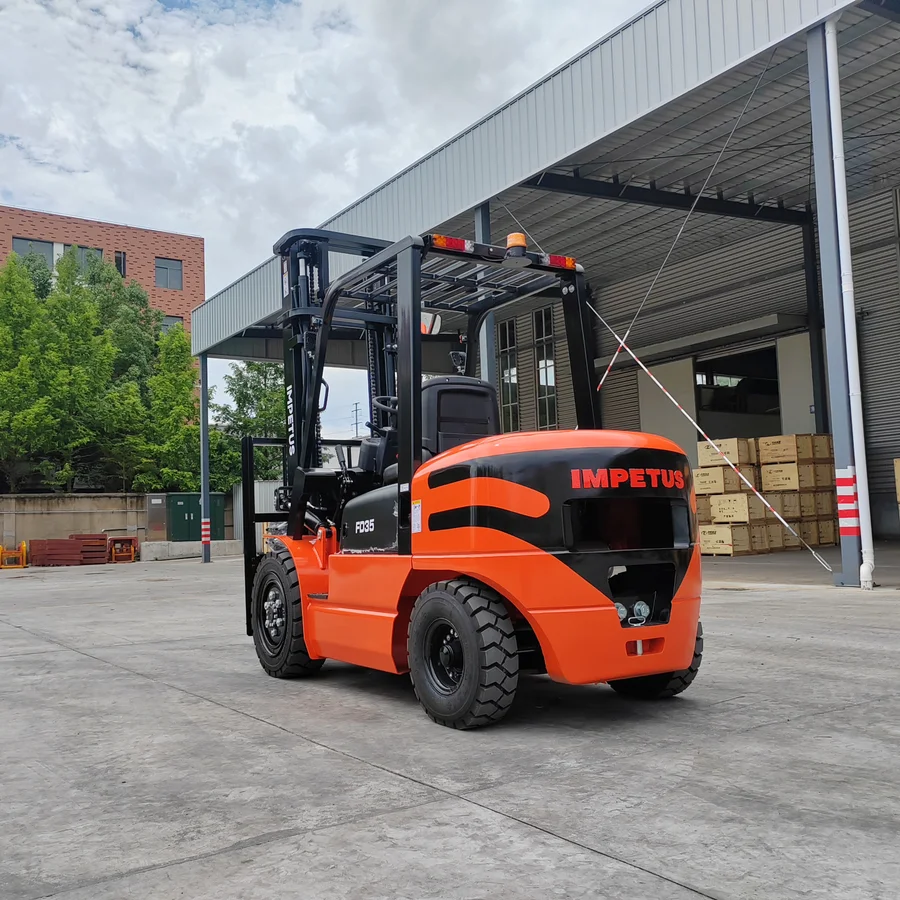

3.5 Ton Diesel Forklift — Impetus FD35 detail view 6

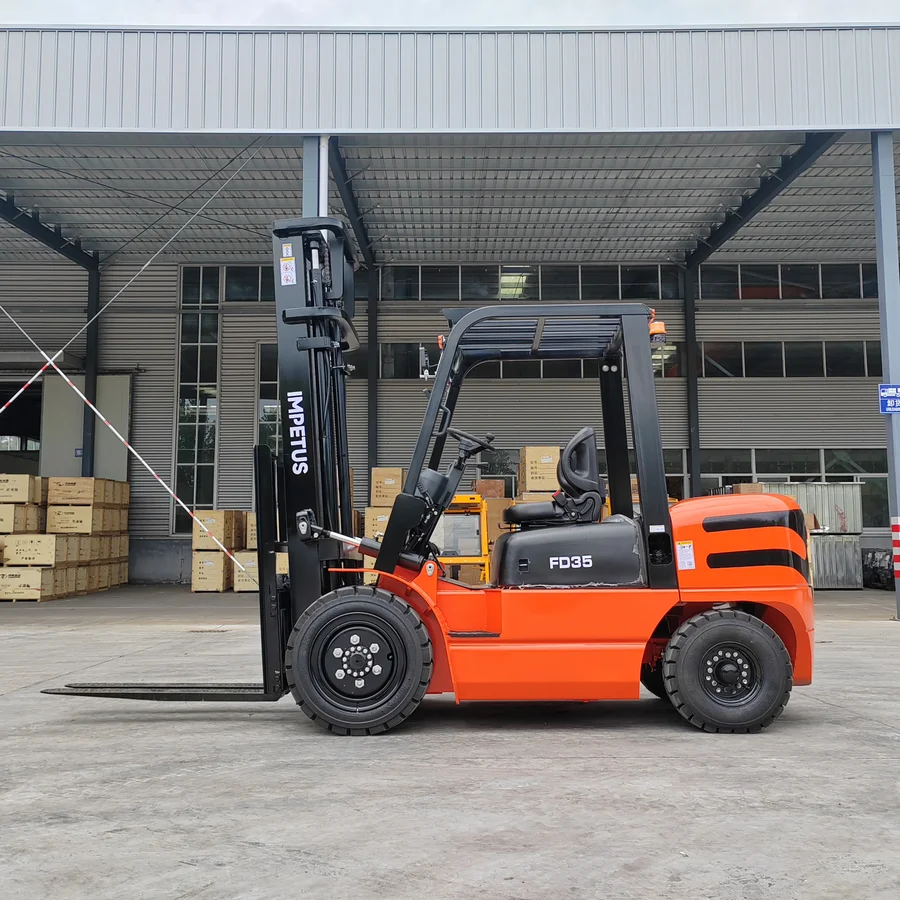

3.5 Ton Diesel Forklift — Impetus FD35 detail view 7

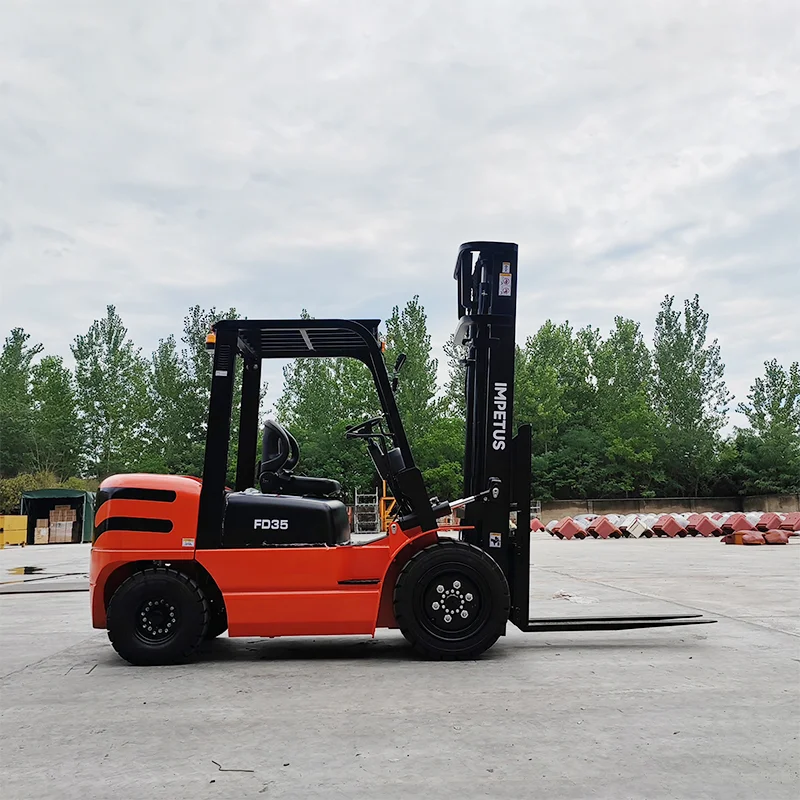

3.5 Ton Diesel Forklift — Impetus FD35 detail view 8

3.5 Ton Diesel Forklift — Impetus FD35 detail view 9

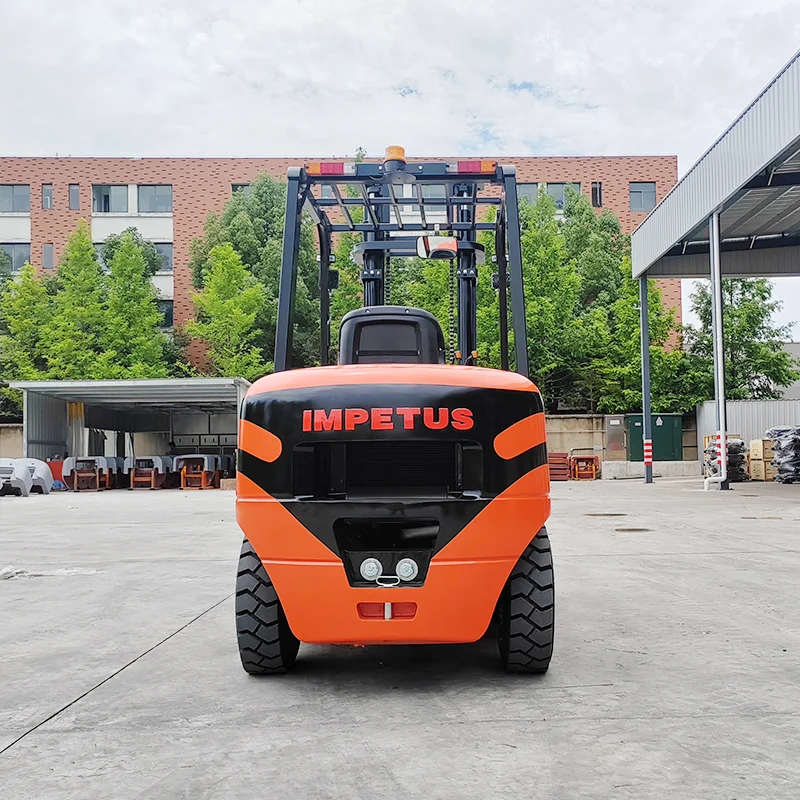

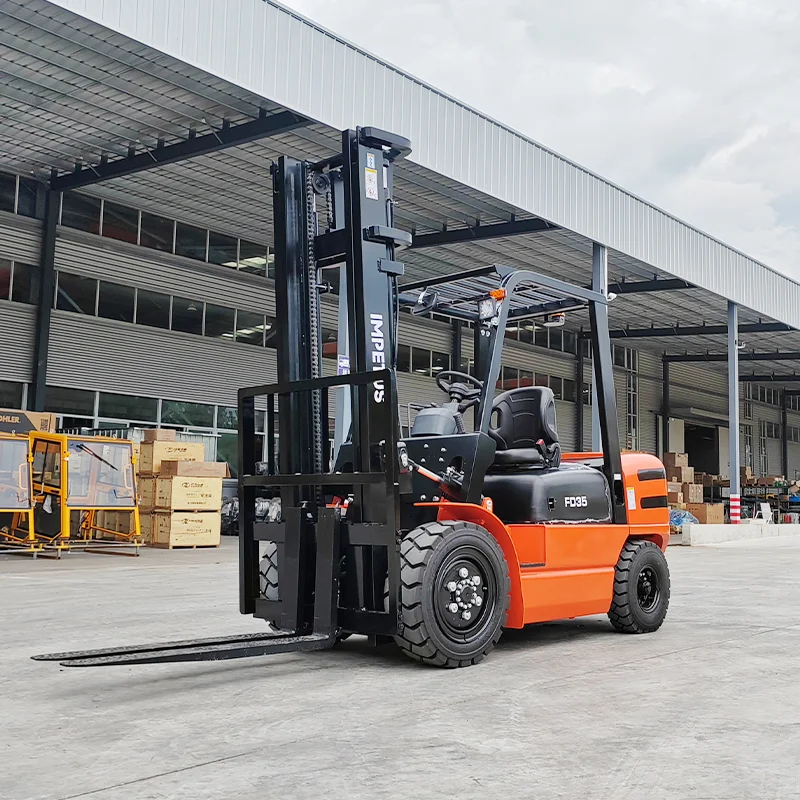

3.5 Ton Diesel Forklift — Impetus FD35 detail view 10

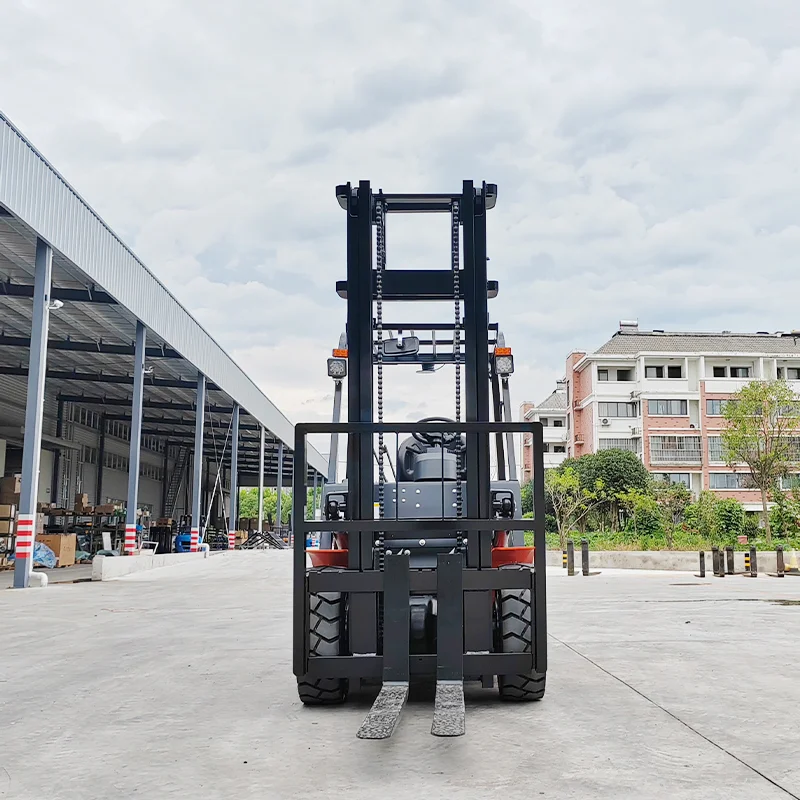

3.5 Ton Diesel Forklift — Impetus FD35 detail view 11

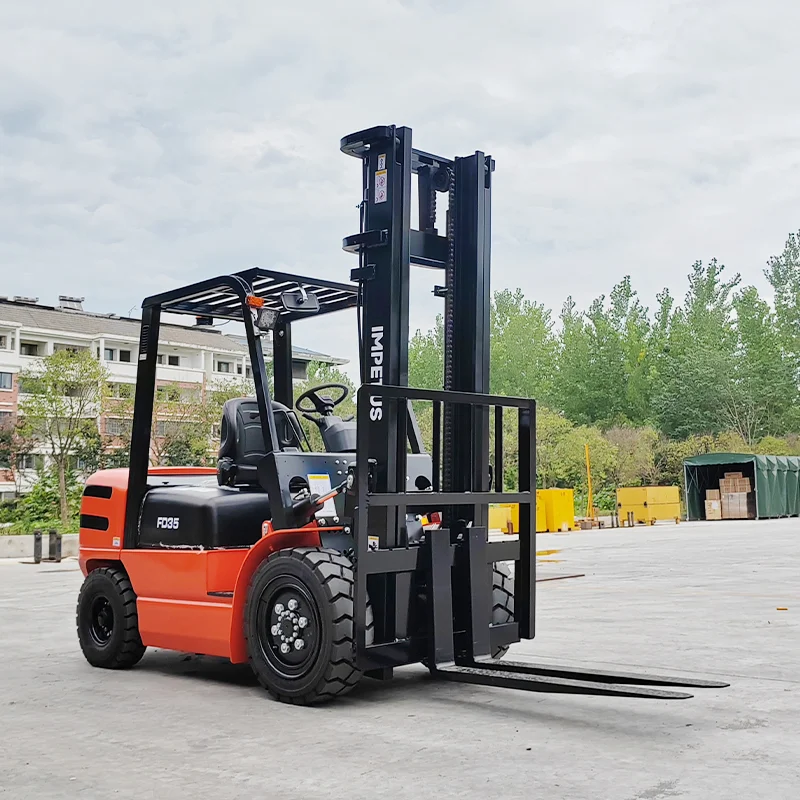

3.5 Ton Diesel Forklift — Impetus FD35 detail view 12

3.5 Ton Diesel Forklift — Impetus FD35 detail view 13

3.5 Ton Diesel Forklift — Impetus FD35 detail view 14

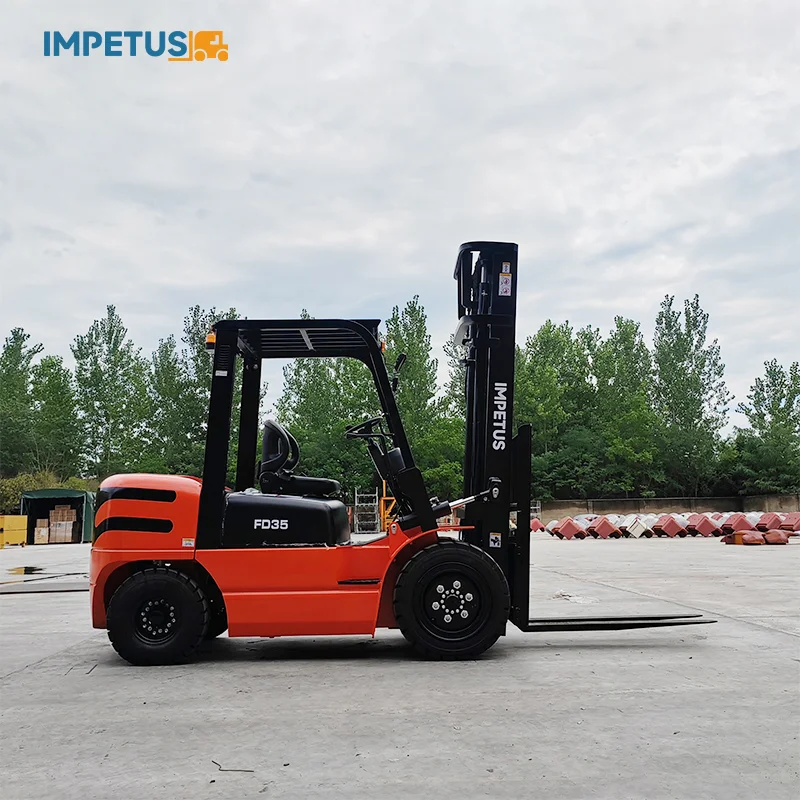

3.5 Ton Diesel Forklift — Impetus FD35 detail view 15

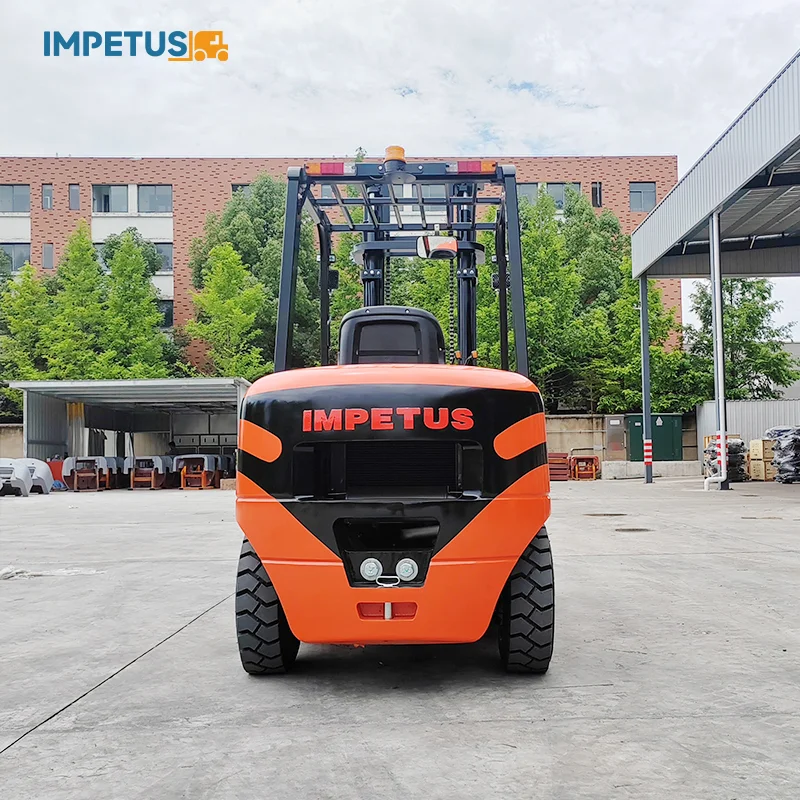

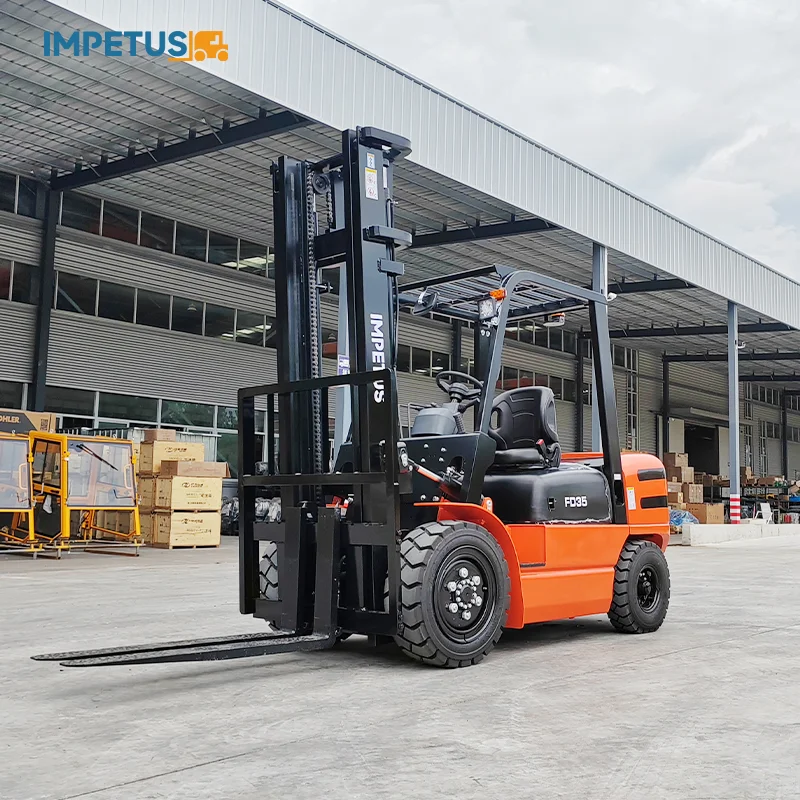

3.5 Ton Diesel Forklift — Impetus FD35 detail view 16

3.5 Ton Diesel Forklift — Impetus FD35 detail view 17

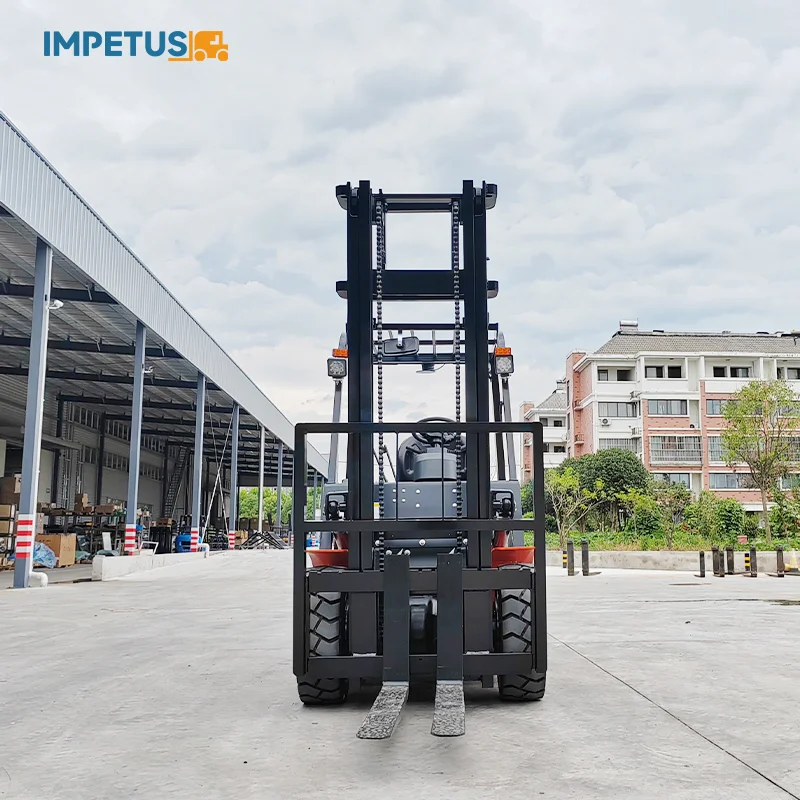

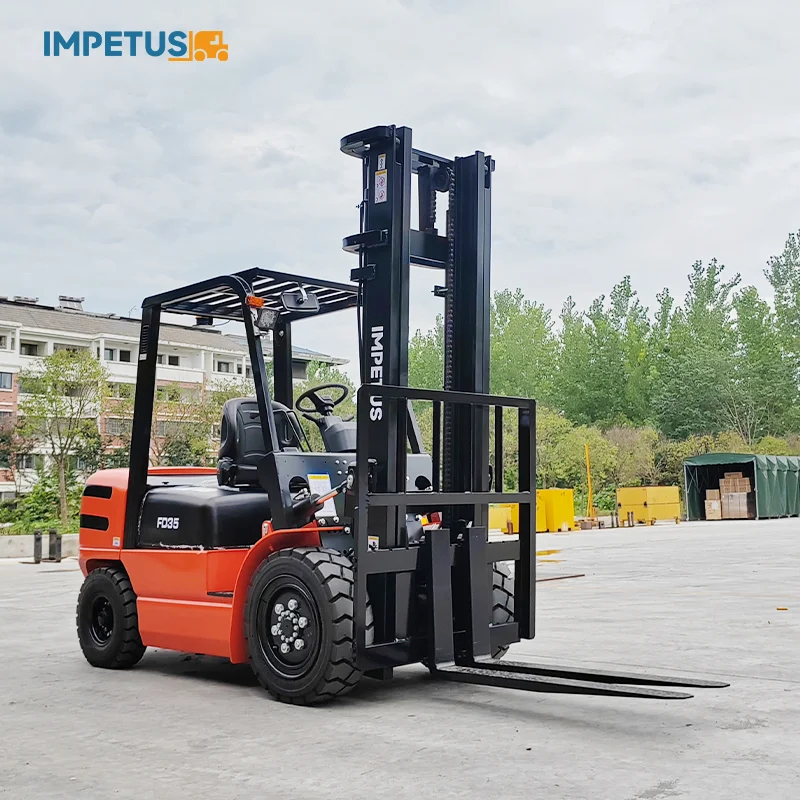

3.5 Ton Diesel Forklift — Impetus FD35 detail view 18

3.5 Ton Diesel Forklift — Impetus FD35 detail view 19

3.5 Ton Diesel Forklift — Impetus FD35 thumbnail 1

3.5 Ton Diesel Forklift — Impetus FD35 thumbnail 2

3.5 Ton Diesel Forklift — Impetus FD35 thumbnail 3

3.5 Ton Diesel Forklift — Impetus FD35 thumbnail 4

3.5 Ton Diesel Forklift — Impetus FD35 thumbnail 5

3.5 Ton Diesel Forklift — Impetus FD35 thumbnail 6

3.5 Ton Diesel Forklift — Impetus FD35 thumbnail 7

3.5 Ton Diesel Forklift — Impetus FD35 thumbnail 8

3.5 Ton Diesel Forklift — Impetus FD35 thumbnail 9

3.5 Ton Diesel Forklift — Impetus FD35 thumbnail 10

3.5 Ton Diesel Forklift — Impetus FD35 thumbnail 11

3.5 Ton Diesel Forklift — Impetus FD35 thumbnail 12

3.5 Ton Diesel Forklift — Impetus FD35 thumbnail 13

3.5 Ton Diesel Forklift — Impetus FD35 thumbnail 14

3.5 Ton Diesel Forklift — Impetus FD35 thumbnail 15

3.5 Ton Diesel Forklift — Impetus FD35 thumbnail 16

3.5 Ton Diesel Forklift — Impetus FD35 thumbnail 17

3.5 Ton Diesel Forklift

Engineered for easy maintenance, fuel efficiency, and operator comfort. FD35 delivers lower operating costs and higher uptime across demanding work environments.

oil_barrel Efficient diesel engine with low fuel consumption
airline_seat_recline_extra Operator-centric cabin for all-day comfort
visibility Heavy-duty mast with excellent forward visibility

Ready to upgrade your fleet?

Connect with our engineering sales team to configure the FD35 for your facility's exact requirements.

Rated capacity	3500 kg	Load center distance	500 kg
Power type	Diesel	Driving type	Seated
Wheel base	1740	Tyre type	Pneumatic
Wheel number (front/rear)	2X / 2	Front tread	1000 mm
Rear tread	970 mm	Tyre (front)	28X9-15-12PR
Tyre (rear)	6.50-10-10PR	Front overhang	469 mm
Mast tilt angle (front/rear)	6/12	Height with mast retraction	2120 mm
Free lift height	150 mm	Max. lifting height	3000 mm
Max. height after lifting	4250 mm	Overhead guard height	2140 mm
Fork size: length x width x thickness	1070 x 122 x 50	Overall length (fork excluded)	2755 mm
Overall width	1225 mm	Turning radius	2420 mm
Ground clearance of mast	120 mm	Ground clearance of wheel base center (loaded)	143 mm
Lateral fork adjustment Max./Min.	1060/250	Travelling speed (loaded/unloaded)	18/19.5
Lifting speed (loaded/unloaded)	370/400	Lowering speed (loaded/unloaded)	350/400
Gradeability (loaded/unloaded)	18/15	Max. traction force (loaded/unloaded)	19/14
Total weight	4400 kg	Axle load (unloaded), front/rear	1780/2620
Axle load (loaded), front/rear	7180/720	Engine manufacturer /Model	XINCHAI A495BPG
Rated power /Speed	42/2500	Max. torque /Speed	174/1800～2000
Cylinder number-bore×stroke	4-95×105	Engine displacement	2.977
Emission	Stage II	Transmission gears (front/rear)	1-1 Power Shift 2-2 Manual Shift
Fuel tank capacity	60 kg	Service brake / parking brake	Hydraulic/Mechanical
Hydraulic system working pressure	17.5

Rated capacity	3500 kg
Load center distance	500 kg
Power type	Diesel
Driving type	Seated
Wheel base	1740
Tyre type	Pneumatic
Wheel number (front/rear)	2X / 2
Front tread	1000 mm
Rear tread	970 mm
Tyre (front)	28X9-15-12PR
Tyre (rear)	6.50-10-10PR
Front overhang	469 mm
Mast tilt angle (front/rear)	6/12
Height with mast retraction	2120 mm
Free lift height	150 mm
Max. lifting height	3000 mm
Max. height after lifting	4250 mm
Overhead guard height	2140 mm
Fork size: length x width x thickness	1070 x 122 x 50
Overall length (fork excluded)	2755 mm
Overall width	1225 mm
Turning radius	2420 mm
Ground clearance of mast	120 mm
Ground clearance of wheel base center (loaded)	143 mm
Lateral fork adjustment Max./Min.	1060/250
Travelling speed (loaded/unloaded)	18/19.5
Lifting speed (loaded/unloaded)	370/400
Lowering speed (loaded/unloaded)	350/400
Gradeability (loaded/unloaded)	18/15
Max. traction force (loaded/unloaded)	19/14
Total weight	4400 kg
Axle load (unloaded), front/rear	1780/2620
Axle load (loaded), front/rear	7180/720
Engine manufacturer /Model	XINCHAI A495BPG
Rated power /Speed	42/2500
Max. torque /Speed	174/1800～2000
Cylinder number-bore×stroke	4-95×105
Engine displacement	2.977
Emission	Stage II
Transmission gears (front/rear)	1-1 Power Shift 2-2 Manual Shift
Fuel tank capacity	60 kg
Service brake / parking brake	Hydraulic/Mechanical
Hydraulic system working pressure	17.5

1. Easy Maintenance & Spacious Hood Design

Large opening hood and organized component layout provide quick access for daily inspection and maintenance, reducing downtime and service costs.

2. Powerful & Fuel-Efficient Engine

Equipped with a reliable high-performance engine and advanced hydraulic system, the forklift delivers strong power, fast response, and lower fuel consumption for demanding working conditions.

3. Comfortable & Ergonomic Operation

Optimized control layout, spacious operating area and ergonomic seat design improve driver comfort and reduce fatigue during long working hours.

4. Durable Structure & Long Service Life

Built with a reinforced chassis and reliable core components, the forklift ensures excellent stability, durability, and long-term performance across various working conditions.

Our Facility

Impetus Factory & Global Installations

View Full Tour arrow_forward

Impetus 30,000m² forklift manufacturing campus — exterior view

Global Manufacturing Campus

30,000 m² state-of-the-art facility

Intelligent Assembly

Industry 4.0 production lines

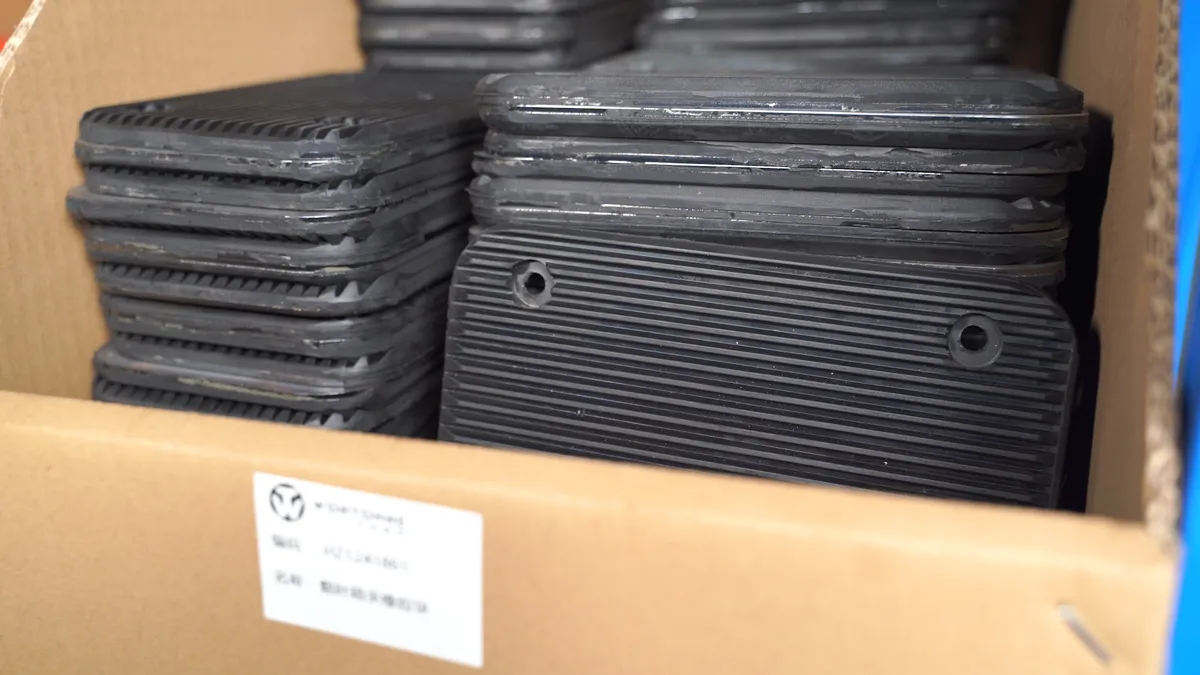

Impetus ready-to-ship forklift inventory warehouse — fast global delivery
