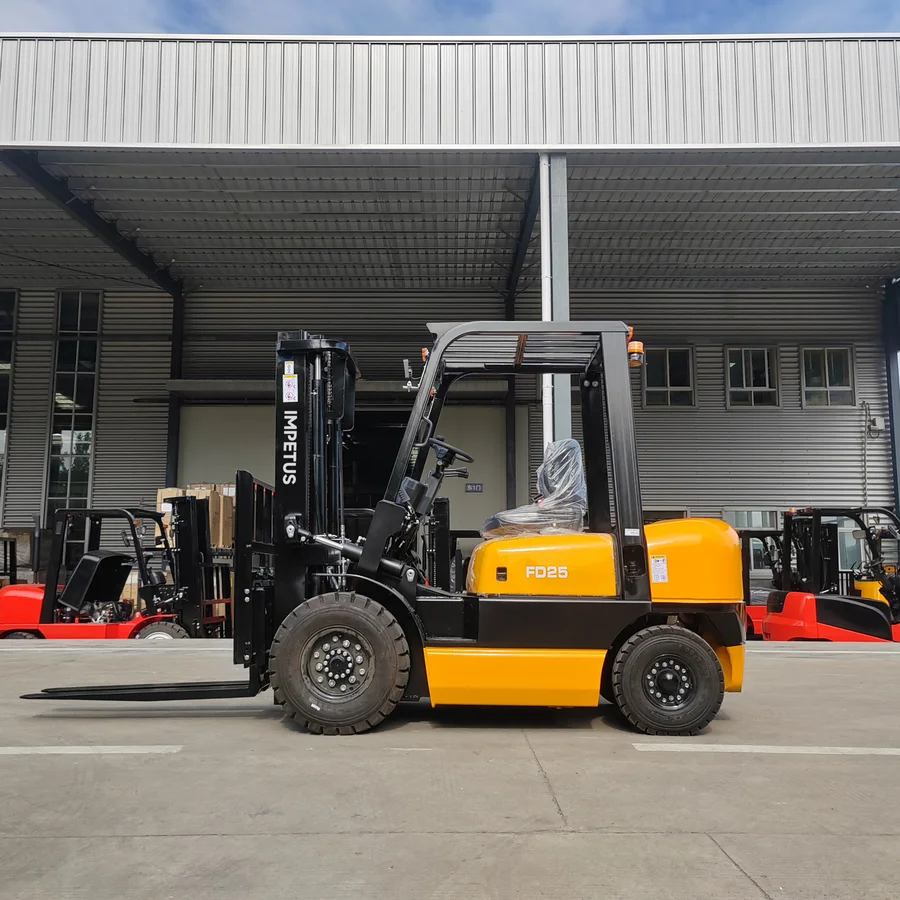

Counterbalance Forklift

2.5 Ton
Diesel Forklift

Name: 2.5 Ton Diesel Forklift
Brand: Impetus
SKU: FD25
Availability: InStock

2500 kg

Capacity

Diesel

Power

3000 mm

Lift Height

FD25

Model

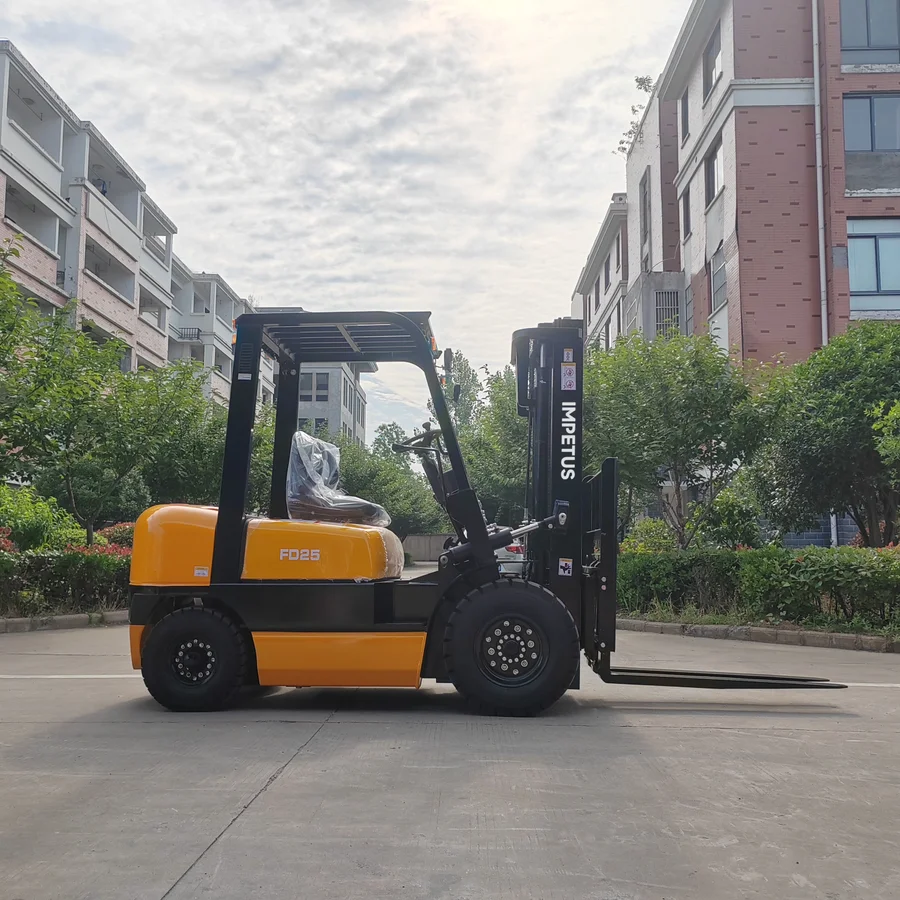

2.5 Ton Diesel Forklift — Impetus FD25 detail view 2

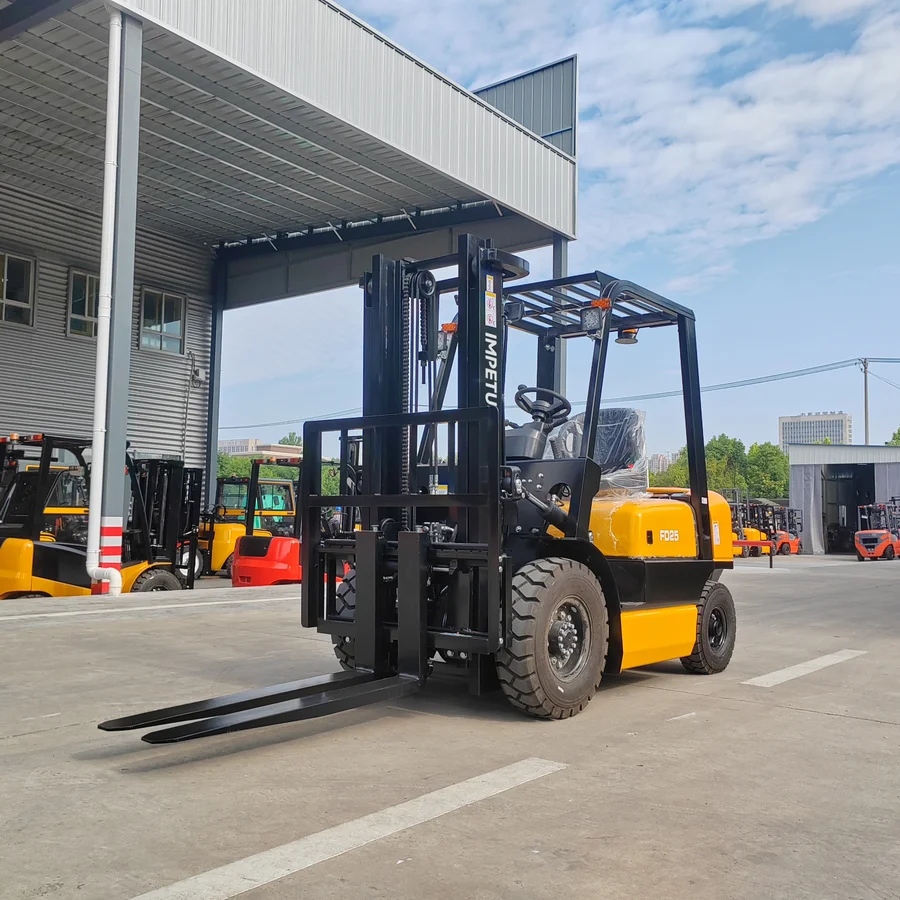

2.5 Ton Diesel Forklift — Impetus FD25 detail view 3

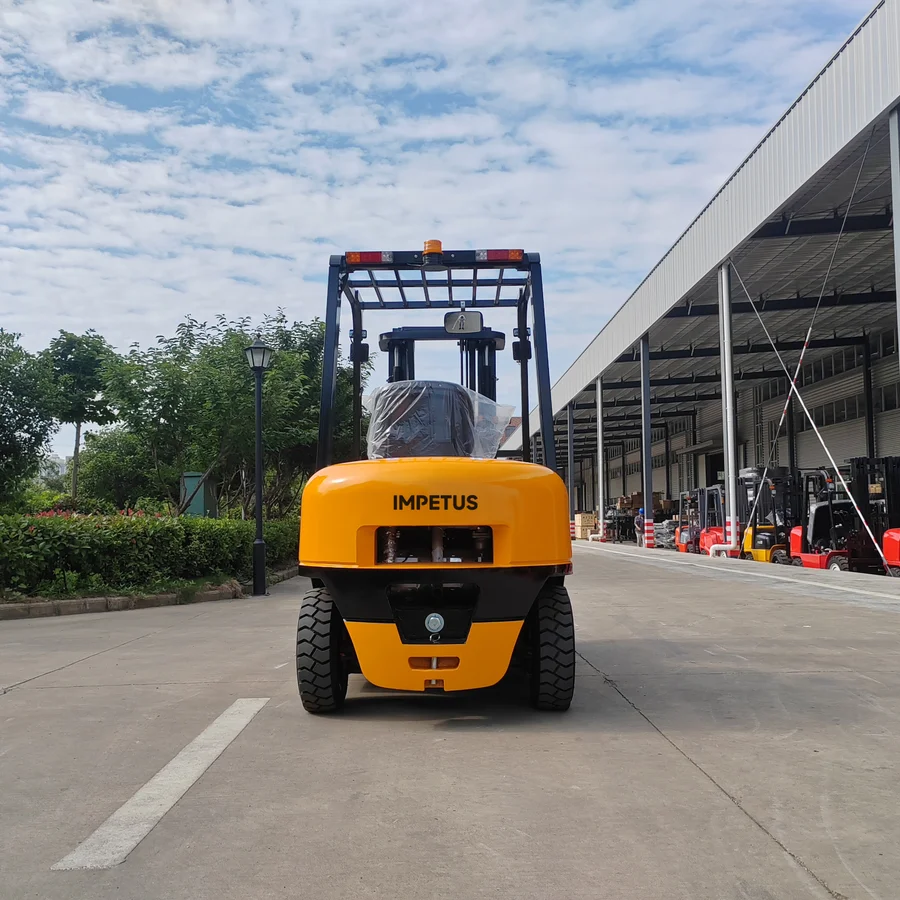

2.5 Ton Diesel Forklift — Impetus FD25 detail view 4

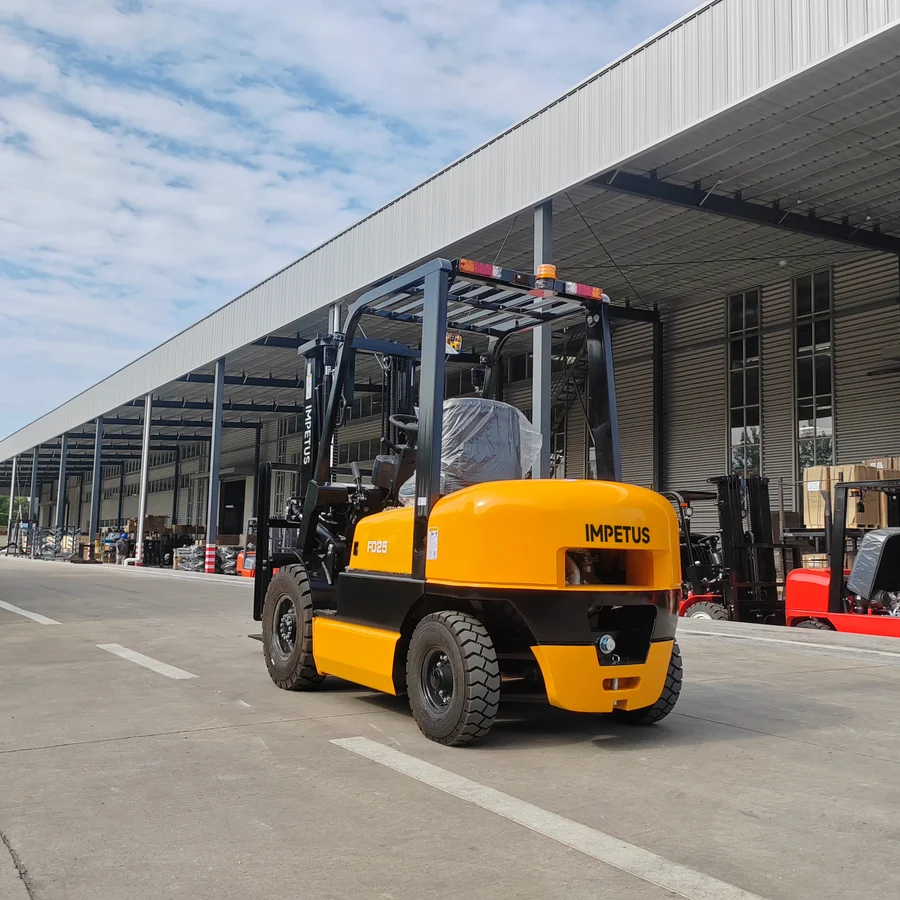

2.5 Ton Diesel Forklift — Impetus FD25 detail view 5

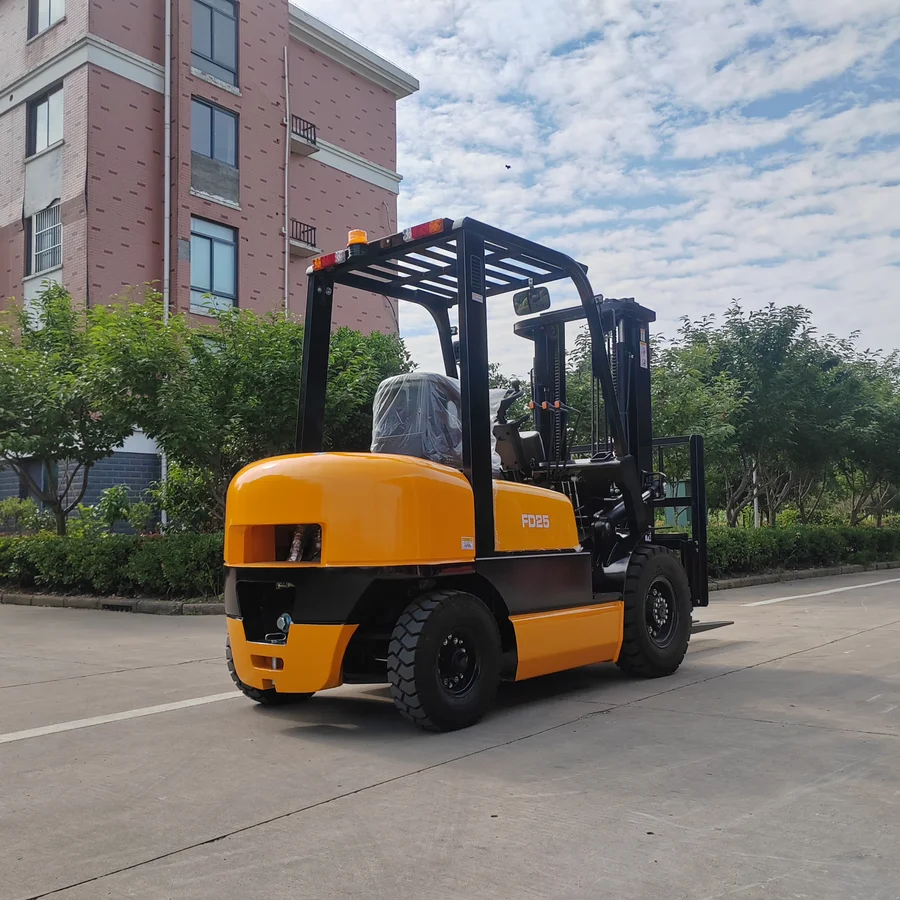

2.5 Ton Diesel Forklift — Impetus FD25 detail view 6

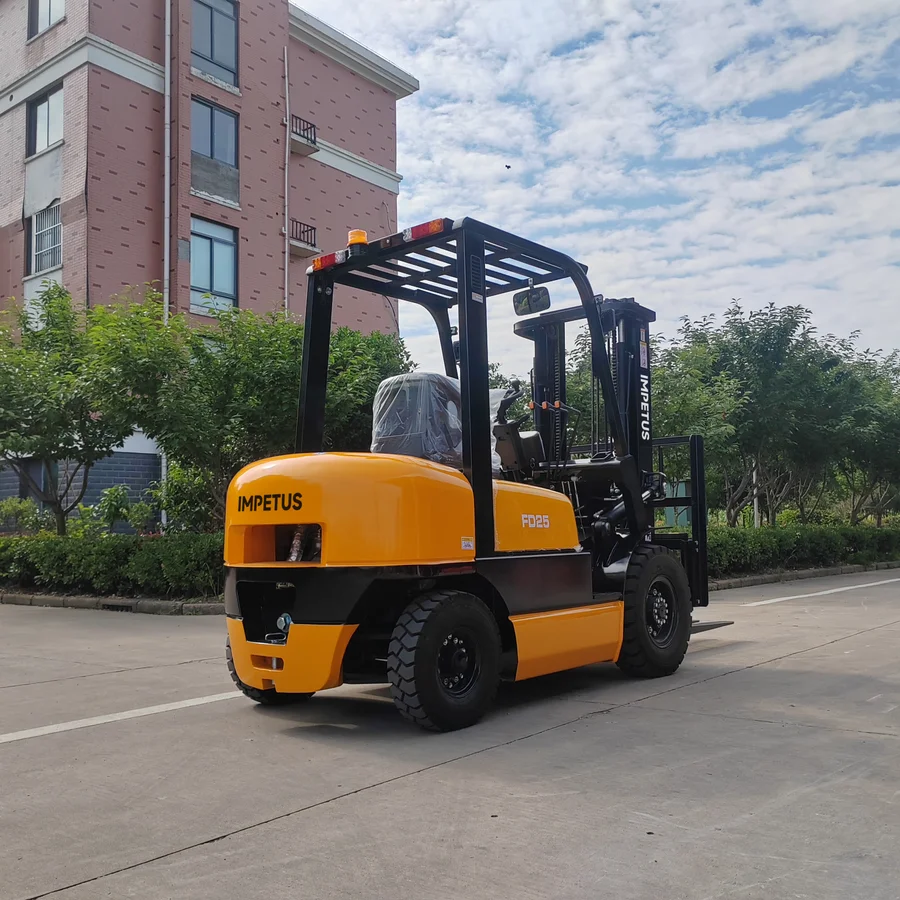

2.5 Ton Diesel Forklift — Impetus FD25 detail view 7

2.5 Ton Diesel Forklift — Impetus FD25 detail view 8

2.5 Ton Diesel Forklift — Impetus FD25 detail view 9

2.5 Ton Diesel Forklift — Impetus FD25 detail view 10

2.5 Ton Diesel Forklift — Impetus FD25 detail view 11

2.5 Ton Diesel Forklift — Impetus FD25 detail view 12

2.5 Ton Diesel Forklift — Impetus FD25 detail view 13

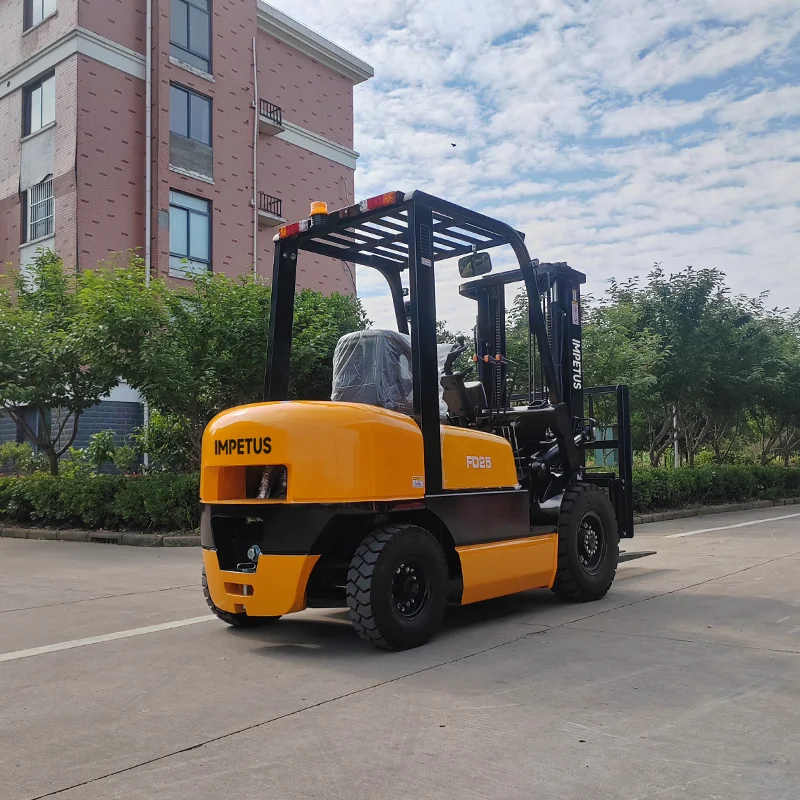

2.5 Ton Diesel Forklift — Impetus FD25 detail view 14

2.5 Ton Diesel Forklift — Impetus FD25 detail view 15

2.5 Ton Diesel Forklift — Impetus FD25 detail view 16

2.5 Ton Diesel Forklift — Impetus FD25 detail view 17

2.5 Ton Diesel Forklift — Impetus FD25 detail view 18

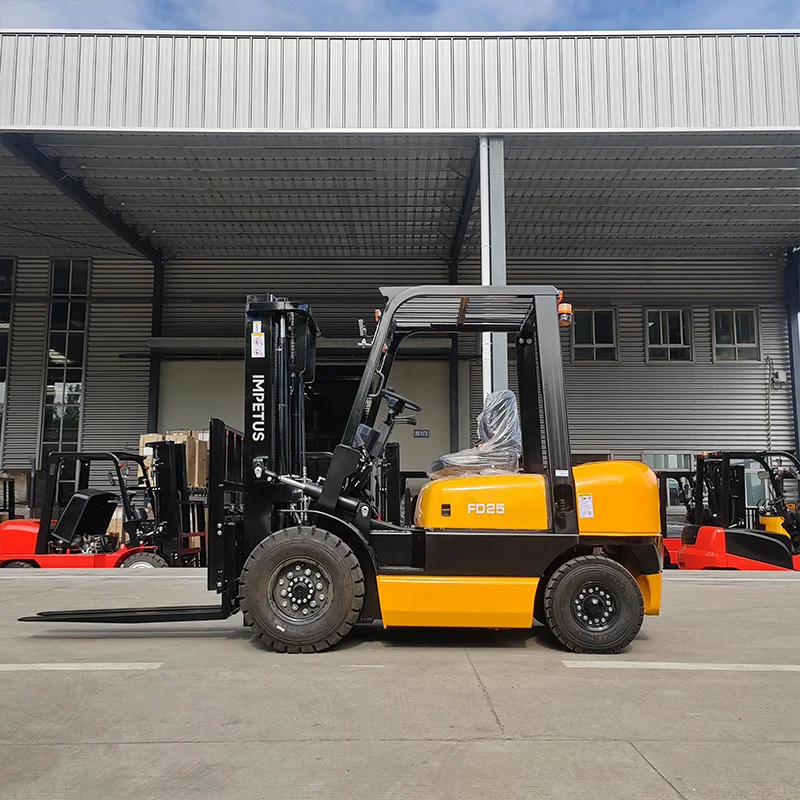

2.5 Ton Diesel Forklift — Impetus FD25 detail view 19

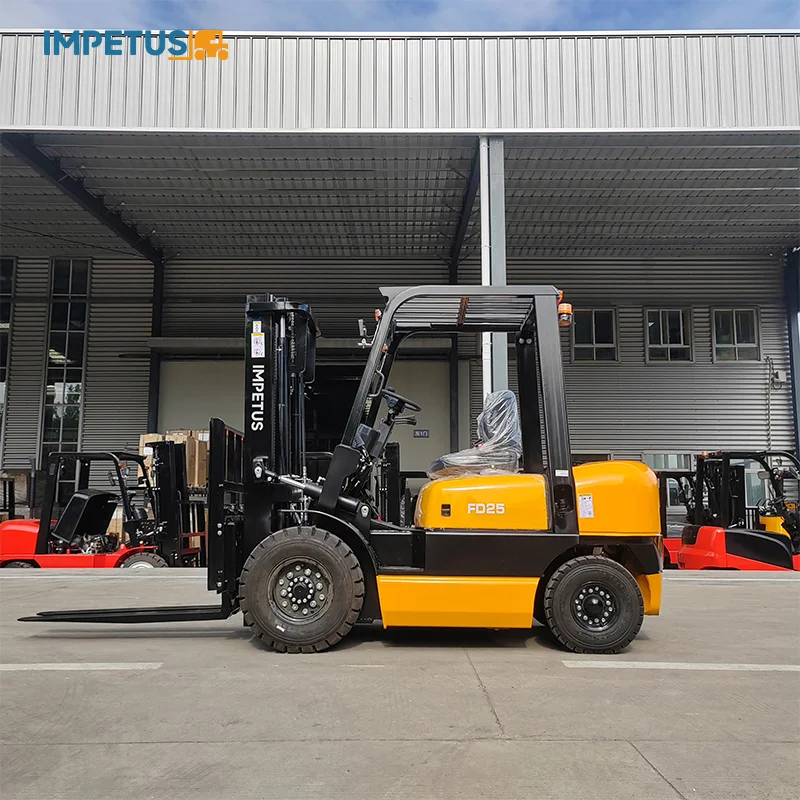

2.5 Ton Diesel Forklift — Impetus FD25 detail view 20

2.5 Ton Diesel Forklift — Impetus FD25 detail view 21

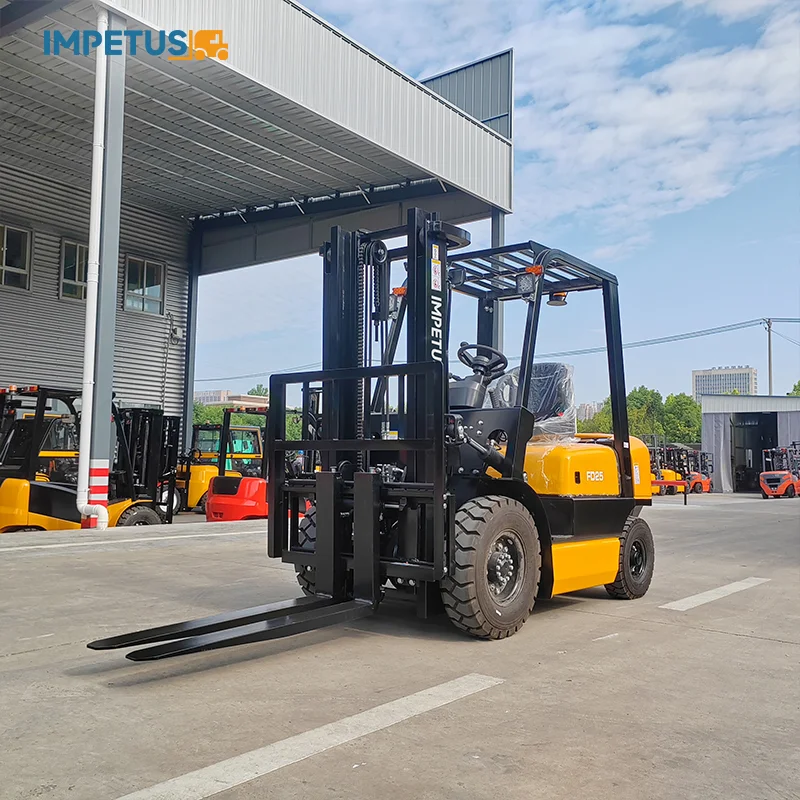

2.5 Ton Diesel Forklift — Impetus FD25 detail view 22

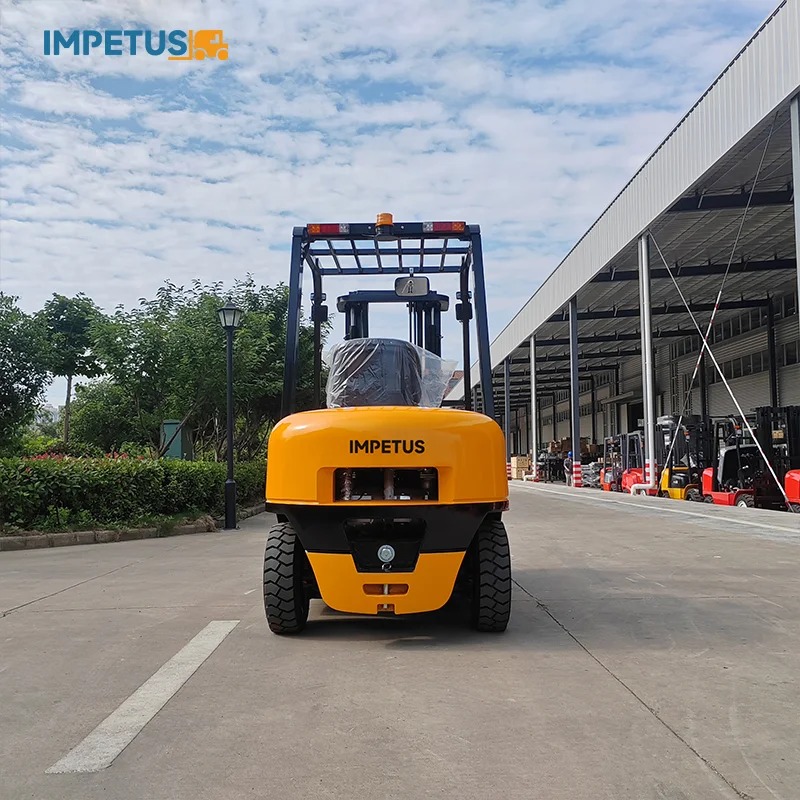

2.5 Ton Diesel Forklift — Impetus FD25 detail view 23

2.5 Ton Diesel Forklift — Impetus FD25 detail view 24

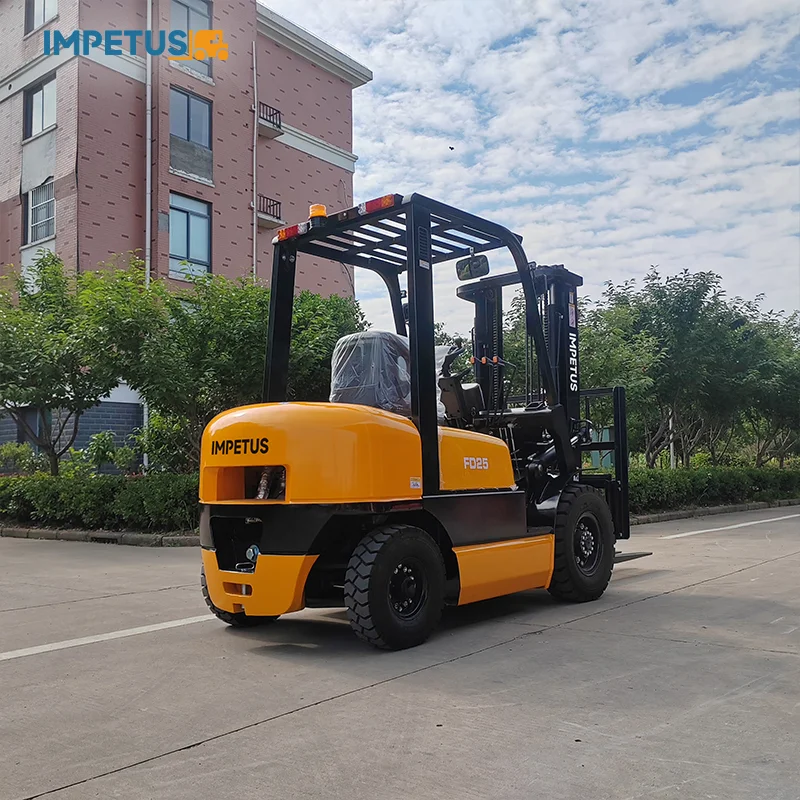

2.5 Ton Diesel Forklift — Impetus FD25 detail view 25

2.5 Ton Diesel Forklift — Impetus FD25 detail view 26

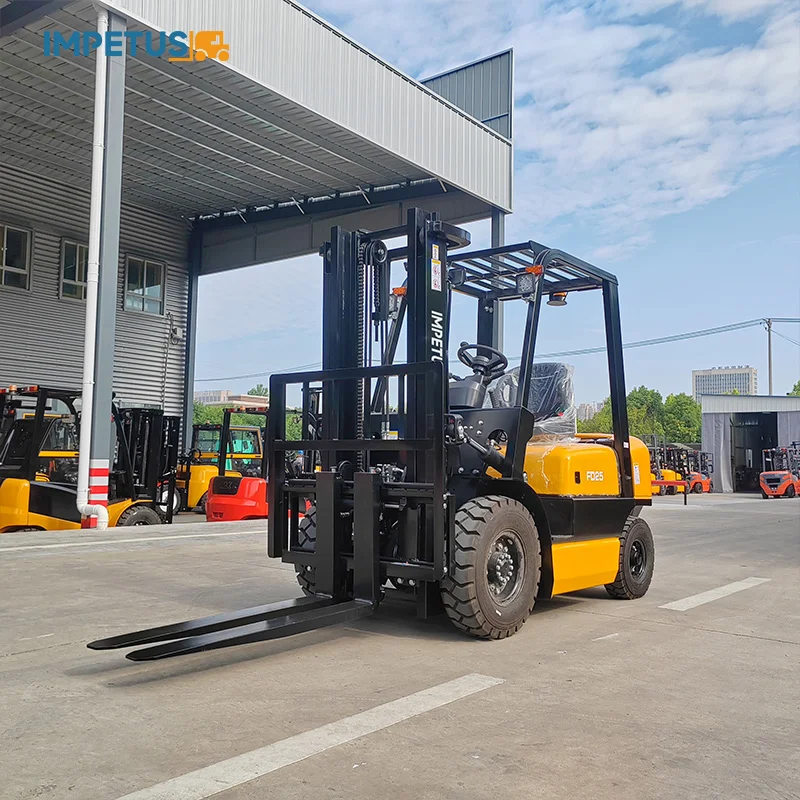

2.5 Ton Diesel Forklift — Impetus FD25 detail view 27

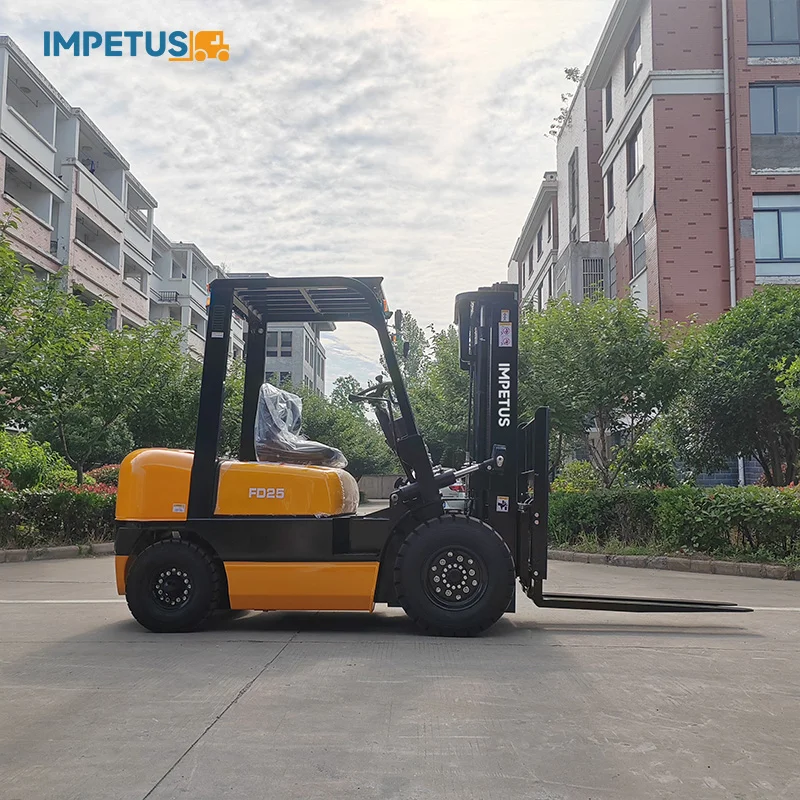

2.5 Ton Diesel Forklift — Impetus FD25 detail view 28

2.5 Ton Diesel Forklift — Impetus FD25 detail view 29

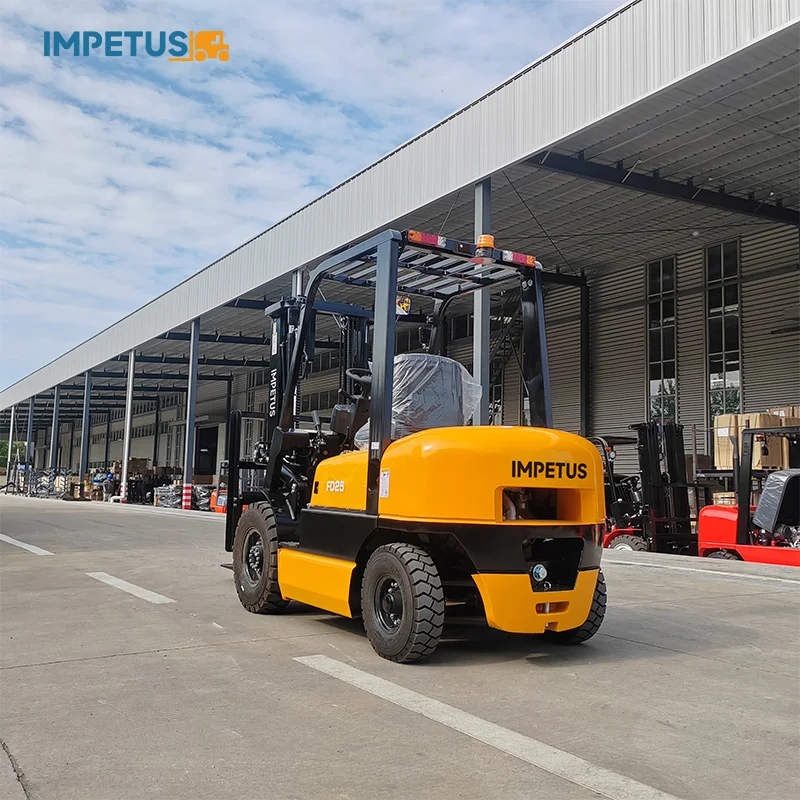

2.5 Ton Diesel Forklift — Impetus FD25 detail view 30

2.5 Ton Diesel Forklift — Impetus FD25 detail view 31

2.5 Ton Diesel Forklift — Impetus FD25 thumbnail 1

2.5 Ton Diesel Forklift — Impetus FD25 thumbnail 2

2.5 Ton Diesel Forklift — Impetus FD25 thumbnail 3

2.5 Ton Diesel Forklift — Impetus FD25 thumbnail 4

2.5 Ton Diesel Forklift — Impetus FD25 thumbnail 5

2.5 Ton Diesel Forklift — Impetus FD25 thumbnail 6

2.5 Ton Diesel Forklift — Impetus FD25 thumbnail 7

2.5 Ton Diesel Forklift — Impetus FD25 thumbnail 8

2.5 Ton Diesel Forklift — Impetus FD25 thumbnail 9

2.5 Ton Diesel Forklift — Impetus FD25 thumbnail 10

2.5 Ton Diesel Forklift — Impetus FD25 thumbnail 11

2.5 Ton Diesel Forklift — Impetus FD25 thumbnail 12

2.5 Ton Diesel Forklift — Impetus FD25 thumbnail 13

2.5 Ton Diesel Forklift — Impetus FD25 thumbnail 14

2.5 Ton Diesel Forklift — Impetus FD25 thumbnail 15

2.5 Ton Diesel Forklift — Impetus FD25 thumbnail 16

2.5 Ton Diesel Forklift — Impetus FD25 thumbnail 17

2.5 Ton Diesel Forklift — Impetus FD25 thumbnail 18

2.5 Ton Diesel Forklift — Impetus FD25 thumbnail 19

2.5 Ton Diesel Forklift — Impetus FD25 thumbnail 20

2.5 Ton Diesel Forklift — Impetus FD25 thumbnail 21

2.5 Ton Diesel Forklift — Impetus FD25 thumbnail 22

2.5 Ton Diesel Forklift — Impetus FD25 thumbnail 23

2.5 Ton Diesel Forklift — Impetus FD25 thumbnail 24

2.5 Ton Diesel Forklift — Impetus FD25 thumbnail 25

2.5 Ton Diesel Forklift — Impetus FD25 thumbnail 26

2.5 Ton Diesel Forklift — Impetus FD25 thumbnail 27

2.5 Ton Diesel Forklift — Impetus FD25 thumbnail 28

2.5 Ton Diesel Forklift — Impetus FD25 thumbnail 29

2.5 Ton Diesel Forklift

Engineered for easy maintenance, fuel efficiency, and operator comfort. FD25 delivers lower operating costs and higher uptime across demanding work environments.

oil_barrel Efficient diesel engine with low fuel consumption
airline_seat_recline_extra Operator-centric cabin for all-day comfort
visibility Heavy-duty mast with excellent forward visibility

Ready to upgrade your fleet?

Connect with our engineering sales team to configure the FD25 for your facility's exact requirements.

Rated capacity	2500 kg	Load center distance	500 kg
Power type	Diesel	Driving type	Seated
Wheel base	1600	Tyre type	Pneumatic
Wheel number (front/rear)	2X / 2	Front tread	970 mm
Rear tread	970 mm	Tyre (front)	7.00-12-12PR
Tyre (rear)	6.00-9-10PR	Front overhang	459 mm
Mast tilt angle (front/rear)	6/12	Height with mast retraction	2000 mm
Free lift height	150 mm	Max. lifting height	3000 mm
Max. height after lifting	4042 mm	Overhead guard height	2120 mm
Fork size: length x width x thickness	1070 x 120 x 40	Overall length (fork excluded)	2540 mm
Overall width	1170 mm	Turning radius	2330 mm
Ground clearance of mast	110 mm	Ground clearance of wheel base center (loaded)	135 mm
Lateral fork adjustment Max./Min.	1024/240	Travelling speed (loaded/unloaded)	17/19
Lifting speed (loaded/unloaded)	530/550	Lowering speed (loaded/unloaded)	450/550
Gradeability (loaded/unloaded)	22/18	Max. traction force (loaded/unloaded)	17/14
Total weight	3610 kg	Axle load (unloaded), front/rear	1410/2200
Axle load (loaded), front/rear	5520/590	Engine manufacturer /Model	XINCHAI C490BPG
Rated power /Speed	40/2650	Max. torque /Speed	160/1800～2000
Cylinder number-bore×stroke	4-90×105	Engine displacement	2.67
Emission	Stage II	Transmission gears (front/rear)	1-1 Power Shift 2-2 Manual Shift
Fuel tank capacity	60 kg	Service brake / parking brake	Hydraulic/Mechanical
Hydraulic system working pressure	17.5

Rated capacity	2500 kg
Load center distance	500 kg
Power type	Diesel
Driving type	Seated
Wheel base	1600
Tyre type	Pneumatic
Wheel number (front/rear)	2X / 2
Front tread	970 mm
Rear tread	970 mm
Tyre (front)	7.00-12-12PR
Tyre (rear)	6.00-9-10PR
Front overhang	459 mm
Mast tilt angle (front/rear)	6/12
Height with mast retraction	2000 mm
Free lift height	150 mm
Max. lifting height	3000 mm
Max. height after lifting	4042 mm
Overhead guard height	2120 mm
Fork size: length x width x thickness	1070 x 120 x 40
Overall length (fork excluded)	2540 mm
Overall width	1170 mm
Turning radius	2330 mm
Ground clearance of mast	110 mm
Ground clearance of wheel base center (loaded)	135 mm
Lateral fork adjustment Max./Min.	1024/240
Travelling speed (loaded/unloaded)	17/19
Lifting speed (loaded/unloaded)	530/550
Lowering speed (loaded/unloaded)	450/550
Gradeability (loaded/unloaded)	22/18
Max. traction force (loaded/unloaded)	17/14
Total weight	3610 kg
Axle load (unloaded), front/rear	1410/2200
Axle load (loaded), front/rear	5520/590
Engine manufacturer /Model	XINCHAI C490BPG
Rated power /Speed	40/2650
Max. torque /Speed	160/1800～2000
Cylinder number-bore×stroke	4-90×105
Engine displacement	2.67
Emission	Stage II
Transmission gears (front/rear)	1-1 Power Shift 2-2 Manual Shift
Fuel tank capacity	60 kg
Service brake / parking brake	Hydraulic/Mechanical
Hydraulic system working pressure	17.5

1. Easy Maintenance & Spacious Hood Design

Large opening hood and organized component layout provide quick access for daily inspection and maintenance, reducing downtime and service costs.

2. Powerful & Fuel-Efficient Engine

Equipped with a reliable high-performance engine and advanced hydraulic system, the forklift delivers strong power, fast response, and lower fuel consumption for demanding working conditions.

3. Comfortable & Ergonomic Operation

Optimized control layout, spacious operating area and ergonomic seat design improve driver comfort and reduce fatigue during long working hours.

4. Durable Structure & Long Service Life

Built with a reinforced chassis and reliable core components, the forklift ensures excellent stability, durability, and long-term performance across various working conditions.

Our Facility

Impetus Factory & Global Installations

View Full Tour arrow_forward

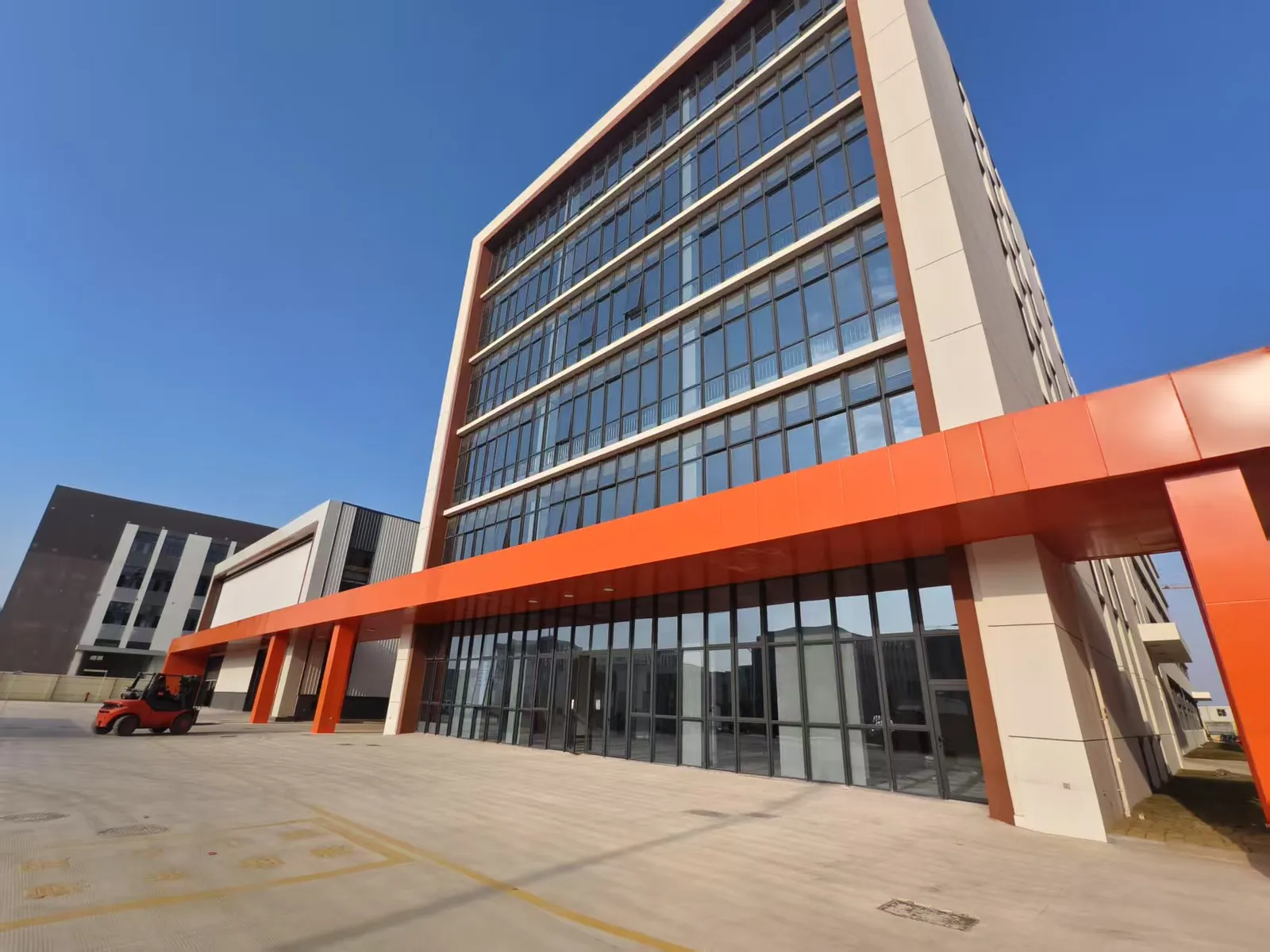

Impetus 30,000m² forklift manufacturing campus — exterior view
