Counterbalance Forklift

1.5 Ton
Diesel Forklift

Name: 1.5 Ton Diesel Forklift
Brand: Impetus
SKU: FD15
Availability: InStock

1500 kg

Capacity

Diesel

Power

3000 mm

Lift Height

FD15

Model

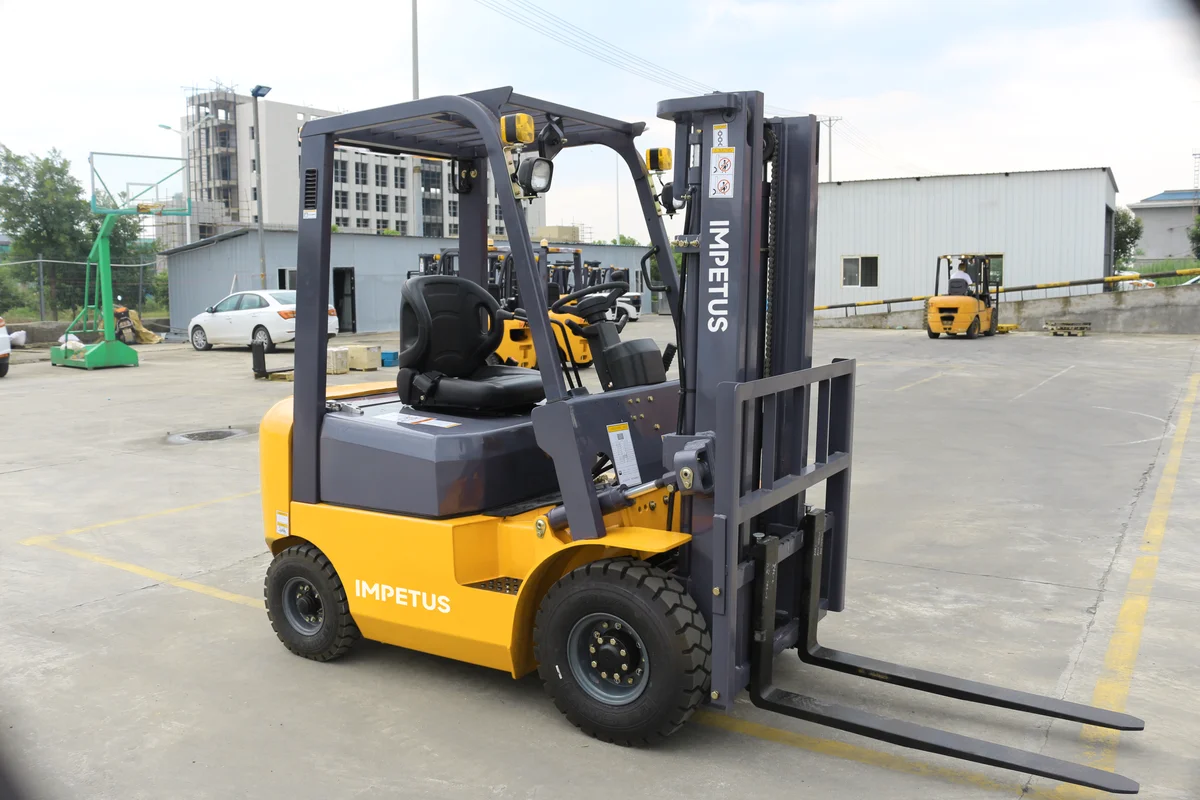

1.5 Ton Diesel Forklift — Impetus FD15 detail view 2

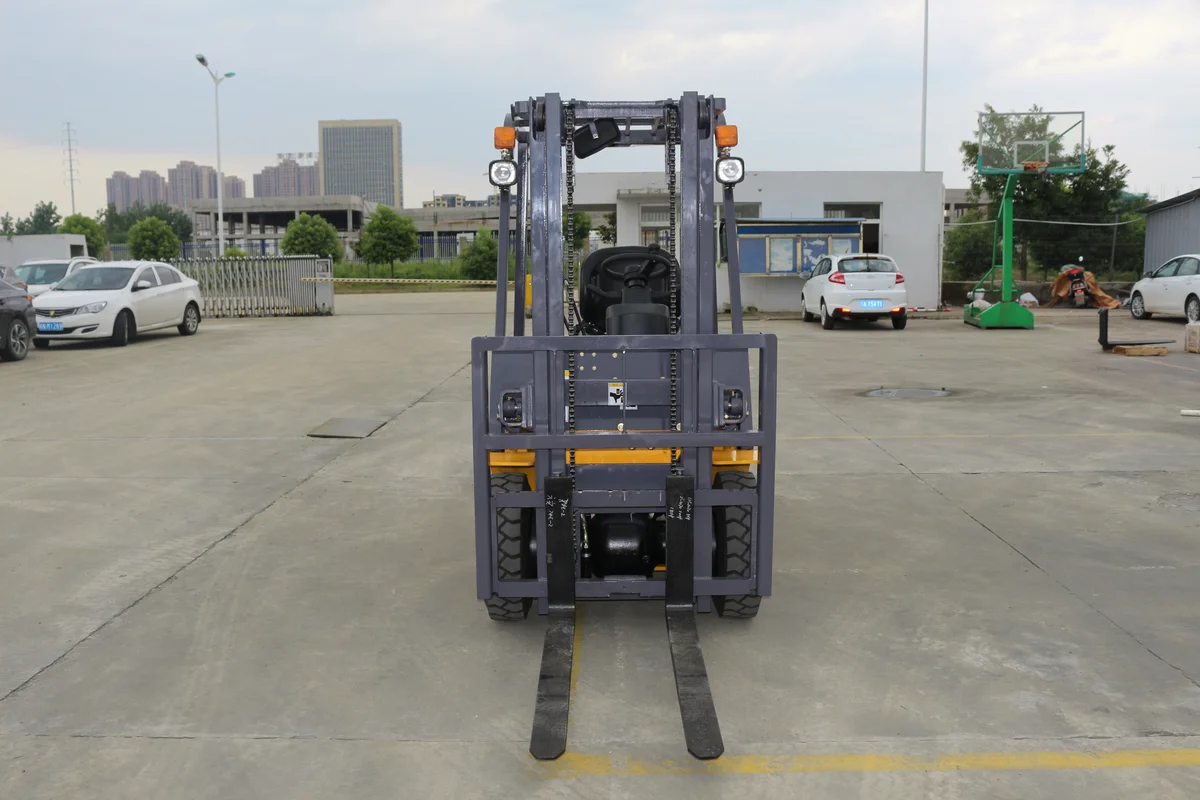

1.5 Ton Diesel Forklift — Impetus FD15 detail view 3

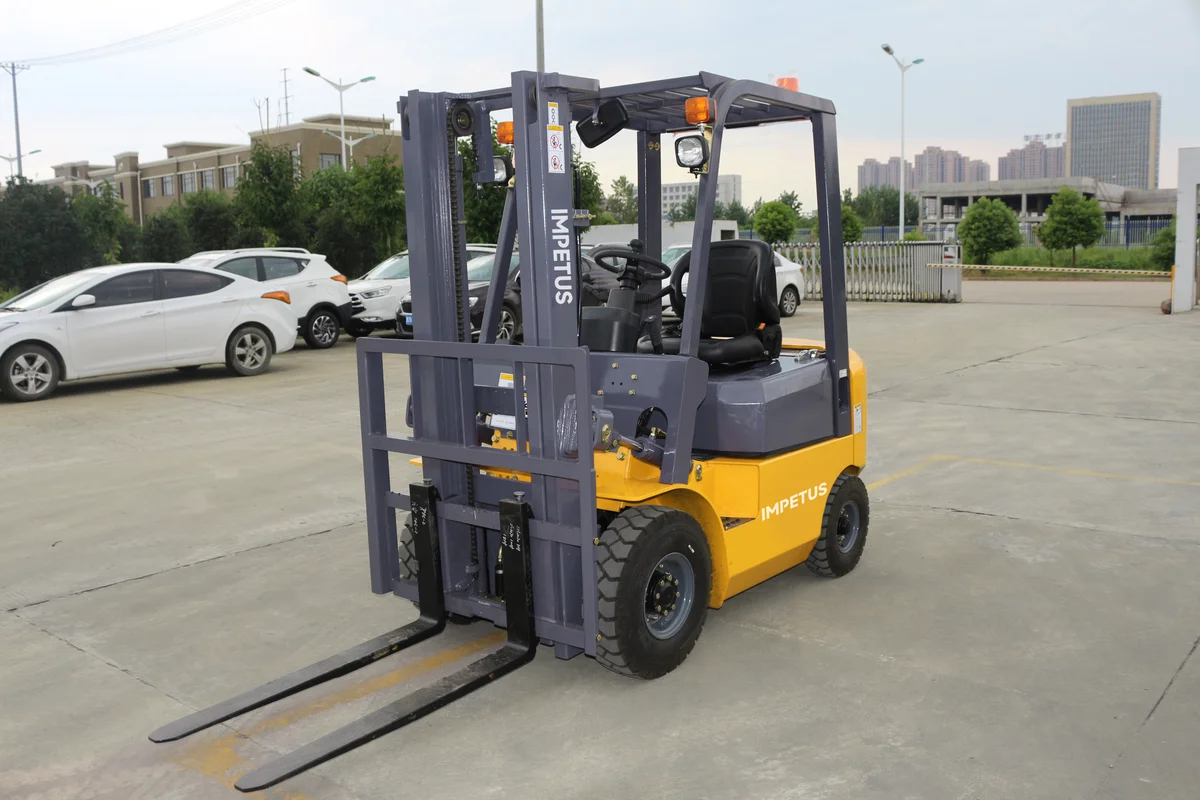

1.5 Ton Diesel Forklift — Impetus FD15 detail view 4

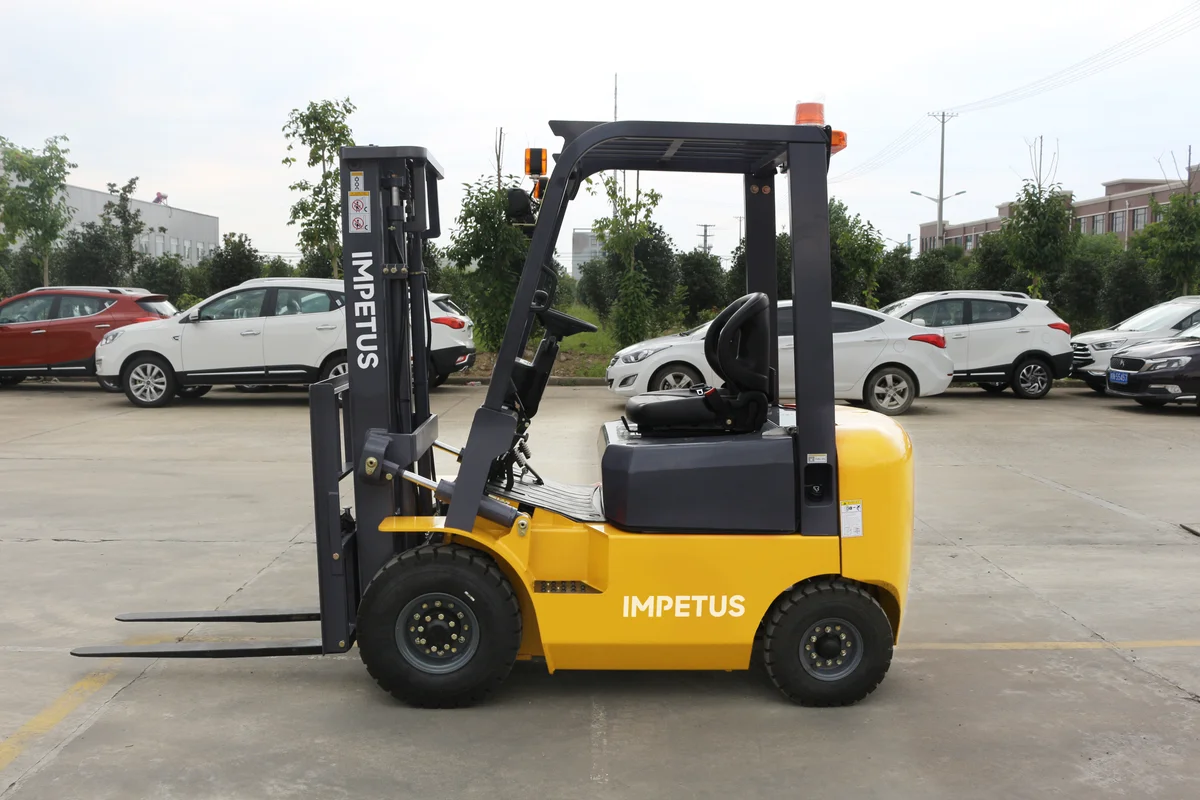

1.5 Ton Diesel Forklift — Impetus FD15 detail view 5

1.5 Ton Diesel Forklift — Impetus FD15 detail view 6

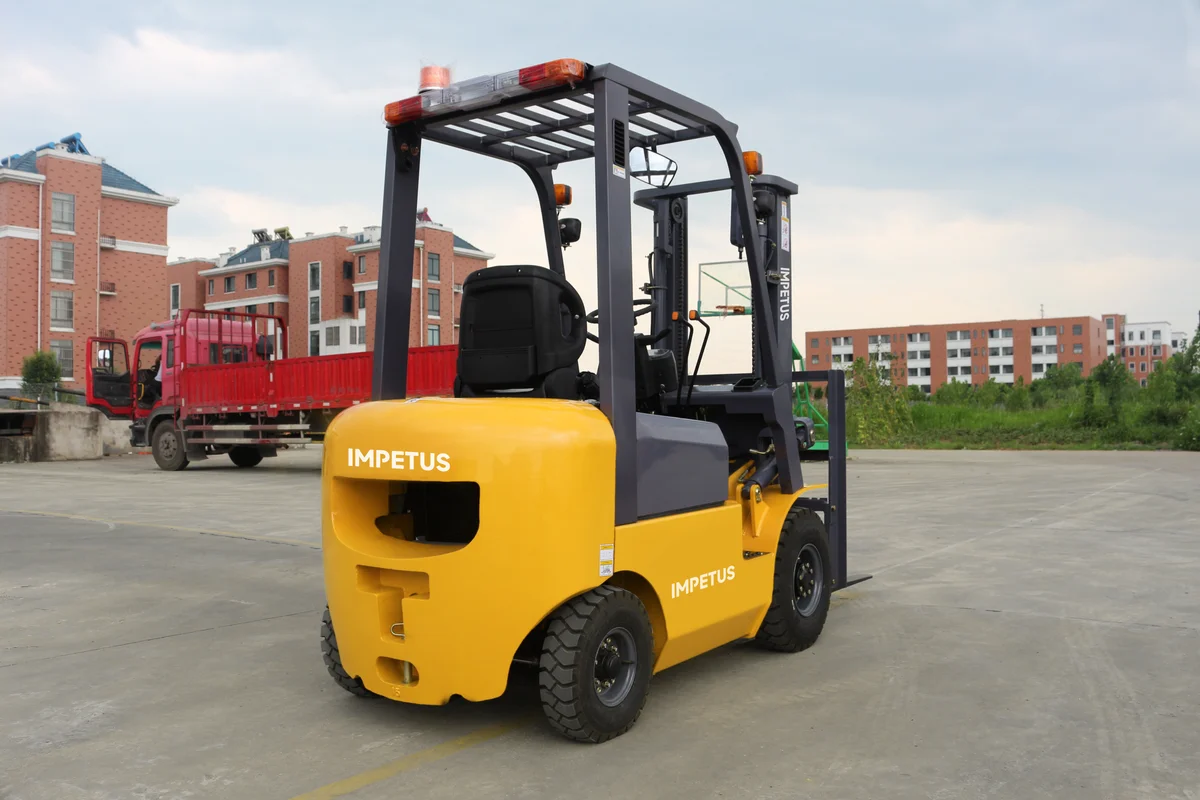

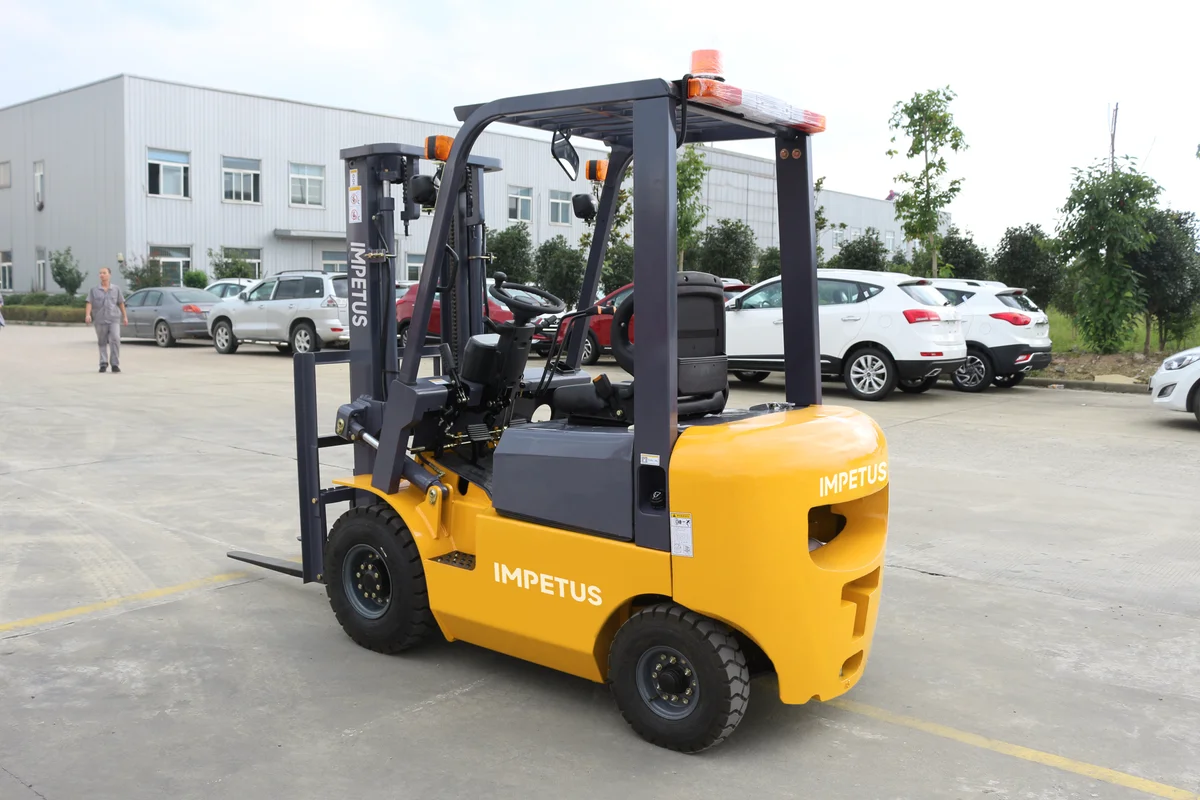

1.5 Ton Diesel Forklift — Impetus FD15 detail view 7

1.5 Ton Diesel Forklift — Impetus FD15 detail view 8

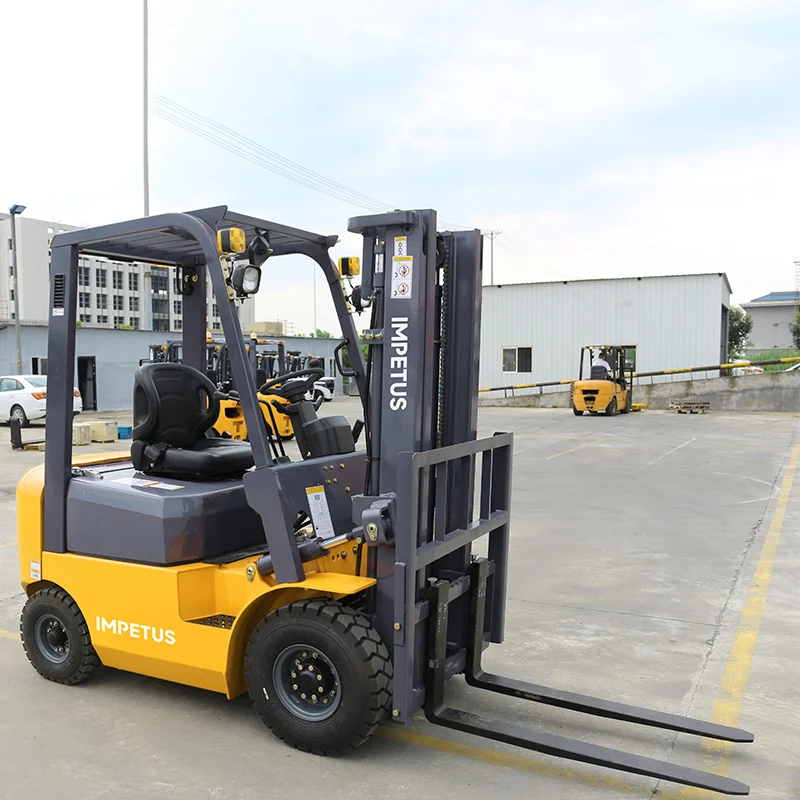

1.5 Ton Diesel Forklift — Impetus FD15 detail view 9

1.5 Ton Diesel Forklift — Impetus FD15 detail view 10

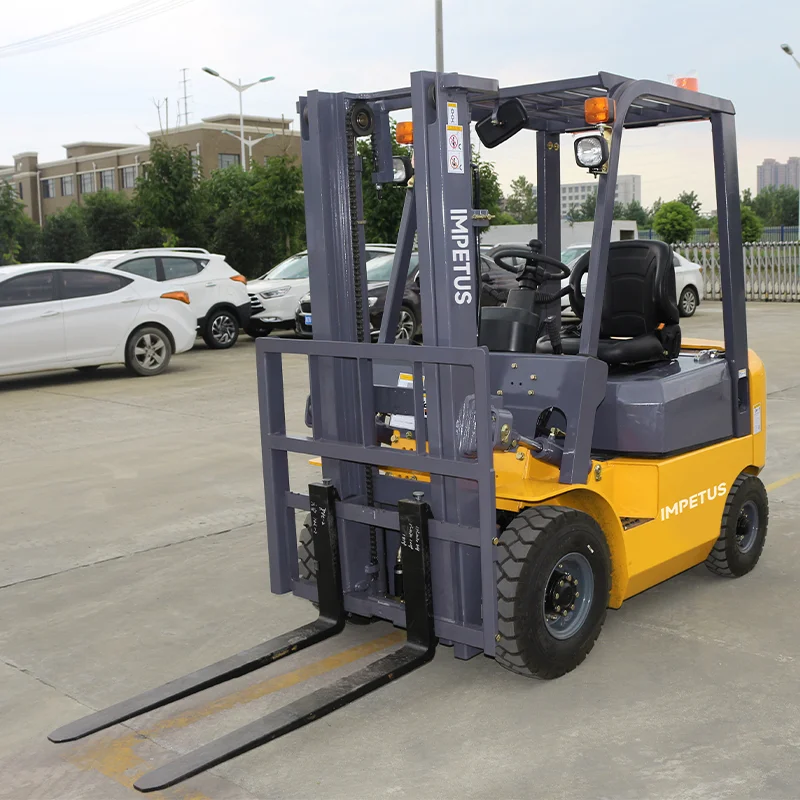

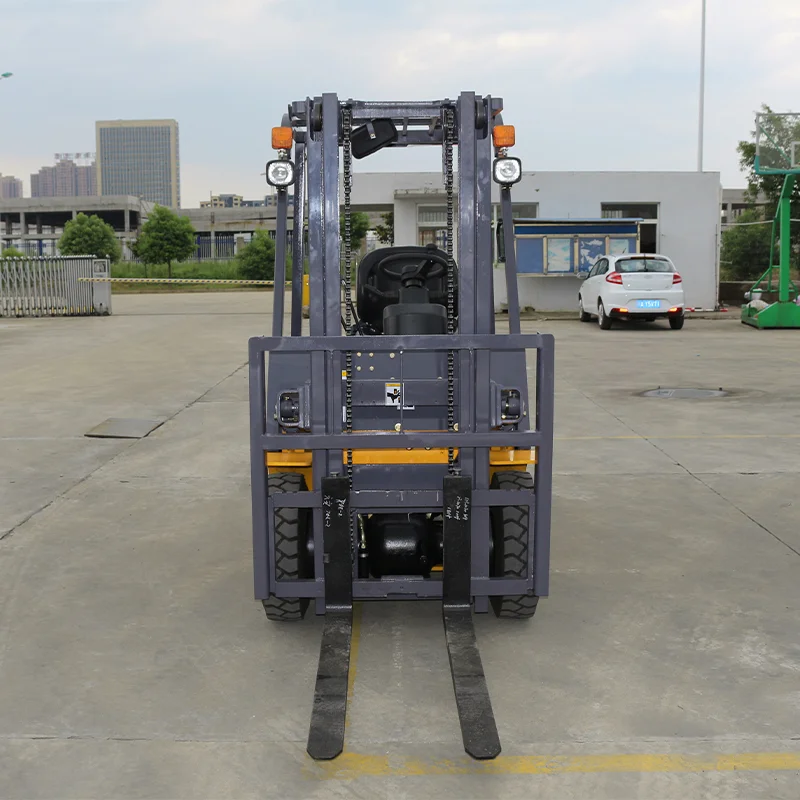

1.5 Ton Diesel Forklift — Impetus FD15 detail view 11

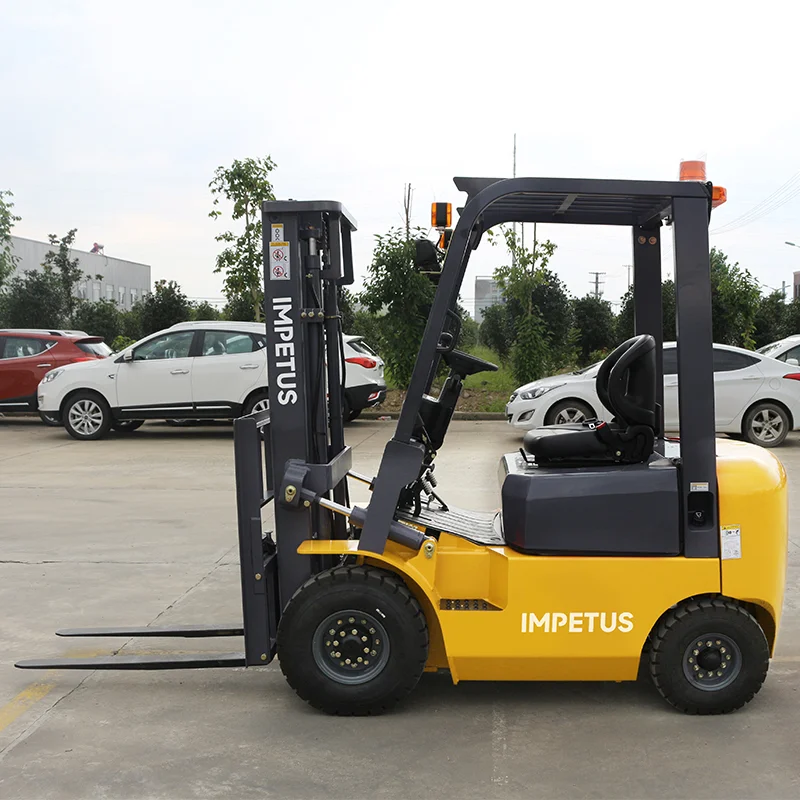

1.5 Ton Diesel Forklift — Impetus FD15 detail view 12

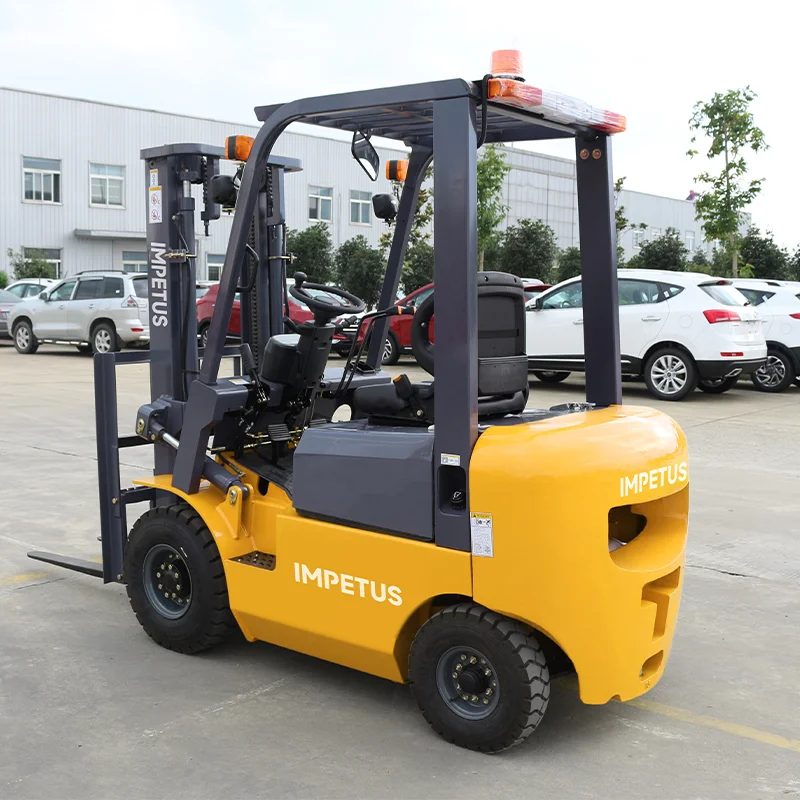

1.5 Ton Diesel Forklift — Impetus FD15 detail view 13

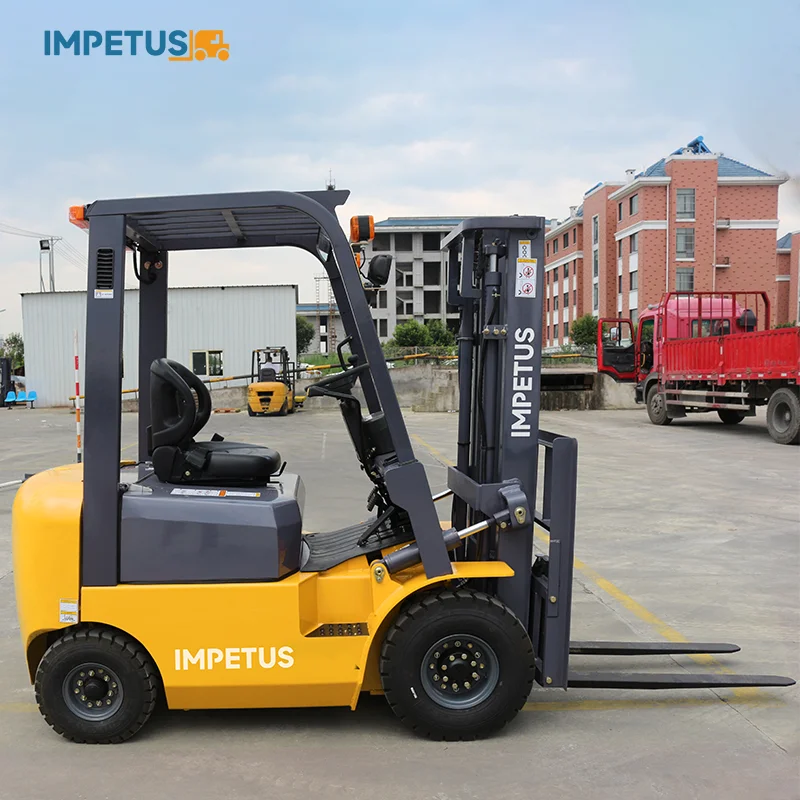

1.5 Ton Diesel Forklift — Impetus FD15 detail view 14

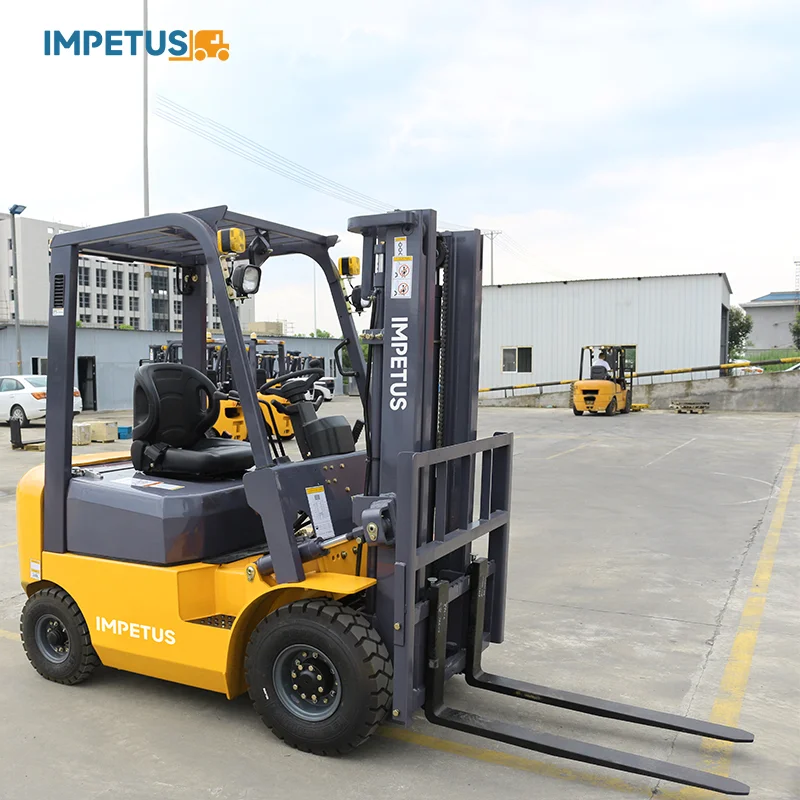

1.5 Ton Diesel Forklift — Impetus FD15 detail view 15

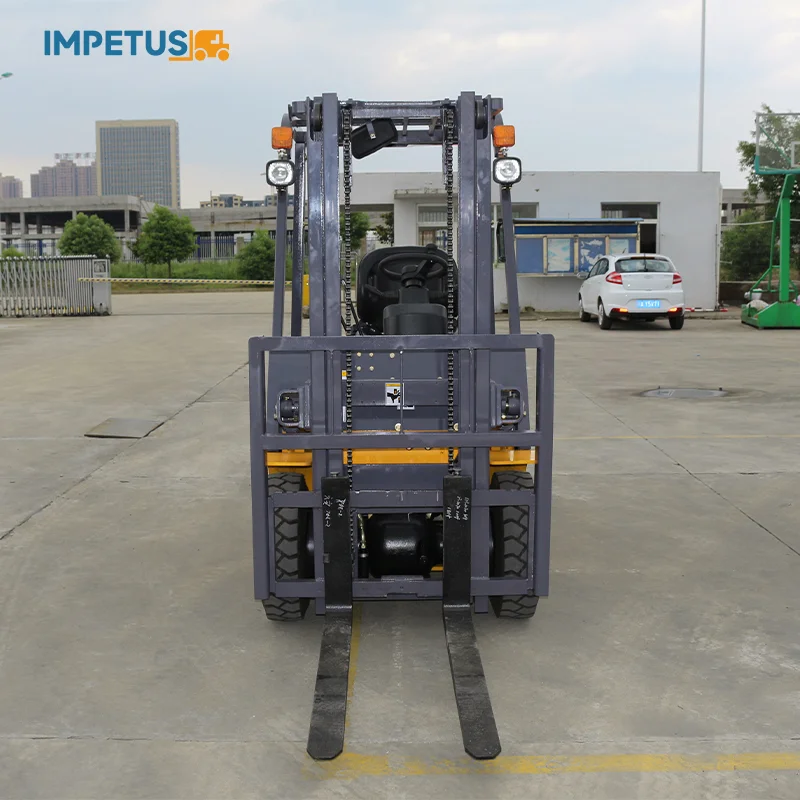

1.5 Ton Diesel Forklift — Impetus FD15 detail view 16

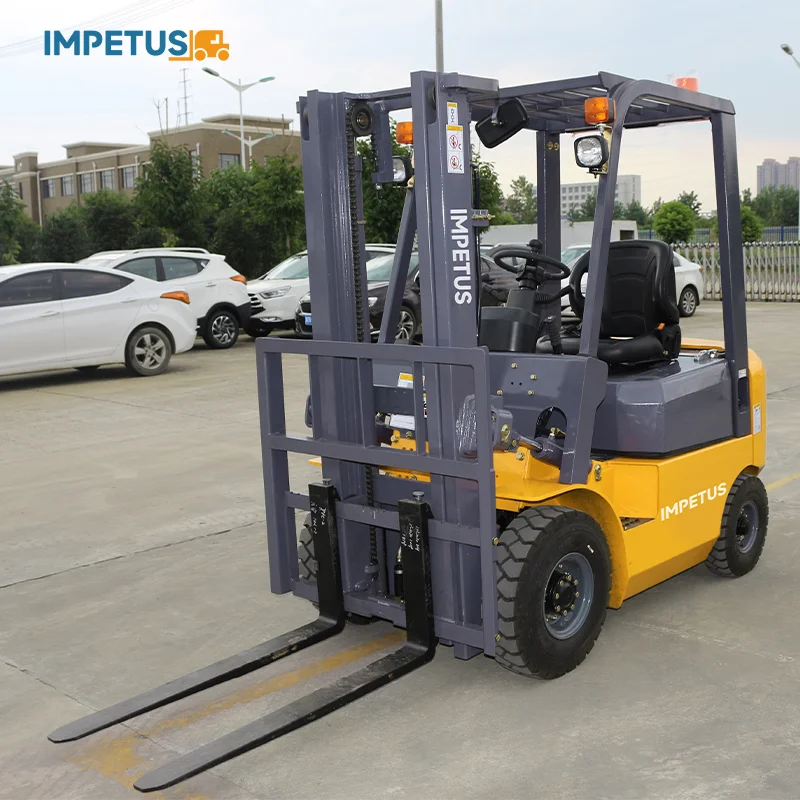

1.5 Ton Diesel Forklift — Impetus FD15 detail view 17

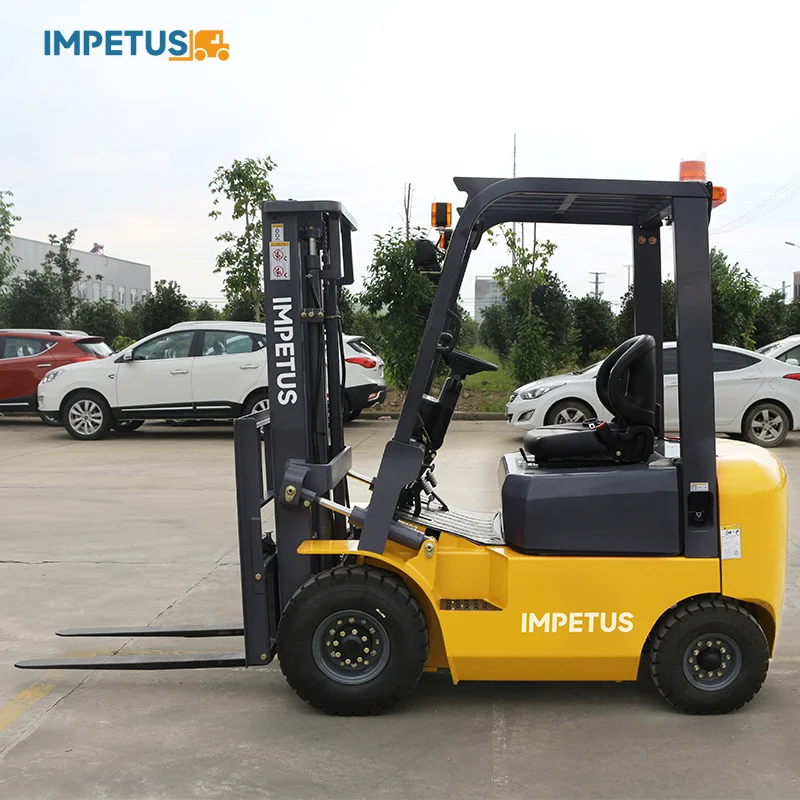

1.5 Ton Diesel Forklift — Impetus FD15 detail view 18

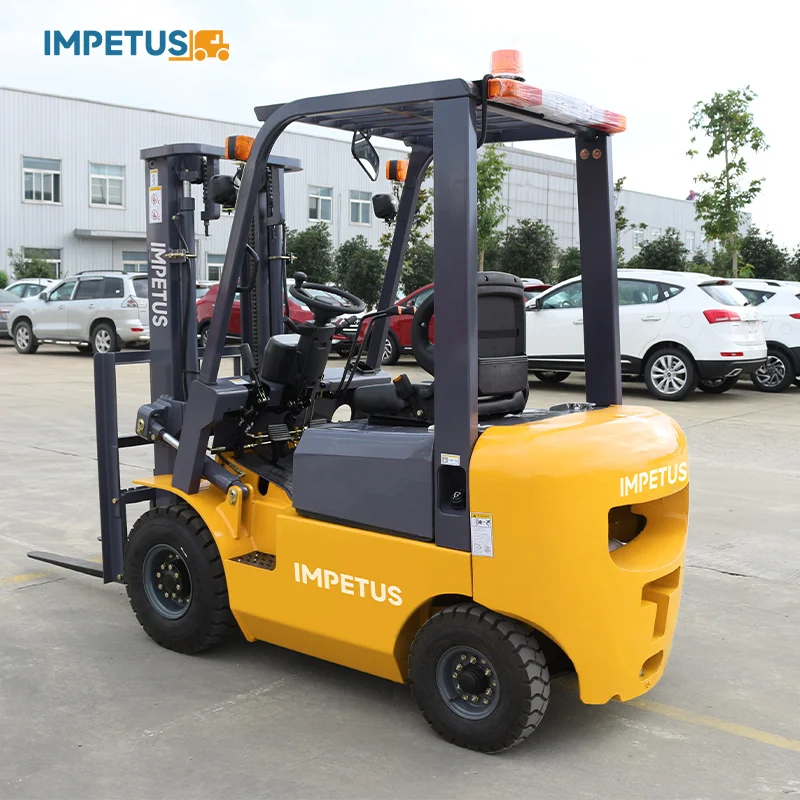

1.5 Ton Diesel Forklift — Impetus FD15 detail view 19

1.5 Ton Diesel Forklift — Impetus FD15 thumbnail 1

1.5 Ton Diesel Forklift — Impetus FD15 thumbnail 2

1.5 Ton Diesel Forklift — Impetus FD15 thumbnail 3

1.5 Ton Diesel Forklift — Impetus FD15 thumbnail 4

1.5 Ton Diesel Forklift — Impetus FD15 thumbnail 5

1.5 Ton Diesel Forklift — Impetus FD15 thumbnail 6

1.5 Ton Diesel Forklift — Impetus FD15 thumbnail 7

1.5 Ton Diesel Forklift — Impetus FD15 thumbnail 8

1.5 Ton Diesel Forklift — Impetus FD15 thumbnail 9

1.5 Ton Diesel Forklift — Impetus FD15 thumbnail 10

1.5 Ton Diesel Forklift — Impetus FD15 thumbnail 11

1.5 Ton Diesel Forklift — Impetus FD15 thumbnail 12

1.5 Ton Diesel Forklift — Impetus FD15 thumbnail 13

1.5 Ton Diesel Forklift — Impetus FD15 thumbnail 14

1.5 Ton Diesel Forklift — Impetus FD15 thumbnail 15

1.5 Ton Diesel Forklift — Impetus FD15 thumbnail 16

1.5 Ton Diesel Forklift — Impetus FD15 thumbnail 17

1.5 Ton Diesel Forklift

Engineered for easy maintenance, fuel efficiency, and operator comfort. FD15 delivers lower operating costs and higher uptime across demanding work environments.

oil_barrel Efficient diesel engine with low fuel consumption
airline_seat_recline_extra Operator-centric cabin for all-day comfort
visibility Heavy-duty mast with excellent forward visibility

Ready to upgrade your fleet?

Connect with our engineering sales team to configure the FD15 for your facility's exact requirements.

Rated capacity	1500 kg	Load center distance	500 kg
Power type	Diesel	Driving type	Seated
Wheel base	1400	Tyre type	Pneumatic
Wheel number (front/rear)	2X / 2	Front tread	890 mm
Rear tread	920 mm	Tyre (front)	6.50-10-10PR
Tyre (rear)	5.00-8-10PR	Front overhang	420 mm
Mast tilt angle (front/rear)	6/12	Height with mast retraction	1990 mm
Free lift height	125 mm	Max. lifting height	3000 mm
Max. height after lifting	4030 mm	Overhead guard height	2070 mm
Fork size: length x width x thickness	1070 x 100 x35	Overall length (fork excluded)	2230 mm
Overall width	1090 mm	Turning radius	2060 mm
Ground clearance of mast	105 mm	Ground clearance of wheel base center (loaded)	115 mm
Lateral fork adjustment Max./Min.	910/200	Travelling speed (loaded/unloaded)	13.5/14.5
Lifting speed (loaded/unloaded)	460/500	Lowering speed (loaded/unloaded)	450/550
Gradeability (loaded/unloaded)	20/20	Max. traction force (loaded/unloaded)	21/15.2
Total weight	2680 kg	Axle load (unloaded), front/rear	1170/1510
Axle load (loaded), front/rear	3640/540	Engine manufacturer /Model	XINCHAI NC485BPG
Rated power /Speed	30/2600	Max. torque /Speed	131/1700-1900
Cylinder number-bore×stroke	4-85x105	Engine displacement	2.27
Emission	Stage II	Transmission gears (front/rear)	1-1 Power Shift 2-2 Manual Shift
Fuel tank capacity	45 kg	Service brake / parking brake	Hydraulic/Mechanical
Hydraulic system working pressure	14.5

Rated capacity	1500 kg
Load center distance	500 kg
Power type	Diesel
Driving type	Seated
Wheel base	1400
Tyre type	Pneumatic
Wheel number (front/rear)	2X / 2
Front tread	890 mm
Rear tread	920 mm
Tyre (front)	6.50-10-10PR
Tyre (rear)	5.00-8-10PR
Front overhang	420 mm
Mast tilt angle (front/rear)	6/12
Height with mast retraction	1990 mm
Free lift height	125 mm
Max. lifting height	3000 mm
Max. height after lifting	4030 mm
Overhead guard height	2070 mm
Fork size: length x width x thickness	1070 x 100 x35
Overall length (fork excluded)	2230 mm
Overall width	1090 mm
Turning radius	2060 mm
Ground clearance of mast	105 mm
Ground clearance of wheel base center (loaded)	115 mm
Lateral fork adjustment Max./Min.	910/200
Travelling speed (loaded/unloaded)	13.5/14.5
Lifting speed (loaded/unloaded)	460/500
Lowering speed (loaded/unloaded)	450/550
Gradeability (loaded/unloaded)	20/20
Max. traction force (loaded/unloaded)	21/15.2
Total weight	2680 kg
Axle load (unloaded), front/rear	1170/1510
Axle load (loaded), front/rear	3640/540
Engine manufacturer /Model	XINCHAI NC485BPG
Rated power /Speed	30/2600
Max. torque /Speed	131/1700-1900
Cylinder number-bore×stroke	4-85x105
Engine displacement	2.27
Emission	Stage II
Transmission gears (front/rear)	1-1 Power Shift 2-2 Manual Shift
Fuel tank capacity	45 kg
Service brake / parking brake	Hydraulic/Mechanical
Hydraulic system working pressure	14.5

1. Easy Maintenance & Spacious Hood Design

Large opening hood and organized component layout provide quick access for daily inspection and maintenance, reducing downtime and service costs.

2. Powerful & Fuel-Efficient Engine

Equipped with a reliable high-performance engine and advanced hydraulic system, the forklift delivers strong power, fast response, and lower fuel consumption for demanding working conditions.

3. Comfortable & Ergonomic Operation

Optimized control layout, spacious operating area and ergonomic seat design improve driver comfort and reduce fatigue during long working hours.

4. Durable Structure & Long Service Life

Built with a reinforced chassis and reliable core components, the forklift ensures excellent stability, durability, and long-term performance across various working conditions.
