Construction Equipment

5 Ton
14m Telehandler

Name: 5 Ton 14m Telehandler
Brand: Impetus
SKU: T5014
Availability: InStock

5000 kg

Capacity

Diesel

Power

13.8 m mm

Lift Height

T5014

Model

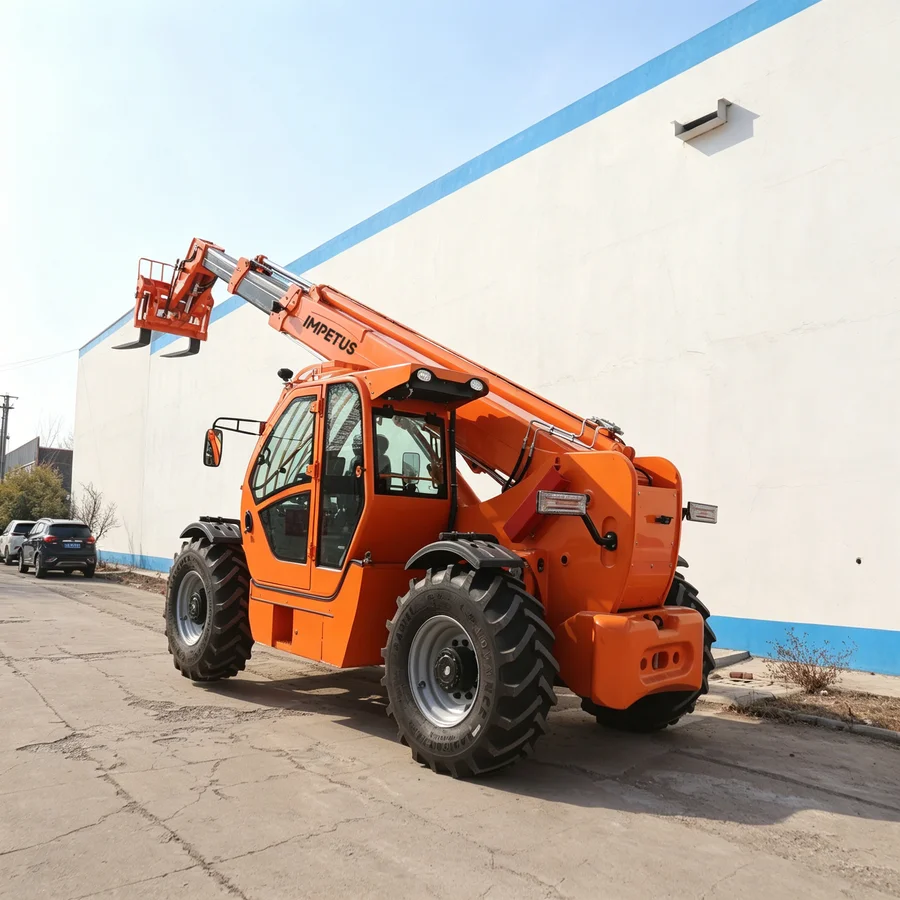

5 Ton 14m Telehandler — Impetus T5014 detail view 2

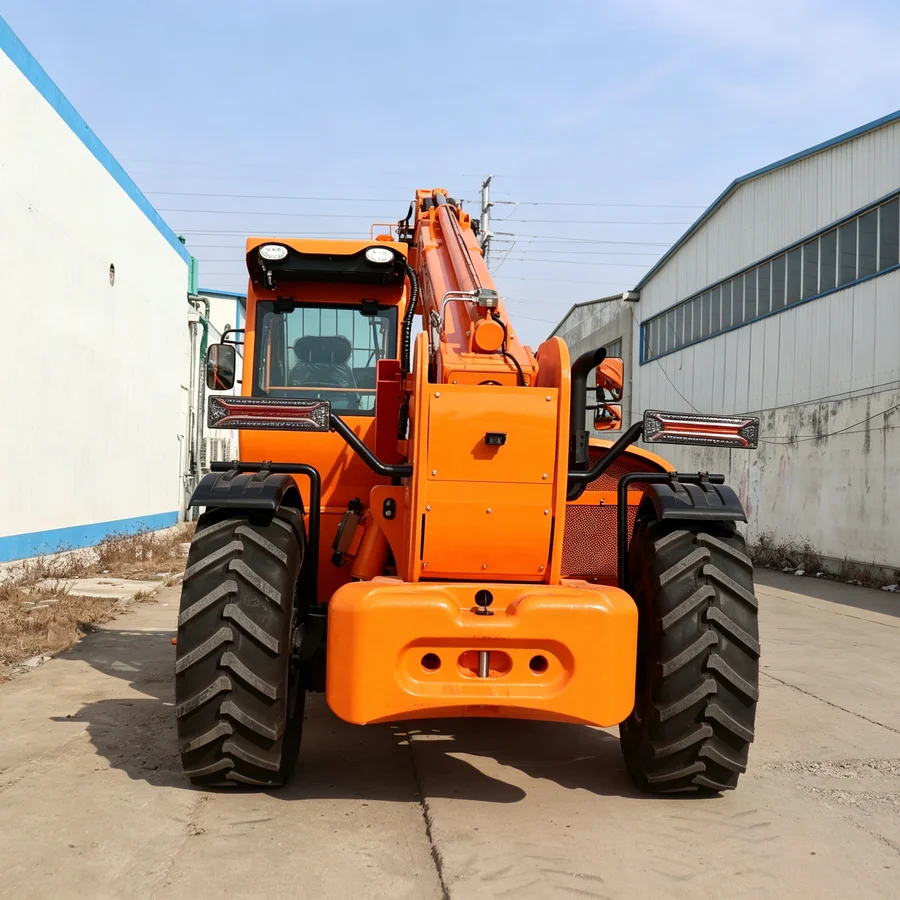

5 Ton 14m Telehandler — Impetus T5014 detail view 3

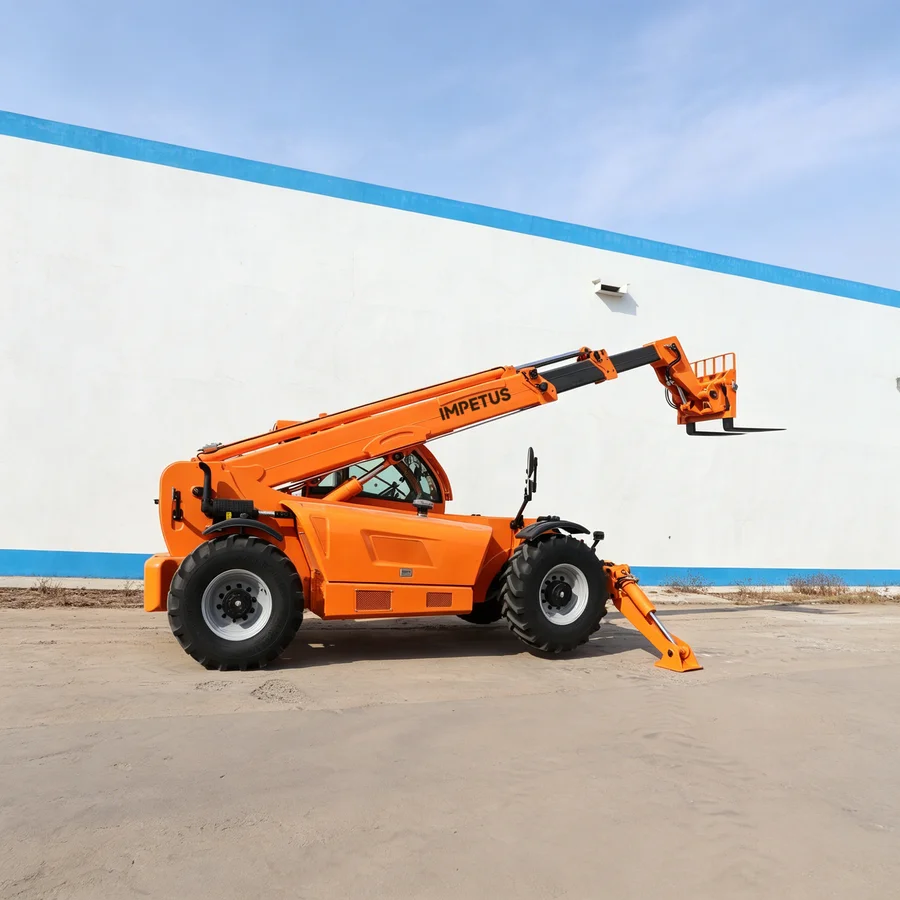

5 Ton 14m Telehandler — Impetus T5014 detail view 4

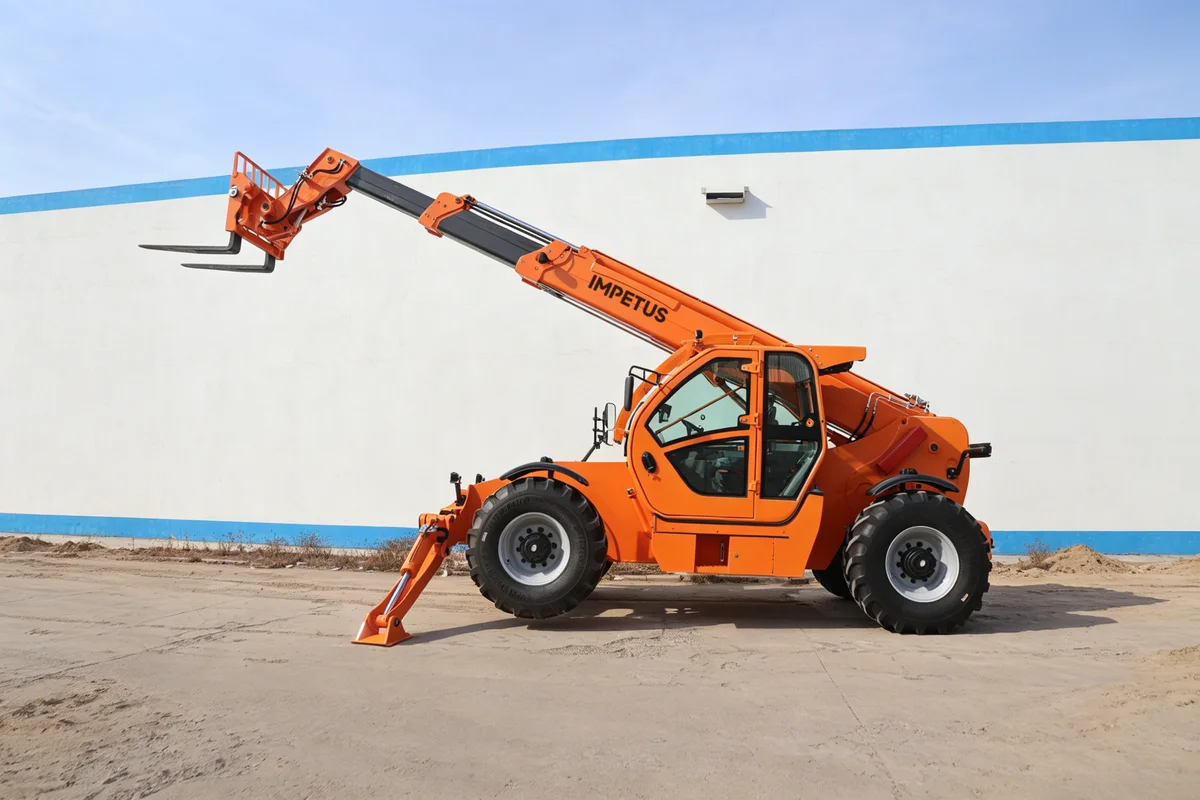

5 Ton 14m Telehandler — Impetus T5014 detail view 5

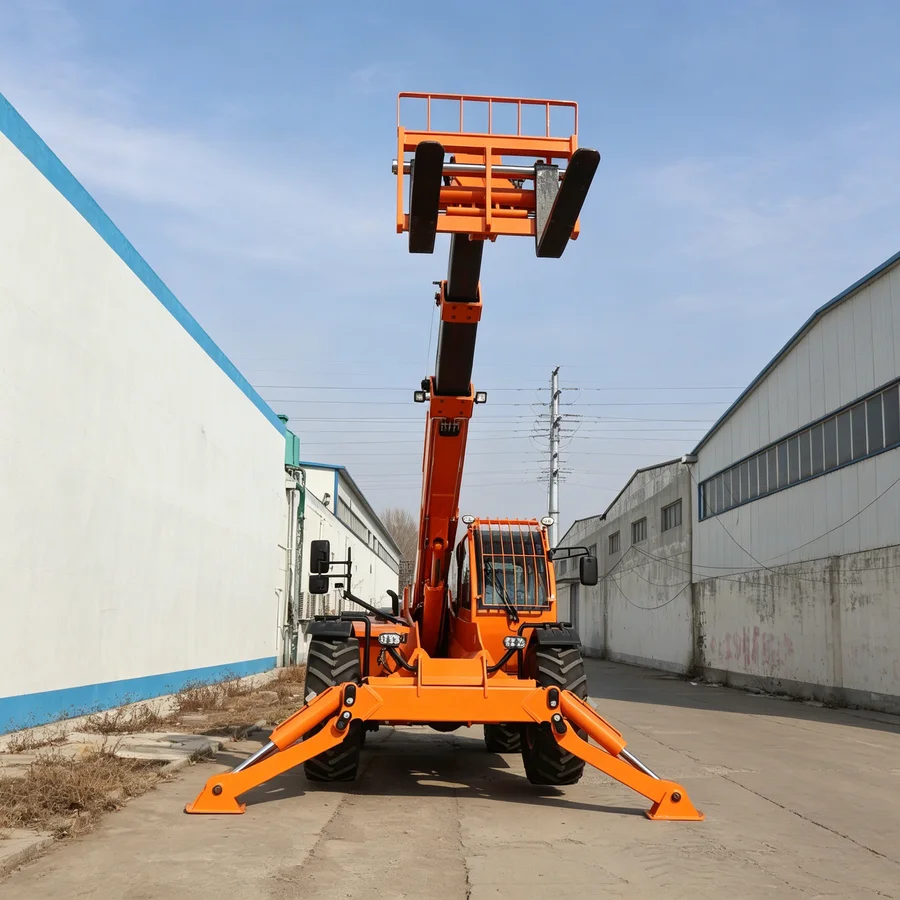

5 Ton 14m Telehandler — Impetus T5014 detail view 6

5 Ton 14m Telehandler — Impetus T5014 thumbnail 1

5 Ton 14m Telehandler — Impetus T5014 thumbnail 2

5 Ton 14m Telehandler — Impetus T5014 thumbnail 3

5 Ton 14m Telehandler — Impetus T5014 thumbnail 4

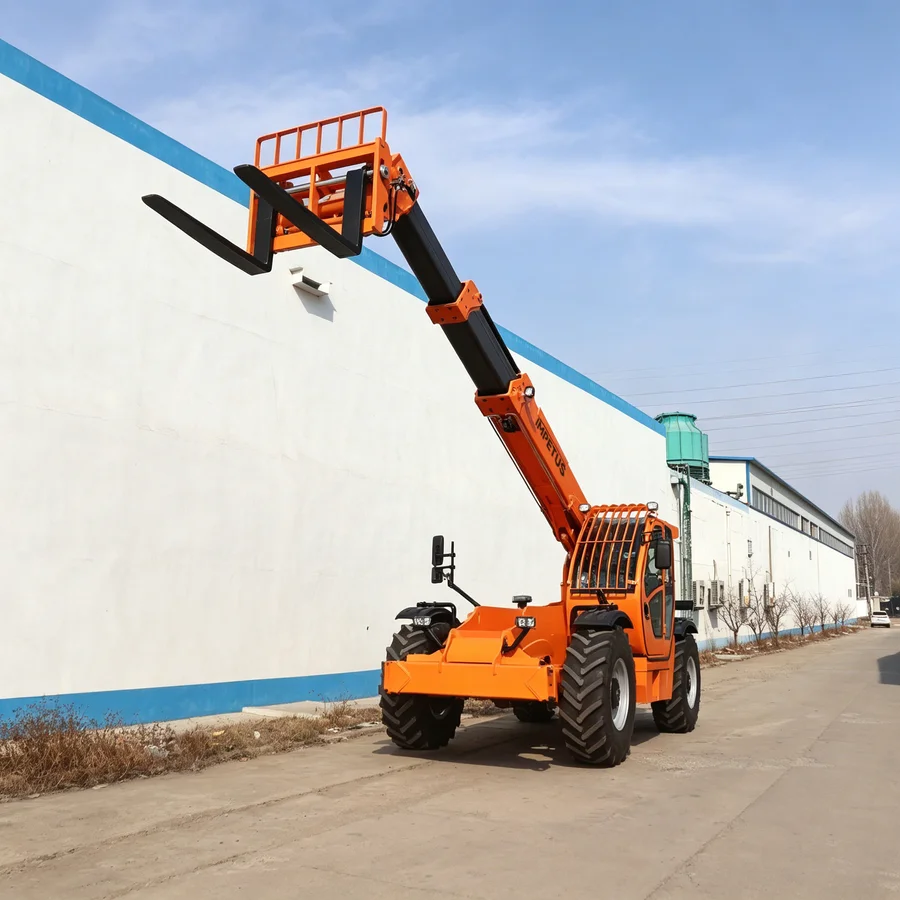

5 Ton 14m Telehandler

T5014 — CE & ISO certified Telescopic Handler. Versatile reach and lift solutions for construction, agriculture, and industrial material handling.

star Telescopic boom with exceptional forward reach
bolt Multiple attachment compatibility for versatility
shield All-terrain capability with 4WD drivetrain

Ready to upgrade your fleet?

Connect with our engineering sales team to configure the T5014 for your facility's exact requirements.

Max. capacity	5000 kg	Max. lifting height	13.8 m
Max. outreach	8 m	Unladen weight (with fork)	5800 kg
Overall length to carriage	6.6 m	Length to face of fork	7.82 m
Min transport size	6.3 m	Overall width	2.35 m
Track width	1.9 m	Overall height	2.65 m
Wheelbase	3.6 m	Ground clearance	0.38 m
Overall cab width	0.84 m	Tilt-up angle	12
Tilt-down angle	90	External turning radius (over tyre)	4.1 m
Unladen weight (with fork)	13600 kg	Tires type	Tubeless
Standard tire	440/80-24	Fork size: length x width x thickness	1220 x 125/50
Lifting	26	Lowering	26
Extension	29	Retraction	17
Crowd	9	Dump	9
Engine brand	YUCHAI	Engine norm	National II
Max. fuel sulphur content	5000	Engine model	YCD4J22T-125
Number of cylinders / Capacity of cylinder	4 - 4400	I.C. Engine power rating - Power	122/91
Max. torque / Engine rotation	400 @ 1400	Draw bar pull (Laden)	10000
Transmission type	Torque converter (Optional hydrostatic pressure)	Number of gears (forward/reverse)	4/4
Max. travel speed	40 km/h	Parking brake	Automatic air-cut brake
Service brake	Immersed multi-discs braking on front & rear axles	Hydraulic pump type	Gear pump Optional plunger pump)
Hydraulic flow	150	Engine oil	5.5
Hydraulic oil	170	Fuel tank	100
Noise at driving position (LpA)	82	Noise to environment (LwA)	105
Vibration on hands / arm	< 2.50	Steering wheels (front/rear)	2/2
Drive wheels (front/rear)	2/2	Safety cab homologation	FOPS level 2 cab

Max. capacity	5000 kg
Max. lifting height	13.8 m
Max. outreach	8 m
Unladen weight (with fork)	5800 kg
Overall length to carriage	6.6 m
Length to face of fork	7.82 m
Min transport size	6.3 m
Overall width	2.35 m
Track width	1.9 m
Overall height	2.65 m
Wheelbase	3.6 m
Ground clearance	0.38 m
Overall cab width	0.84 m
Tilt-up angle	12
Tilt-down angle	90
External turning radius (over tyre)	4.1 m
Unladen weight (with fork)	13600 kg
Tires type	Tubeless
Standard tire	440/80-24
Fork size: length x width x thickness	1220 x 125/50
Lifting	26
Lowering	26
Extension	29
Retraction	17
Crowd	9
Dump	9
Engine brand	YUCHAI
Engine norm	National II
Max. fuel sulphur content	5000
Engine model	YCD4J22T-125
Number of cylinders / Capacity of cylinder	4 - 4400
I.C. Engine power rating - Power	122/91
Max. torque / Engine rotation	400 @ 1400
Draw bar pull (Laden)	10000
Transmission type	Torque converter (Optional hydrostatic pressure)
Number of gears (forward/reverse)	4/4
Max. travel speed	40 km/h
Parking brake	Automatic air-cut brake
Service brake	Immersed multi-discs braking on front & rear axles
Hydraulic pump type	Gear pump Optional plunger pump)
Hydraulic flow	150
Engine oil	5.5
Hydraulic oil	170
Fuel tank	100
Noise at driving position (LpA)	82
Noise to environment (LwA)	105
Vibration on hands / arm	< 2.50
Steering wheels (front/rear)	2/2
Drive wheels (front/rear)	2/2
Safety cab homologation	FOPS level 2 cab

1. Unmatched Reach & Versatility

The telescopic boom extends forward and upward to reach loads at distance, combining the capabilities of a forklift, crane, and work platform in a single machine. Handle palletized loads, bulk materials, and suspended loads with one piece of equipment.

2. Multi-Attachment Compatibility

Quick-coupler system accepts forks, buckets, work platforms, crane hooks, and specialized attachments. Switch between tasks in minutes — from lifting pallets to loading trucks to elevated maintenance work — maximizing equipment utilization.

3. All-Terrain Mobility & Stability

4WD drivetrain with high ground clearance and all-terrain tires provides confident operation on construction sites, farms, and unpaved surfaces. Advanced stability systems with load moment indicators ensure safe lifting at maximum reach.

4. Operator Comfort & Safety Systems

Spacious cab with excellent visibility, joystick controls, and ROPS/FOPS certification. Standard safety features include load moment limiter, overload protection, and stability monitoring for worry-free operation at height and reach.
