Construction Equipment

3.5 Ton
7m Telehandler

Name: 3.5 Ton 7m Telehandler
Brand: Impetus
SKU: T3507
Availability: InStock

3500 kg

Capacity

Diesel

Power

7 m mm

Lift Height

T3507

Model

3.5 Ton 7m Telehandler — Impetus T3507 detail view 2

3.5 Ton 7m Telehandler — Impetus T3507 detail view 3

3.5 Ton 7m Telehandler — Impetus T3507 detail view 4

3.5 Ton 7m Telehandler — Impetus T3507 detail view 5

3.5 Ton 7m Telehandler — Impetus T3507 detail view 6

3.5 Ton 7m Telehandler — Impetus T3507 detail view 7

3.5 Ton 7m Telehandler — Impetus T3507 detail view 8

3.5 Ton 7m Telehandler — Impetus T3507 detail view 9

3.5 Ton 7m Telehandler — Impetus T3507 detail view 10

3.5 Ton 7m Telehandler — Impetus T3507 detail view 11

3.5 Ton 7m Telehandler — Impetus T3507 detail view 12

3.5 Ton 7m Telehandler — Impetus T3507 detail view 13

3.5 Ton 7m Telehandler — Impetus T3507 detail view 14

3.5 Ton 7m Telehandler — Impetus T3507 detail view 15

3.5 Ton 7m Telehandler — Impetus T3507 detail view 16

3.5 Ton 7m Telehandler — Impetus T3507 detail view 17

3.5 Ton 7m Telehandler — Impetus T3507 detail view 18

3.5 Ton 7m Telehandler — Impetus T3507 thumbnail 1

3.5 Ton 7m Telehandler — Impetus T3507 thumbnail 2

3.5 Ton 7m Telehandler — Impetus T3507 thumbnail 3

3.5 Ton 7m Telehandler — Impetus T3507 thumbnail 4

3.5 Ton 7m Telehandler — Impetus T3507 thumbnail 5

3.5 Ton 7m Telehandler — Impetus T3507 thumbnail 6

3.5 Ton 7m Telehandler — Impetus T3507 thumbnail 7

3.5 Ton 7m Telehandler — Impetus T3507 thumbnail 8

3.5 Ton 7m Telehandler — Impetus T3507 thumbnail 9

3.5 Ton 7m Telehandler — Impetus T3507 thumbnail 10

3.5 Ton 7m Telehandler — Impetus T3507 thumbnail 11

3.5 Ton 7m Telehandler — Impetus T3507 thumbnail 12

3.5 Ton 7m Telehandler — Impetus T3507 thumbnail 13

3.5 Ton 7m Telehandler — Impetus T3507 thumbnail 14

3.5 Ton 7m Telehandler — Impetus T3507 thumbnail 15

3.5 Ton 7m Telehandler — Impetus T3507 thumbnail 16

3.5 Ton 7m Telehandler

T3507 — CE & ISO certified Telescopic Handler. Versatile reach and lift solutions for construction, agriculture, and industrial material handling.

star Telescopic boom with exceptional forward reach
bolt Multiple attachment compatibility for versatility
shield All-terrain capability with 4WD drivetrain

Ready to upgrade your fleet?

Connect with our engineering sales team to configure the T3507 for your facility's exact requirements.

Max. capacity	3500 kg	Max. lifting height	7 m
Max. outreach	3.2 m	Unladen weight (with fork)	5800 kg
Overall length to carriage	4.65 m	Length to face of fork	5.87 m
Min transport size	4.35 m	Overall width	2.2 m
Track width	1.78 m	Overall height	2.55 m
Wheelbase	3.15 m	Ground clearance	0.35 m
Overall cab width	0.84 m	Tilt-up angle	12
Tilt-down angle	90	External turning radius (over tyre)	4.25 m
Unladen weight (with fork)	7600 kg	Tires type	Pneumatic
Standard tire	16/70-20	Fork size: length x width x thickness	1220 x 125/50
Lifting	10	Lowering	7
Extension	12	Retraction	8.6
Crowd	4.8	Dump	3.45
Engine brand	YUNNEI	Engine norm	National II
Max. fuel sulphur content	5000	Engine model	YN38GBZ
Number of cylinders / Capacity of cylinder	4 - 4400	I.C. Engine power rating - Power	103/76
Max. torque / Engine rotation	400 @ 1400	Draw bar pull (Laden)	10000
Transmission type	Torque converter (Optional hydrostatic pressure)	Number of gears (forward/reverse)	4/4
Max. travel speed	35 km/h	Parking brake	Automatic air-cut brake
Service brake	Immersed multi-discs braking on front & rear axles	Hydraulic pump type	Gear pump Optional plunger pump)
Hydraulic flow	120	Engine oil	5.5
Hydraulic oil	170	Fuel tank	100
Noise at driving position (LpA)	82	Noise to environment (LwA)	105
Vibration on hands / arm	< 2.50	Steering wheels (front/rear)	2/2
Drive wheels (front/rear)	2/2	Safety cab homologation	FOPS level 2 cab

Max. capacity	3500 kg
Max. lifting height	7 m
Max. outreach	3.2 m
Unladen weight (with fork)	5800 kg
Overall length to carriage	4.65 m
Length to face of fork	5.87 m
Min transport size	4.35 m
Overall width	2.2 m
Track width	1.78 m
Overall height	2.55 m
Wheelbase	3.15 m
Ground clearance	0.35 m
Overall cab width	0.84 m
Tilt-up angle	12
Tilt-down angle	90
External turning radius (over tyre)	4.25 m
Unladen weight (with fork)	7600 kg
Tires type	Pneumatic
Standard tire	16/70-20
Fork size: length x width x thickness	1220 x 125/50
Lifting	10
Lowering	7
Extension	12
Retraction	8.6
Crowd	4.8
Dump	3.45
Engine brand	YUNNEI
Engine norm	National II
Max. fuel sulphur content	5000
Engine model	YN38GBZ
Number of cylinders / Capacity of cylinder	4 - 4400
I.C. Engine power rating - Power	103/76
Max. torque / Engine rotation	400 @ 1400
Draw bar pull (Laden)	10000
Transmission type	Torque converter (Optional hydrostatic pressure)
Number of gears (forward/reverse)	4/4
Max. travel speed	35 km/h
Parking brake	Automatic air-cut brake
Service brake	Immersed multi-discs braking on front & rear axles
Hydraulic pump type	Gear pump Optional plunger pump)
Hydraulic flow	120
Engine oil	5.5
Hydraulic oil	170
Fuel tank	100
Noise at driving position (LpA)	82
Noise to environment (LwA)	105
Vibration on hands / arm	< 2.50
Steering wheels (front/rear)	2/2
Drive wheels (front/rear)	2/2
Safety cab homologation	FOPS level 2 cab

1. Unmatched Reach & Versatility

The telescopic boom extends forward and upward to reach loads at distance, combining the capabilities of a forklift, crane, and work platform in a single machine. Handle palletized loads, bulk materials, and suspended loads with one piece of equipment.

2. Multi-Attachment Compatibility

Quick-coupler system accepts forks, buckets, work platforms, crane hooks, and specialized attachments. Switch between tasks in minutes — from lifting pallets to loading trucks to elevated maintenance work — maximizing equipment utilization.

3. All-Terrain Mobility & Stability

4WD drivetrain with high ground clearance and all-terrain tires provides confident operation on construction sites, farms, and unpaved surfaces. Advanced stability systems with load moment indicators ensure safe lifting at maximum reach.

4. Operator Comfort & Safety Systems

Spacious cab with excellent visibility, joystick controls, and ROPS/FOPS certification. Standard safety features include load moment limiter, overload protection, and stability monitoring for worry-free operation at height and reach.

Our Facility

Impetus Factory & Global Installations

View Full Tour arrow_forward

Impetus 30,000m² forklift manufacturing campus — exterior view

Global Manufacturing Campus

30,000 m² state-of-the-art facility

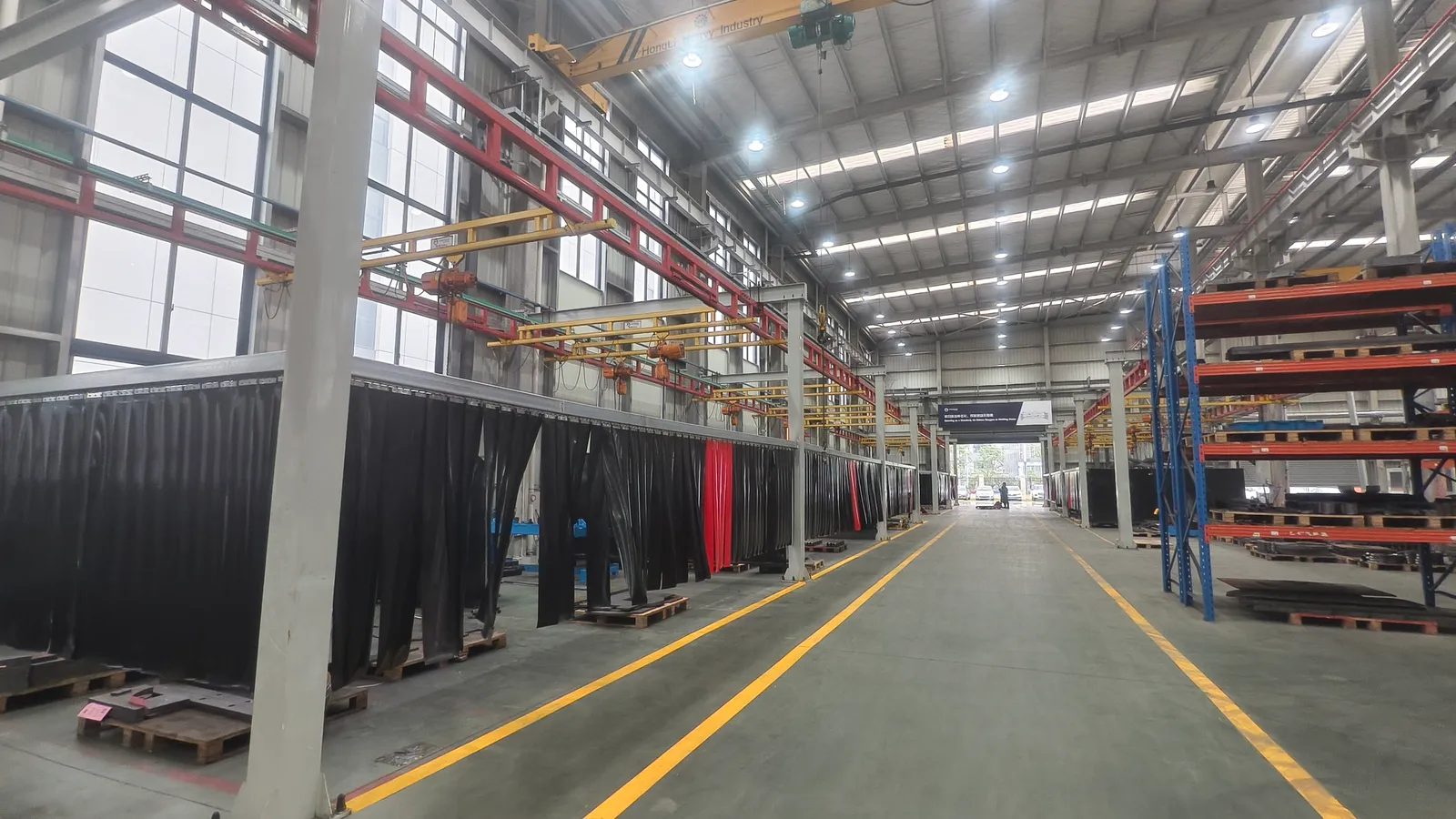

Intelligent Assembly

Industry 4.0 production lines

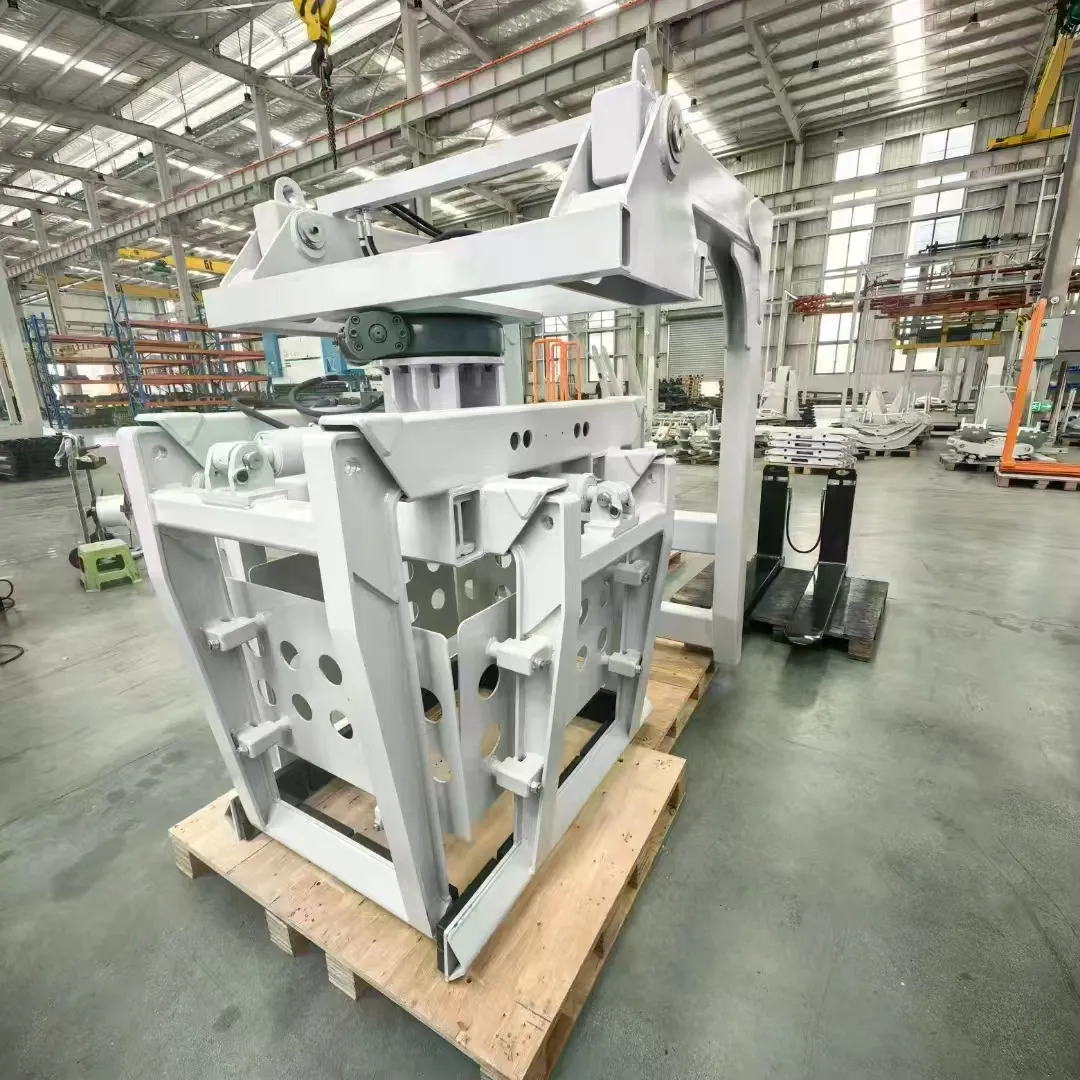

Impetus ready-to-ship forklift inventory warehouse — fast global delivery
