Counterbalance Forklift

3.8 Ton
Diesel Forklift

Name: 3.8 Ton Diesel Forklift
Brand: Impetus
SKU: FD38
Availability: InStock

3800 kg

Capacity

Diesel

Power

3000 mm

Lift Height

FD38

Model

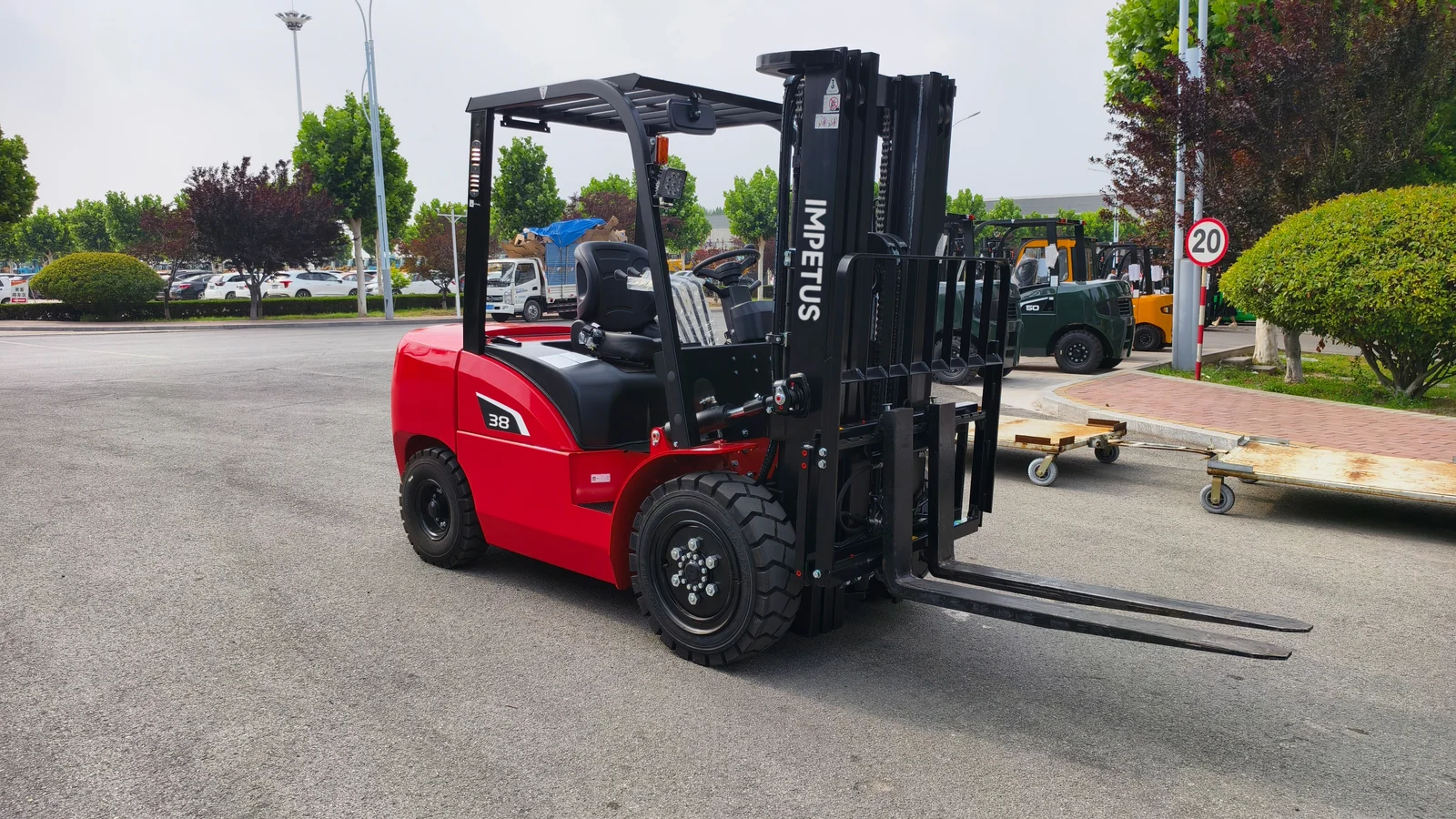

3.8 Ton Diesel Forklift — Impetus FD38 detail view 2

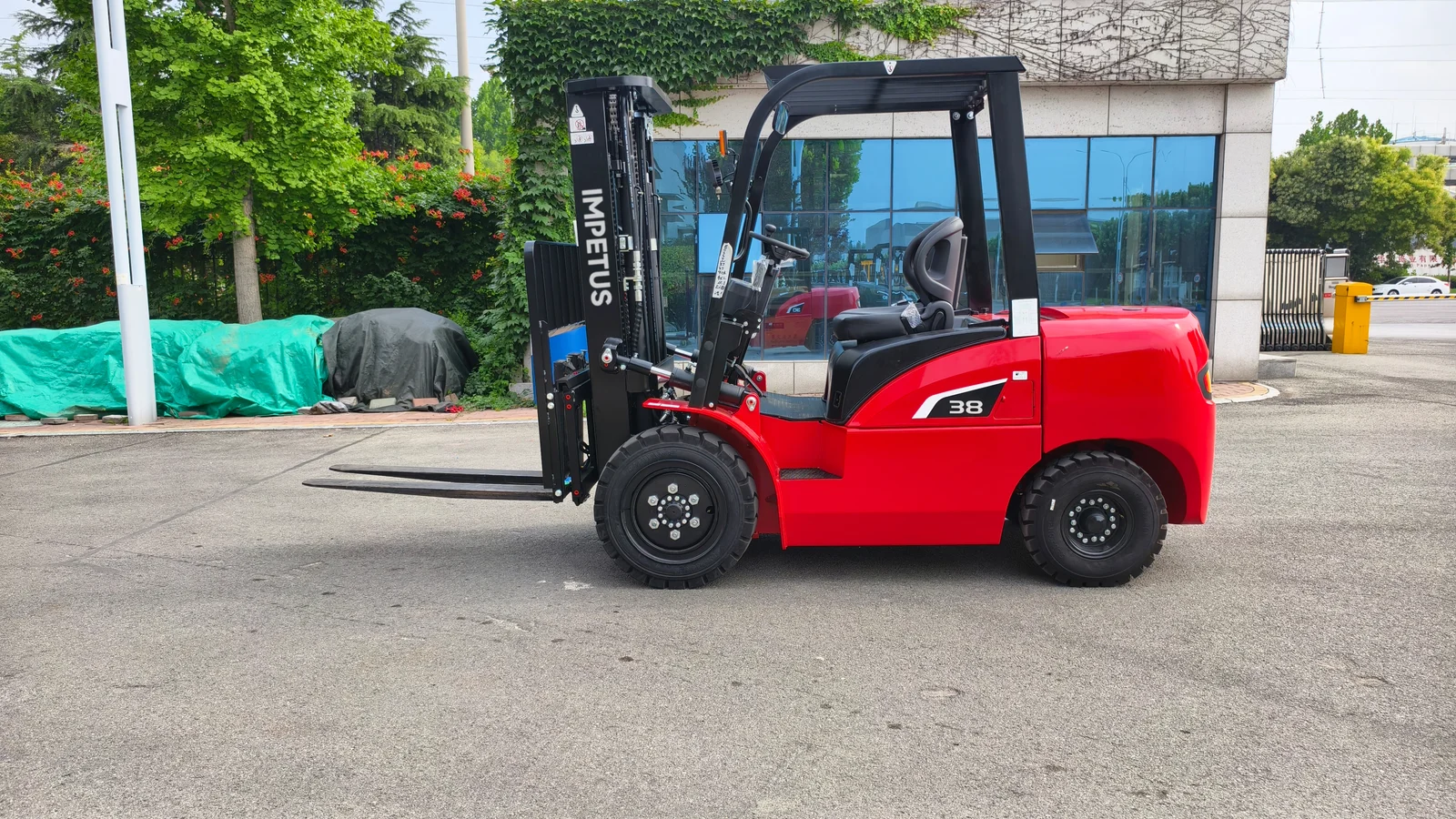

3.8 Ton Diesel Forklift — Impetus FD38 detail view 3

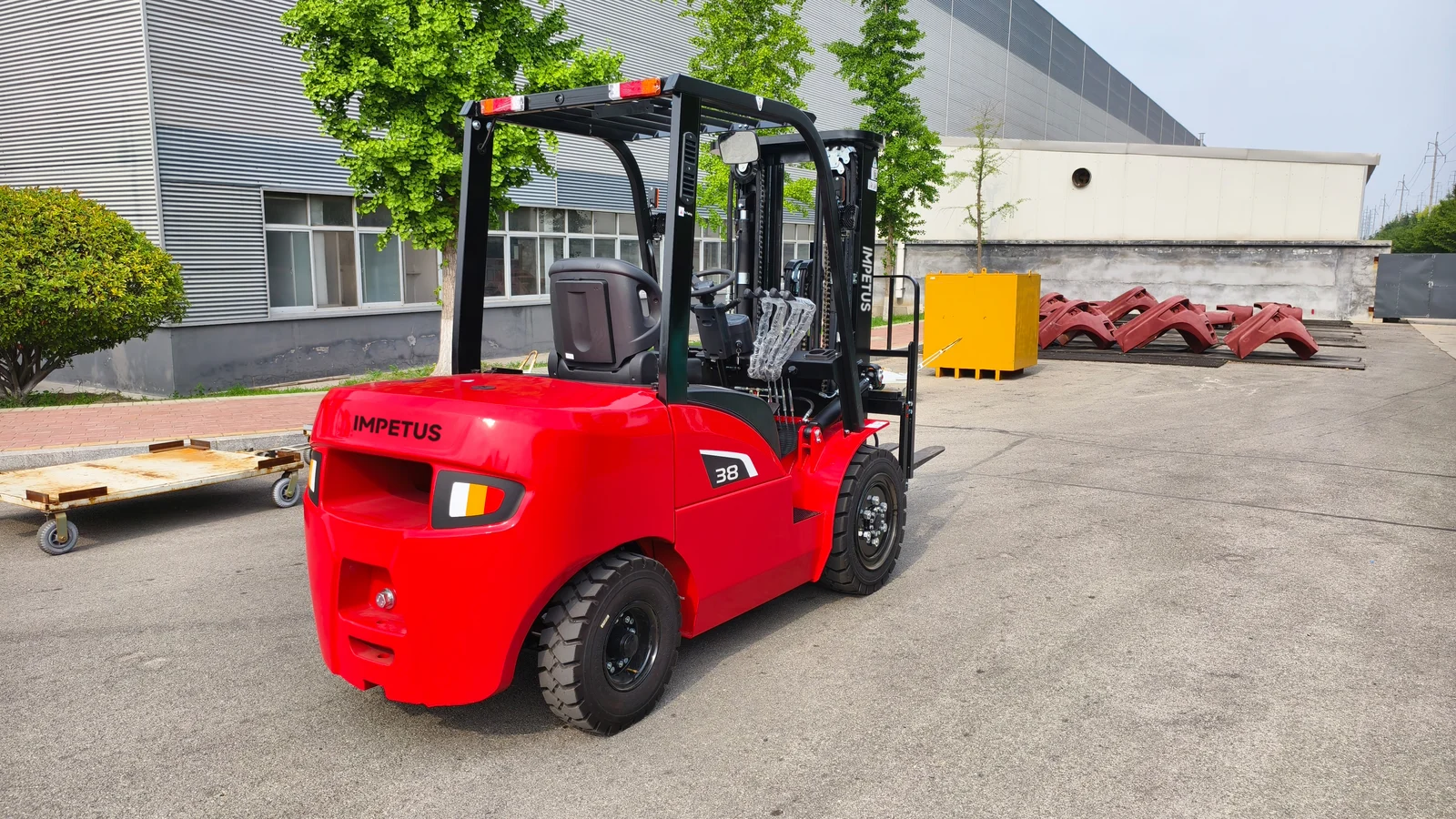

3.8 Ton Diesel Forklift — Impetus FD38 detail view 4

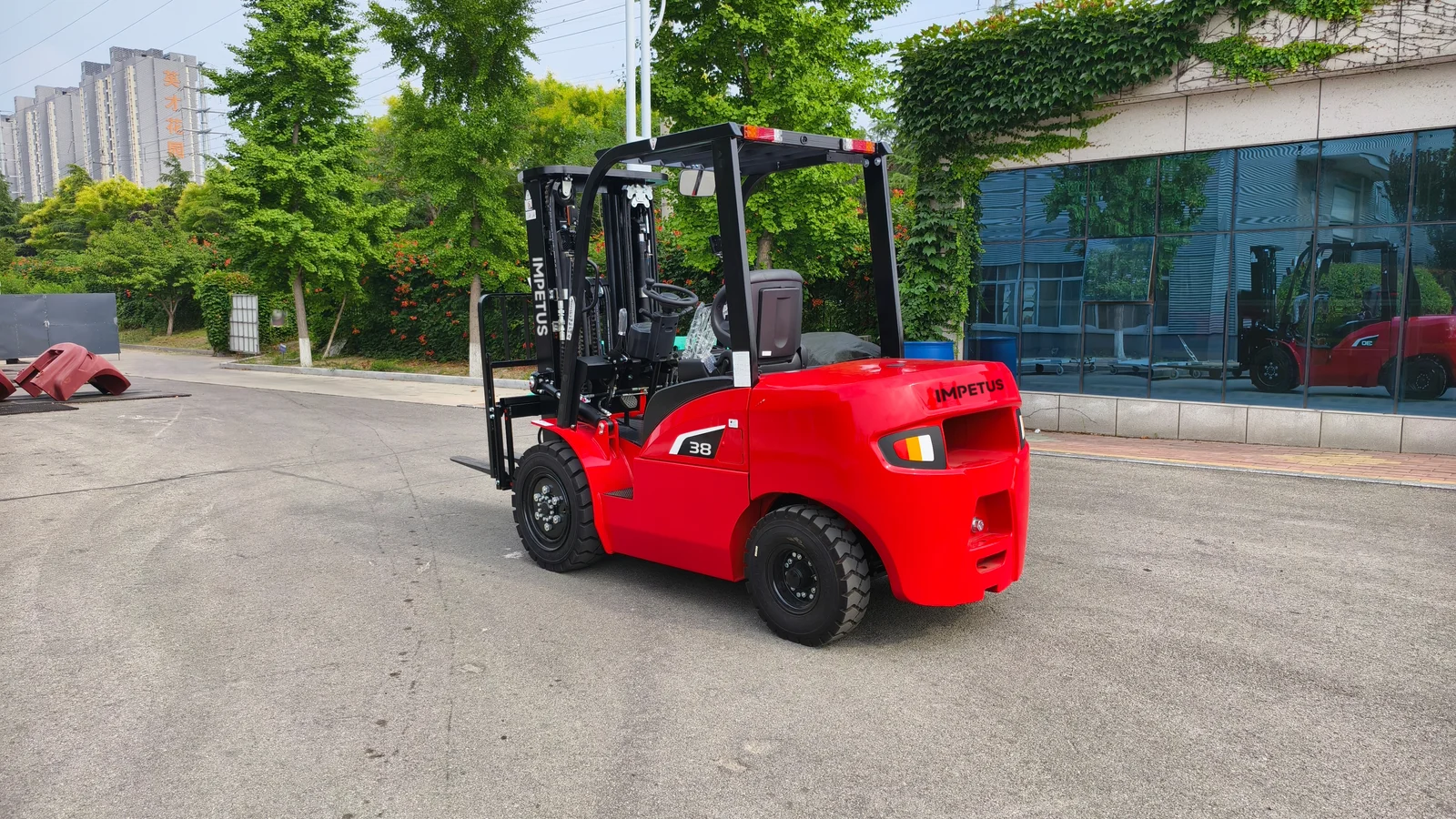

3.8 Ton Diesel Forklift — Impetus FD38 detail view 5

3.8 Ton Diesel Forklift — Impetus FD38 thumbnail 1

3.8 Ton Diesel Forklift — Impetus FD38 thumbnail 2

3.8 Ton Diesel Forklift — Impetus FD38 thumbnail 3

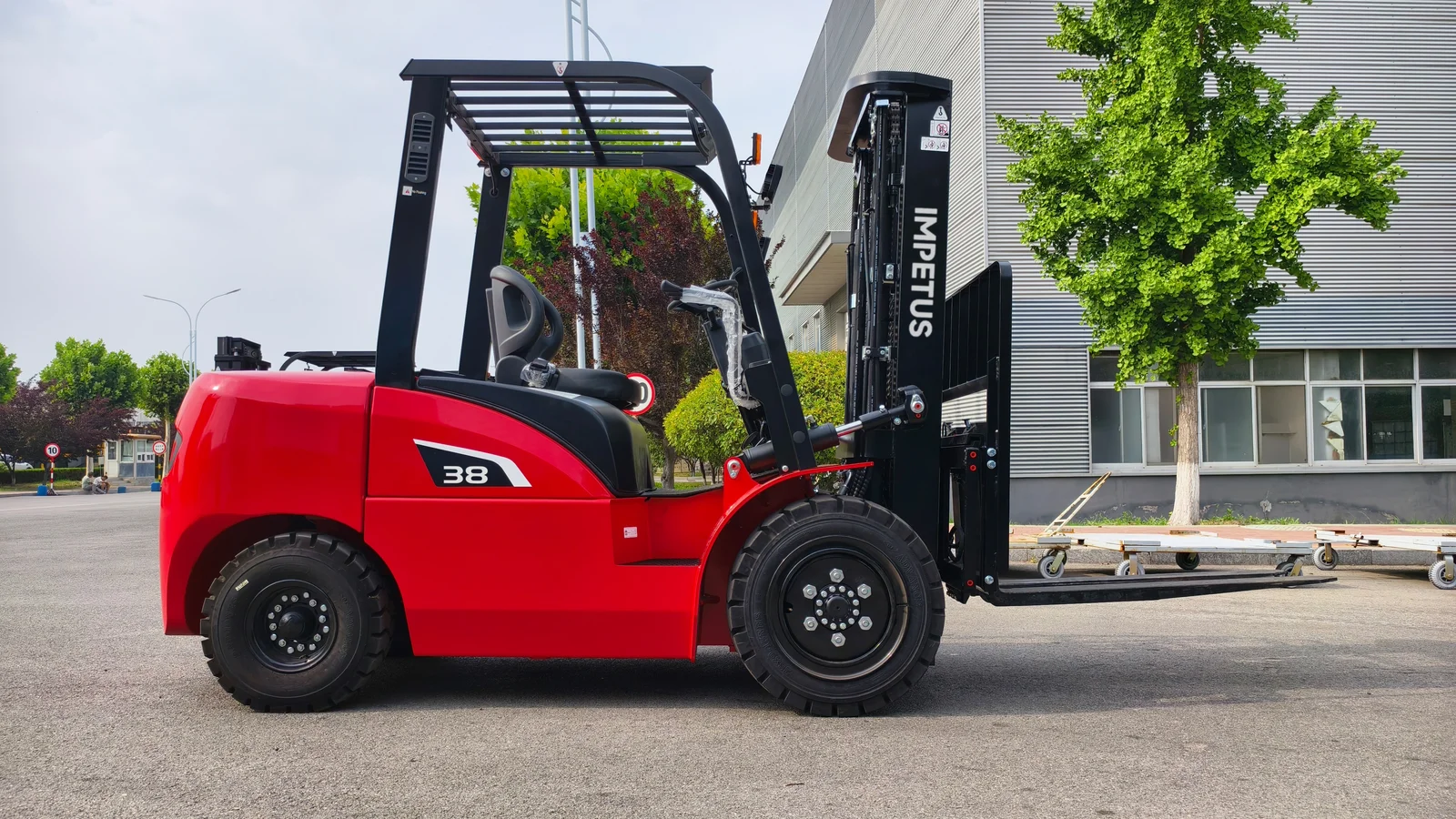

3.8 Ton Diesel Forklift

Engineered for easy maintenance, fuel efficiency, and operator comfort. FD38 delivers lower operating costs and higher uptime across demanding work environments.

oil_barrel Efficient diesel engine with low fuel consumption
airline_seat_recline_extra Operator-centric cabin for all-day comfort
visibility Heavy-duty mast with excellent forward visibility

Ready to upgrade your fleet?

Connect with our engineering sales team to configure the FD38 for your facility's exact requirements.

Power type	Diesel	Lift capacity	3800 kg
Load center distance	500 mm	Battery (Voltage/Capacity)	12/80
Max. lift height	3000 mm	Free lift height	130 mm
Mast tilt angle (front/rear)	6/12	Max. lift speed (full load/no load)	370/400
Max. lowering speed (full load/no load)	330/310	Max. travelling speed (full load/no load)	18.5/19
Min. turning radius	2720 mm	Gradeability (full load/no load)	15/20%
Max. traction force	20	Overweight	4800 kg
Length (without forks)	2960 mm	Width	1230 mm
Height	2130 mm	Min. ground clearance	130 mm
Wheel base	1900 mm	Wheel tread	1000 mm
Front overhang	490 mm	Rear overhang	600 mm
Tire	28×9-15-14PR	Fork size (LWH)	1220×122×50
Engine model	Quanchai 4C3-50V33	Rated power	36.8/2500
Rated torque	190/1600-1800	Number of cylinder	4
Displacement	2.85

Power type	Diesel
Lift capacity	3800 kg
Load center distance	500 mm
Battery (Voltage/Capacity)	12/80
Max. lift height	3000 mm
Free lift height	130 mm
Mast tilt angle (front/rear)	6/12
Max. lift speed (full load/no load)	370/400
Max. lowering speed (full load/no load)	330/310
Max. travelling speed (full load/no load)	18.5/19
Min. turning radius	2720 mm
Gradeability (full load/no load)	15/20%
Max. traction force	20
Overweight	4800 kg
Length (without forks)	2960 mm
Width	1230 mm
Height	2130 mm
Min. ground clearance	130 mm
Wheel base	1900 mm
Wheel tread	1000 mm
Front overhang	490 mm
Rear overhang	600 mm
Tire	28×9-15-14PR
Fork size (LWH)	1220×122×50
Engine model	Quanchai 4C3-50V33
Rated power	36.8/2500
Rated torque	190/1600-1800
Number of cylinder	4
Displacement	2.85

1. Easy Maintenance & Spacious Hood Design

Large opening hood and organized component layout provide quick access for daily inspection and maintenance, reducing downtime and service costs.

2. Powerful & Fuel-Efficient Engine

Equipped with a reliable high-performance engine and advanced hydraulic system, the forklift delivers strong power, fast response, and lower fuel consumption for demanding working conditions.

3. Comfortable & Ergonomic Operation

Optimized control layout, spacious operating area and ergonomic seat design improve driver comfort and reduce fatigue during long working hours.

4. Durable Structure & Long Service Life

Built with a reinforced chassis and reliable core components, the forklift ensures excellent stability, durability, and long-term performance across various working conditions.
